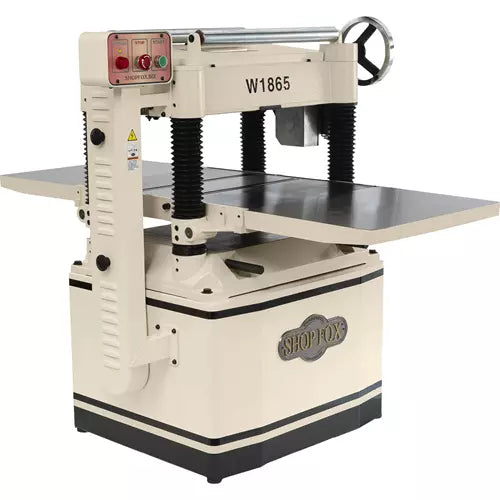

20" 5HP Planer w Helical Cutterhead

Achieve perfectly parallel surfaces with a woodworking planer.

The Shop Fox W1865 Planer features a 20" planing capacity and a 3-1/4" cutterhead comes complete with 92 indexable carbide inserts. The inserts can each be rotated three times to expose new, sharp cutting edges.

The inserts sit at a slight angle to the for smooth shearing cuts, minimized tearout, a smoother finish, and operating at lower noise levels.

The 20" x 56" precision-ground cast-iron table ensures accurate and consistent results, as the board will be properly supported and guided during the planing process.

The feed rate control knob allows the feed rate to be 28 FPM when pushed in and 16 FPM when pulled out.

The easy access pedestal-mounted controls include a magnetic switch with thermal overload protection.

The 5" dust port connects to your dust-collection system to extract shavings and dust during operation.

Like all Shop Fox planers, the W1865 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1865 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your planer.

The Customer Service and Technical Support Teams are also U.S.-based. Parts for the planer may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 5 HP, 220V, single-phase, 23A
• Maximum cutting width: 20"
• Maximum cutting thickness: 8"
• Maximum cutting depth: 1/8"
• Minimum length of stock: 7"
• Minimum stock thickness: 1/4"
• Cutterhead diameter: 3-1/4"
• Cutterhead type: 4-row helical, 92 inserts
• Feed rate: 16, 28 FPM
• Table size: 20" x 56"
• Dust port size: 5"
• Overall dimensions: 44" W x 56" D x 45" H
• Approximate shipping weight: 882 lbs.

FEATURES:

• Two-year warranty!!
• Helical cutterhead with 92 indexable carbide inserts
• Triple V-belt drive
• Two-speed chain-driven automatic feed rollers
• Hardened anti-kickback fingers
• Precision-ground cast-iron table with extension wings
• Locking table
• Ball-bearing return rollers
• Depth scales in both inch and metric
• Serrated steel outfeed roller
