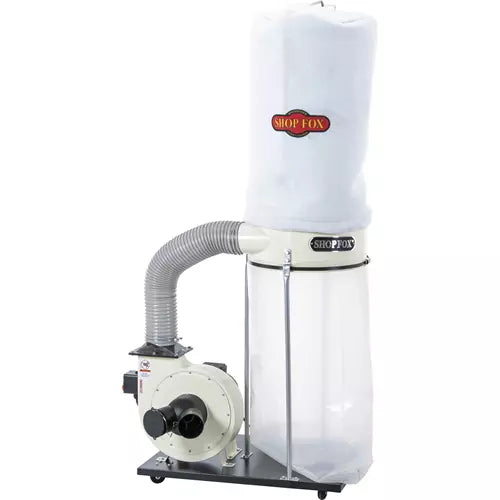

2HP Dust Collector

A powerful dust collector from Shop Fox.

This dust collector has air suction capacity of 1550 CFM and has a max static pressure of 12.3 inches.

Static pressure is produced by the 12" balanced steel, radial fin impeller to move the wood chips into the collector.

This unit features filters that capture chips and dust as small as 2.5 microns. Perfect for keeping your shop clean!

The W1666 manual was written by our U.S. based Technical Documentation Department and is packed with useful information.

The complete and easy-to-read manual provides full instructions on how to assemble and maintain your dust collector.

Like all Shop Fox dust collectors, the W1685 comes with a two-year warranty which covers parts and assures the unit is free from factory defects.

The Woodstock Customer Service and Technical Support Teams are U.S. based.

Parts and accessories for the dust collector may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor Size: 2 HP, 220V, single-phase,12A
• Portable Base Size: 21-1/2" x 33-1/2"
• Bag Volume: 5.4 Cubic Feet
• Height (With bags inflated): 78"
• Bag Size (Dia. x depth): 19" x 33" (2)
• Impeller: 12" Balanced Steel, Radial Fin
• Air Suction Capacity: 1550 CFM
• Static Pressure: 12.3"
• Standard Bag Filtration: 2.5-Micron
• Approximately Shipping Weight: 107 lbs.

FEATURES:

• Two-year warranty!!
• Has a 6" inlet with a removable "Y" fitting with two 4" openings
• Powder coated paint
