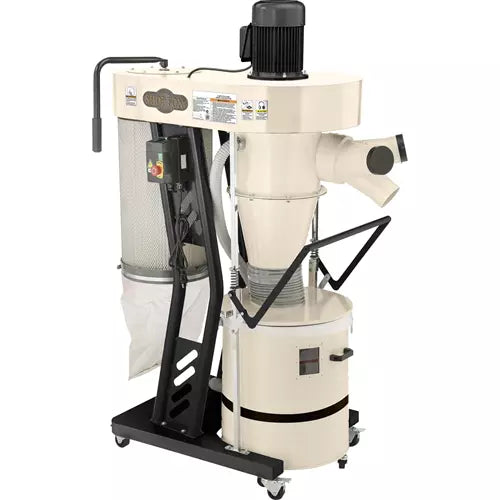

2HP Portable Cyclone Dust Collector

The W1868 Cyclone Dust Collector provides the efficiency of a 2-stage cyclone system with the portability of a single-stage dust collector.

Featuring an impressive 1023 CFM and up to 10.9" of static pressure, creating a vortex of incoming air that extracts heavy wood chips and large dust particles into a plastic-bag-lined 20-gallon steel drum.

The remaining fine dust travels past the 13" aluminum impeller, is caught by a canister filter and then deposited in a separate plastic collection bag.

The spun-bond polyester filter catches 99.9% of particles to 1 micron in size and is pleated to provide maximum surface area for efficient air flow.

A turn of the filter cleaning handle rotates the paddle brushes, knocking caked-on dust off of the pleats to keep your CFM as high as possible.

The collection drum features a quick-release handle that makes it easy to roll it out for sawdust disposal.

Features include high surface area pleated filters with paddles to mechanically knock off dust cake, remotely controlled magnetic switches, easy lid lifting levers for emptying collection drums, and a compact design for moving around the shop.

Machines manufactured after 2021 feature a heavy-gauge clear plastic adapter that allows three 4" lines to be connected simultaneously. This allows for easy visibility and will help track down potential clogs.

Like all Shop Fox dust collectors, the W1868 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1868 manual was written by the U.S. based Woodstock Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your dust collector.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the collector may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 2 HP, 220V, single-phase, 9A
• Intake hole size: 7"
• Impeller: 13" cast aluminum
• Airflow performance: 1023 CFM
• Max static pressure: 10.9"
• Filtration: 1 micron
• Filter surface area: 28.1 sq. ft.
• Collection drum size: 20-gallon
• Overall dimensions: 28-1/2" W x 52" D x 70" H
• Approximate shipping weight: 294 lbs.

FEATURES:

• Two-year warranty!!
• Wireless remote-control operation
• Compact, portable design
• Quick-release handle on collection drum
• Swivel casters on base and collection drum
• Heavy-gauge clear plastic adapter for easy visibility
