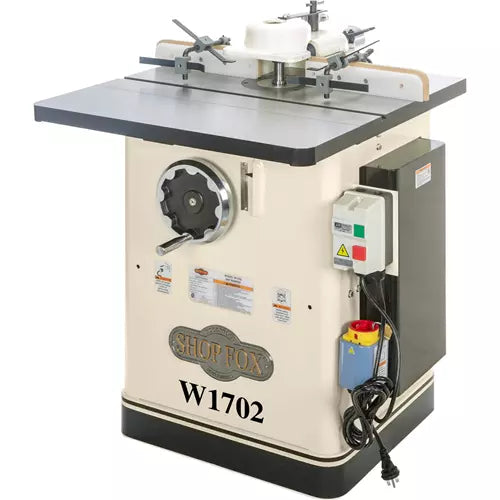

3HP Shaper

Whether edge-profiling or making door stiles, rails, and panels, this is the right machine for the job.

The full-capacity W1702 3 HP Shaper will handle the smallest profile cutters, all the way up to the largest panel cutters with its three included spindle sizes, 3" spindle travel, and 5-1/2" maximum cutter diameter capacity.

The 3 HP motor rotates the spindles at reversible speeds of 7000 and 10,000 RPM, providing the greatest flexibility for accommodating cutters of all sizes.

The cast-iron table is precision-ground and measures 28-1/4" x 30-1/2".

The two-piece cast-iron fence is independently adjustable for different cutting thicknesses and special shaping applications. It is also removable for easy replacement with a zero-clearance or other custom-made fence.

For additional length, the D4927 4" Long Spindle will allow you to use up to 3" tall cutters on the W1702.

The W1702 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1702 manual was written by our U.S. based Tech Doc Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your shaper.

Our Customer Service and Tech Support Teams are U.S.-based. Parts for the shaper may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 240V, single-phase, 12A
• Maximum cutter height: 2"
• Maximum cutter diameter: 5-1/2"
• Spindles: 1/2", 3/4", 1"
• Spindle lengths: 2-3/4", 3", 3-1/2"
• Spindle capacity under nut: 2", 2-1/4", 2-1/2"
• Spindle travel: 3"
• Spindle speeds: 7000, 10,000 RPM
• Spindle openings: 1-3/8", 2-3/4", 4", 5-1/2"
• Table size: 28-1/4" W x 30-1/2" D
• Floor-to-table height: 34"
• Footprint: 20" x 21"
• Overall dimensions: 30-1/2" W x 28-1/4" D x 39-1/2" H
• Approximate shipping weight: 353 lbs.

FEATURES:

• 2-year warranty!!
• Large handwheel elevates the spindle for precise control
• Spindle lock knob ensures consistent results
• T-slot miter gauge
• Magnetic switch with thermal overload protection
• Heavy cast-iron, independently adjustable, split fence allows full-edge profiling
• Built-in 3" dust port
• Large precision-ground cast-iron table
• Shielded and lubricated ball bearings
• Interchangeable spindle are easy to change
• Removable table inserts provide work support close to the cutter
• Included starting pins for freehand shaping
