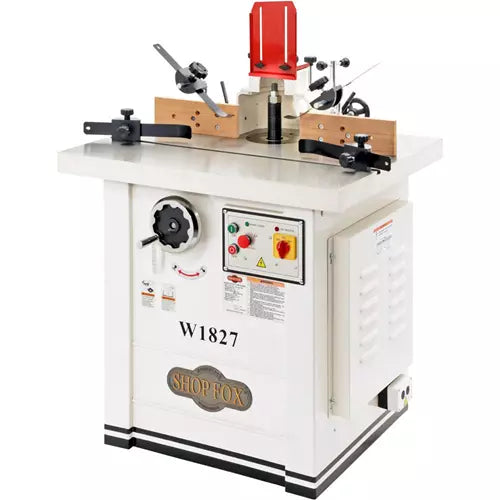

5HP Shaper

This 5 HP Spindle Shaper is sized to handle large raised-panel doors and extra-wide moulding profiles.

With three included spindle sizes (3/4", 1", 11/4") and four spindle speeds ranging from 3600 RPM to 10,000 RPM, choosing the right shaper cutter for the job will never again be a problem.

The long spindle lengths also allow total flexibility for running tall cutters or stacking multiple cutters and spacers.

Its heavy cast-iron split adjustment fence lets you dial in just the right amount of offset for edge profiling.

The heavy cast-iron table and base are made for the toughest jobs.

Like all Shop Fox shapers, the W1827 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1827 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your shaper.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Motor: 5 HP, 220V, single-phase, 25A
• Table size: 35-1/2" x 28" x 2-5/16"
• Floor-to-table height: 34-3/4"
• Spindle travel: 3-1/4"
• Spindle sizes: 3/4", 1", 1-1/4"
• Maximum cutter heights (per spindle): 4-1/4", 4-5/8", 5-1/8"
• Spindle openings: 2", 3", 3-1/2", 7"
• Spindle speeds: 3600, 5100, 8000, 10,000 RPM
• Maximum cutter diameter: 5-7/8"
• Table counterbore: 7"
• Approximate shipping weight: 615 lbs.

FEATURES:

• Two-year warranty!!
• Cast-iron, independently adjustable fence
• Push button controls with magnetic safety switch and thermal overload protection
• 4" dust port
• Micro-Adjustable fence
• Spindle height scale
• Spindle spacers and nuts, hold-down assemblies and table inserts
• FWD/REV spindle rotation switch
• Precision-ground cast-iron table
