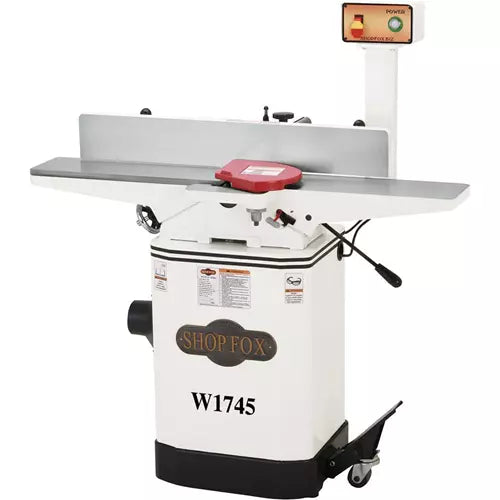

6" Jointer w Mobile Base

A rock-solid 6" jointer with built-in added mobility for your small shop.

The oversized cast-iron fence on the W1745 6" Jointer provides tremendous control for edge-jointing wide boards and features stops at 45°, 90°, and 135° and a rack-and-pinion adjustment mechanism.

The fine-adjust handwheel dials in the outfeed table relative to the cutterhead top dead center.

The lever-adjusted infeed table provides quick and accurate infeed table movement.

The W1745 features a 1 HP motor that spins the 3-knife cutterhead at 4800 RPM, easily squaring your stock in one swift pass.

The single-sided knives are made of high-speed steel (HSS). HSS has been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

Like all Shop Fox jointers, the W1745 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1745 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your jointer.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the jointer may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

CSA certified

SPECIFICATIONS:

• Motor: 1 HP, 120V, single-phase, 13A
• Maximum stock width: 6"
• Maximum depth of cut: 1/8"
• Maximum rabbeting capacity: 1/2"
• Minimum stock length: 8"
• Minimum stock thickness: 1/2"
• Cutterhead diameter: 2-1/2"
• Knives: 3 (HSS) 6" x 5/8" x 1/8"
• Cutterhead speed: 4800 RPM
• Cuts per minute: 14,400
• Table size: 6" x 46"
• Table height from floor: 32-1/2"
• Fence size: 35" L x 5" H
• Fence adjustment: positive stops @ ± 45°, 90°, 135°
• Overall dimensions: 46" W x 27-1/2" D x 32-1/2" H
• Approximate shipping weight: 280 lbs.

FEATURES:

• Two-year warranty!!
• Center-mounted fence with positive stops at 45, 90, and 135°
• Built-in mobile base
• Built-in dust chute with 4" collection hood
• Quick adjusting lever on infeed table
• Fine control handwheel on outfeed table
• Easy access switch with a removable safety key
• Rack-and-pinion fence adjustment
• Pair of push blocks included
