6x89" Oscillating Edge Sander

Professional-grade edge sanding.

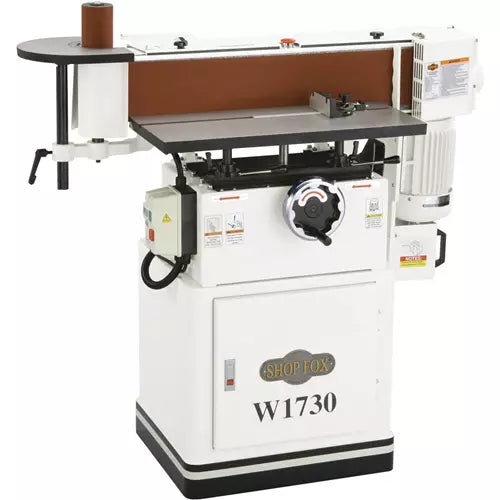

The W1730 Oscillating Edge Sander has a vertically and horizontally adjustable table and a 0°–90° tilting platen for a full range of adjustment for custom applications.

This edge sander has a 2 HP motor, and vertically oscillates the 6" x 89" belt three-quarters of an inch fifty-two times per minute.

The cast-iron auxiliary table provides space for edge sanding as well as spindle sanding with the spindle sanding attachment.

Complementing features to best utilize the adjustment range of the W1730 are a T-slot cast-iron table, a 180° adjustable miter gauge, and a removable fence.

Three non-oscillating spindle sanding drums, measuring 1-1/2", 2", and 3" in diameter are included for sanding smaller contoured surfaces.

Other features include a 180° adjustable miter gauge, two 4" dust ports, powder-coated finish, and a removable fence.

For a full range of replacement belts for the W1730, shop here.

Like all Shop Fox edge sanders, the W1730 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1730 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the edge sander may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

CSA and UL certified

SPECIFICATIONS:

• Motor: 2 HP, 240V, single-phase, 9A
• Sanding belt size: 6" x 89"
• Sanding belt speed: 3150 FPM
• Sanding belt tilt: 0–90°
• Sanding belt oscillation stroke: 1/4"
• Table size: 12" x 26-7/8"
• Table travel: 3-3/4"
• End table size: 10" x 11-1/2"
• End table travel: 10"
• Drive drum diameter: 7"
• Idler roller diameter: 3-7/8"
• Platen with graphite pad: 6-3/4" x 30-1/4"
• Platen tilt: 0°–90° (5° scale)
• Footprint: 22-1/2" W x 19-1/2" D
• Overall size: 50-1/2" W x 23" D x 49" H
• Approximate shipping weight: 443 lbs.

FEATURES:

• Two-year warranty!!
• Sanding surface tilts vertical to horizontal
• 3 spindle drums: 1-1/2", 2", 3" x 4-1/2" high
• Precision-ground cast-iron tables
• T-Slot table and miter gauge
• Two 4" dust ports
• Quick-release belt tension lever
• Graphite-coated platen
• Oscillating sanding belt
• Shielded and permanently lubricated ball bearings
