Pin Jaws

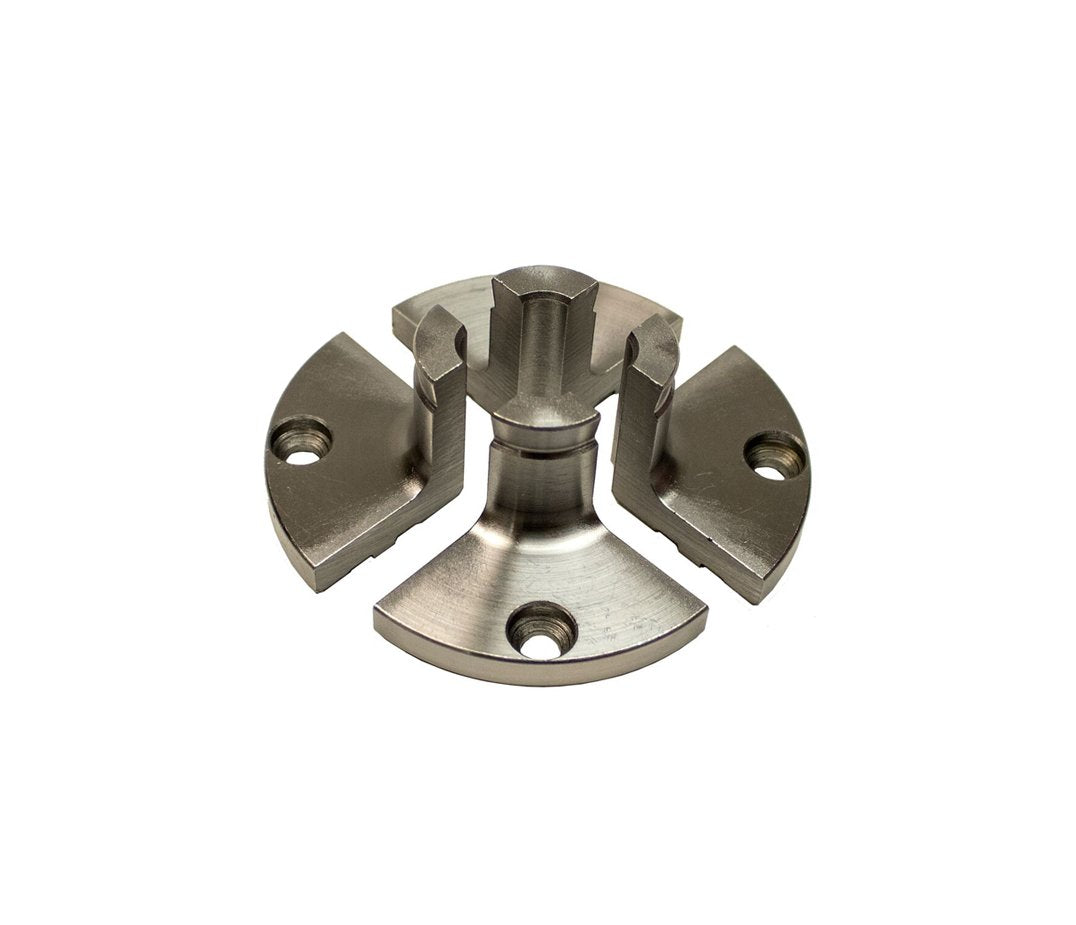

The NOVA JSPIN Pin Accessory Jaw set has a long nose, designed to act as a pin chuck – expanding into a pre-bored hole, a very useful technique for free-form edged bowls. It is not necessary to bore an exact size as with other pin jaws. The longer jaws allow for a
very powerful spigot grip for smaller work such as lace bobbins. They are also ideal for longer dowel work. Twist drills can be gripped to enable the chuck to be used as a drill chuck. The jaw-set features a small dovetail to mount small bowls.

• Special NOVA dovetail profile, designed for maximum strength and holding in wood turning, all without crushing wood fibers.
• All NOVA jaws are designed to hold in the expansion and contraction modes
• Same jaw fixing system across all standard NOVA chuck models (except Quick Change) – giving you maximum system interchangeability and flexibility.
• Designed to act as a pin chuck – expanding into a pre-bored hole.

FEATURES:
• Longer jaws allow for a very powerful spigot grip for smaller work such as lace bobbins.
• Acts like a pin chuck, expanding into a pre-bored hole. Perfect for free-form edge bowls.
• These special 25mm extended jaws are designed to act as a pin chuck, expanding into a pre-bored hole. This is an especially useful holding method for bowls with a free-form edge.
• A big advantage over pin chucks is that you don’t have to bore to an exact size – any size between the minimum and just under the maximum expansion will do.
• The longer jaw length allows for a very powerful spigot grip for smaller work like lace bobbins (up to 6″ in length) and delicate pots.
• The jaws also have a dovetail for mounting small bowls (up to 6″ in diameter).
• Made from K1045 steel for maximum structural strength.
• The standard Woodworm Screw (included with NOVA chucks) can be used with these jaws.
• Only NOVA chucks give you the same jaw fixing system and same insert/adapter system across all standard chuck models – giving you optimal flexibility. All accessory jaws in the standard chuck range will fit all the standard NOVA Chucks. (NOVA Infinity Quick Change Chuck requires an optional accessory Upgrade Kit or Retro-Fit Kit to attach standard NOVA Accessories) Some jaws, however, are not recommended for use on all NOVA Chucks due to sizing, see manual for recommendations.
• NOVA chucks are specially designed so the jaws cut into the wood, grip firmly in the contraction mode and provide high tear out strength.

EXPANDING GRIP
25.9mm (1.02”) – 46mm (1.81”)

CONTRACTING GRIP
Square: 28mm (1.10”) – 7mm (.27“)
Spigot: 31mm (1.22”) – 9.9mm (.39”)
Actual sizes may vary depending on which NOVA chuck is being used.

WEIGHT: 1 Lbs / 453 grams

WARRANTY: 6-Year Full Replacement

IMPORTANT NOTICE
Safety Advisory! Only use authentic NOVA accessories on your NOVA chuck. Using non genuine NOVA and copies of accessories could lead to operation and safety issues and will void our market leading warranty. NOVA accessories are designed for use only on NOVA Chucks. Do not use on any other chuck.
