Shop Fox

1-1/2HP 6" Belt / 12" Disc Combination Sander

1-1/2HP 6" Belt / 12" Disc Combination Sander

SKU: W1712

Regular price $1,148.00
Regular price $1,249.99 Sale price $1,148.00
Sale Sold out

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

A professional-grade combination sander for heavy-duty sanding.

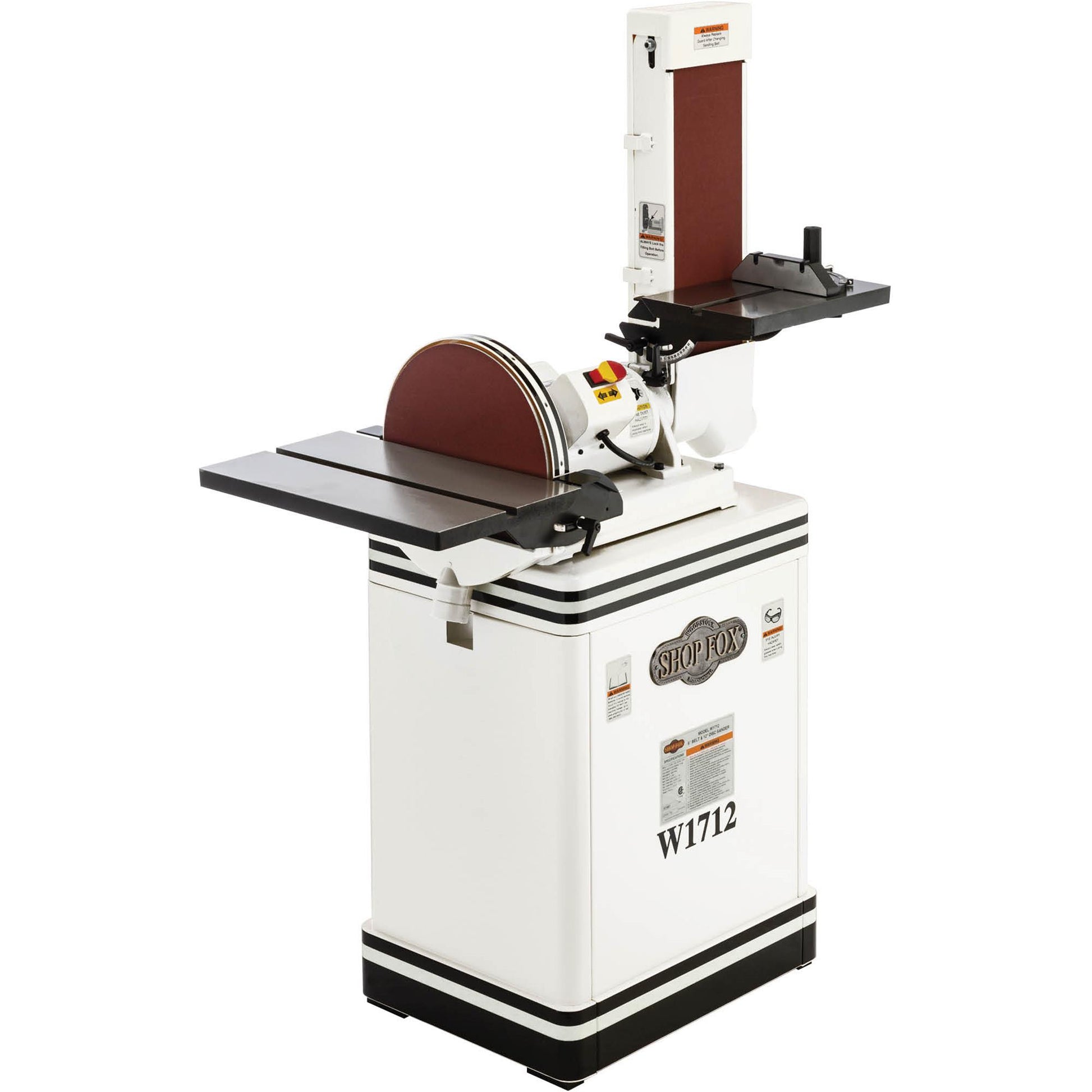

The heavy-duty W1712 6" x 48" Belt/12" Disc Combination Sander uses a 6" x 48" belt, a 12" disc, and a 1-1/2 HP motor to tackle your tougher sanding operations.

Unlike many belt-driven sanders that require adjustments, the W1712 uses a direct ball bearing drive from the motor to the sanding disc and belt to deliver a maintenance and vibration free positive torque flow.

The 6" x 48" sanding belt tilts 90° and can be used in both horizontal and vertical positions, or any angle between, based on your needs. For a full range of replacement belts for the W1712, shop here.

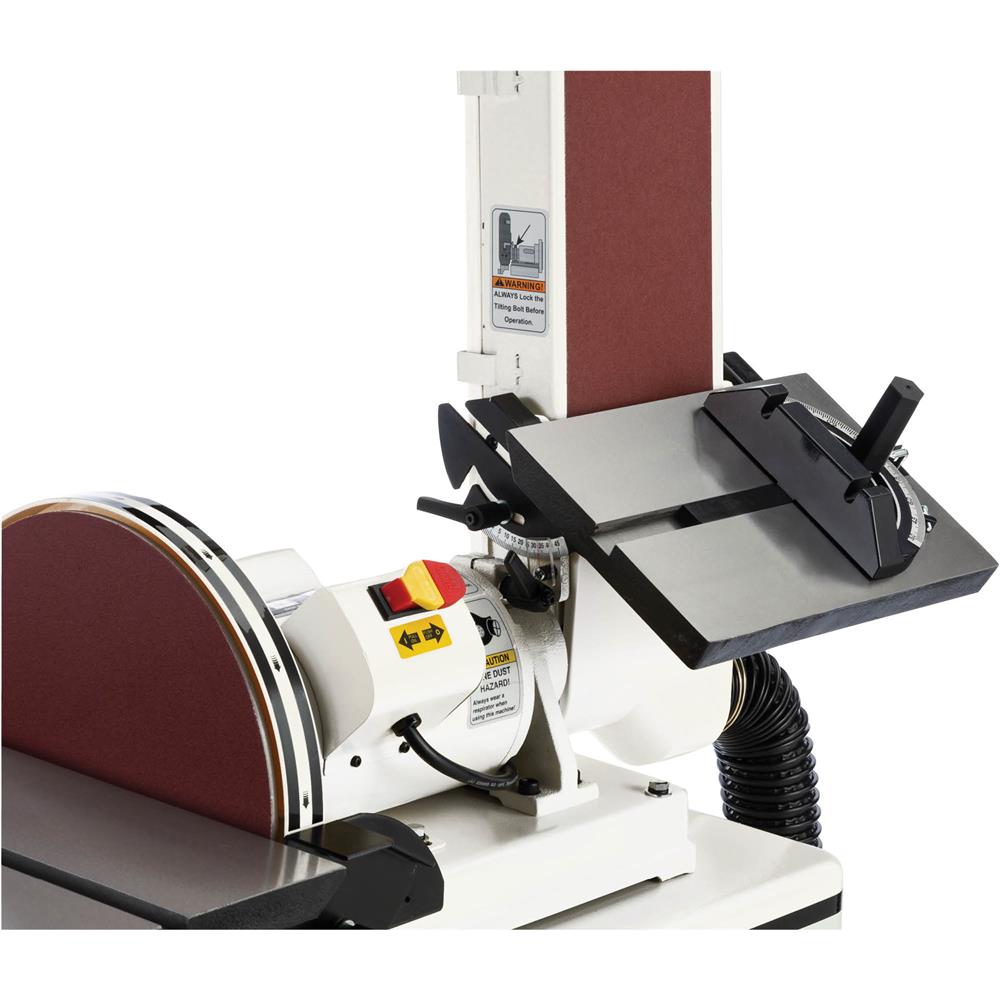

The back stop supports workpieces on the belt sander in any position.

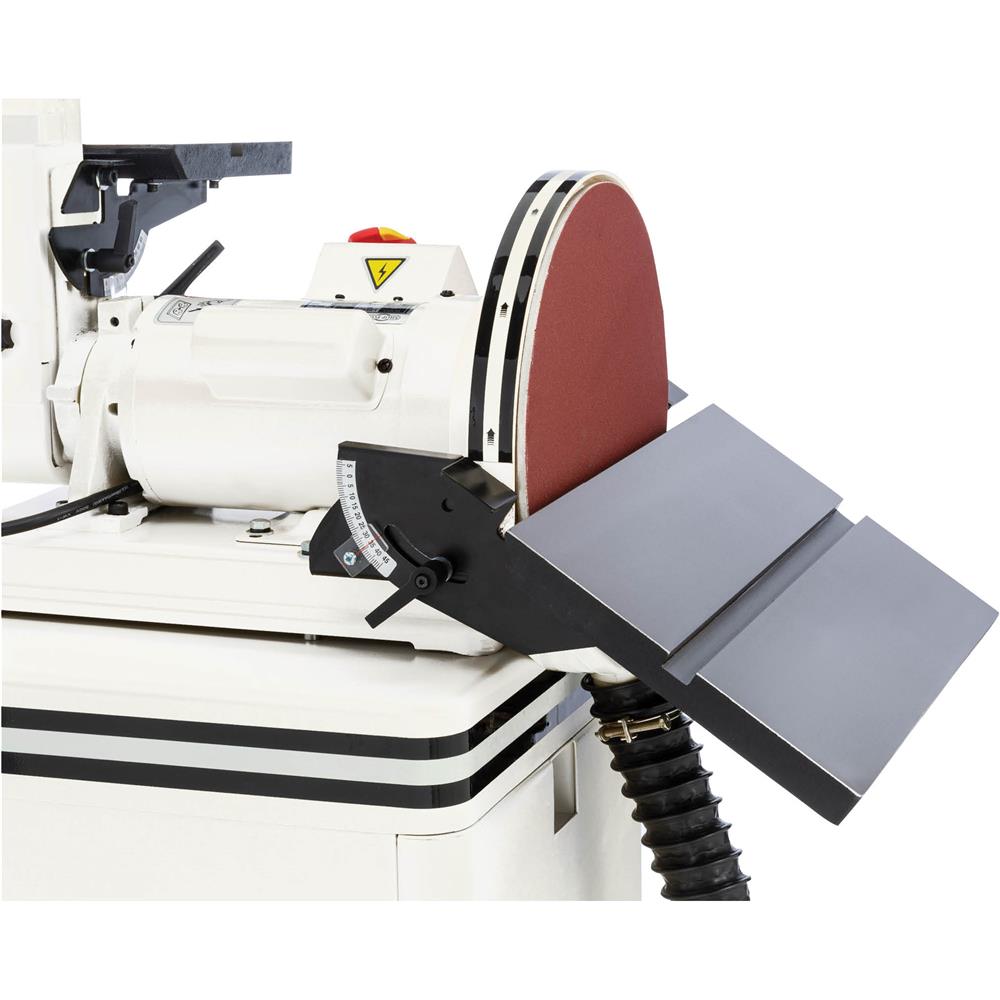

The 10" W x 17-5/8" L cast-iron work table tilts from 0° left to 45° right and supports workpieces when using the 12" sanding disc. Replacement PSA sanding discs are available in a variety of grits.

For increased sanding versatility and control, both cast-iron tables accept the miter gauge.

Like all Shop Fox combination sanders, the W1712 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1712 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the combination sander may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA and UL certified

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 110V, single-phase, 10.5A
  • Sanding belt size: 6" x 48"
  • Sanding belt speed: 1066 FPM
  • Sanding belt tilt: 0–90°
  • Platen size: 6 x 14-1/2"
  • Sanding disc diameter: 12"
  • Sanding disc speed: 1725 RPM
  • Sanding disc type: PSA
  • Sanding disc table size: 10" W x 17-5/8" L
  • Sanding disc table tilt: 0°–45°
  • Number of dust ports: 2
  • Dust port sizes: 2" and 2-1/2" (compatible with standard shop vacuums)
  • Footprint: 14" x 17"
  • Overall size: 35" W x 19" D x 55" H
  • Approximate shipping weight: 179 lbs.

FEATURES:

  • Two-year warranty!!
  • Two precision-ground cast-iron tables
  • Quick change belt release
  • Direct ball bearing drive
  • Tables tilts 0-45 degrees
  • Heavy-duty miter gauge
