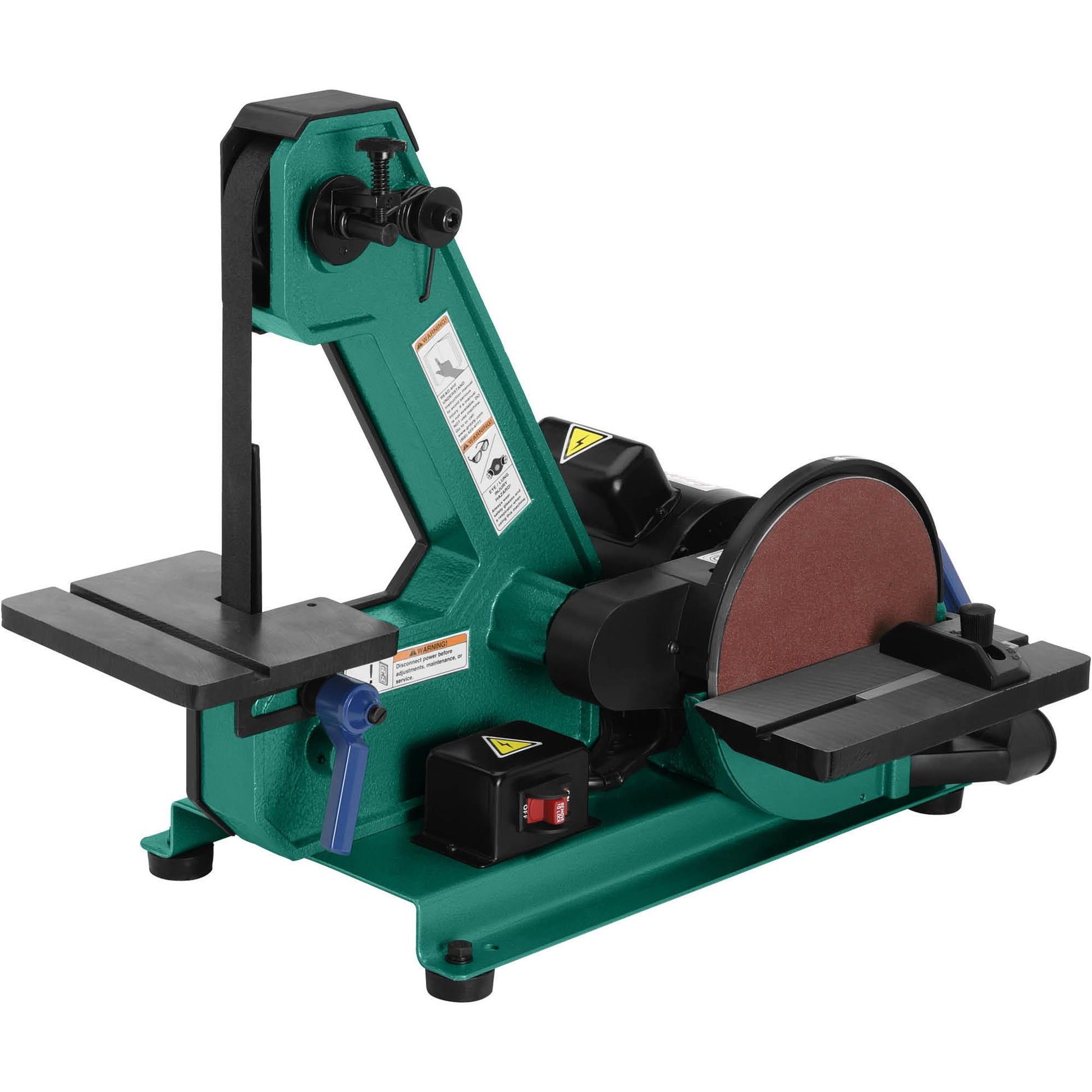

H8192 1" x 42" Belt / 8" Disc Combo Sander

Precise sanding for small projects and curves.

The H8192 1" x 42" Belt/8" Disc Combo Sander tackles detailed sanding tasks with finesse. Its compact size makes it ideal for use alongside bandsaws and scroll saws, allowing you to:

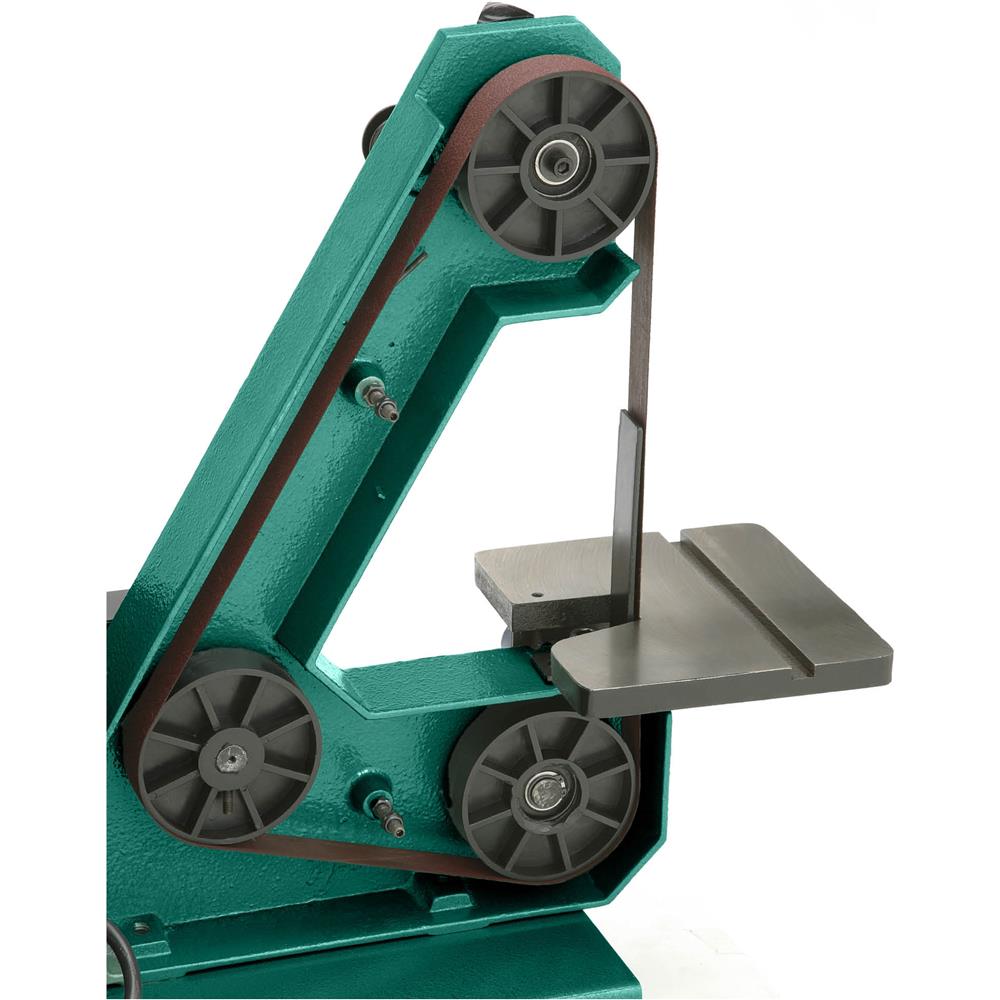

• Smooth Curves & Contours: The maneuverable 1" x 42" sanding belt conforms to curved edges and shapes.

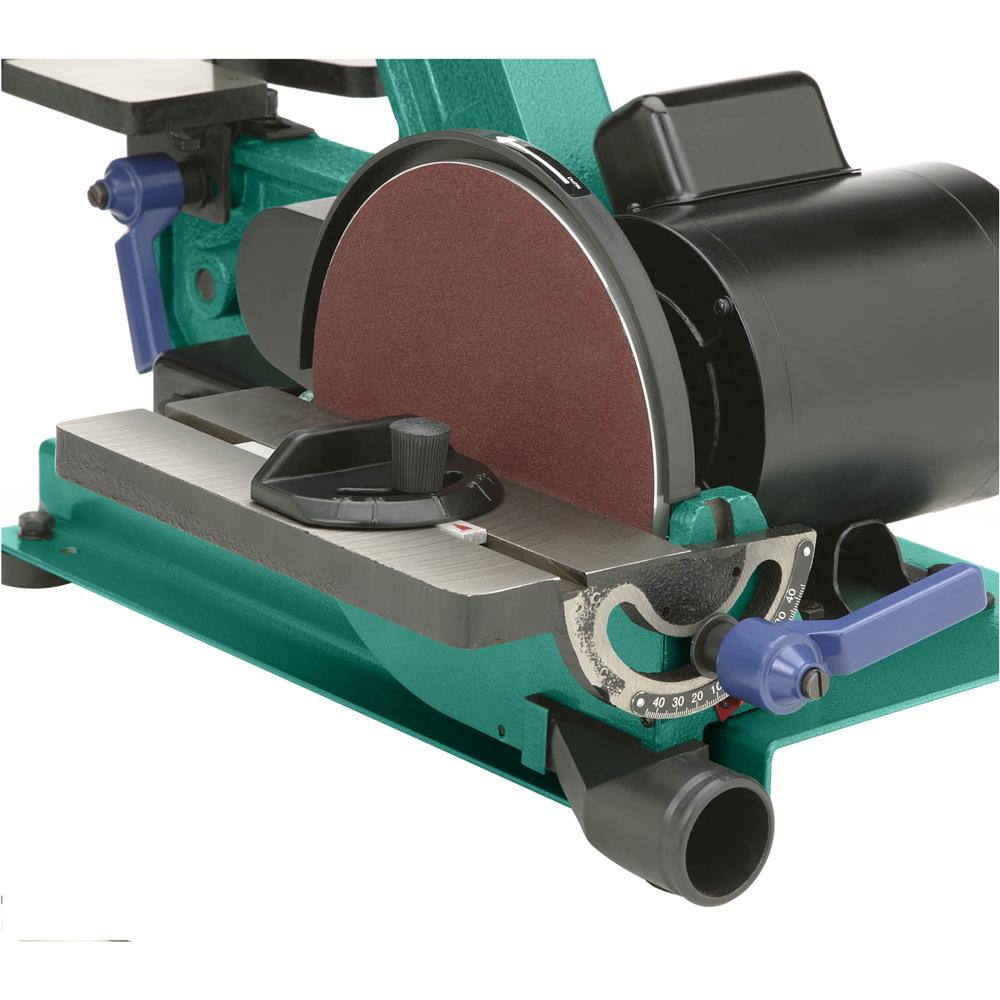

• Sharpen & Refine Details: The 8" disc sander precisely sands intricate areas and profiles.

The tables tilt from 0–45° and offer greater control for angled sanding on both the belt and disc.

Single-knob belt tracking ensures the belt stays aligned for optimal performance.

Dual dust ports maintain a clean work environment by connecting to your dust collection system.

A full range of replacement belts are available. Replacement PSA sanding discs are available in a variety of grits.

SPECIFICATIONS

• Motor: 1/3 HP, 110V, single-phase, 4A
• Sanding belt size: 1" x 42"
• Sanding belt speed: 3000 FPM
• Belt platen size: 1" x 4"
• Belt sanding table size: 6" x 7"
• Disc diameter: 8"
• Disc backing type: PSA
• Disc speed: 1725 RPM
• Disc sanding table size: 4" x 10"
• Table tilt: 0–45°
• Belt dust port OD: 1-7/8"
• Belt dust port ID: 1-1/2"
• Disc dust port OD: 1-3/4"
• Disc dust port ID: 1-1/2"
• Footprint: 11" x 18-1/4"
• Overall dimensions: 19-1/2" W x 26" D x 14-1/2" H
• Approximate shipping weight: 64 lbs.

FEATURES:

• Dual cast-iron tables with miter slots
• Both tables tilt to 45°
• Single-knob belt tracking
• Includes 80 grit belt and disc
