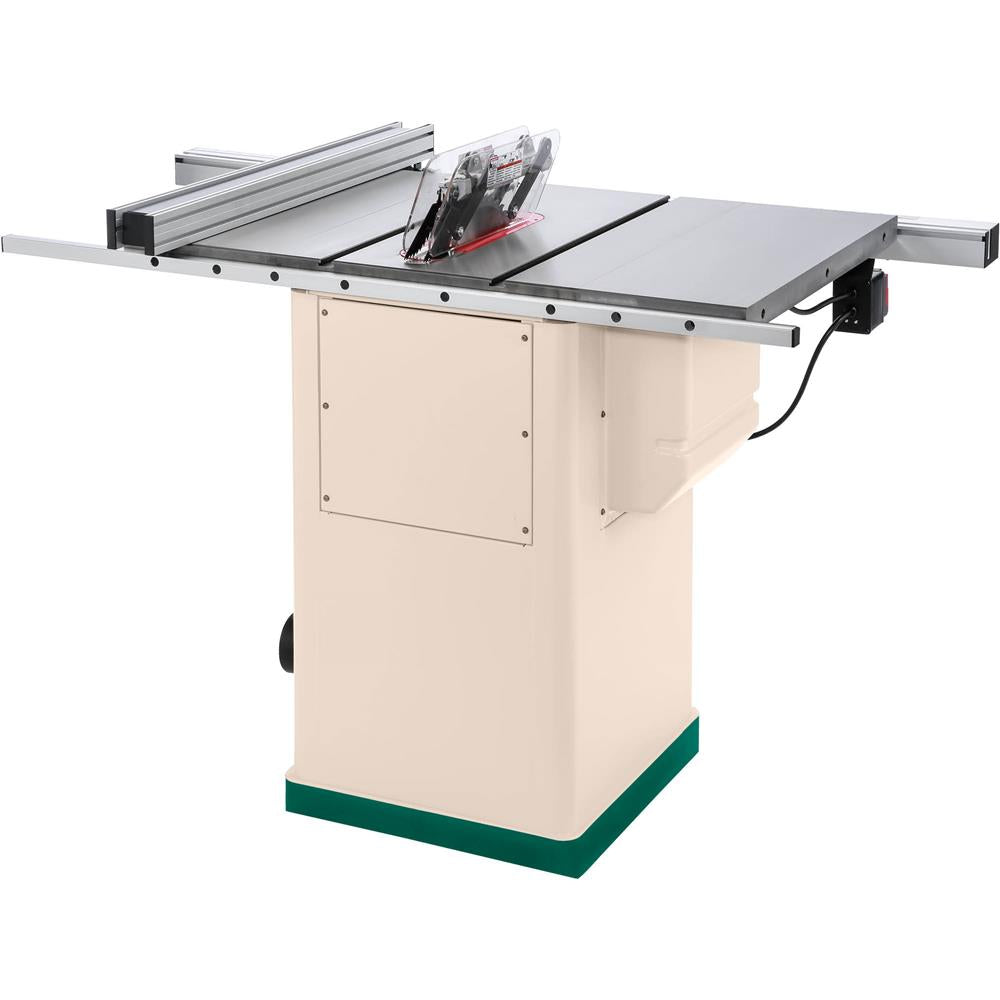

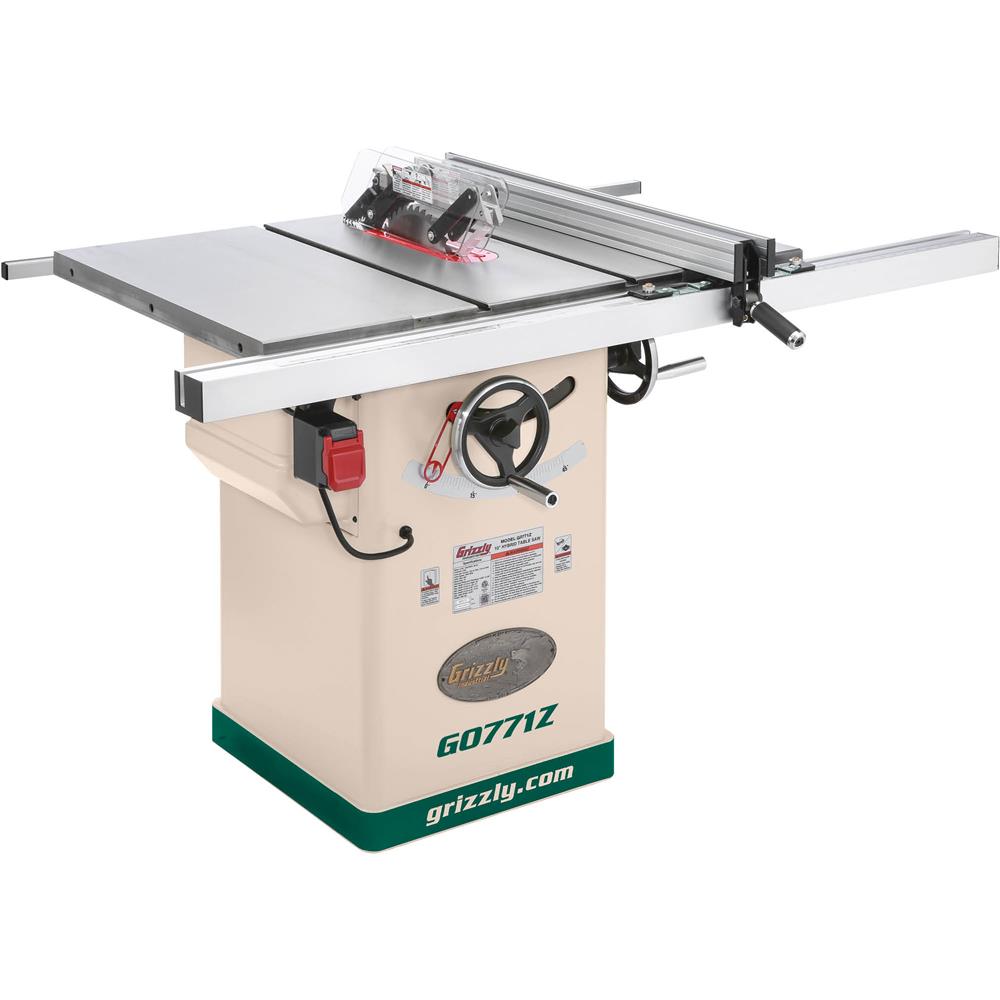

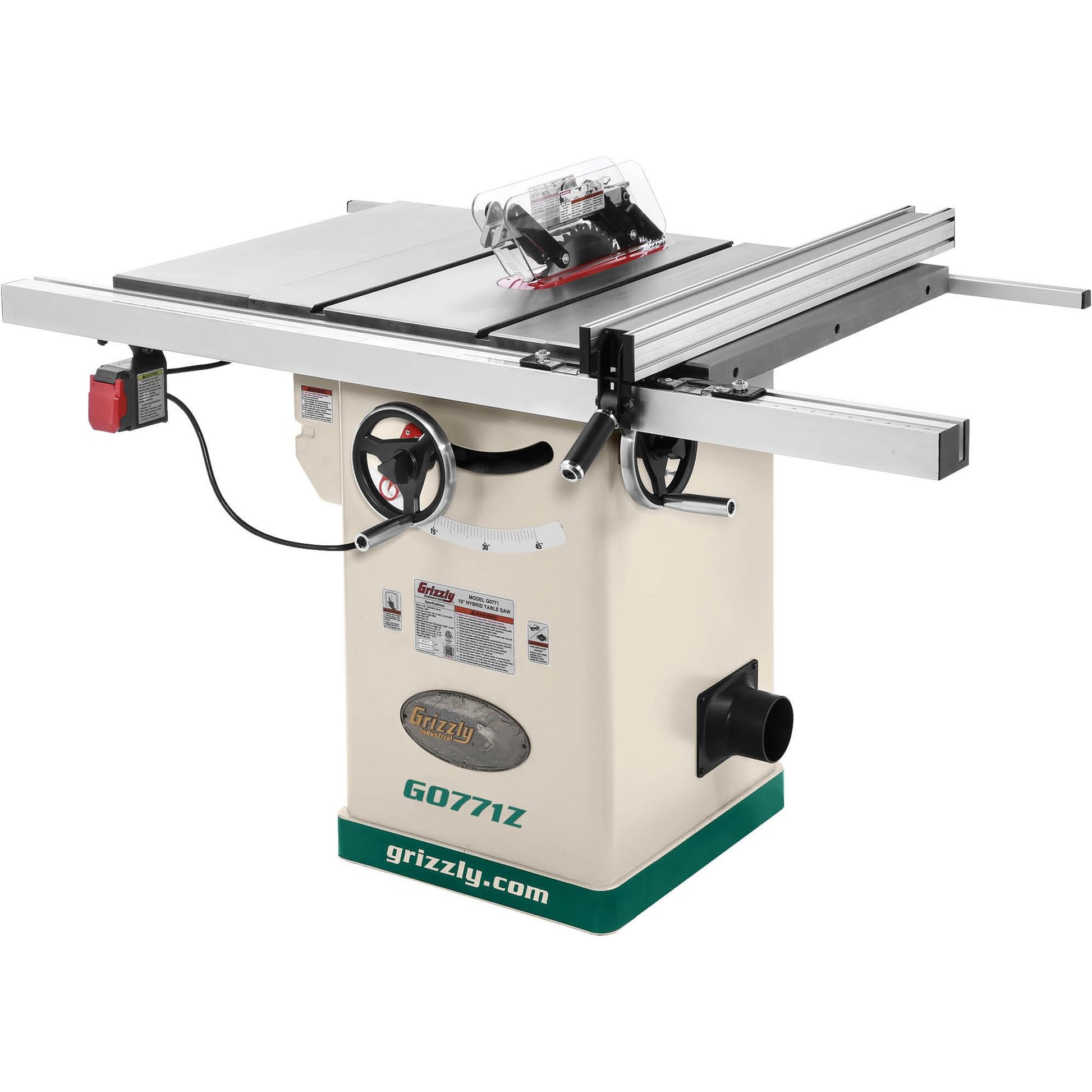

G0771Z 10" 2 HP Hybrid Table Saw

The best features of the contractor and cabinet saws combined.

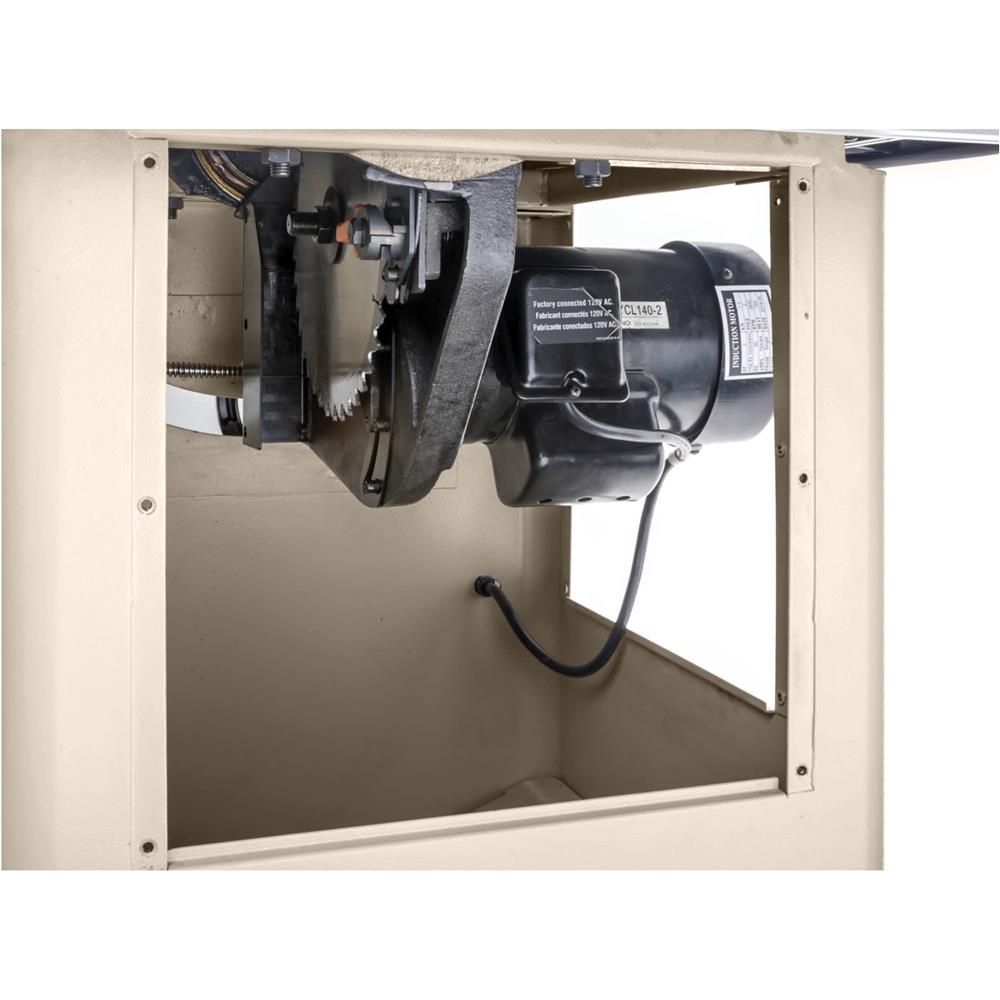

The G0771Z 10" 2 HP Hybrid Table Saw blends the best features of a contractor or jobsite table saw with the cabinet-style table saw. Like the cabinet saw, it has an enclosed cabinet, heavy-duty cast-iron trunnions that mount to the cabinet, and plenty of power to easily rip through hardwoods or cut dadoes. Like the contractor-style saw, it's still light enough to move where you need it and most importantly it's easy on the budget.

The fence on this machine is also a hybrid of the best features we've had on table saws in the last 30+ years. These all-time best features include the easiest lift-off and simple adjustability of one fence, the rock-solid front locking ability of another and the accessory T-slots of a third. The research and development put into this finished fence creates a simpler and more enjoyable user experience.

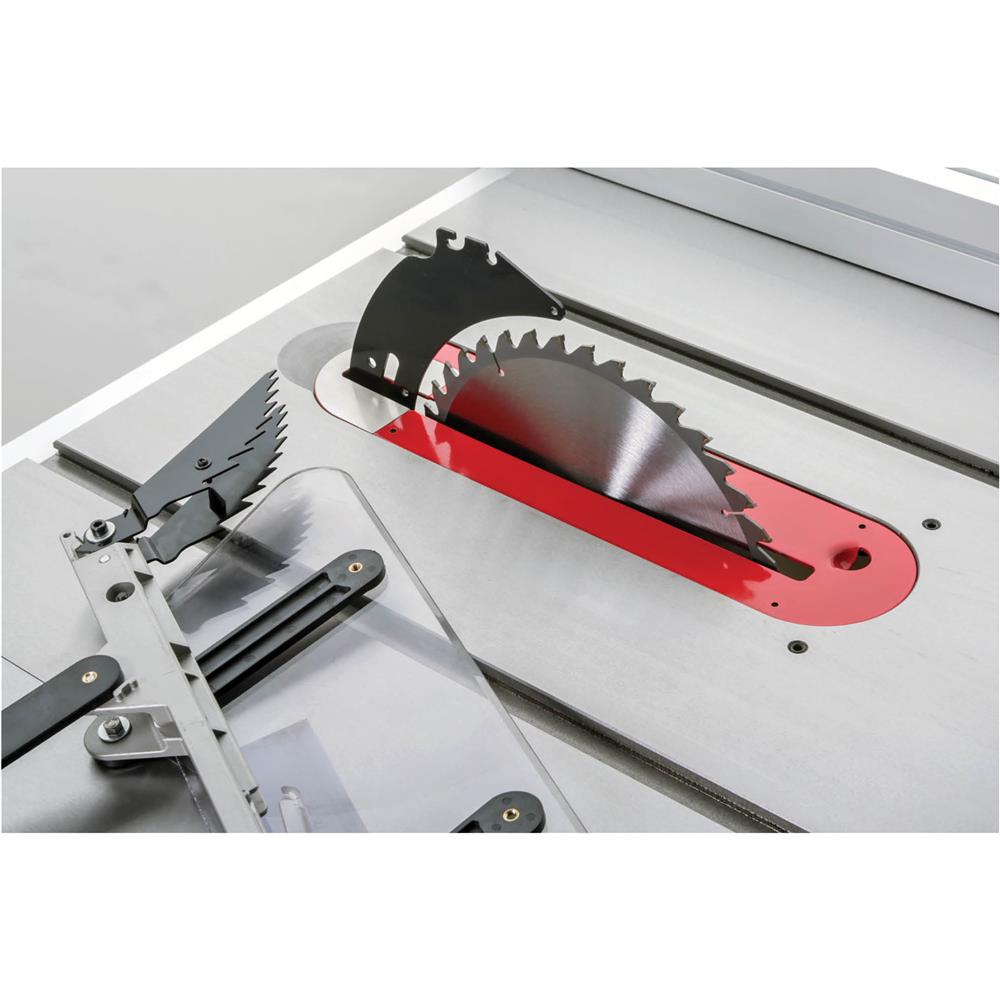

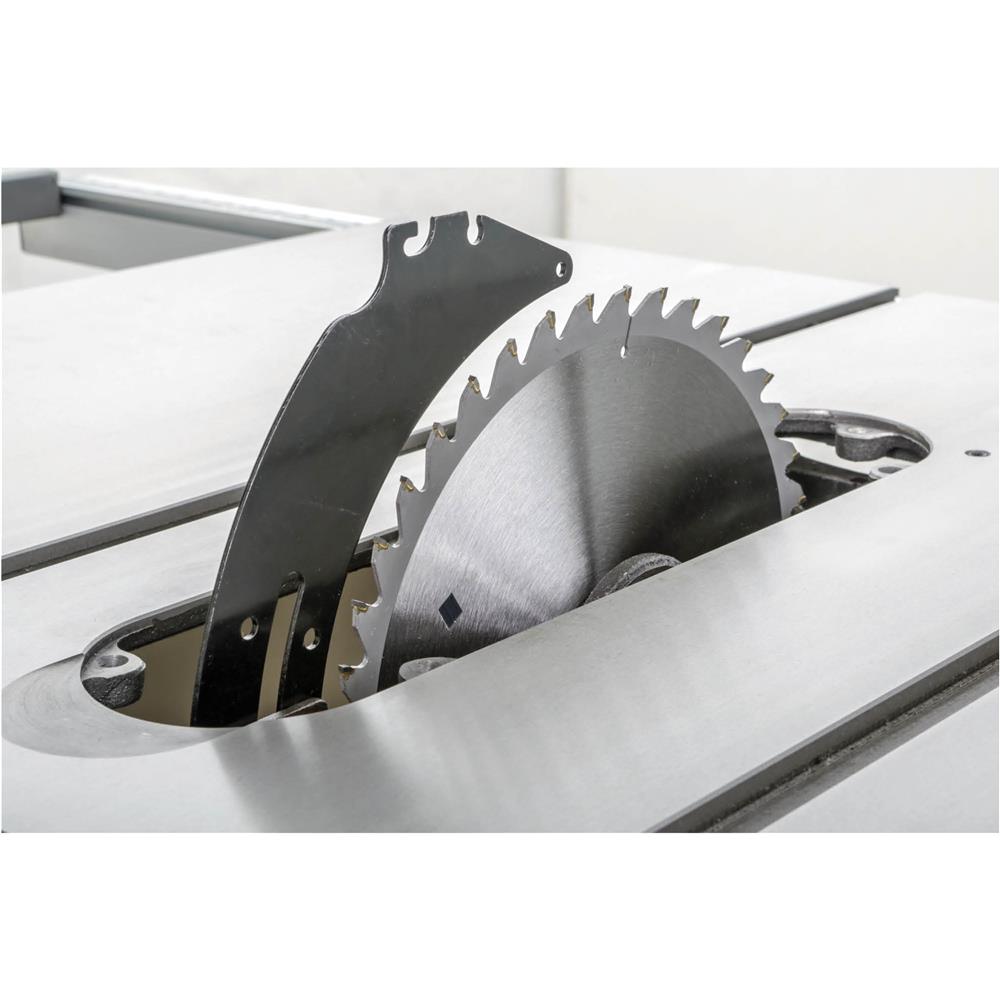

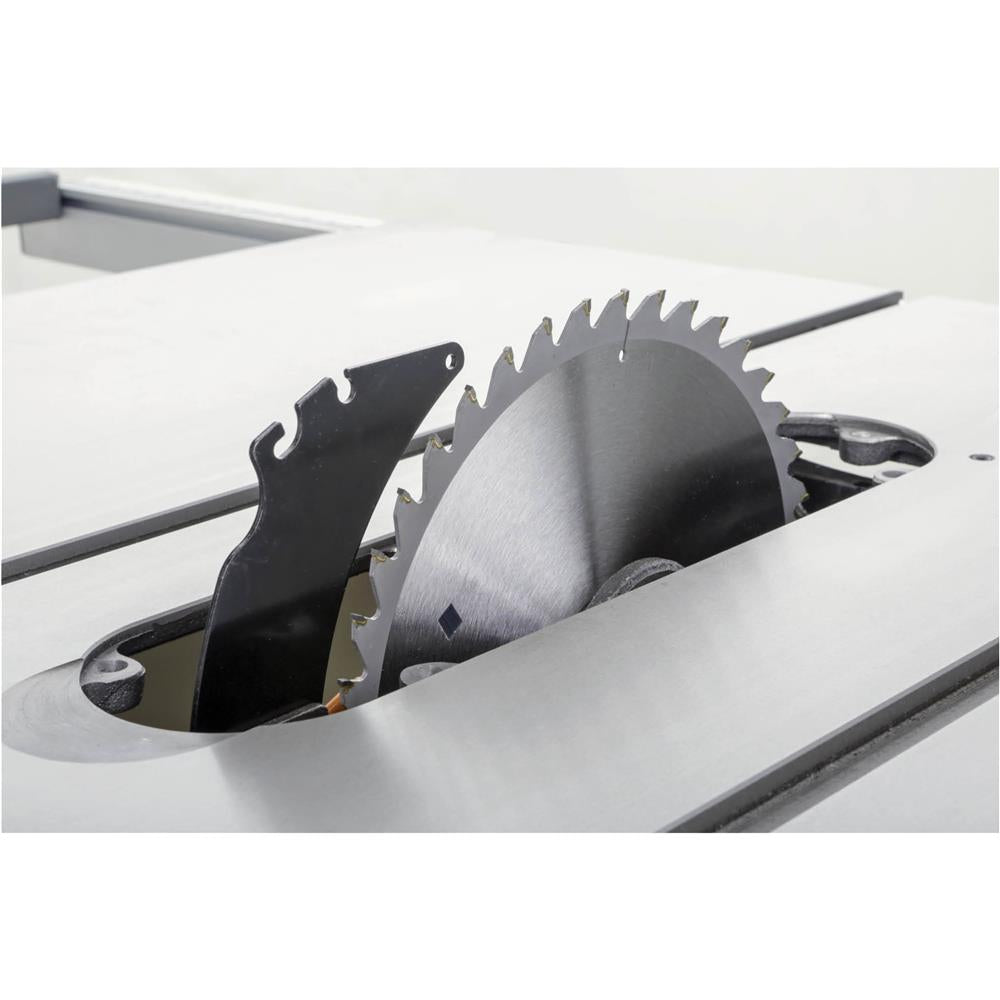

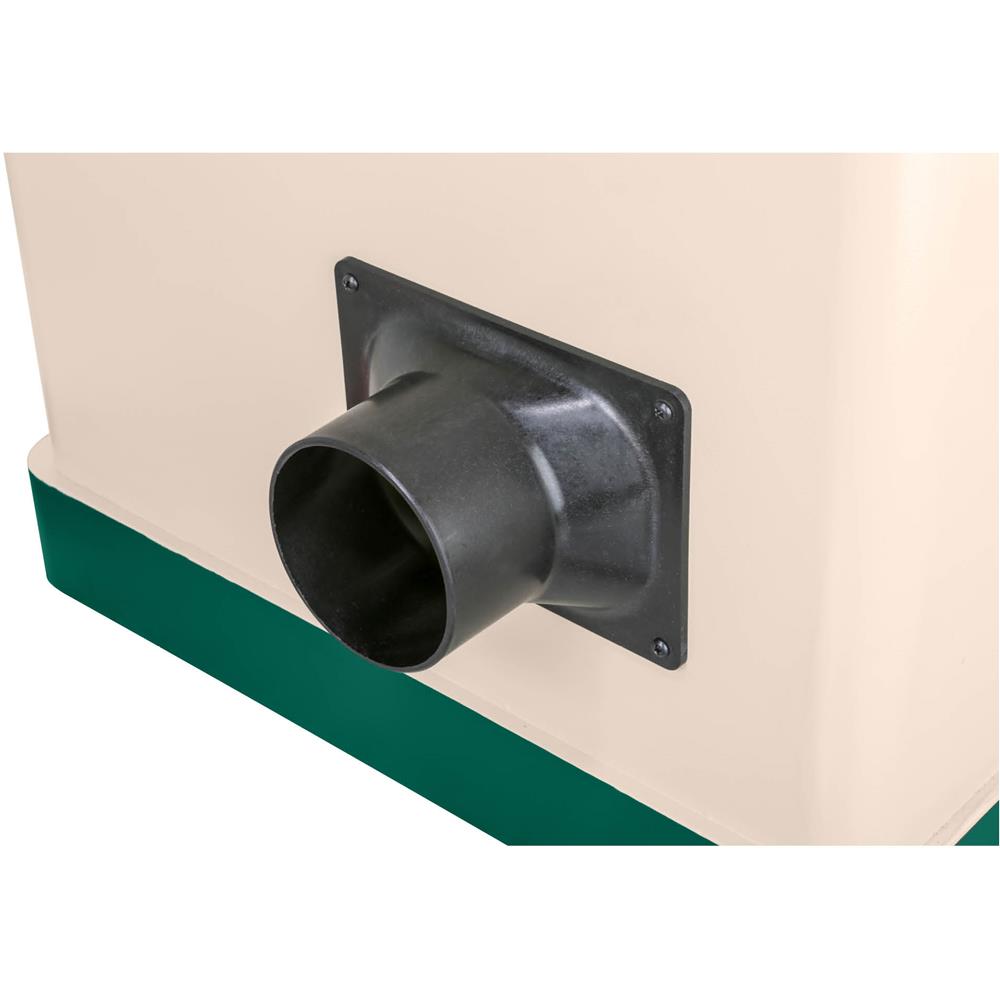

The G0771Z features an innovative quick-release blade guard and riving knife system that can be changed in seconds. A 4" dust port is integrated into the steel cabinet-type stand for maximum dust collection. The precision-ground cast-iron table exceeds 40" with the extension wings. To top it all off, it's prewired to run on an ordinary household 120V, 20A circuit!

The best hybrid table saw option for small shops.

SPECIFICATIONS:

• Motor: 2 HP, 120V/240V (prewired for 120V), single-phase, 15A/7.5A
• Rip capacity: 31" right, 16-3/4" left of blade
• Max. depth of cut @ 90°: 3-1/8"
• Max. depth of cut @ 45°: 2-1/4"
• Overall table dimensions: 40-1/2" W x 27" D
• Distance from front of table to center of blade: 15-1/2"
• Floor-to-table height: 35-3/8"
• Arbor diameter: 5/8"
• Arbor speed: 3450 RPM
• Max. width of dado: 13/16"
• Dust port size: 4"
• Footprint: 19-1/2" x 21"
• Overall dimensions: 64" W x 40-1/2" D x 36" H
• Approximate shipping weight: 324 lbs.

FEATURES:

• Micro-adjustable easy-glide fence system with narrow rip attachment
• Front-locking T-shaped fence with T-slots
• Cast-iron tables and trunnions for long-lasting durability
• Quick-release blade guide assembly
• Less costly and smaller footprint than cabinet saws
• Beveled front table edge

ETL certified
