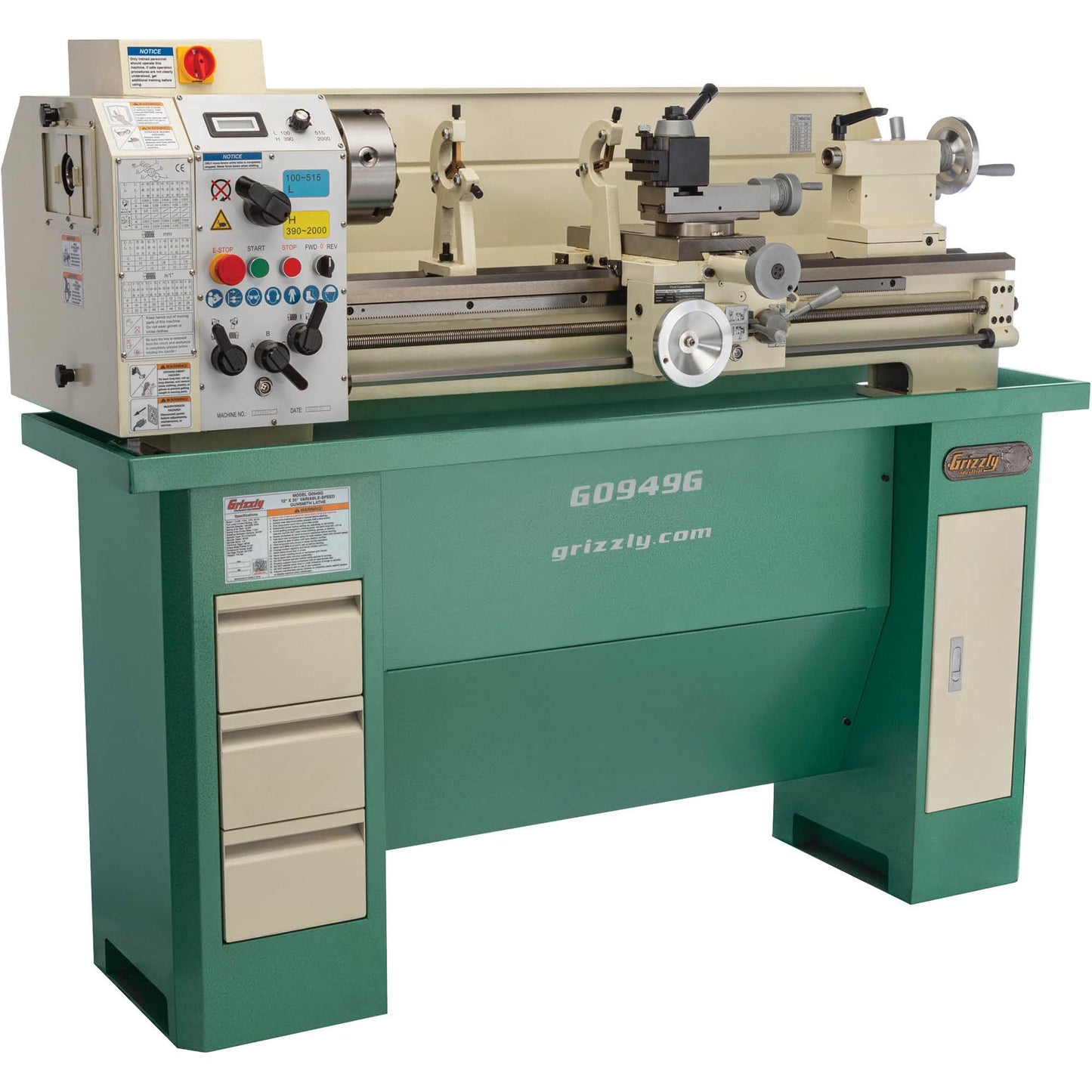

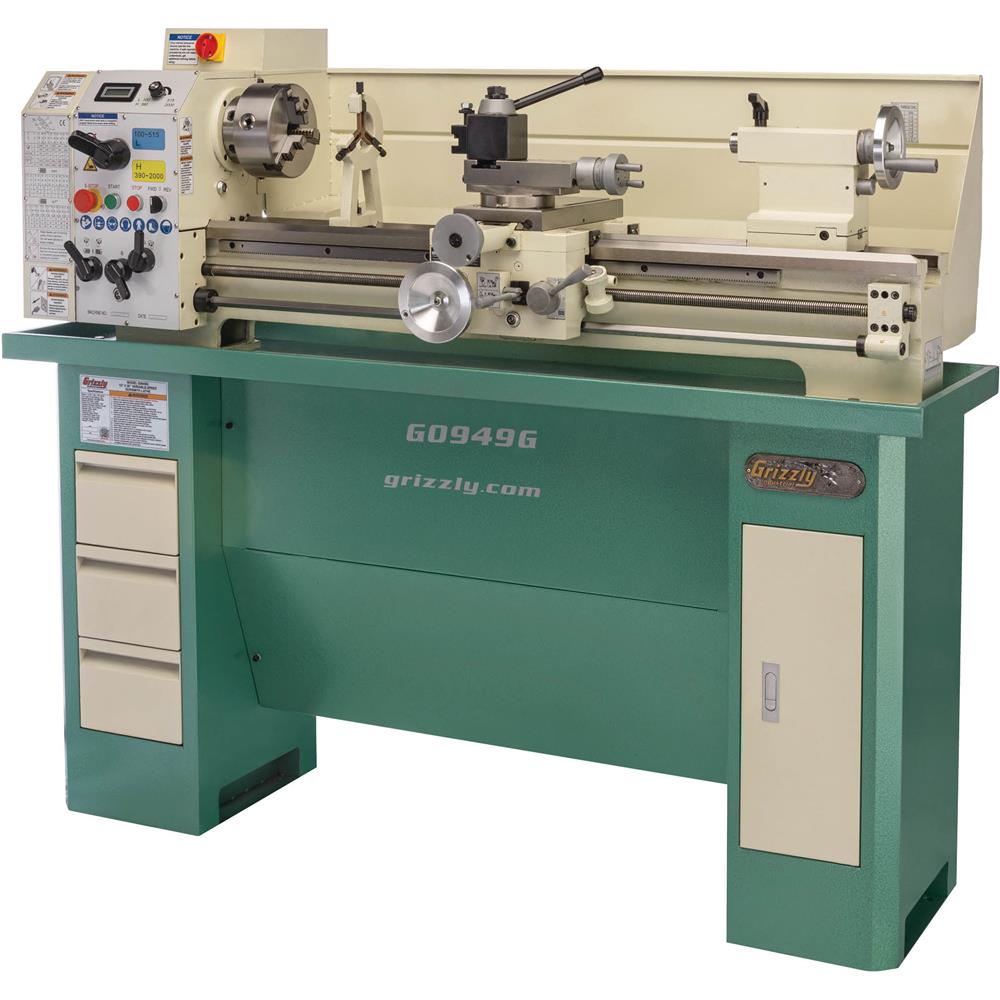

The G0949G 12" x 35" Variable-Speed Gunsmith Lathe has a small footprint, but packs plenty of features not found on standard lathes.
The lathe is loaded with features not limited to only a gunsmith but anyone looking for a high-quality, affordable variable speed lathe.

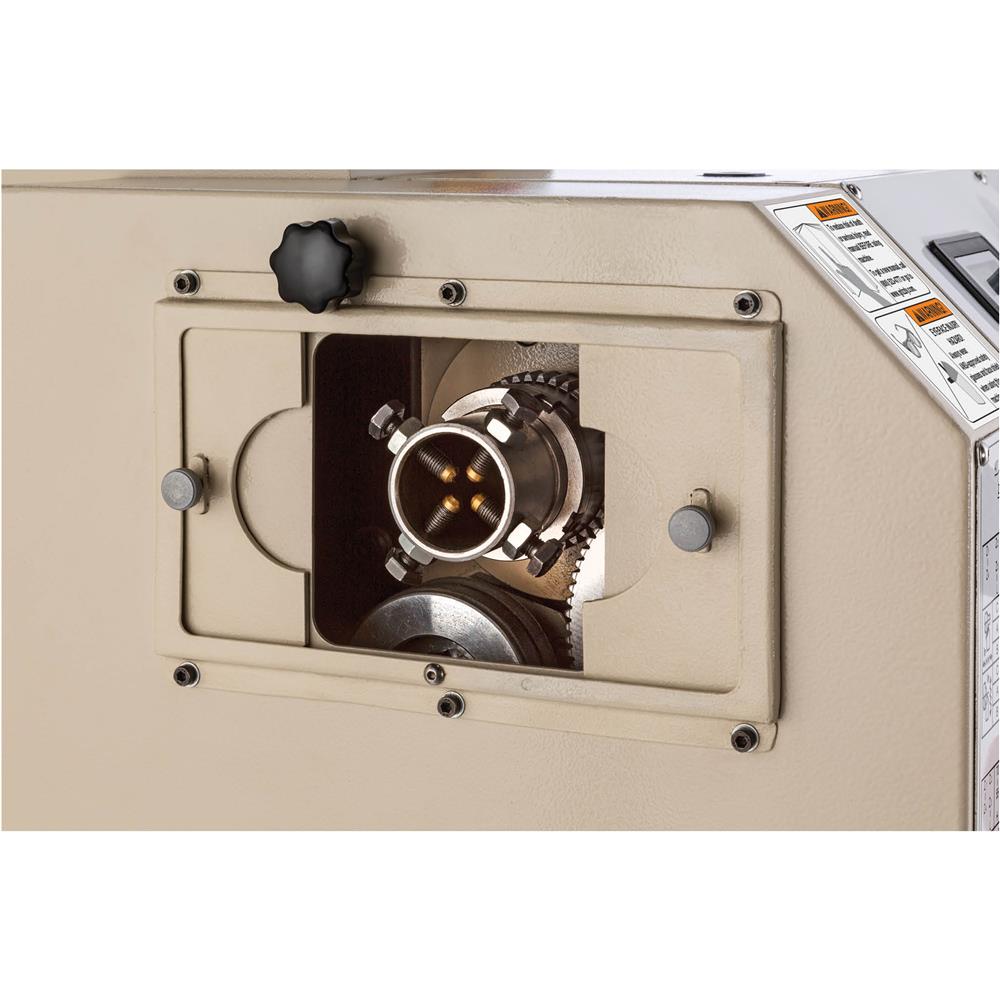

The spider mount system has four brass-tipped screws that stabilize long shafting and rifle barrels through the outboard end of the spindle.

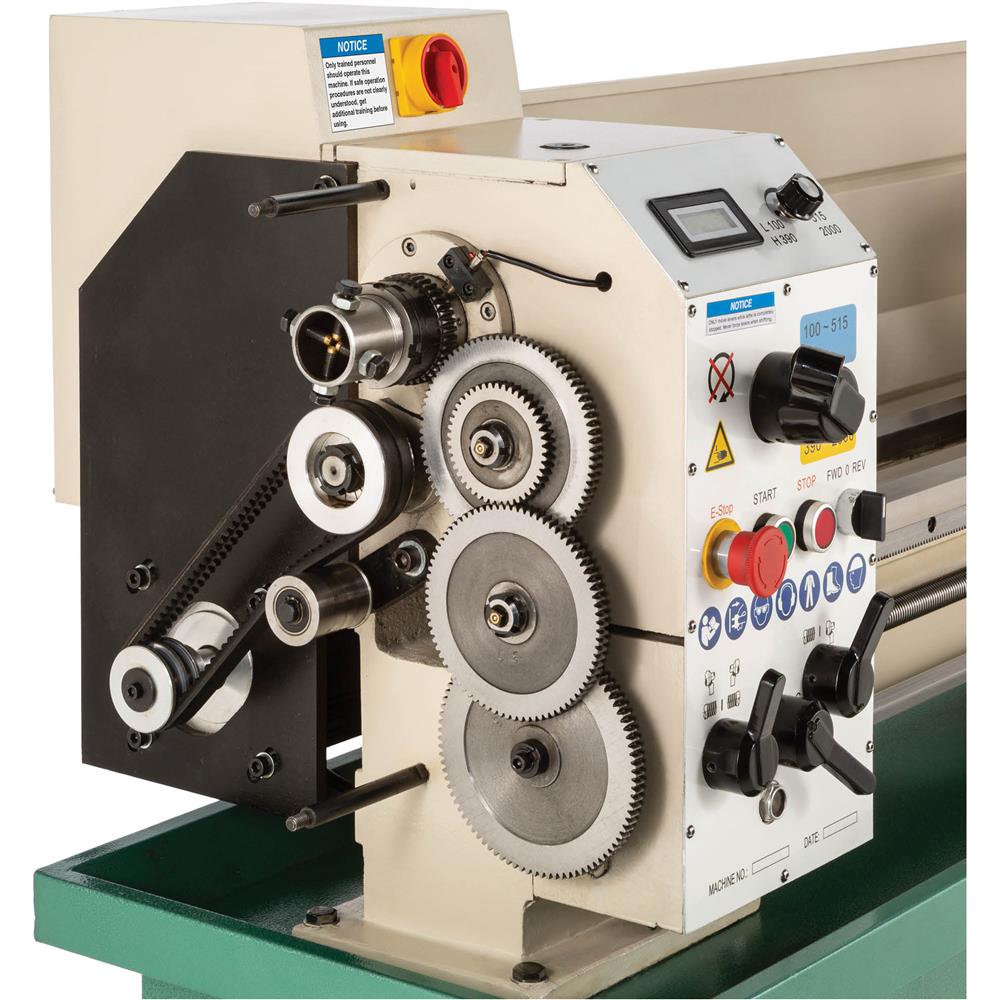

Supplied with a 1-1/2 motor, the 2-speed gearhead produces variable spindle speeds from 100–515 RPM and 390–2000RPM.

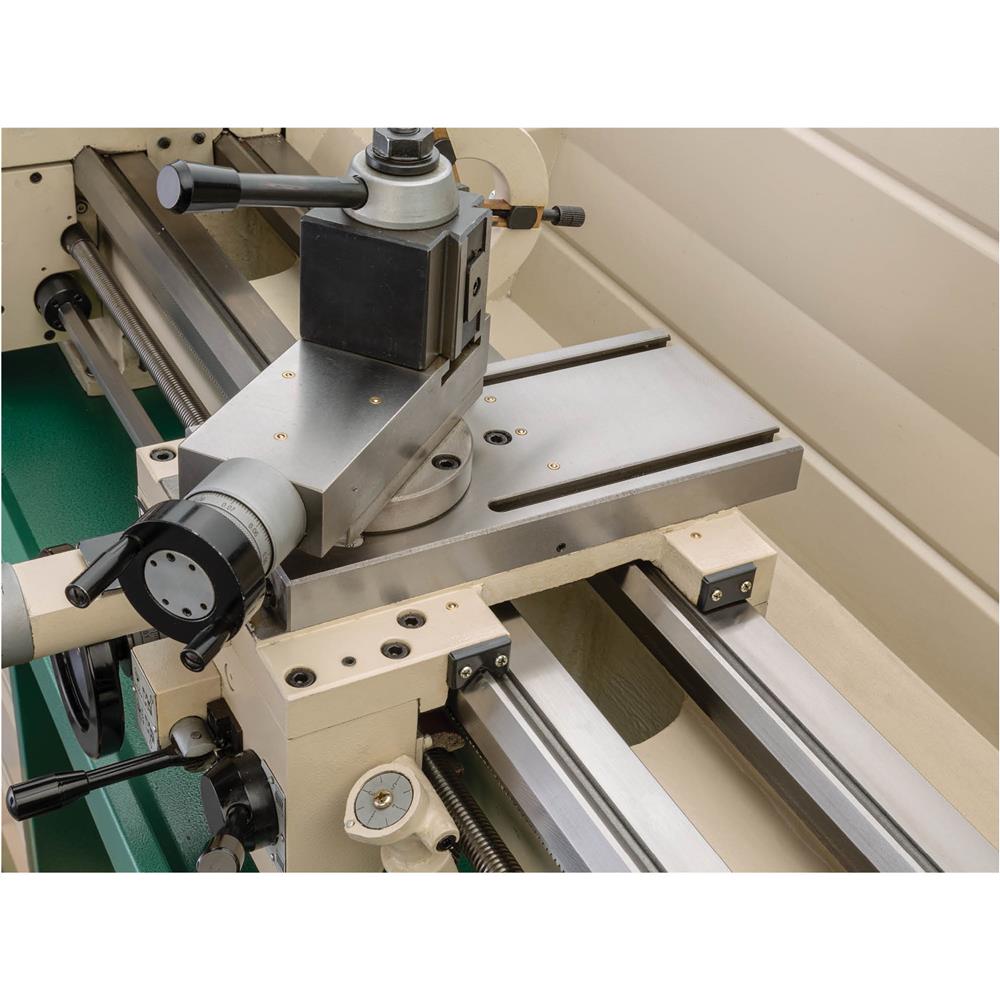

The G0949G also comes with a D1-4 spindle, a 200 series quick-change tool post, digital spindle speed readout, and a full-length splash guard.
The G0949G manual was written by our U.S. based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.
SPECIFICATIONS
Main motor: 1-1/2 HP, 110V, single-phase, 15A
Swing over bed: 12-5/8"
Swing over saddle: 10-1/2"
Swing over cross slide: 7-3/4"
Distance between centers: 34-5/8"

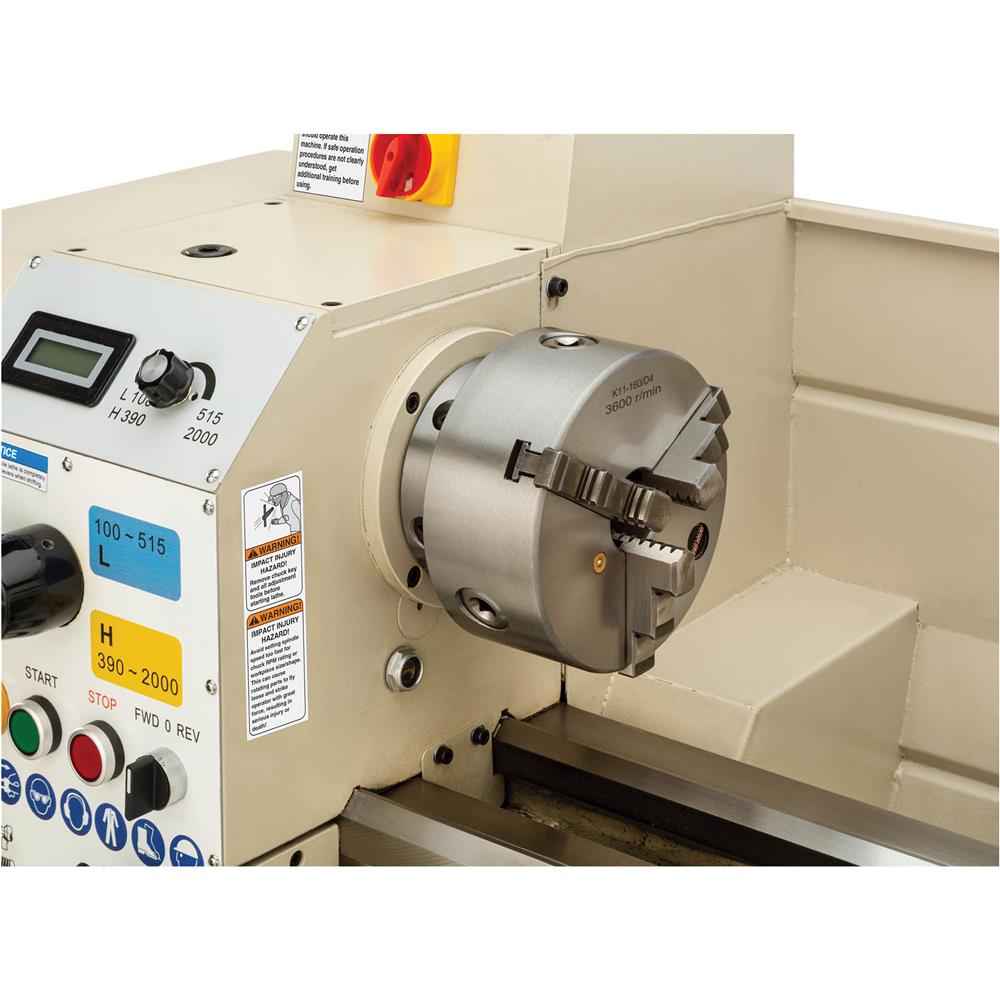

Spindle nose: D1-4 camlock

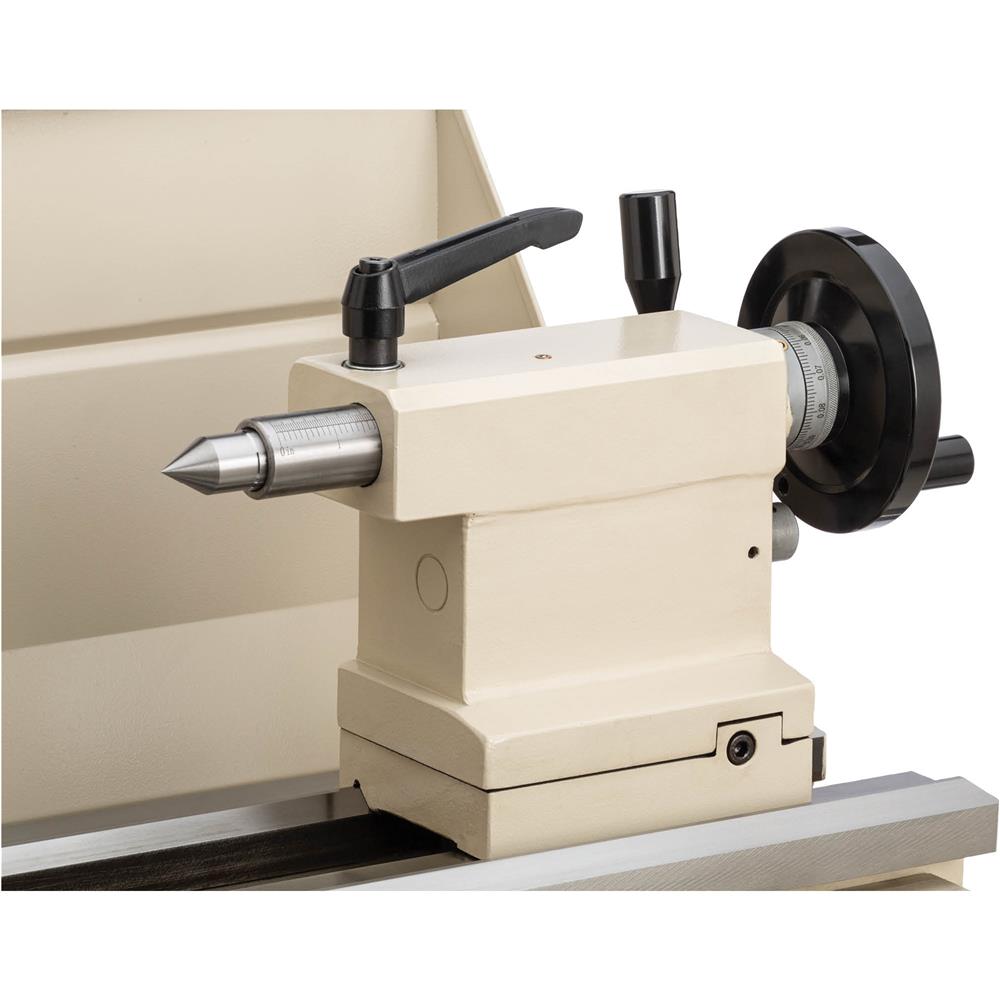

Tailstock quill travel: 3-1/8"

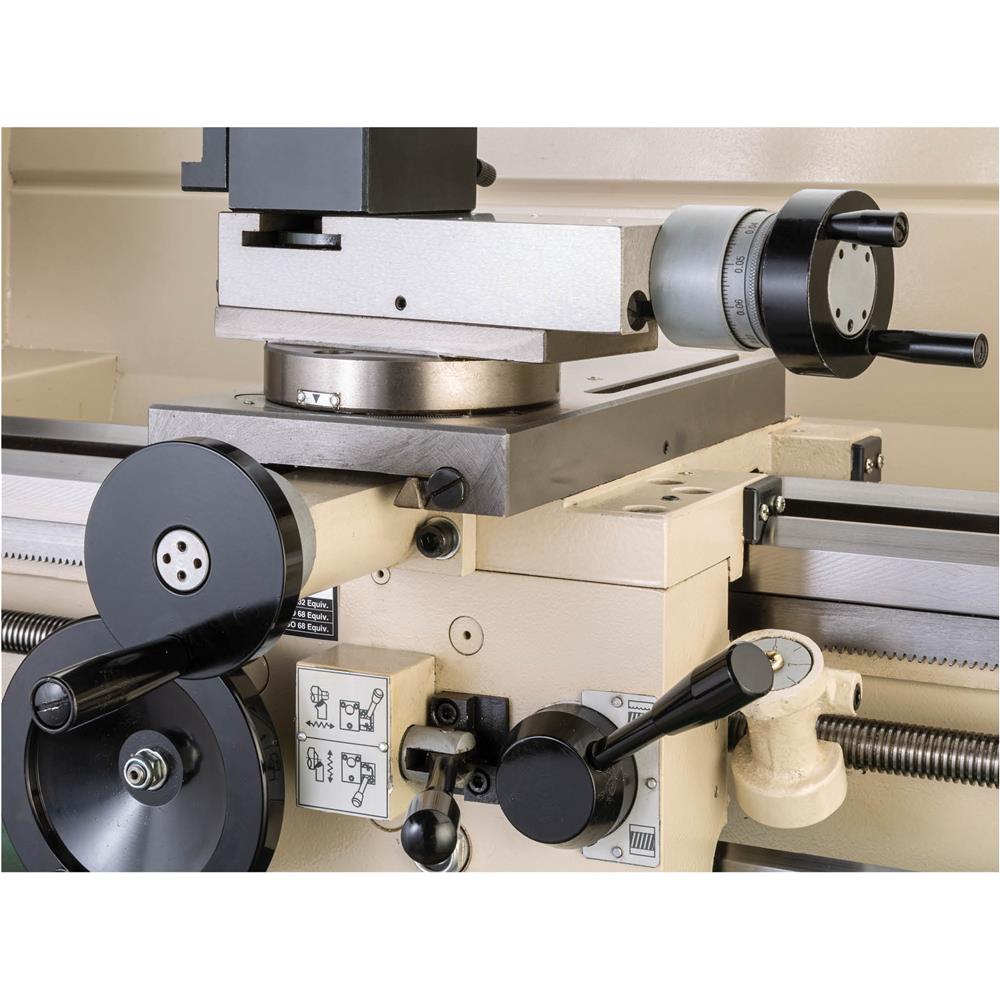

Cross slide travel: 6-1/2"
Compound travel: 3-3/8"
Spindle speeds: Variable, 100–515 RPM and 390–2000RPM
Range of threads (inches): 21 @ 8-56 TPI
Range of threads (metric): 12 @ 0.4-3.5 mm
Footprint: 58-1/2" x 15"
Overall dimensions: 65" W x 30-1/2" D x 53" H
Approximate shipping weight: 894 lbs.
FEATURES:

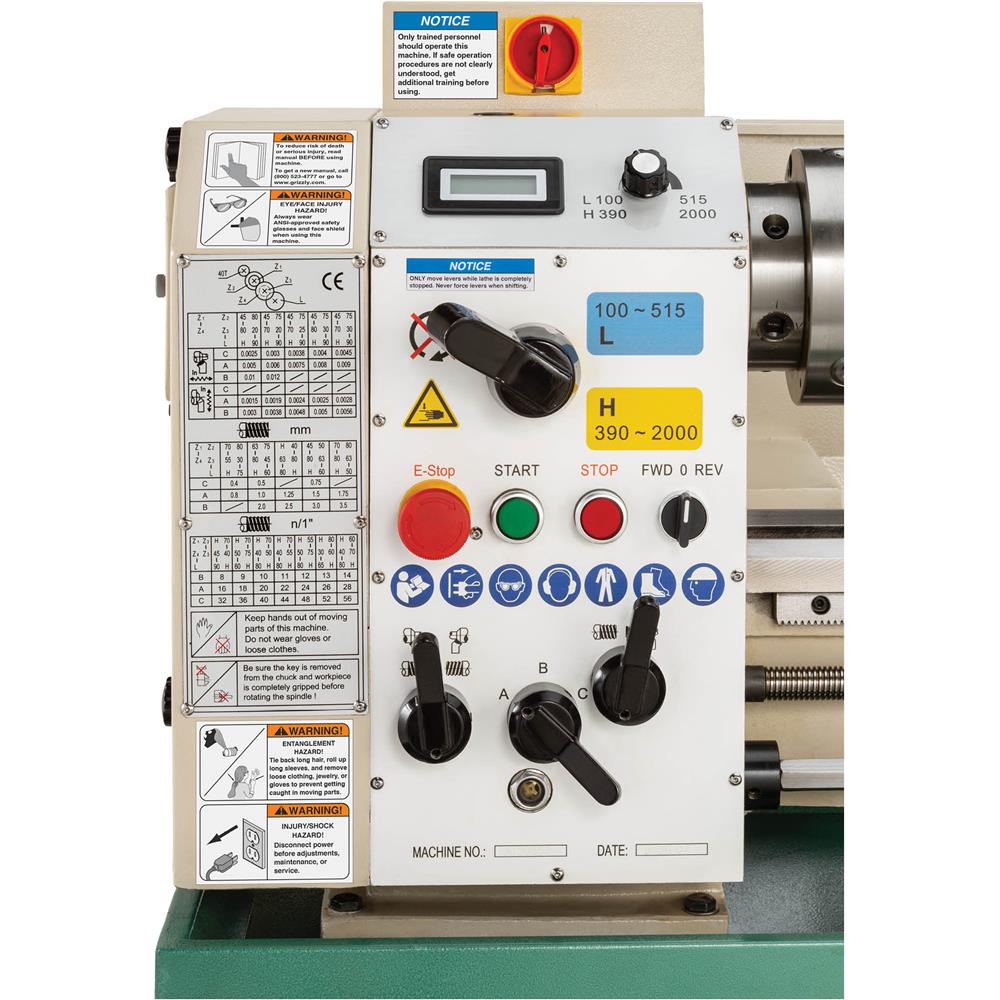

Digital spindle speed readout
Outboard spindle support spider with 4 brass-tipped bolts
