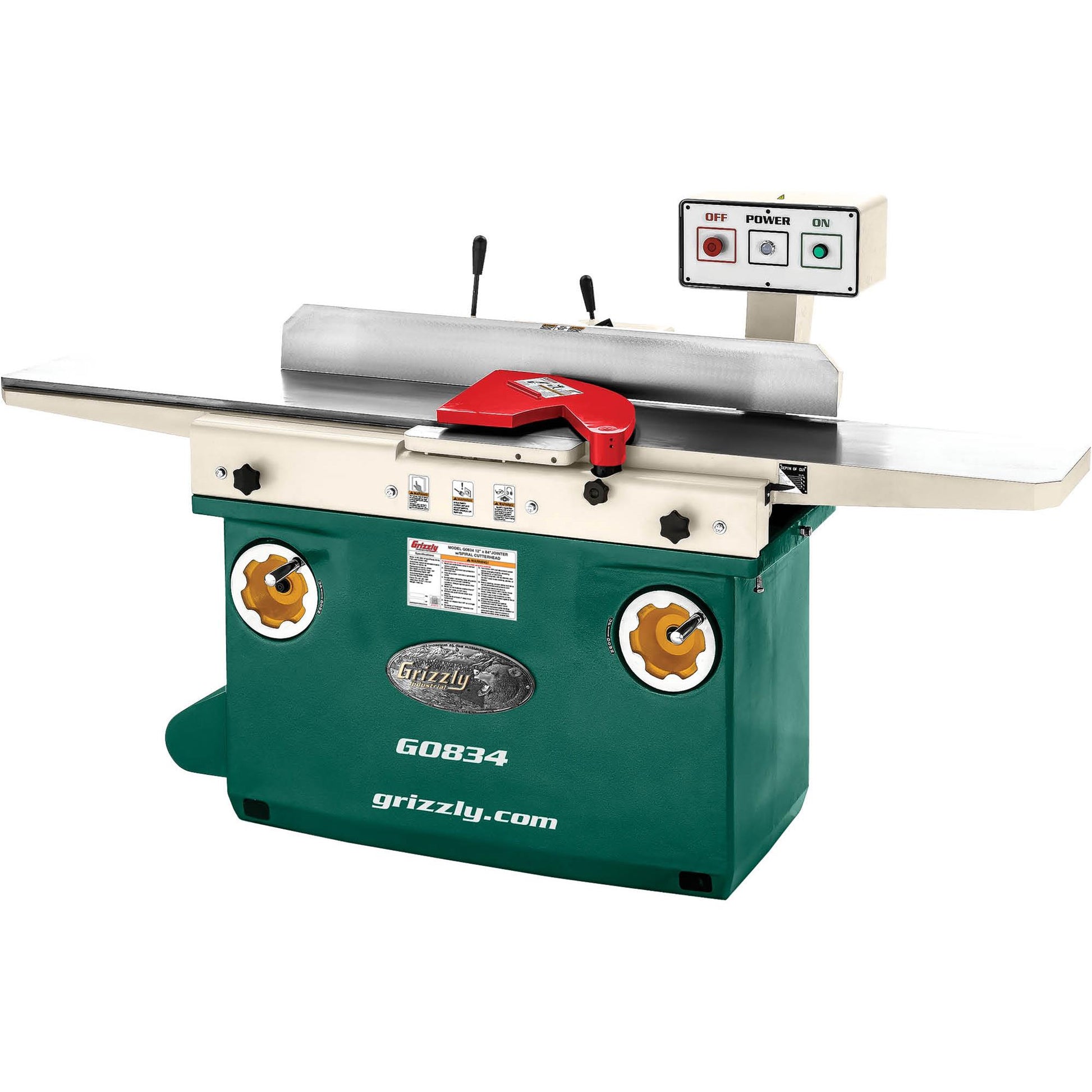

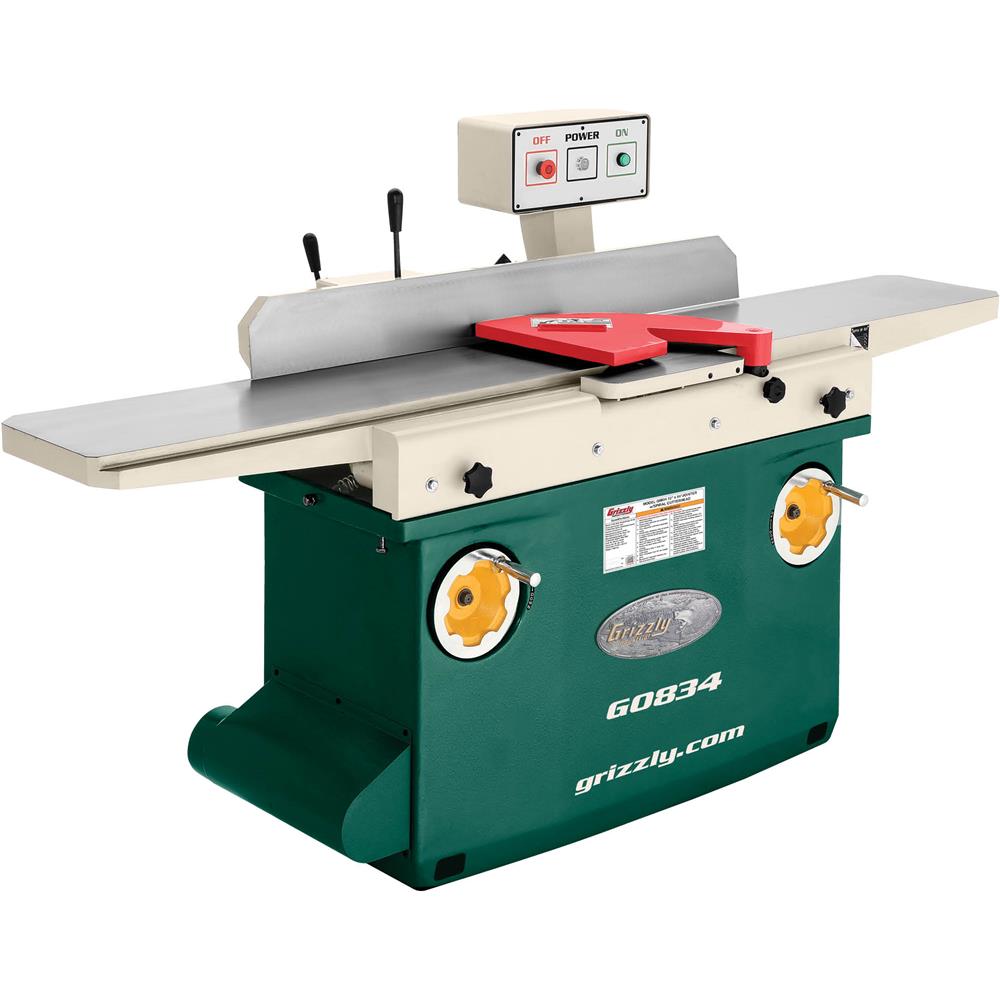

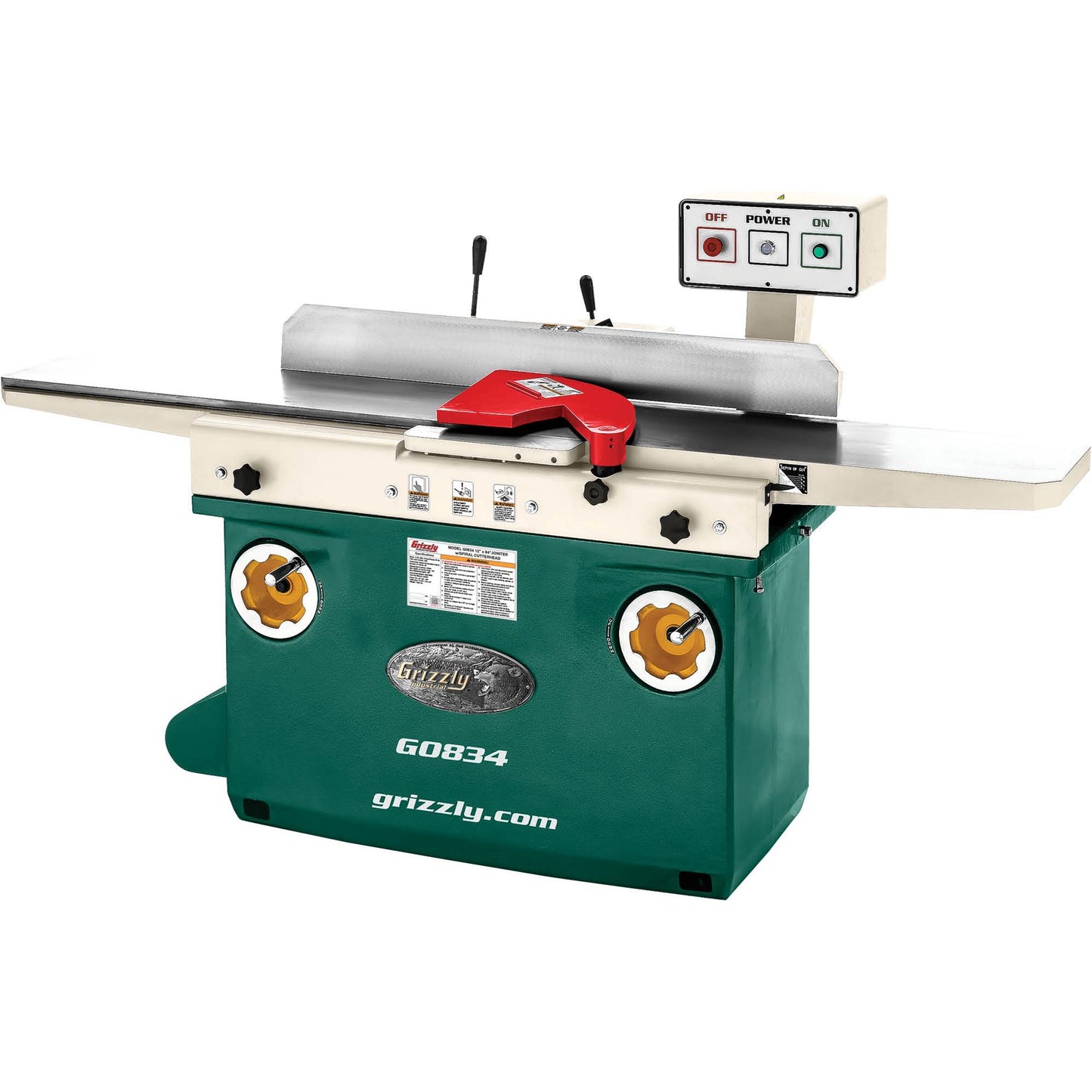

G0834 12" x 84" 5 HP Parallelogram Jointer

Maximize your woodworking potential with spiral cutterhead jointing.

With 84" of precision-ground cast-iron tables and a solid cast-iron stand, the G0834 12" Parallelogram Jointer weighs in at over half a ton! All that mass minimizes vibration and optimizes accuracy.

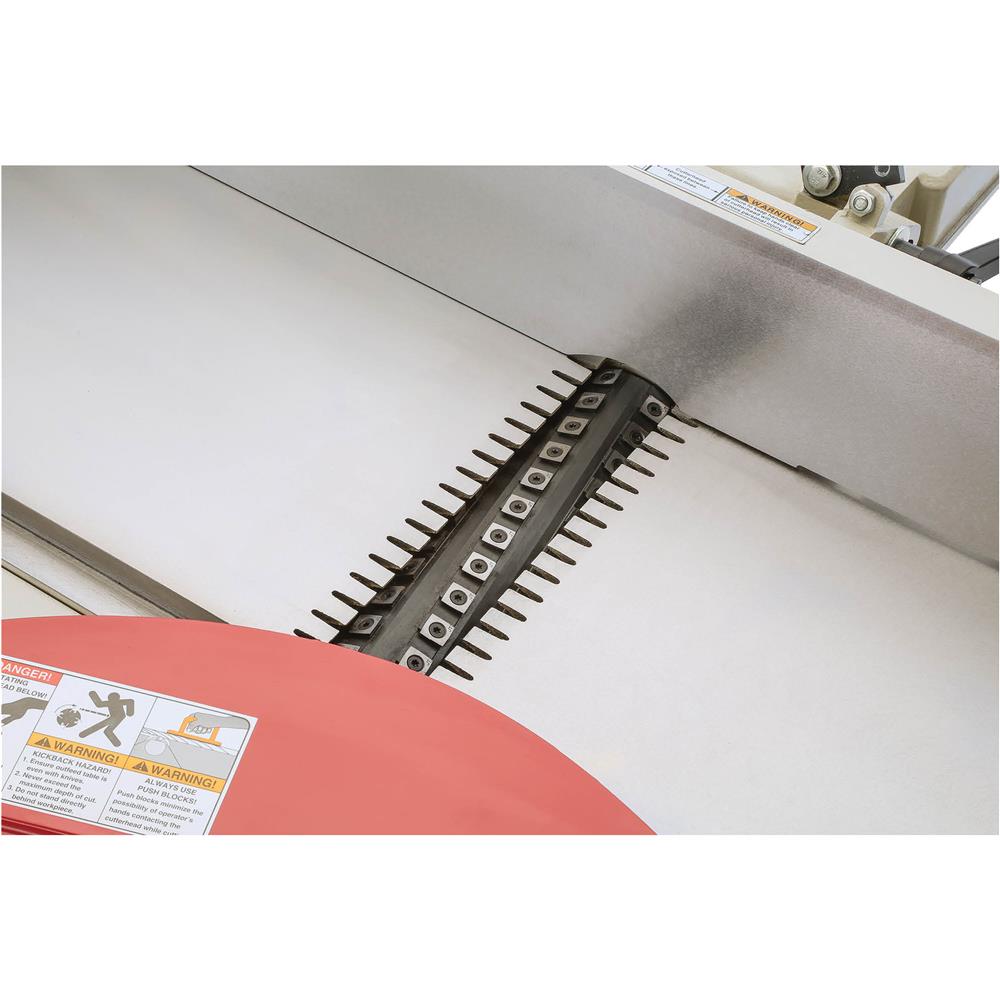

A burly 5 HP, 230V, single-phase motor powers the 8-row spiral cutterhead with 96 indexable carbide inserts. Carbide inserts hold their edge much longer than the high-speed steel of the straight knives and they are easily replaced or rotated should they become nicked.

Spiral cutterheads provide a smoother finish, reduce tearout, operate quieter, have longer knife life, and require less horsepower, making them a superior choice for serious woodworkers.

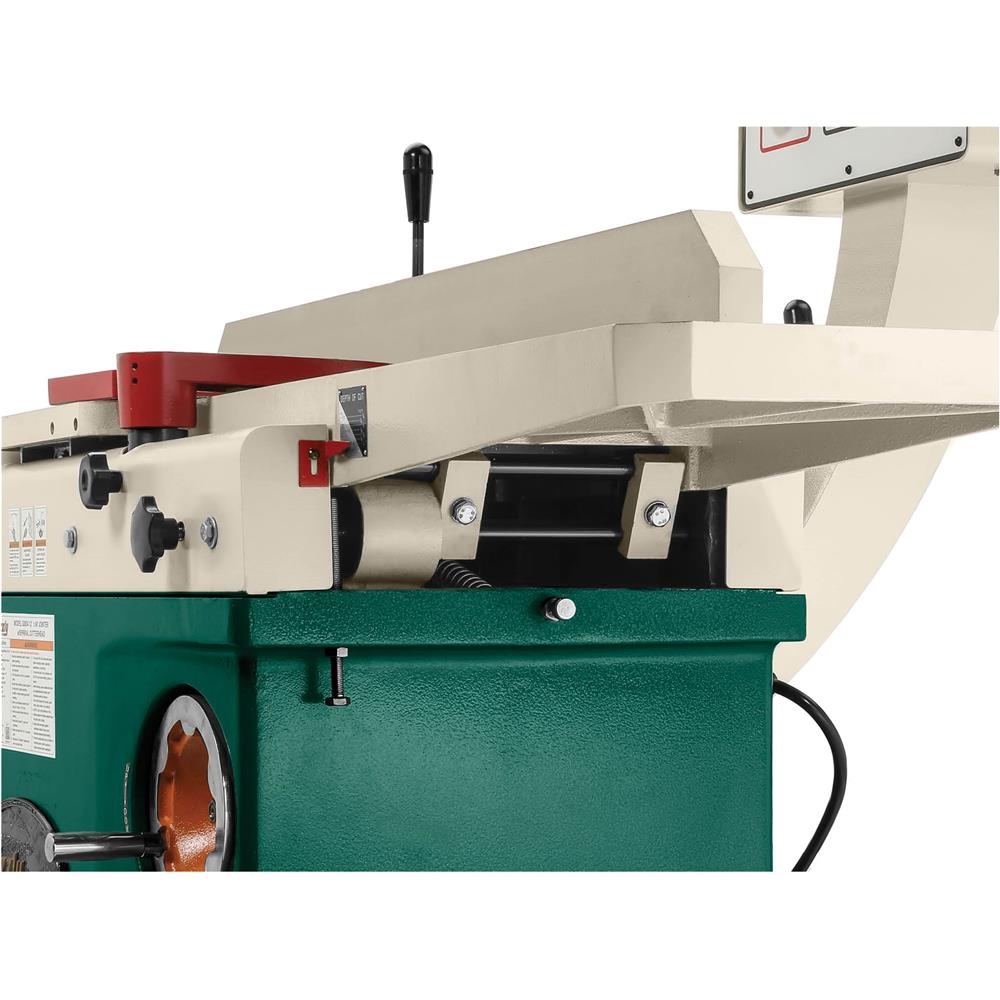

The G0834 features precise parallelogram table adjustment with easy-to-reach handwheels. With the parallelogram table setup, you get more opportunity for fine adjustment of the infeed table and the outfeed table for perfect alignment.

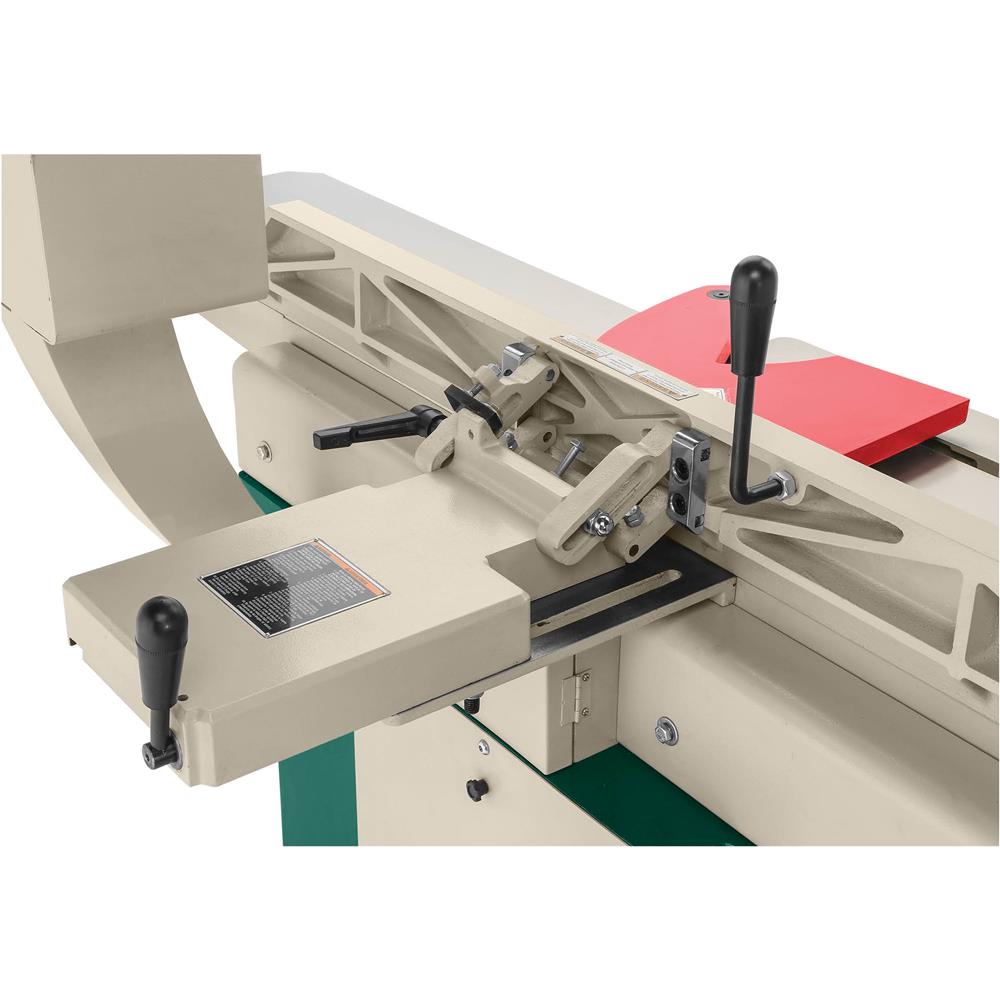

The center-mounted, 47" L x 5-3/8" H fence assists with accurate edge-jointing. It has stops at 45°, 90°, and 135° and comes with rack-and-pinion lateral adjustment.

The H9893 replacement inserts are available when the stock inserts get dull.

SPECIFICATIONS:

• Motor: 5 HP, 230V, single-phase, 19A
• Maximum width of cut: 12"
• Maximum depth of cut: 1/8"
• Maximum rabbeting depth: 1/2"
• Cutterhead diameter: 3-7/8"
• Cutterhead type: 8-Row spiral with 96 inserts
• Insert size, type: 15 x 15 x 2.5mm, indexable carbide
• Cutterhead speed: 4950 RPM
• Table size: 84" x 12-3/4"
• Fence size: 47" L x 5-3/8" H
• Minimum stock length: 14"
• Minimum stock thickness: 1/2"

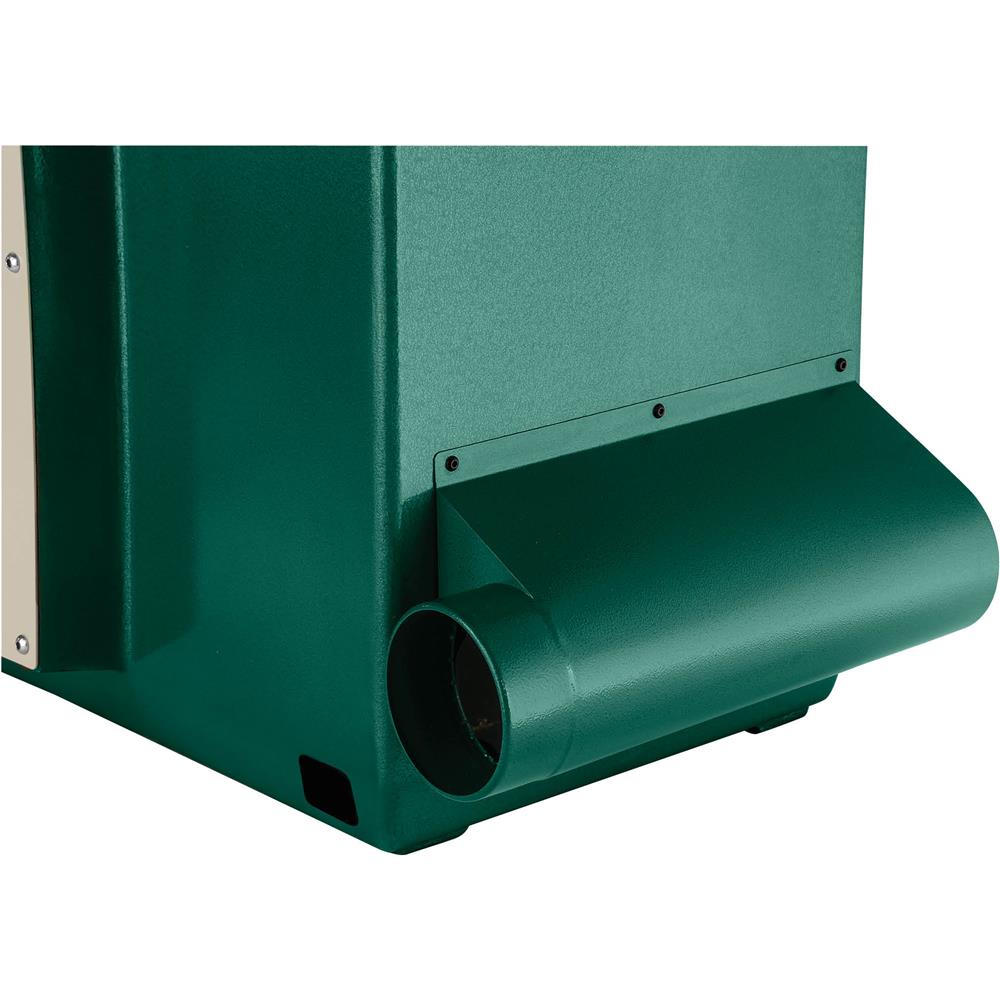

• Dust port size: 5"
• Footprint: 41" x 19-1/2"
• Overall dimensions: 84" W x 39" D x 47" H
• Approximate shipping weight: 1278 lbs.

FEATURES:

• Parallelogram tables with handwheel adjustment
• Precision-ground cast-iron tables
• Rabbeting table
• Heavy-duty center-mounted fence with angle gauge

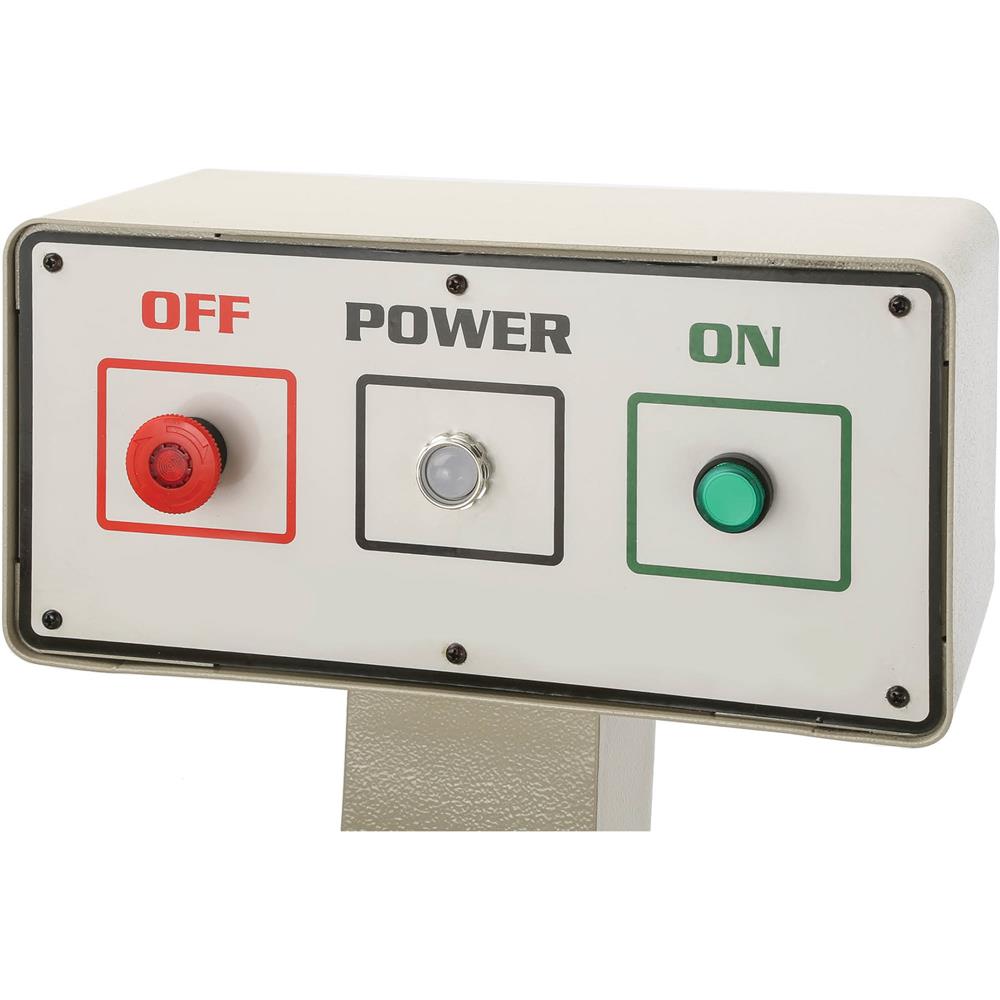

• Pedestal-mounted switch for easy access
• Magnetic switch with thermal overload protection
• Solid cabinet stand

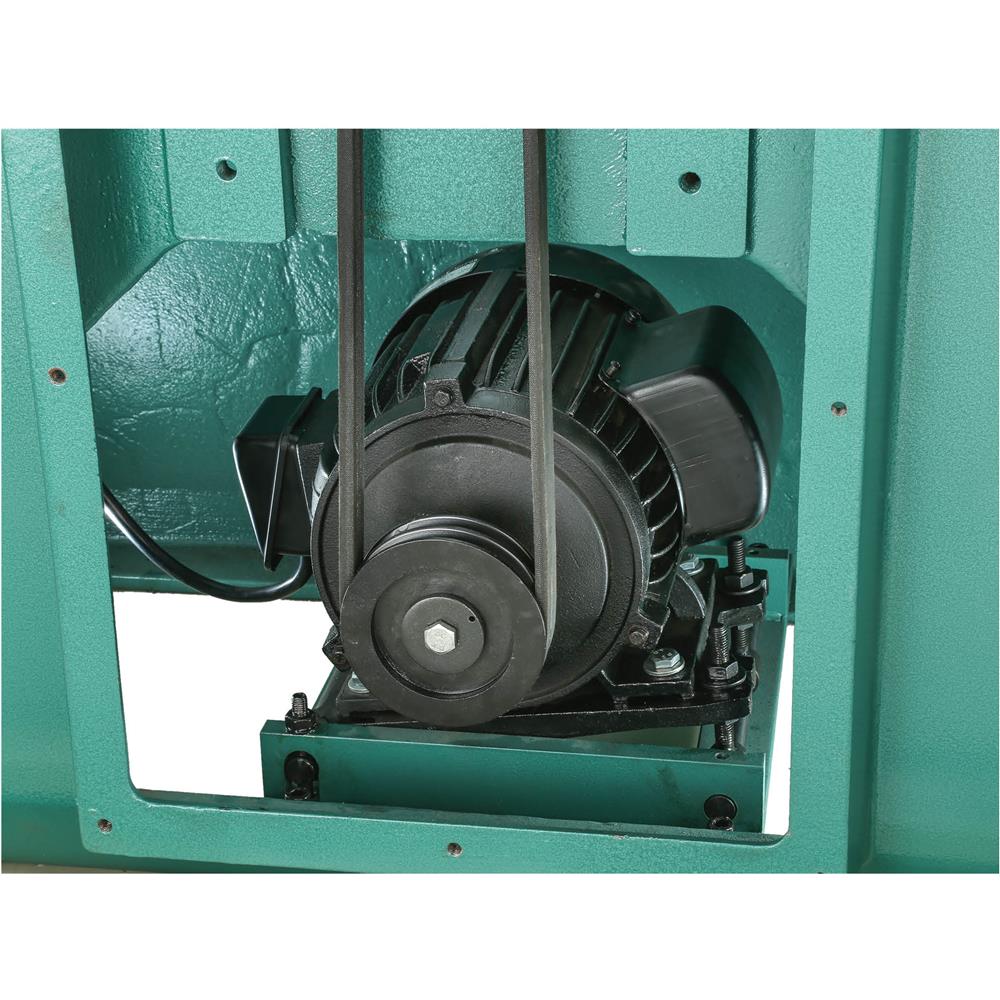

• V-belt drive

Please note: To accommodate the machine's footprint, extension bars may be necessary when using a mobile base.

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
