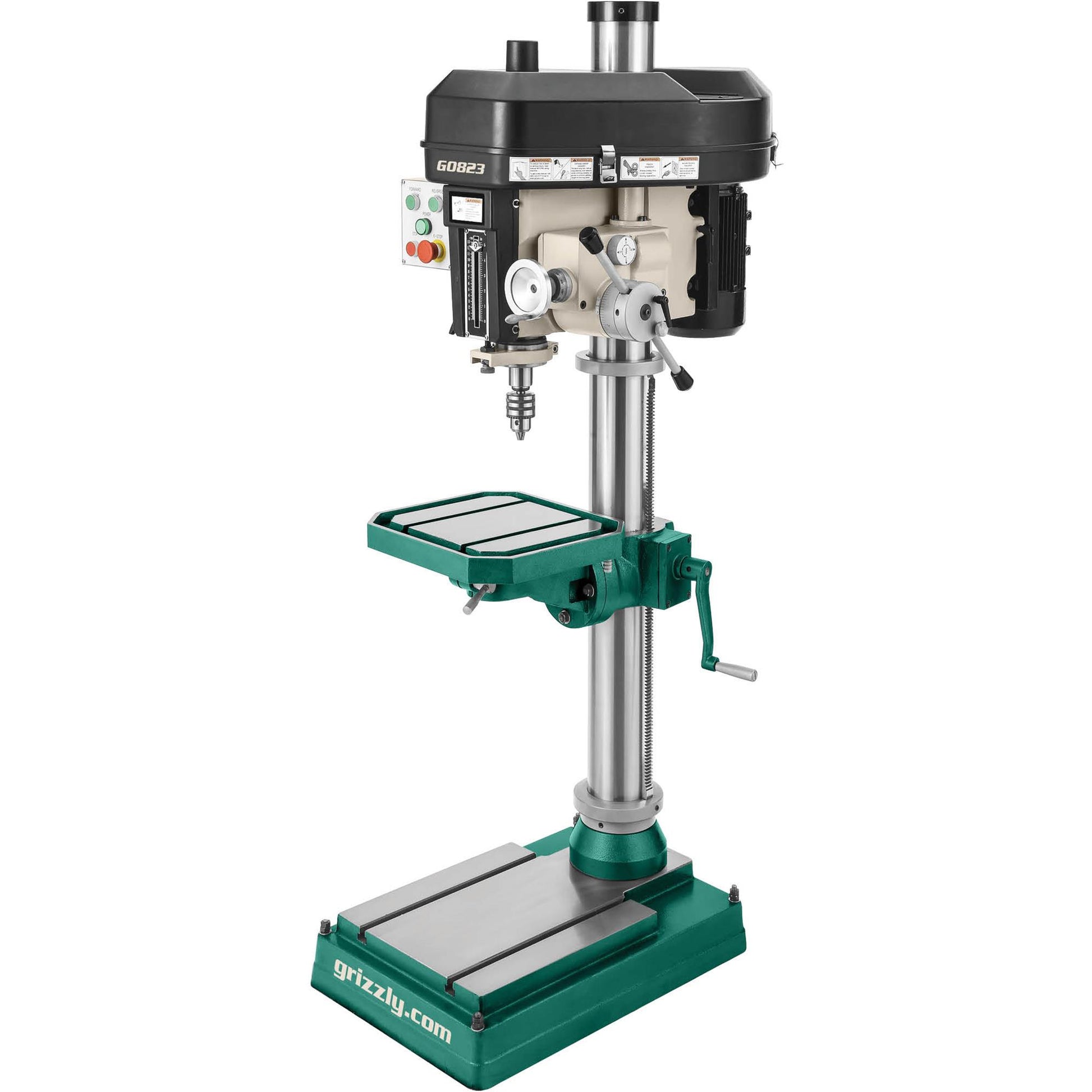

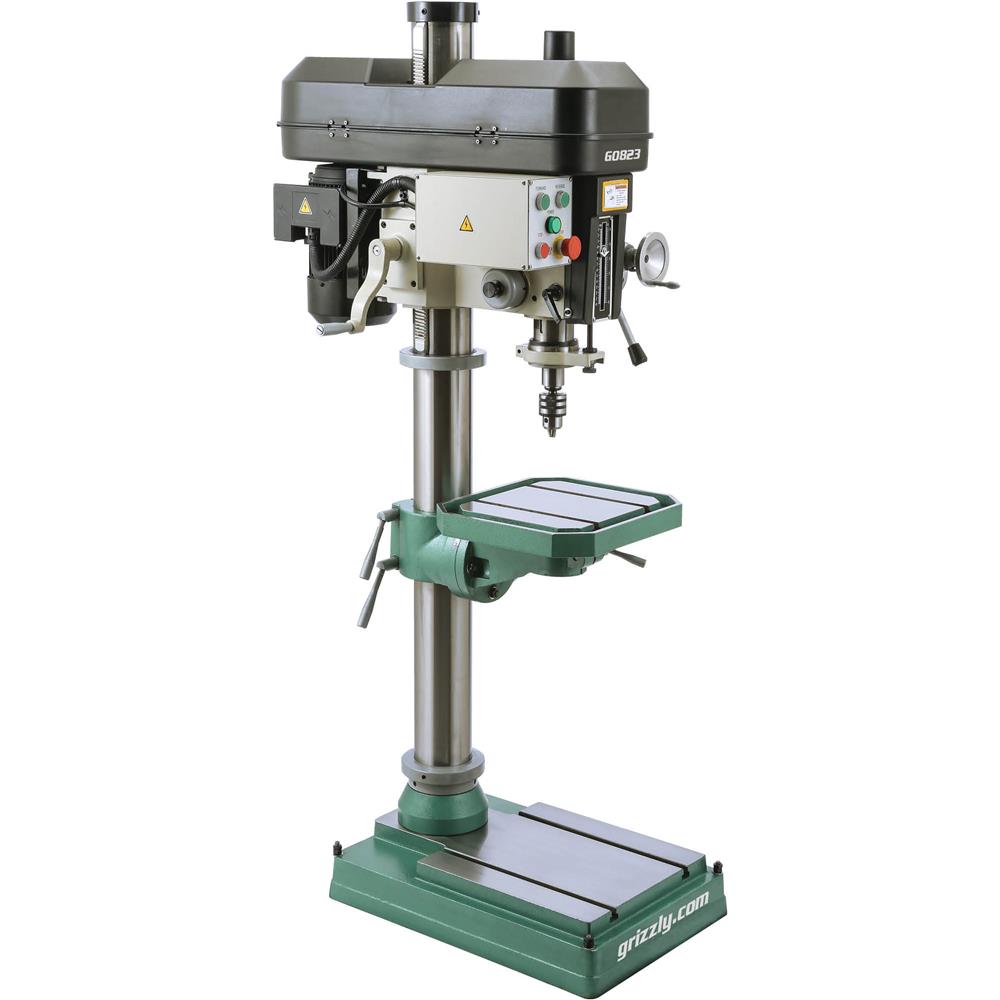

G0823 15" Drill Press w/ Auto Downfeed

A drill press that provides the precision and power your shop needs to tackle the most demanding jobs.

Read for all day use, the G0823 15" Drill Press features the luxury of auto downfeed for repeatable drilling operations.

Outfitted with a 2 HP motor, the spindle is equipped with an R-8 spindle taper and 12 speeds ranging from 140–2436 RPM (adjustable via V-belts). The low RPM speed is vital to drilling metal.

The table has rack-and-pinion mounts to allow for 360° of rotation, 60° tilt, 23-1/2" of vertical travel, and two 1/2" T-slots to allow for exact positioning of your workpiece.

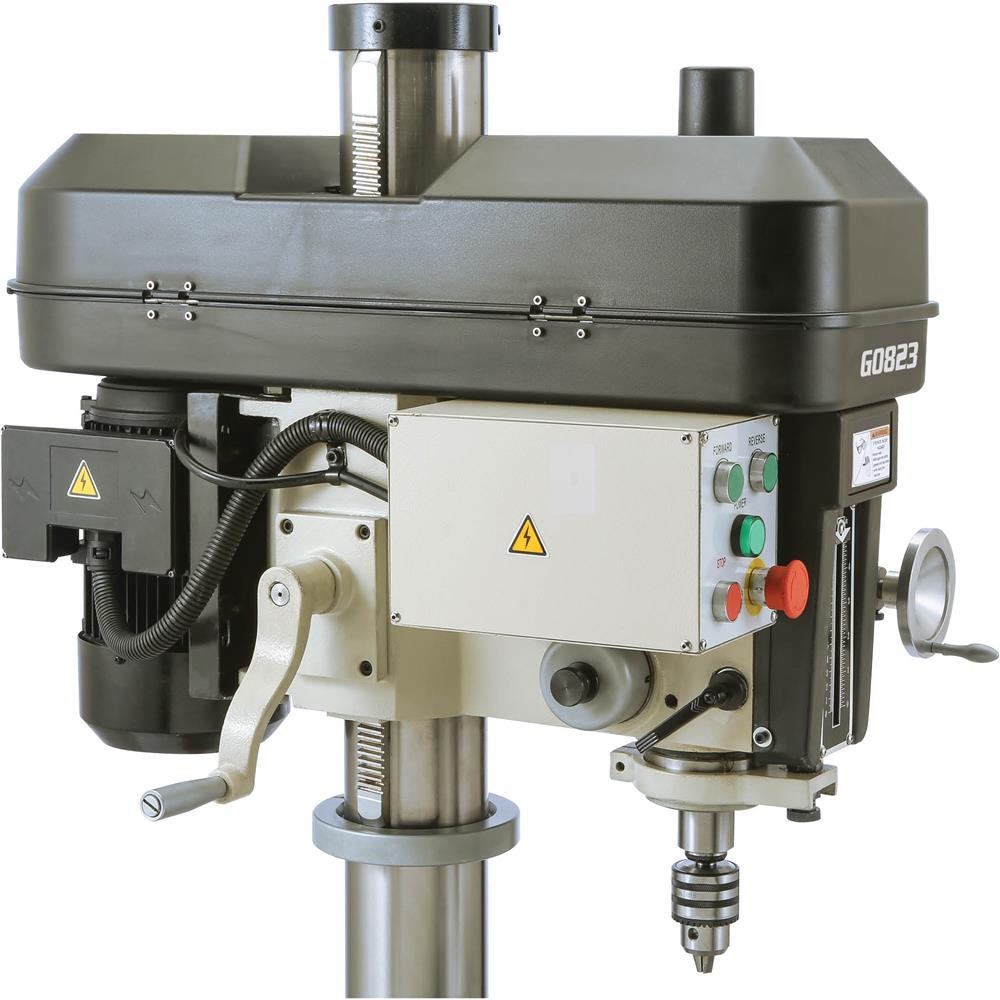

The head comes equipped with the same rack-and-pinion elevation controls as the table–adjustable 7-13/16" vertically, and capable of 360° rotation around the column.

The precision-ground work surface on the base contains two more 1/2" T-slots, ensuring that every surface can be put to use.

SPECIFICATIONS:

• Motor: 2 HP, 220V, single-phase, 8.6A
• Swing: 15"
• Spindle taper: R-8
• Spindle travel: 5-1/8"
• Spindle speeds: 12, 140–2436 RPM
• Max distance spindle-to-table: 28-1/4"
• Drill chuck: 1/64"-1/2"
• Drilling capacity: 1-1/8" mild steel
• Table size: 14" W x 15" L
• Table swing: 360°
• Table tilt: 60° left and right
• Table T-slots: 1/2" (2)
• Vertical table travel: 23-1/2"
• Column diameter: 4-1/2"
• Footprint: 26" L x 18" W
• Overall dimensions: 23" W x 35-1/2"D x 67" H
• Approximate shipping weight: 772 lb.

FEATURES:

• Auto-downfeed
• Solid cast-iron construction
• Precision-ground cast-iron table

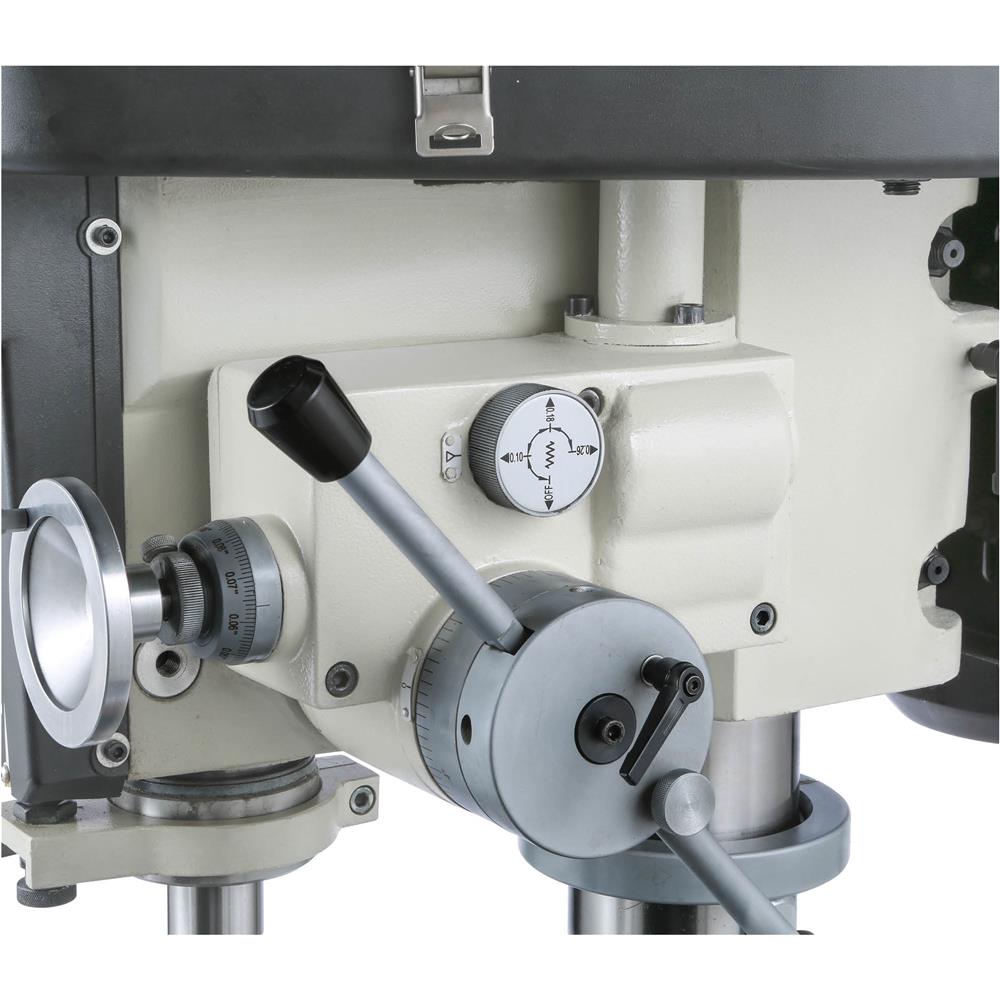

• Fine downfeed control with 0.01" increments and zero set
• 360° Table positioning around column
• 360° Head positioning around column
• Base has precision-ground, cast-iron work surface with two 1/2" T-slots
• Forward/reverse switch
