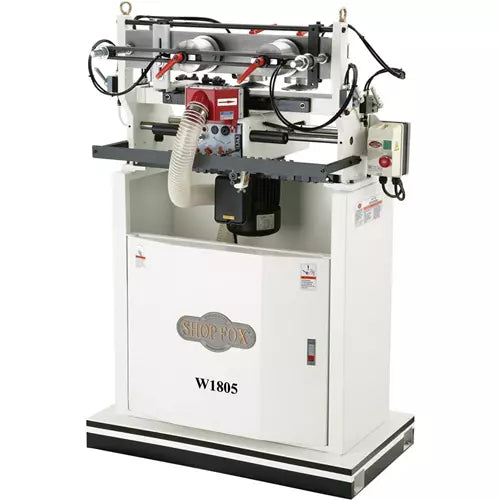

16-1/2" Dovetail Machine

Get lightning fast dovetail joints—at scale.

Are you mass producing dovetail joints on workpieces up to 16-1/2 by 59 inches?

Once setup, this machine can create a dovetail joined box in under 40 seconds!

The motor is inverted so vertical workpieces are inserted/removed from above rather than below, which makes it easier, more efficient, and more ergonomic to operate.

Instead of cam-lock clamps, this machine features dual pneumatic clamps that are faster and easier to use. The air supply unit features a regulator, a filter, and a lubricator to maintain constant pressure.

Also, the cutter controls are micro-adjustable to give you complete control of dovetail fit.

This machine includes a 4-sided template for cutting 1", 1-1/2", 2", and 2-1/2" dovetails.

The W1805 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

The H9388 replacement dovetail bits are available when your stock bits get dull.

SPECIFICATIONS:

• Motor: 1 HP, 110V/220V (prewired 220V), single-phase, 10A/5A
• Number of spindles: 1
• Spindle speed: 18,500 RPM
• Dovetail bit: 10° angle x 5/8" left-hand
• Dovetail shank: 1/2"
• Maximum dovetail height: 3/4"
• Minimum dovetail height: 3/16"
• Maximum thickness: 2-3/8"
• Minimum thickness: 13/32"
• Max. stock size: 16-1/2" W x 59" L
• Min. stock size: 2-3/8" W x 7-7/8" L
• Table size: 24" x 7-3/4"
• Floor to table height: 46-7/16"
• Overall dimension: 35-5/8" W x 26-1/2" D x 56-7/8" H
• Approximate shipping weight: 492 lbs.

FEATURES:

• Two-year warranty!!
• Dual pneumatic clamps for lightning-fast workpiece loading/unloading
• 1HP, 110V/220V, Motor (prewired 220V)
• 1", 1-1/2", 2", and 2-1/2" dovetail templates
• Micro-adjustable cutter controls for precision-fit dovetails
• Spring-loaded cast aluminum carriage for smooth operation
• Hardened-and-ground chrome steel slide ways
• Ball bearing linear guides
• Micro-adjustable spindle head
• Four-sided dovetail template bar
• Workpiece stops
• Magnetic switch with thermal overload protection
• 4" dust port
