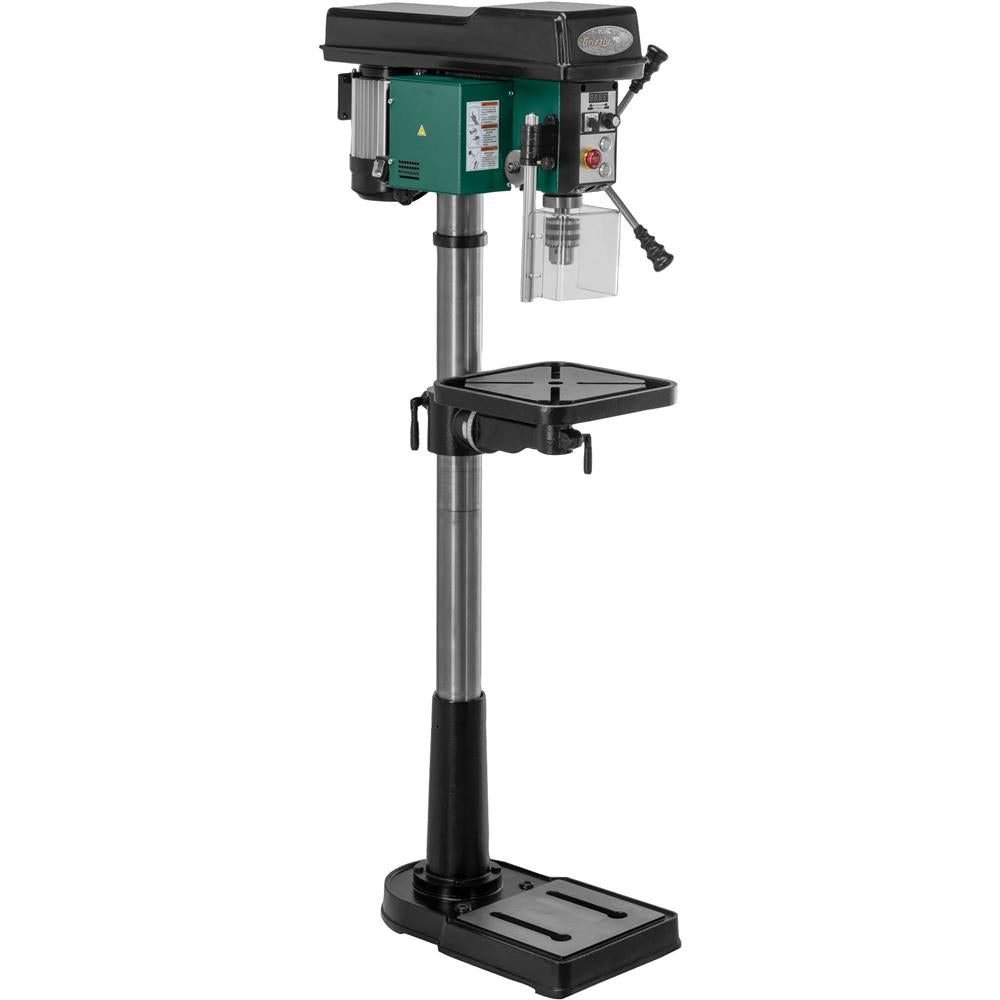

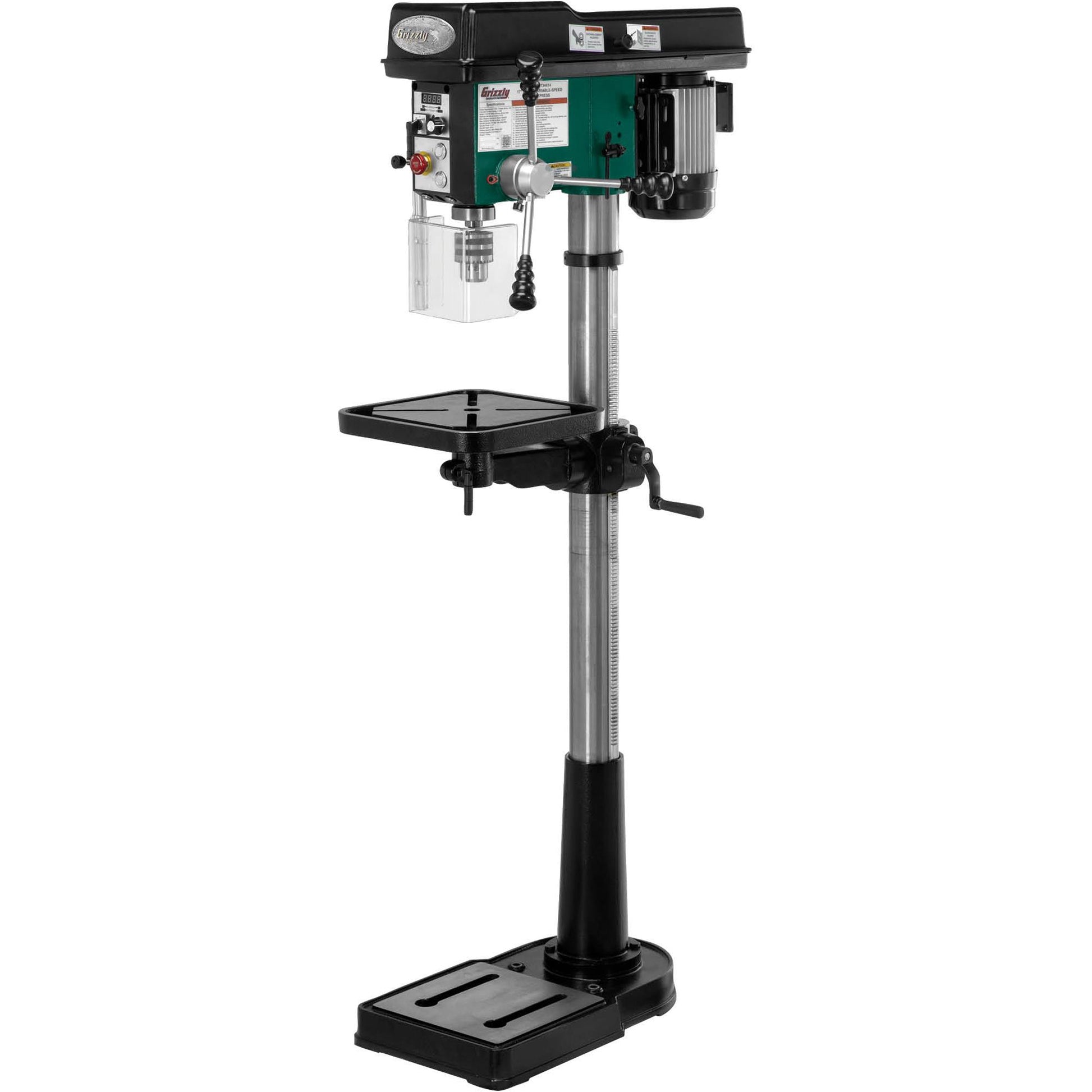

Deliver consistently clean, accurate holes with this high-performance drill press.
Tackle complex cabinet builds, complete detailed fabrication processes, or even create custom projects with this versatile variable-speed machine powered by a variable frequency drive (VFD).
Laser line guides and an LED light help prevent drilling errors for consistent results on your DIY, hobby, and custom projects.

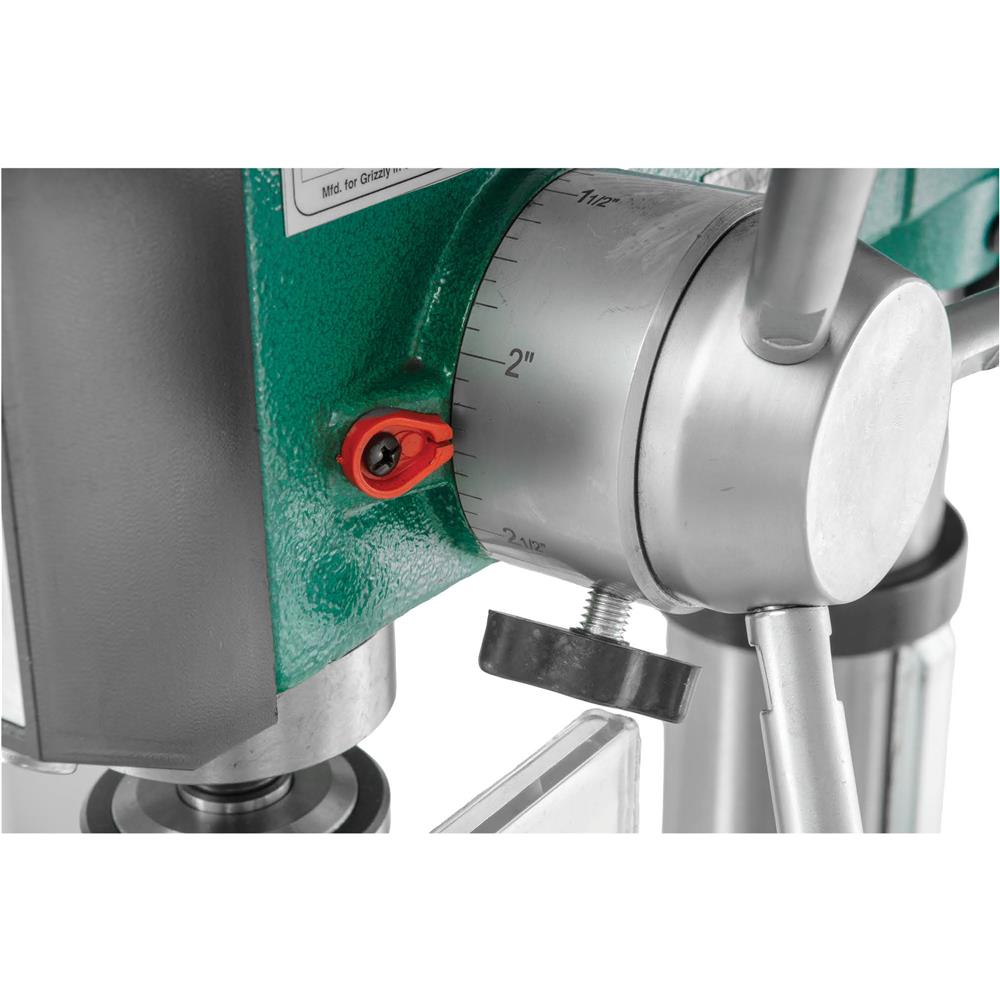

A push-button spindle depth stop allows you to set the depth for consistent repeat drilling operations.
The professional-level chuck guard is durable and simple to modify, and a chuck key holder prevents accidental key loss.

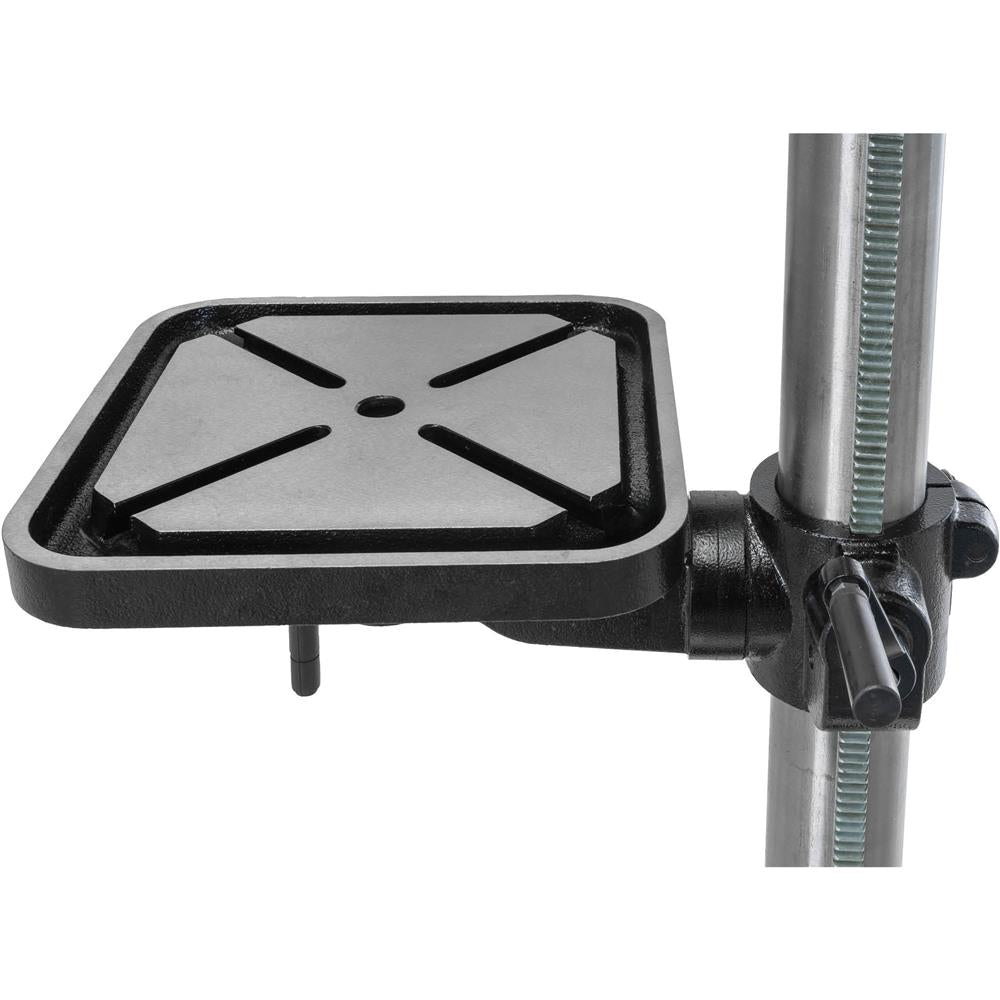

The cast-iron table offers essential stability for consistent, high-quality drilling results without excessive wear to the machine.
FEATURES & BENEFITS:
Two Variable-Speed Spindle Speed Ranges: Optimal power and control for every project, ensuring smoother drilling results.

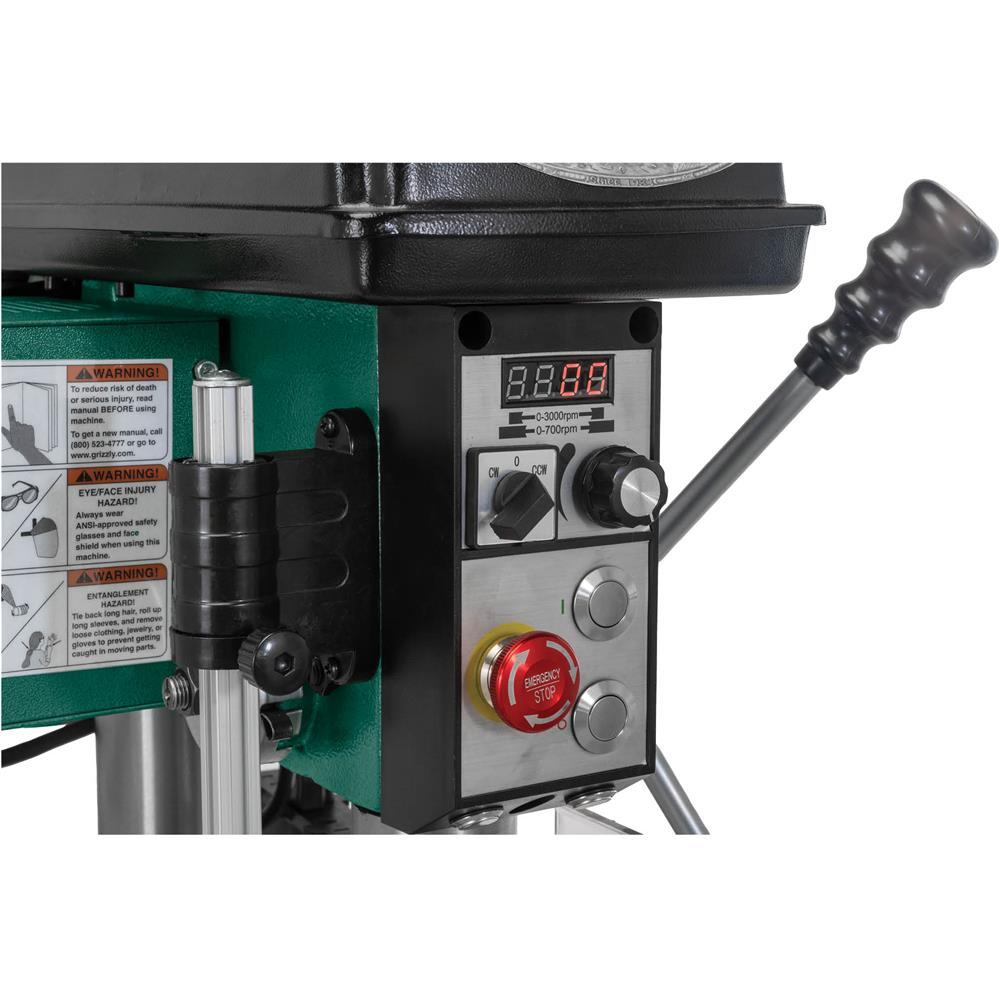

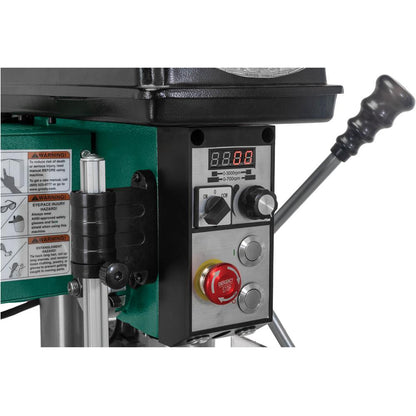

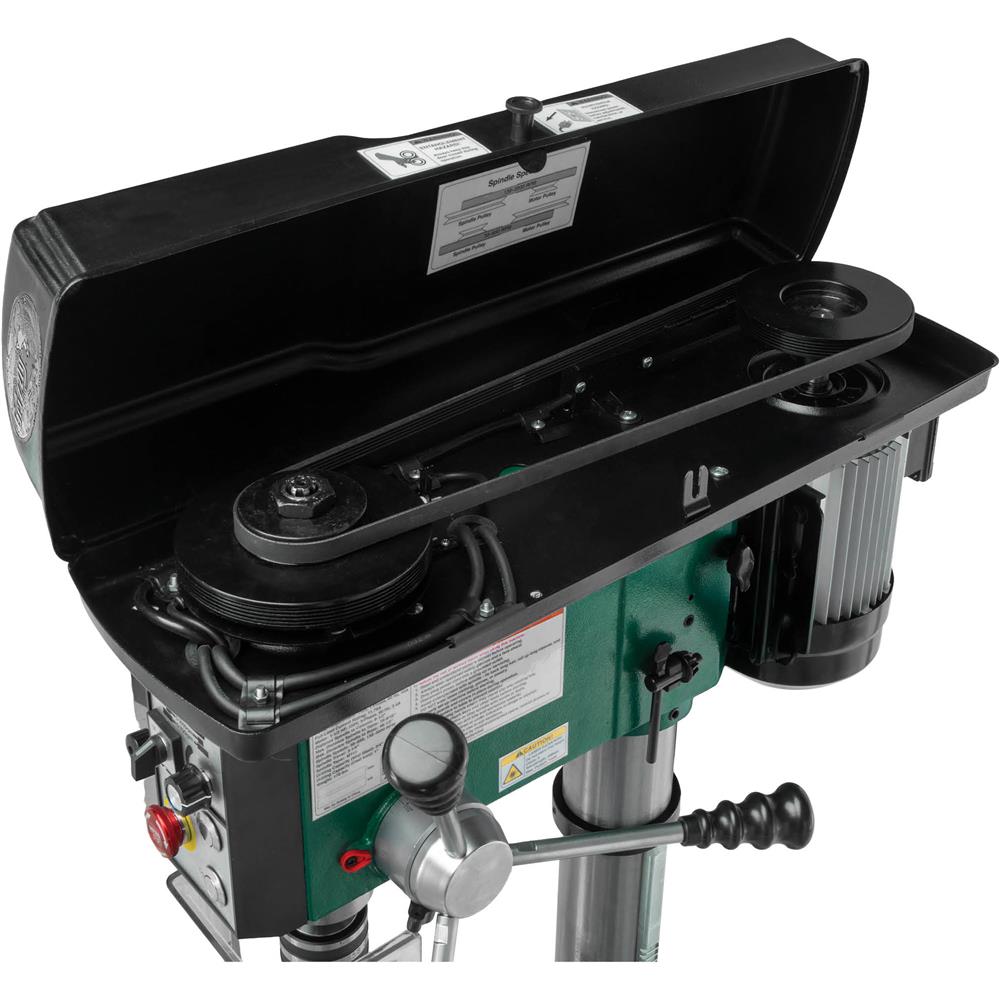

Spindle Speed Dial: Easily control variable belt speed with a user-friendly dial and digital readout.
Variable-Frequency Drive: Uses a VFD for smooth, high-torque variable speed using single-phase power.
Laser Line Guides: Adjustable Class II guides ensure precision drilling to avoid mistakes and material waste.
LED Light: Increases visibility for better results and improved safety.
Depth Stop: Provides simple adjustments and ensures consistent drilling depth.

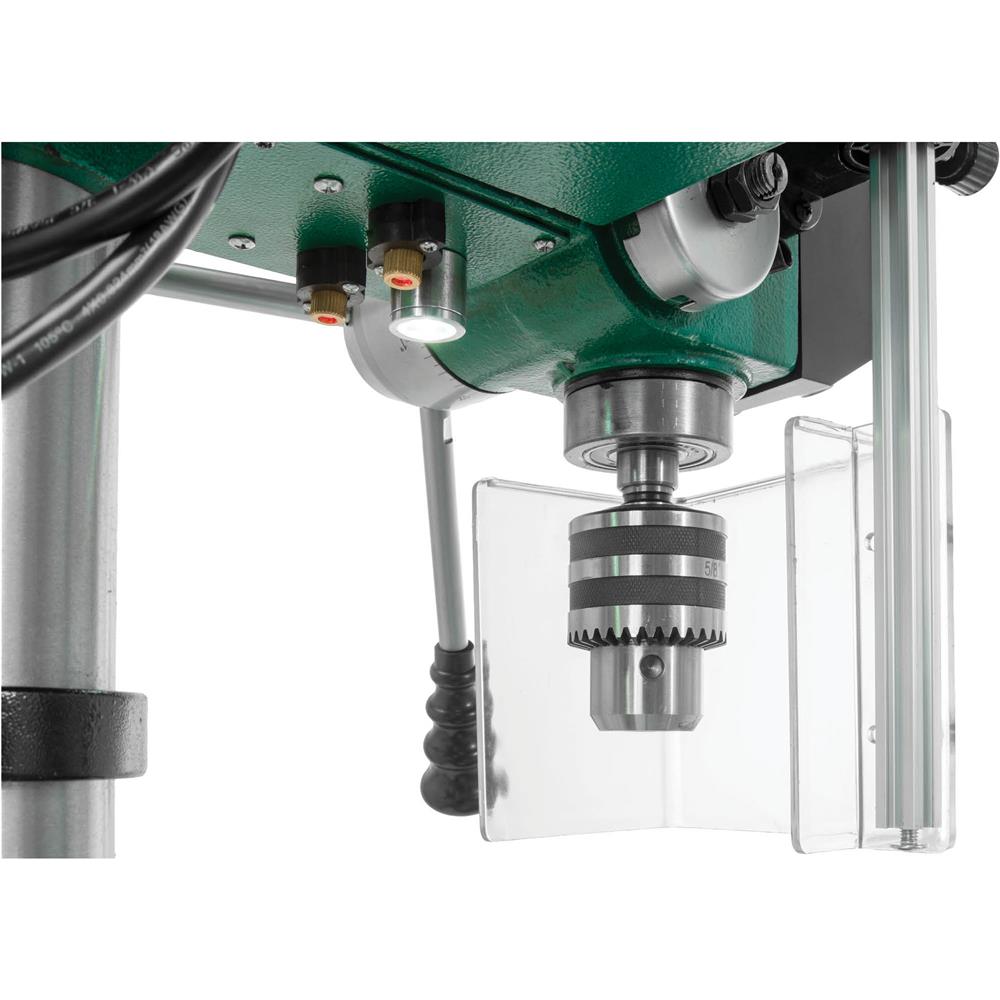

Chuck Guard w/Safety Switch: Adds another layer of protection from drilling debris.
Chuck Key Holder: Avoid misplacing your chuck key and keep it within reach.

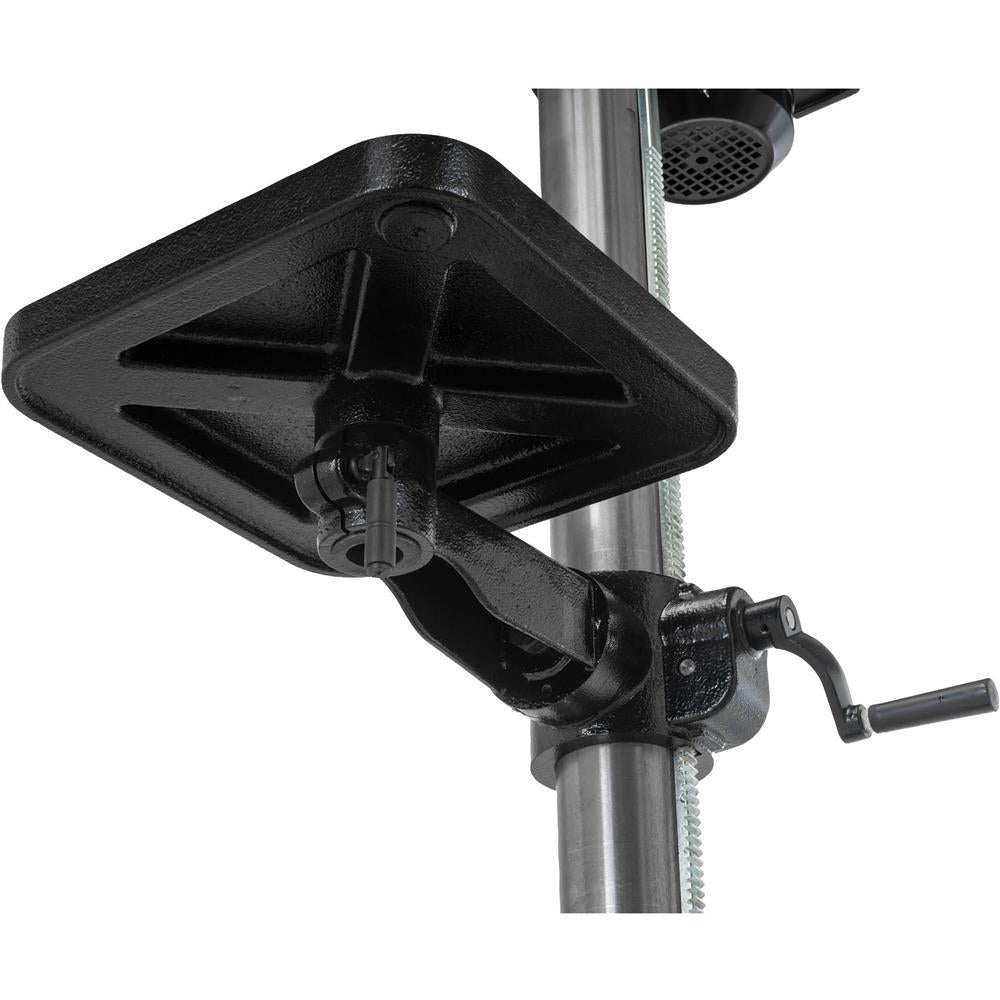

Precision-Ground Cast-Iron Table: Durable construction to withstand extensive use.
SPECIFICATIONS:
Required power source: 110V, single-phase, min. 15A circuit
Motor: 1-1/2 HP, 3.4A
Swing: 17"
Spindle taper: MT#2
Spindle travel: 3-1/4"
Spindle speeds: Variable; 30-650, 130-3000 RPM
Drill chuck: JT3 keyed, 5/8"
Drilling capacity: 3/4" Mild steel
Maximum distance from spindle to table: 28-9/16"
Table dimensions: 12-3/8" x 12-3/8"

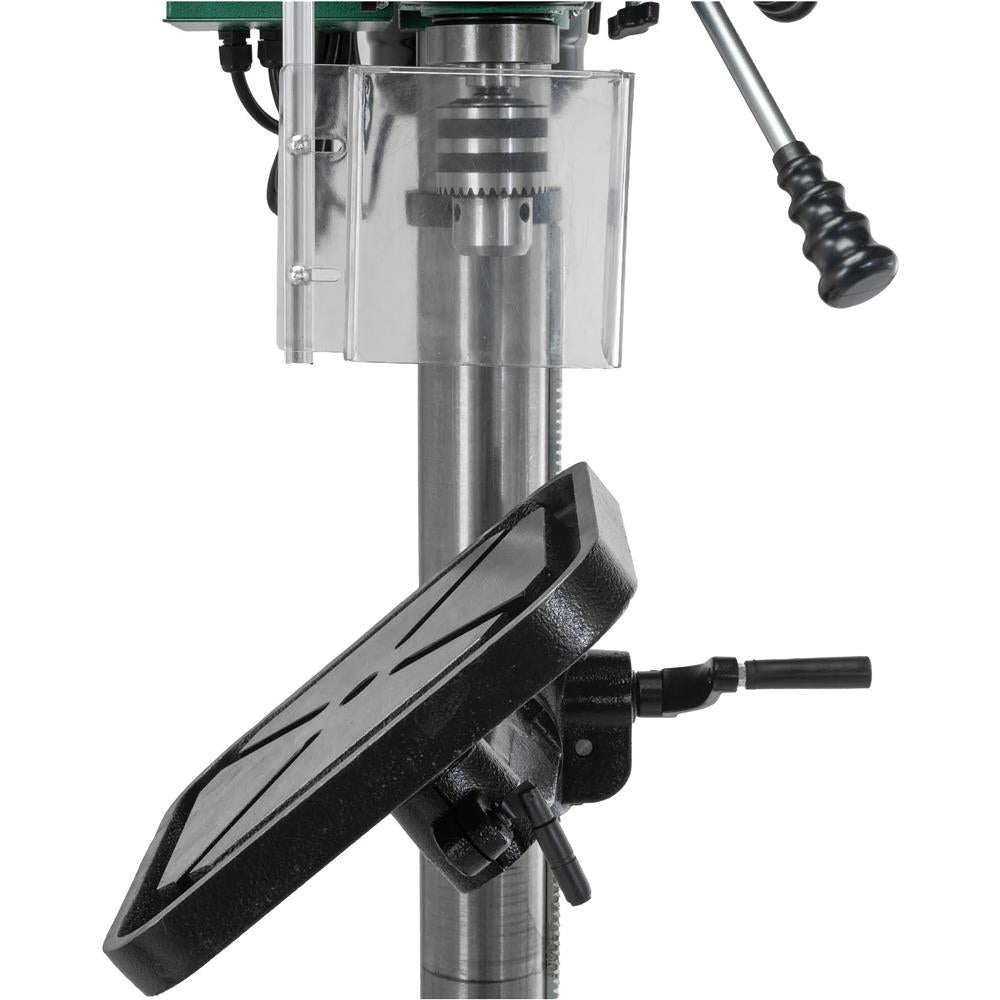

Table tilt: 0-45° L/R
Table swivel around column: 360°
T-slots (x4): 9/16"
Footprint: 21-1/2" x 13"
Overall dimensions: 16" W x 28" D x 64-1/2" H
Approximate shipping weight: 179 lbs.
Get a drill press that adapts to every project with ease, with variable speed and features that boost productivity.
