1HP 6" Belt / 10" Disc Combination Sander

A professional-grade sander supplying professional results.

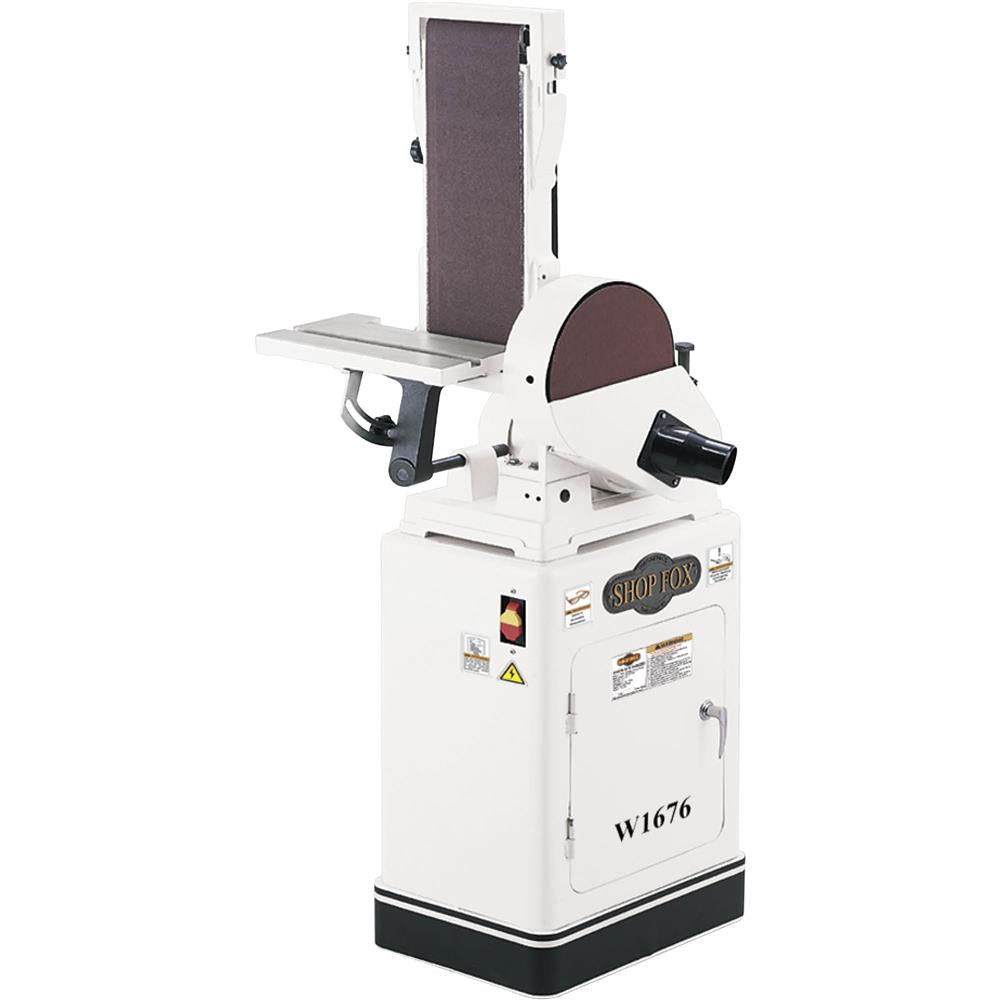

The W1676 6" Belt / 10" Disc Combo Sander from Shop Fox bridges the large gap between the bench-top models and the more expensive industrial models.

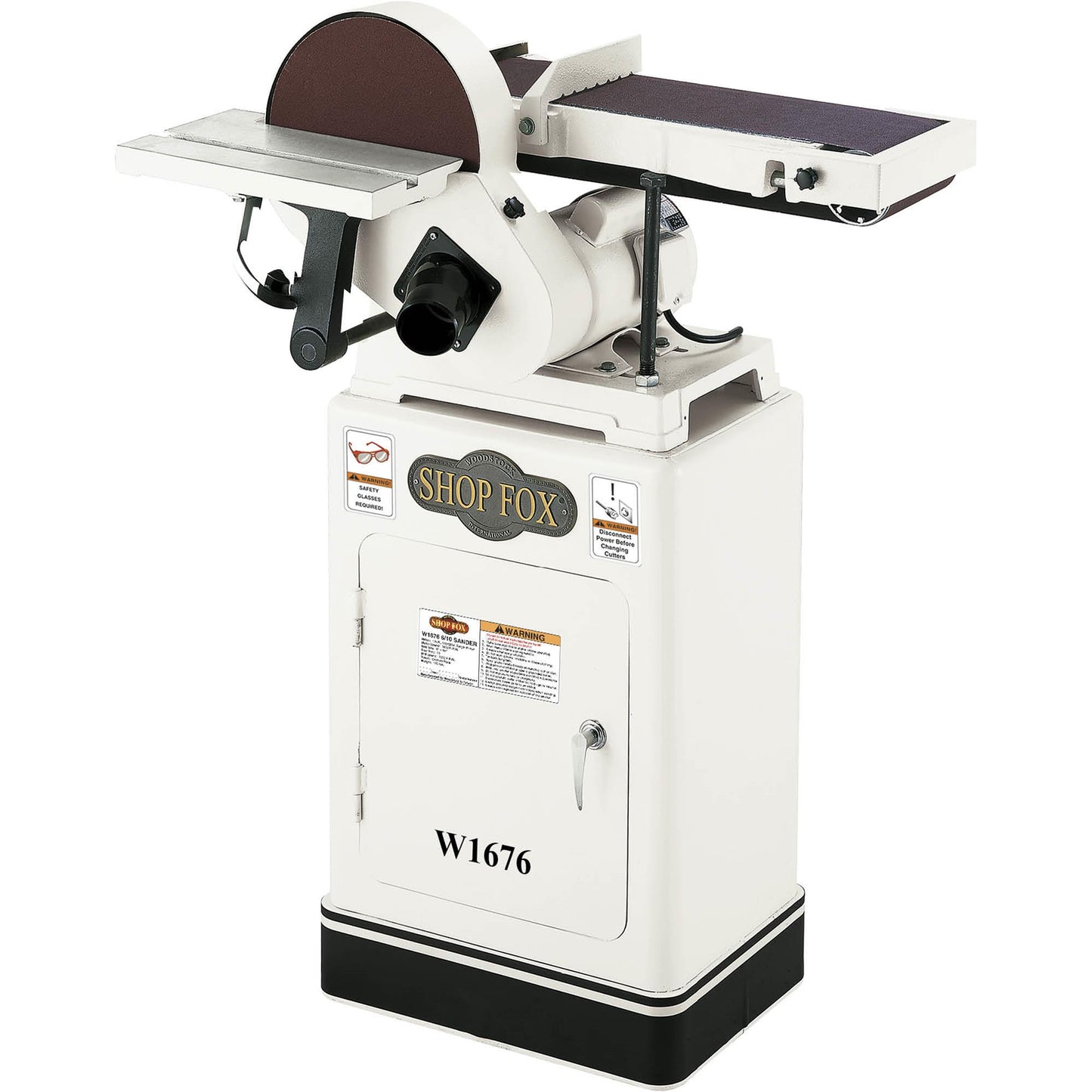

The 6" x 48" sanding belt tilts 90° and can be used in both horizontal and vertical positions, or any angle between, based on your needs. For a full range of replacement belts for the W1676, shop here.

The back stop supports workpieces on the belt sander in any position.

The 6" W x 12-1/4" L cast-iron work table tilts from 0° left to 45° right and supports workpieces when using the 10" sanding disc. Replacement PSA sanding discs are available in a variety of grits.

A built-in storage shelf holds plenty of replacement belts and discs.

Like all Shop Fox combination sanders, the W1676 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1676 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts for the combination sander may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 1 HP, 110V/220V, prewired 110V, single-phase, 14A/7A
• Sanding belt size: 6" x 48"
• Sanding belt speed: 1900 FPM
• Belt sanding head tilt: 0–90°
• Platen size: 6-1/4" x 17"
• Sanding disc diameter: 10"
• Sanding disc speed: 2420 RPM
• Sanding disc type: PSA
• Disc sanding table size: 6" W x 12-1/4" L
• Disc sanding table tilt: 0°–45°
• Number of dust ports: 2
• Dust port sizes: 2" and 2-1/2" (compatible with standard shop vacuums)
• Footprint: 15" x 16-1/2"
• Overall size: 30" W x 24" D x 56" H
• Approximate shipping weight: 168 lbs.

FEATURES:

• Two-year warranty!!
• 10" computer-balanced cast-iron disc
• Precision-ground cast-iron table
• Quick change belt release
• Cabinet-style stand with powder-coated finish
• Heavy-duty miter gauge
• Ball bearing construction
