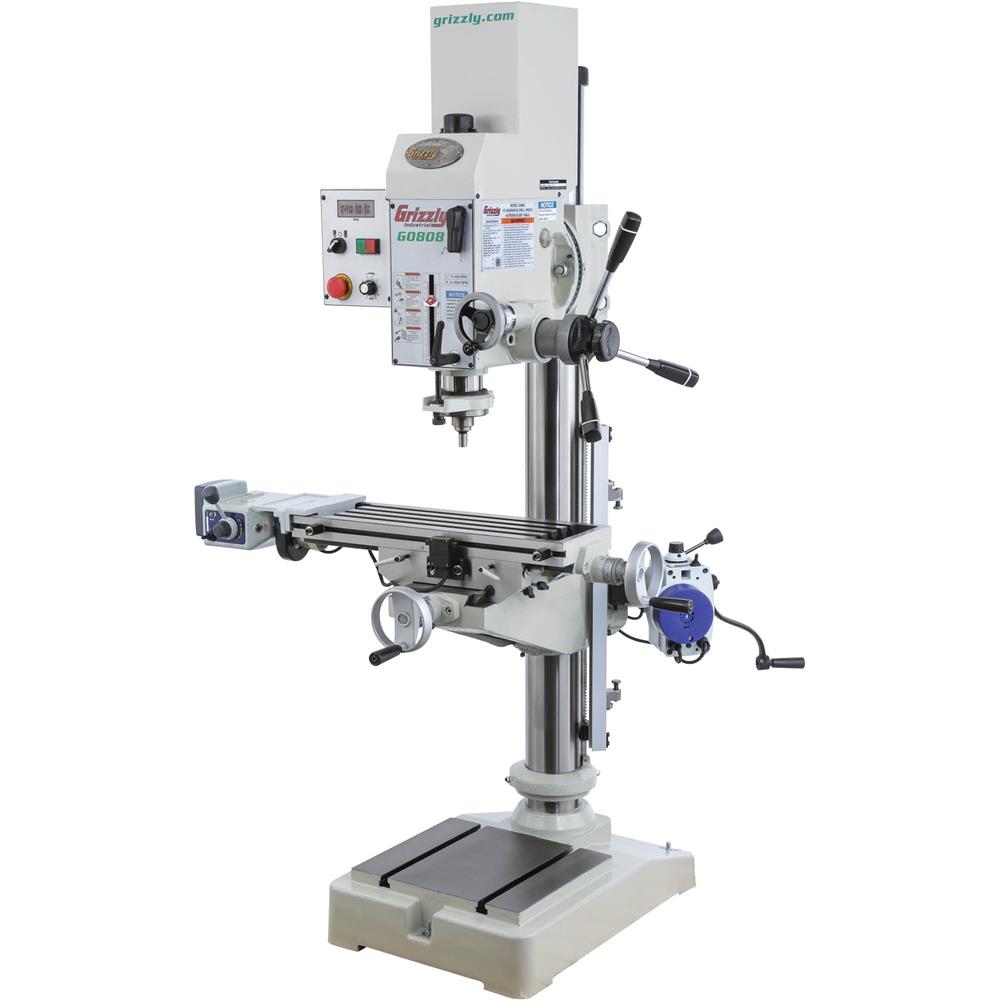

G0808 20-3/4" Gearhead Drill Press w/ Cross-Slide Table

One of the most functional, feature packed drill presses on the market.

The G0808 20-3/4" Gearhead Drill Press with Cross-Slide Table delivers with many unique features.

The vertical power feed is a huge time saver for those projects requiring the table to move up and down the column repetitively or a large distance each time.

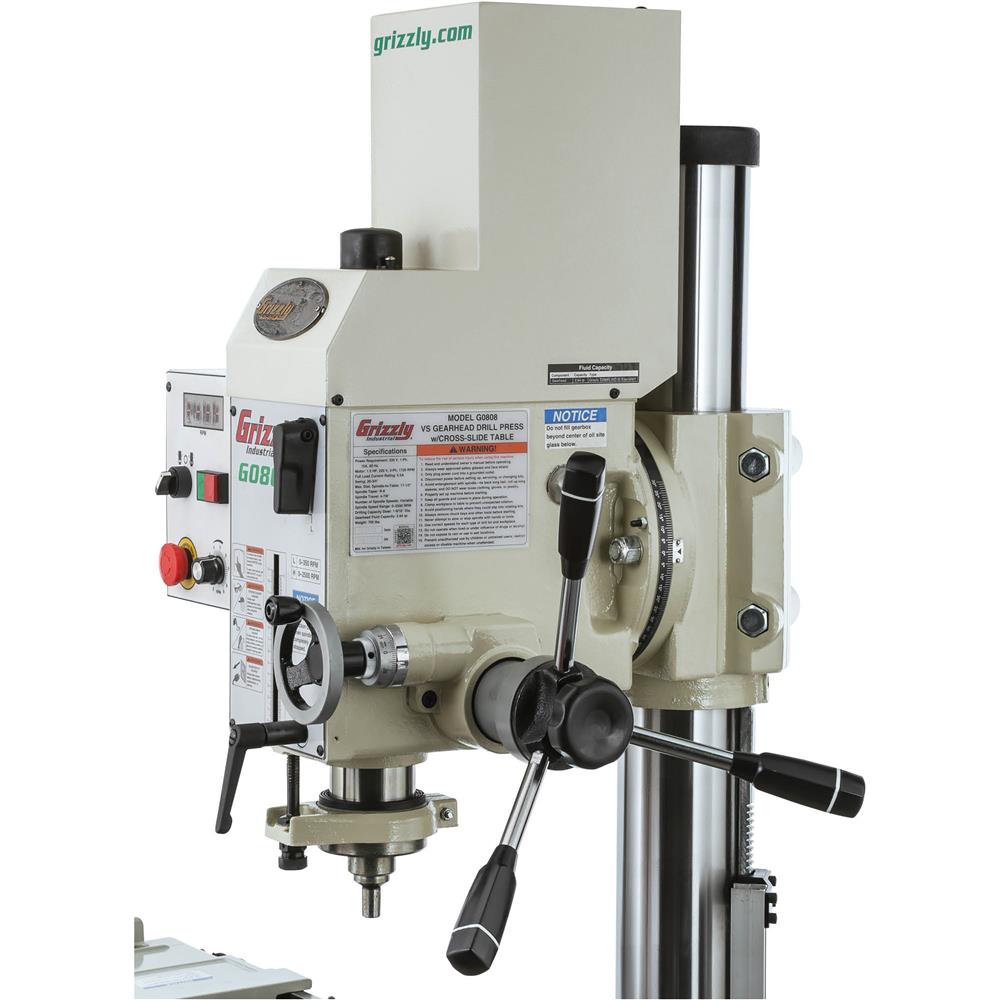

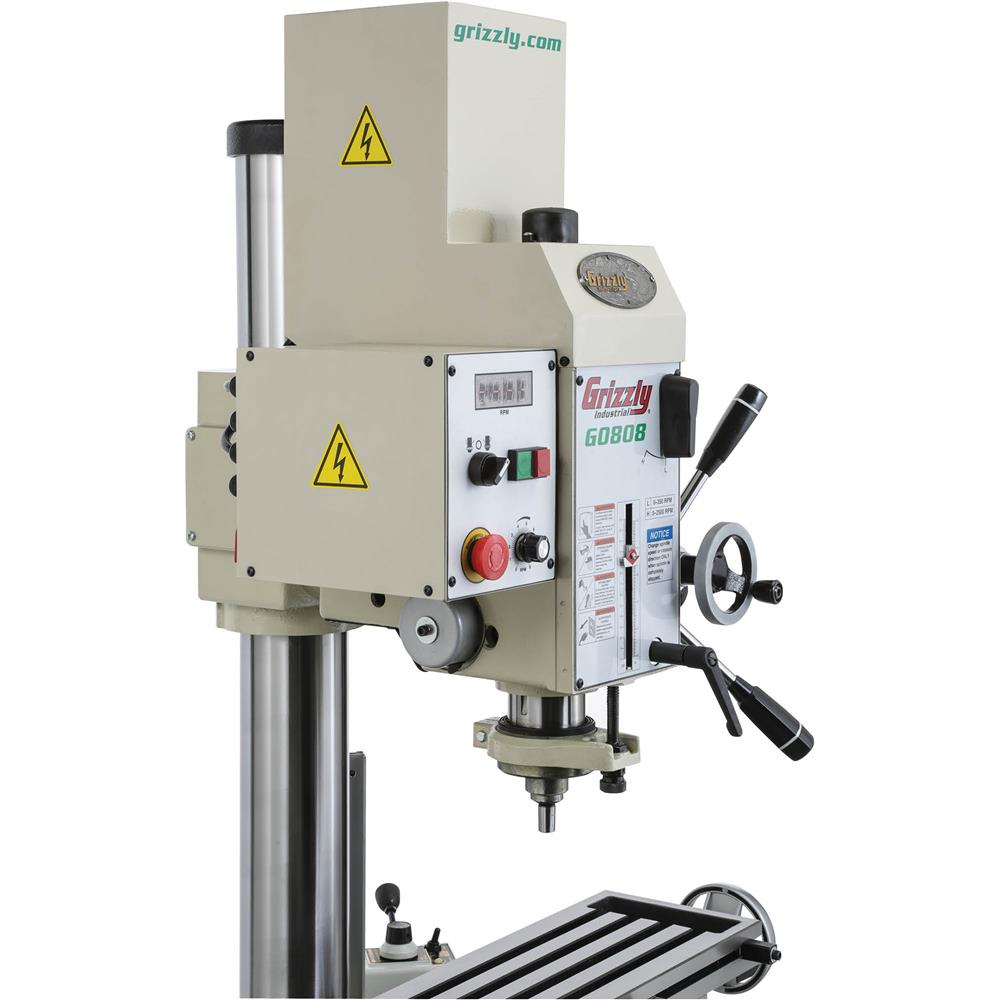

The variable-speed spindle control combined with a large digital readout allows for optimum control of drilling results.

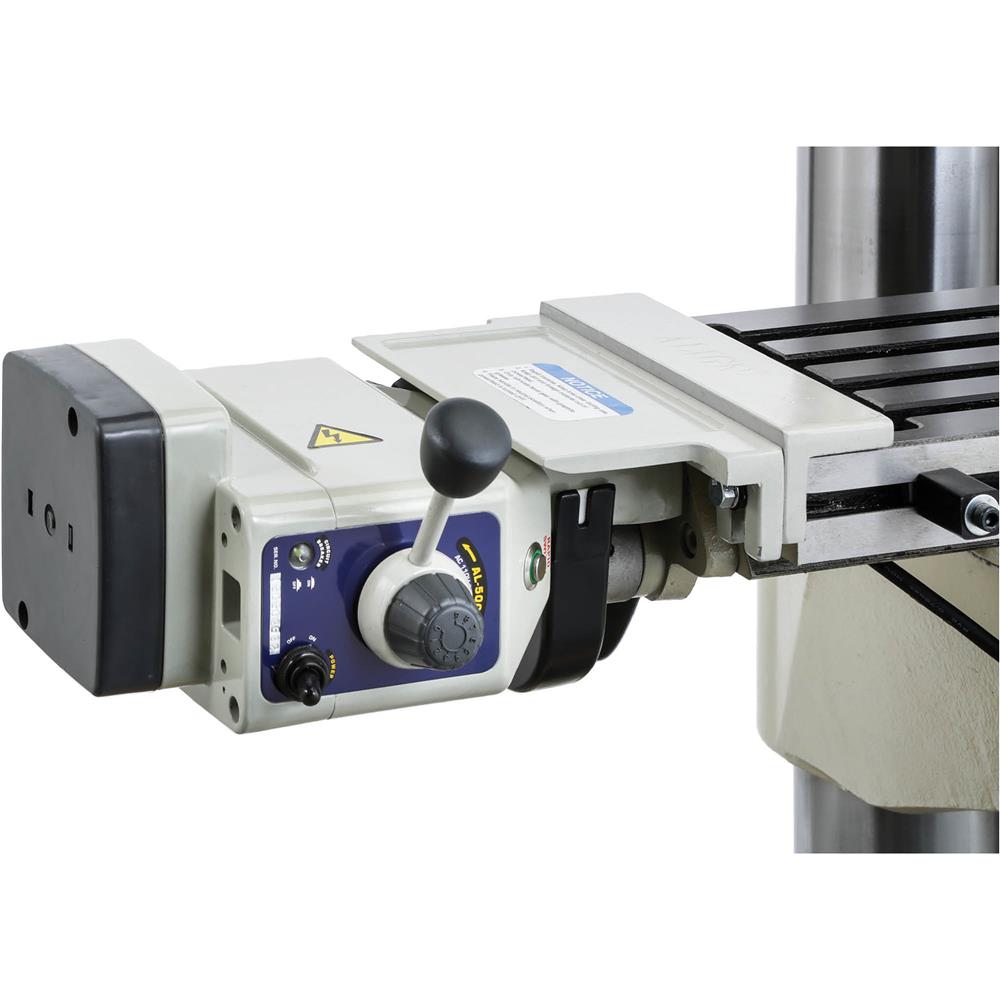

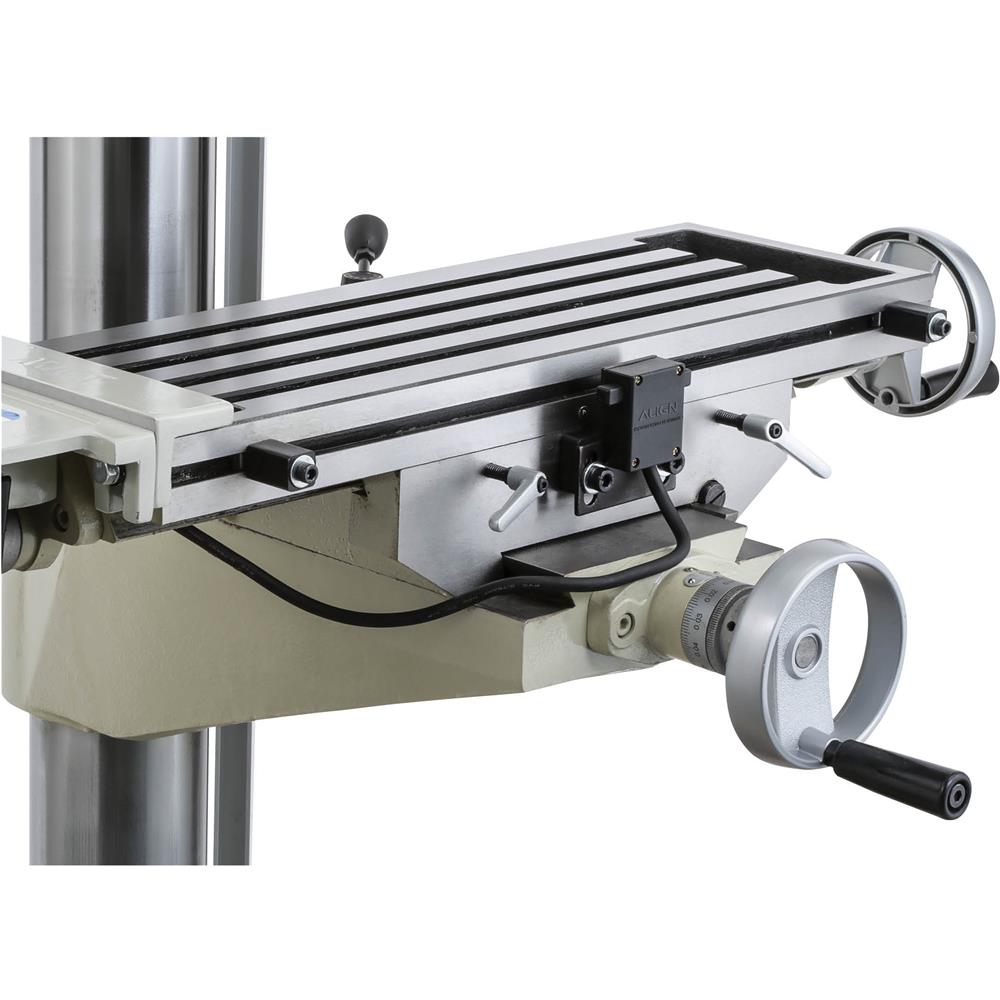

The X- and Y-axis table has a longitudinal powerfeed for milling as well as faster drilling setup convenience.

SPECIFICATIONS:

• Required power source: 220V, single-phase, min. 15A circuit
• Main motor: 1-1/2 HP, 220V
• Swing: 20-3/4"
• Spindle taper: R-8
• Spindle travel: 4-7/8"
• Spindle speed: variable, 0–2500 RPM
• Drilling capacity: 1-9/16" mild steel
• Head tilt: 30° left, 90° right
• Max. distance from spindle to column: 10-7/16"
• Max. distance from spindle to table: 17-1/2"
• Table dimensions: 7-1/2" x 23"
• Quill diameter: 2-15/16"
• Longitudinal table travel (X-axis): 15"
• Cross table travel (Y-axis): 7"
• Vertical table travel (Z-axis): 17-3/4"
• T-slots size: 1/2" (4 on table, 2 on base)
• Overall dimensions: 42" W x 46-1/2" D x 77-1/2" H
• Approximate shipping weight: 739 lbs.

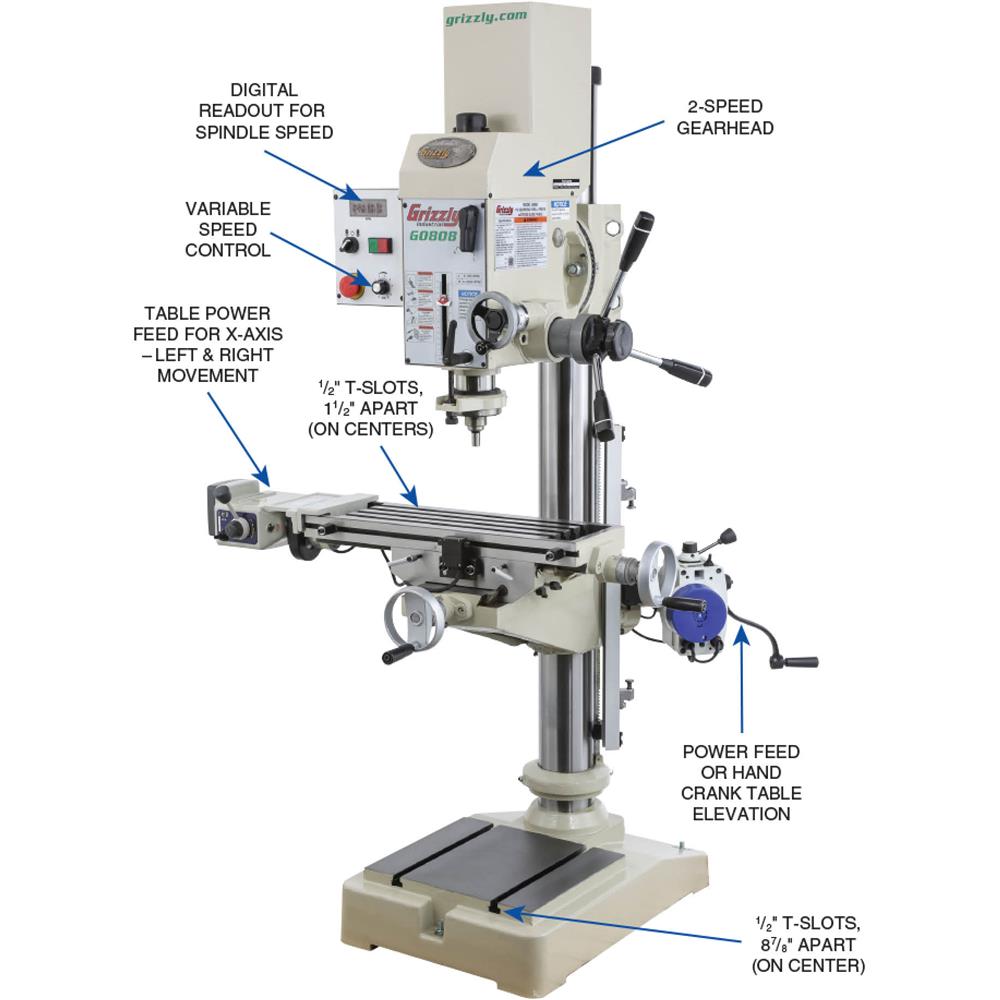

FEATURES:

• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• Longitudinal power feed on precision-ground cast-iron table

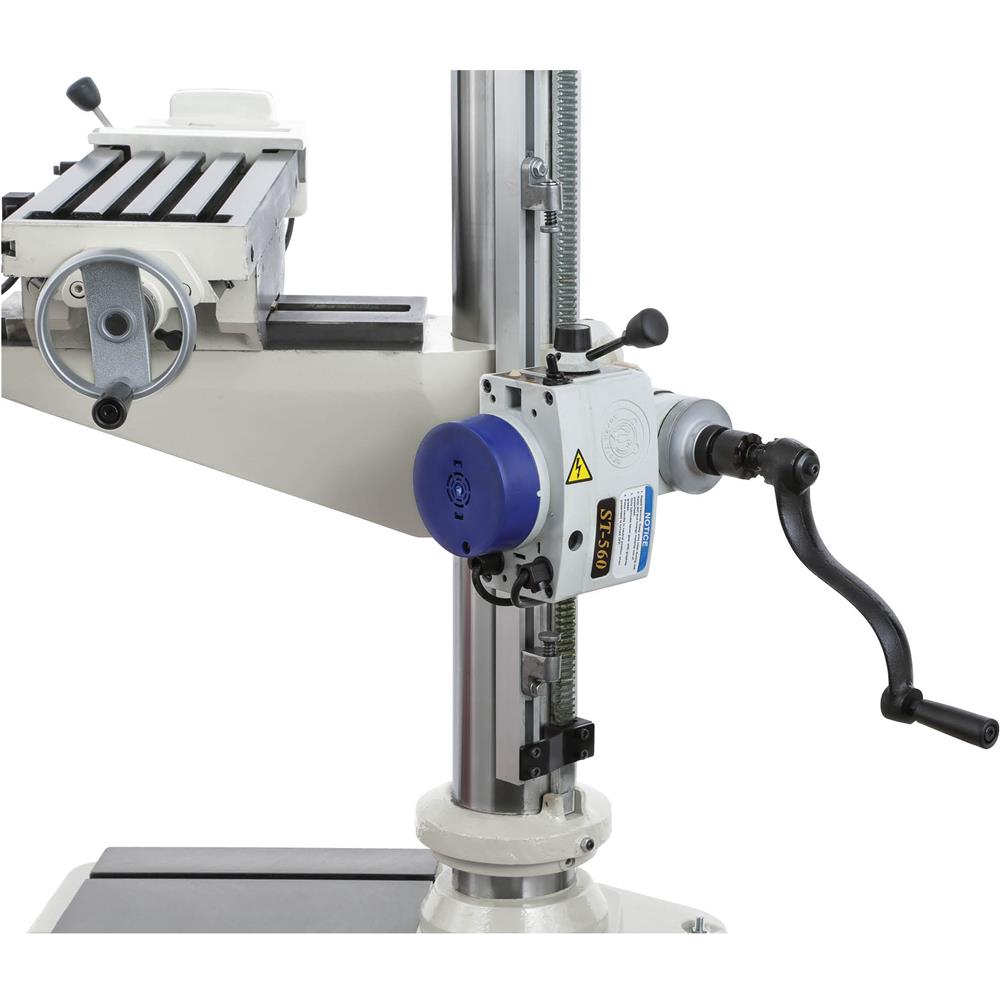

• Power feed or hand crank-enabled rack-and-pinion table elevation
• Coarse and fine downfeed controls
• 360° table and head positioning around column
• Digital spindle speed display
• Front-mounted e-stop button
• Forward/reverse spindle switch
