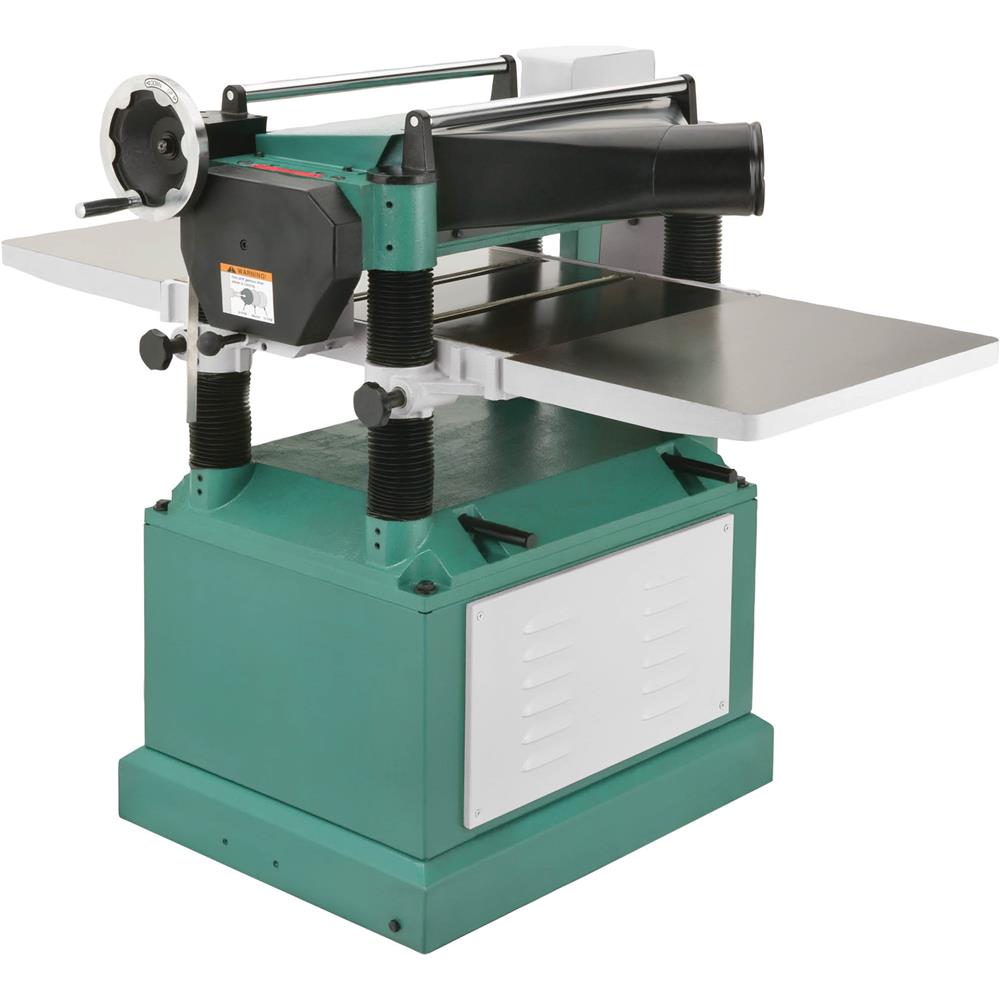

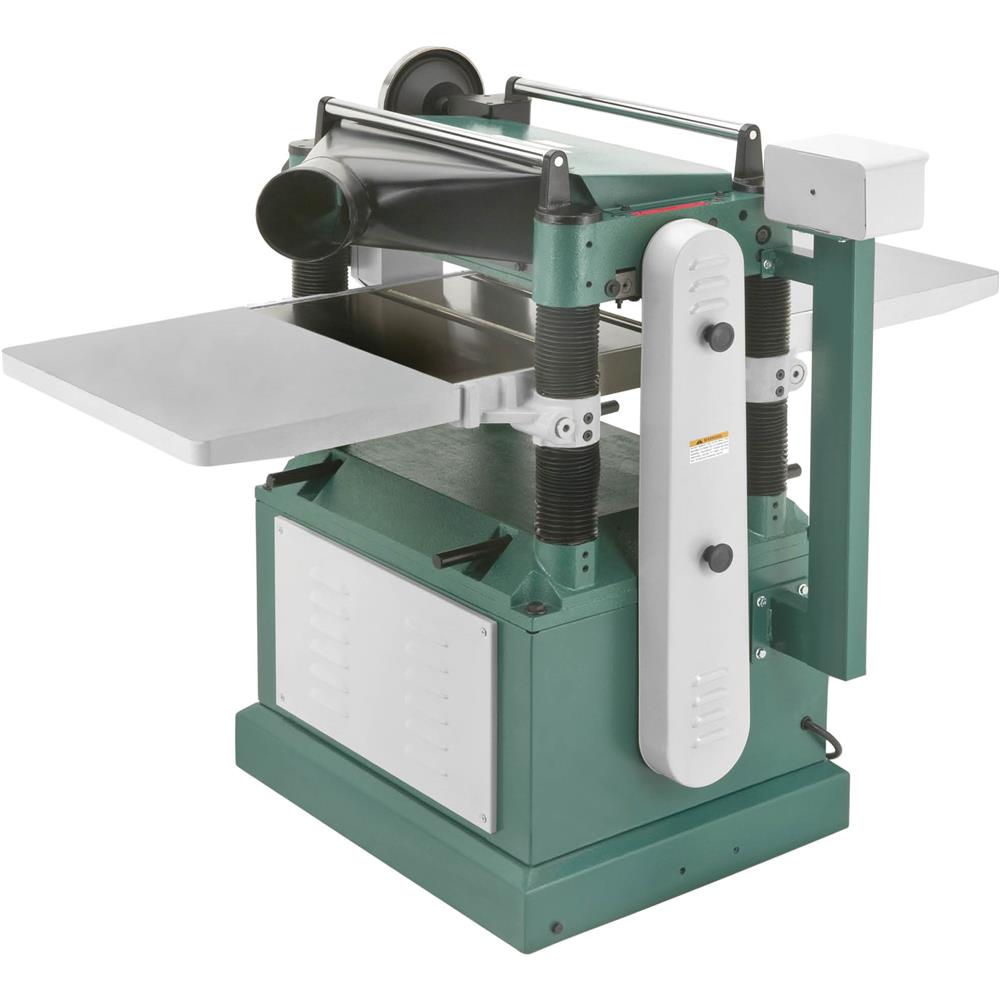

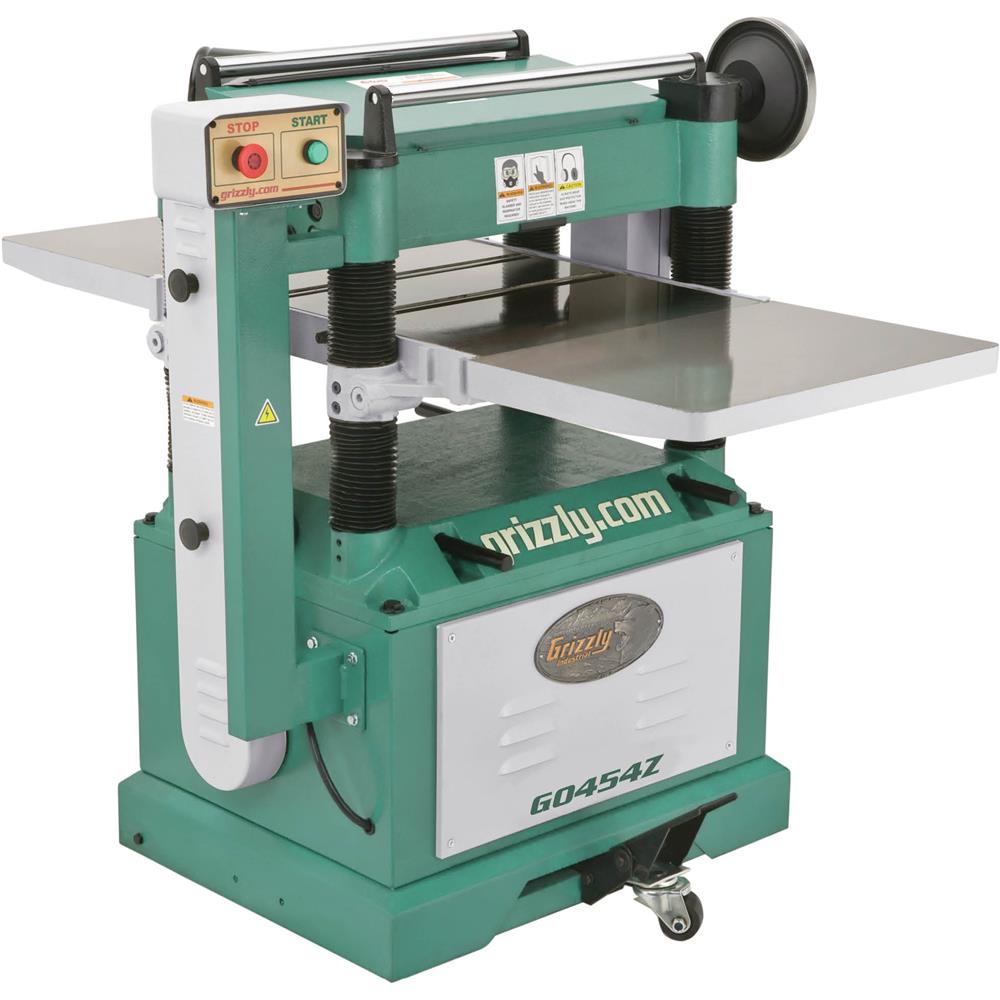

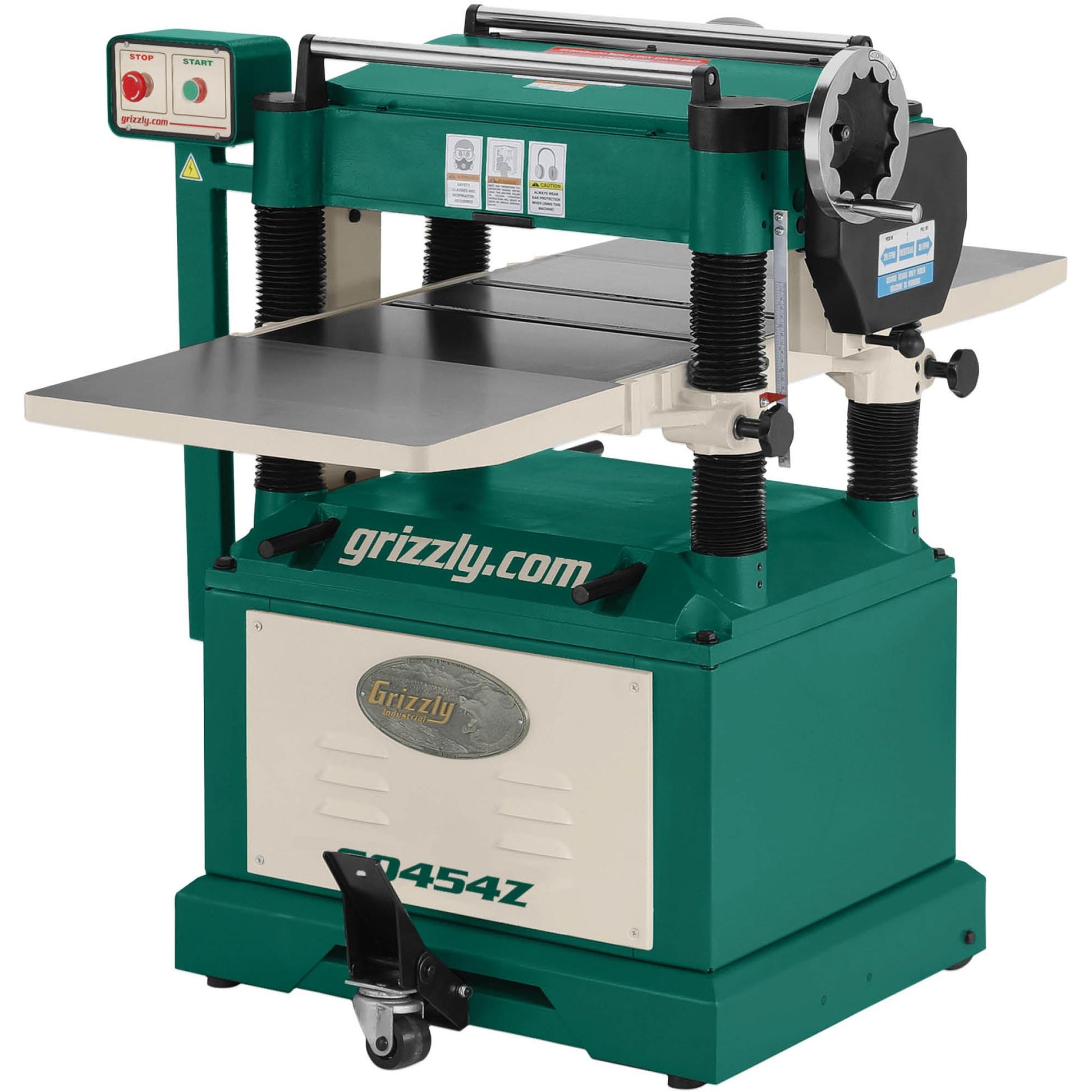

G0454Z 20" 5 HP Planer w/ Spiral Cutterhead

98 inserts over 20" to produce a silky-smooth finish.

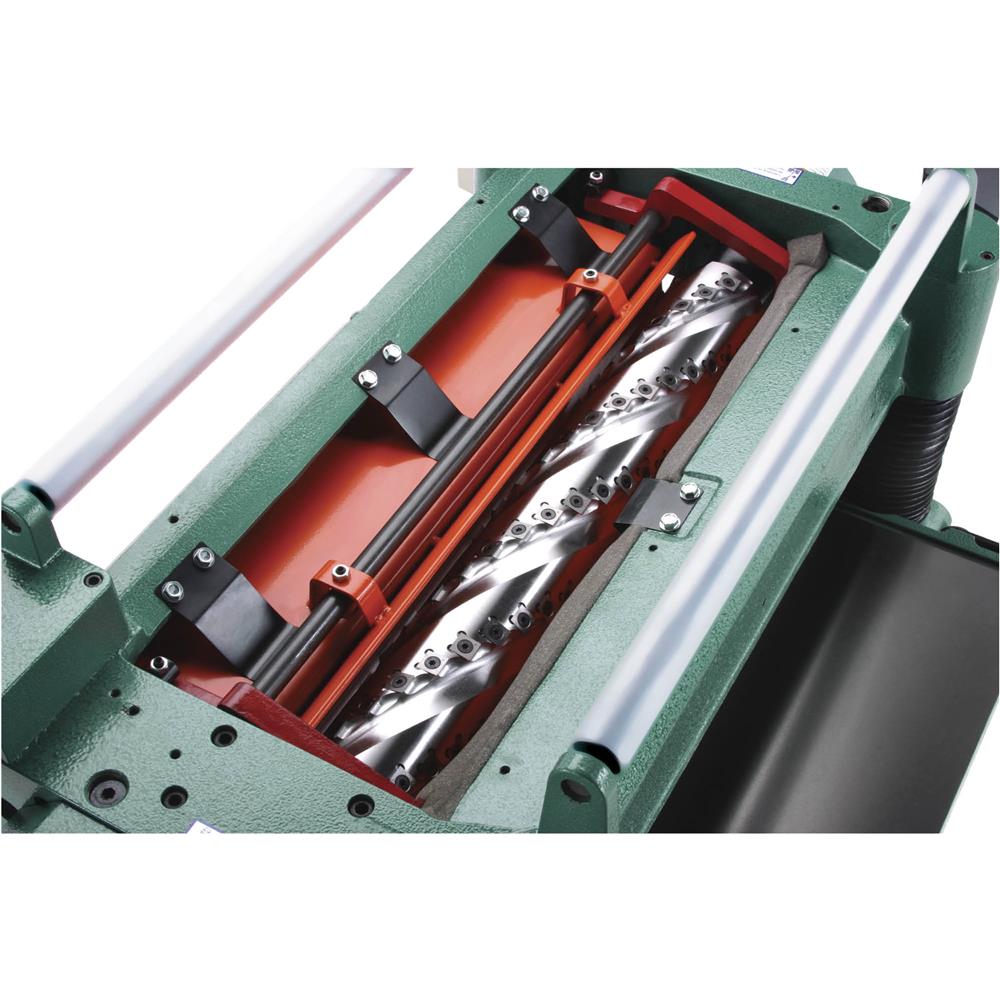

The 4-row spiral cutterhead of the G0454Z 20" 5 HP Planer produces silky-smooth finishes and greatly reduces tearout in figured woods. The 98 indexable, German-made carbide insert cutters can each be rotated three times to expose new, sharp cutting edges.

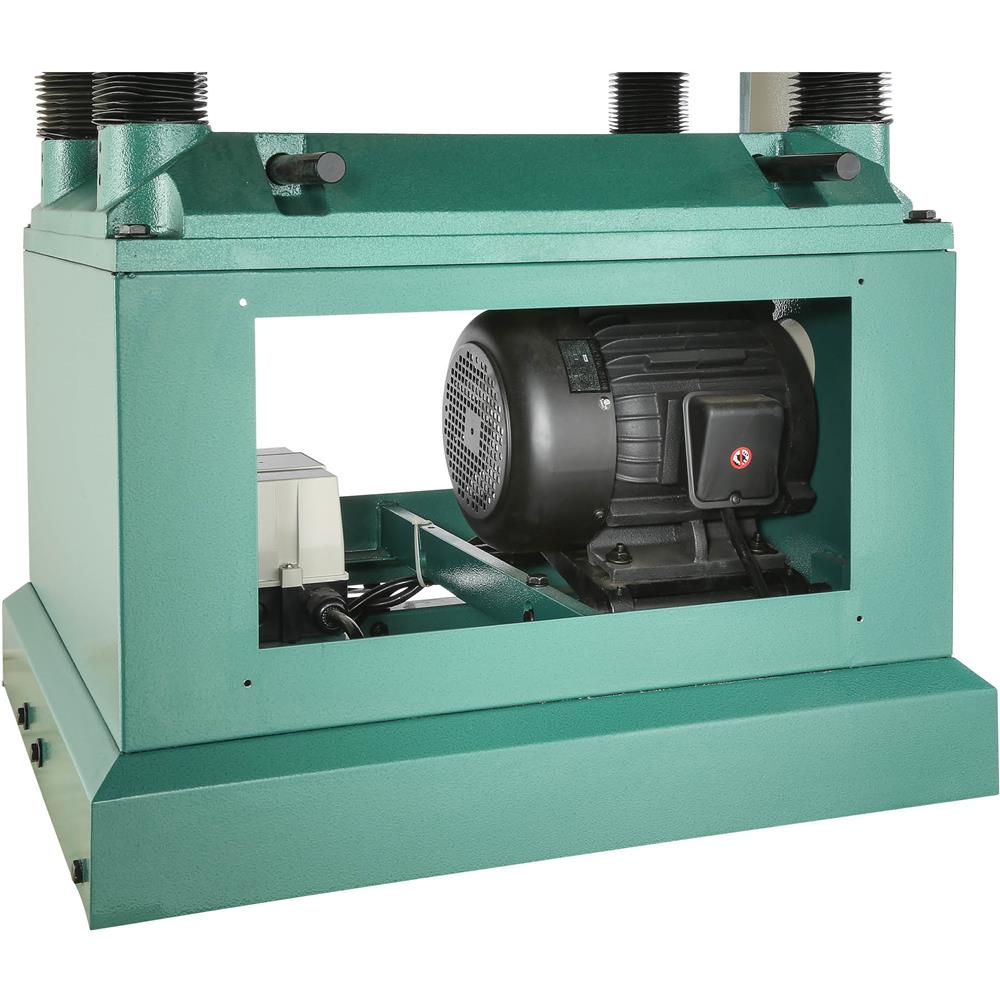

The 5 HP motor spins the cutterhead at 4800 RPM to plane your stock up to 20" wide by 8" thick. It can cut as deep as 3/16" on a 6"-wide board.

Solid cast-iron and steel construction and large planing capacity make this planer a true heavyweight. With the built-in mobile base, you’ll be able to move this planer around your shop with ease.

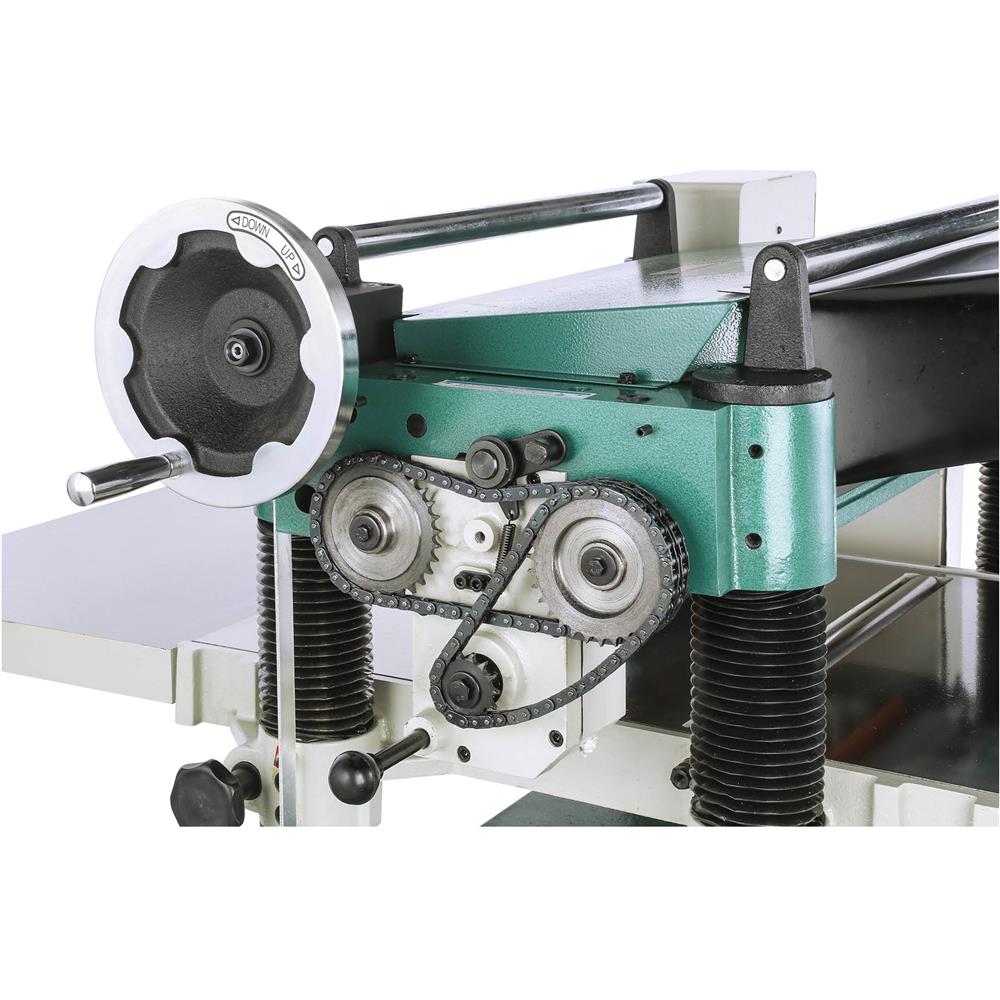

The precision-ground cast-iron table and extension wings provide a lengthy 55-1/2" of support of your stock. The two-speed gear box offers feed rates of 16 FPM and 20 FPM for maximum versatility.

CSA certified

Note on replacement inserts:

For models manufactured April 2015 and later, use H7319 14mm x 14mm x 2mm replacement inserts.

For models manufactured March 2015 and earlier, use T21348 14.17mm x 14.17mm x 2.00mm replacement inserts.

SPECIFICATIONS:

• Motor: 5 HP, 240V, single-phase, 19A
• Maximum stock width: 20"
• Maximum stock thickness: 8"
• Minimum stock thickness: 3/16"
• Minimum stock length: 8"
• Maximum cutting depth: 1/16"
• Cutterhead type: 4-row spiral, 98 inserts
• Insert size, type: 14mm x 14mm x 2mm, indexable carbide
• Cutterhead speed: 4800 RPM
• Feed rate: 16 FPM & 20 FPM
• Table size with extensions: 20" x 55-1/2"
• Dust port size: 5"
• Overall dimensions: 39" W x 55-5/8" L x 45-7/8" H
• Approximate shipping weight: 932 lbs.

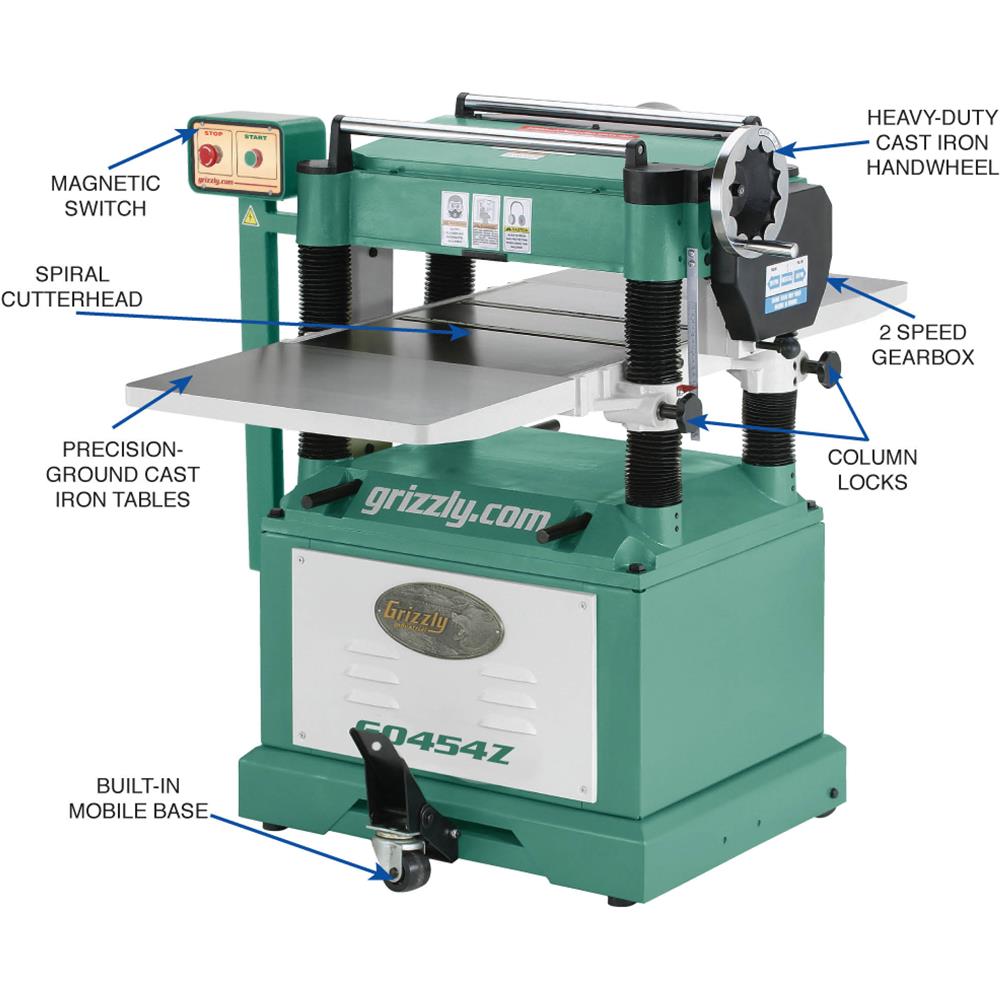

FEATURES:

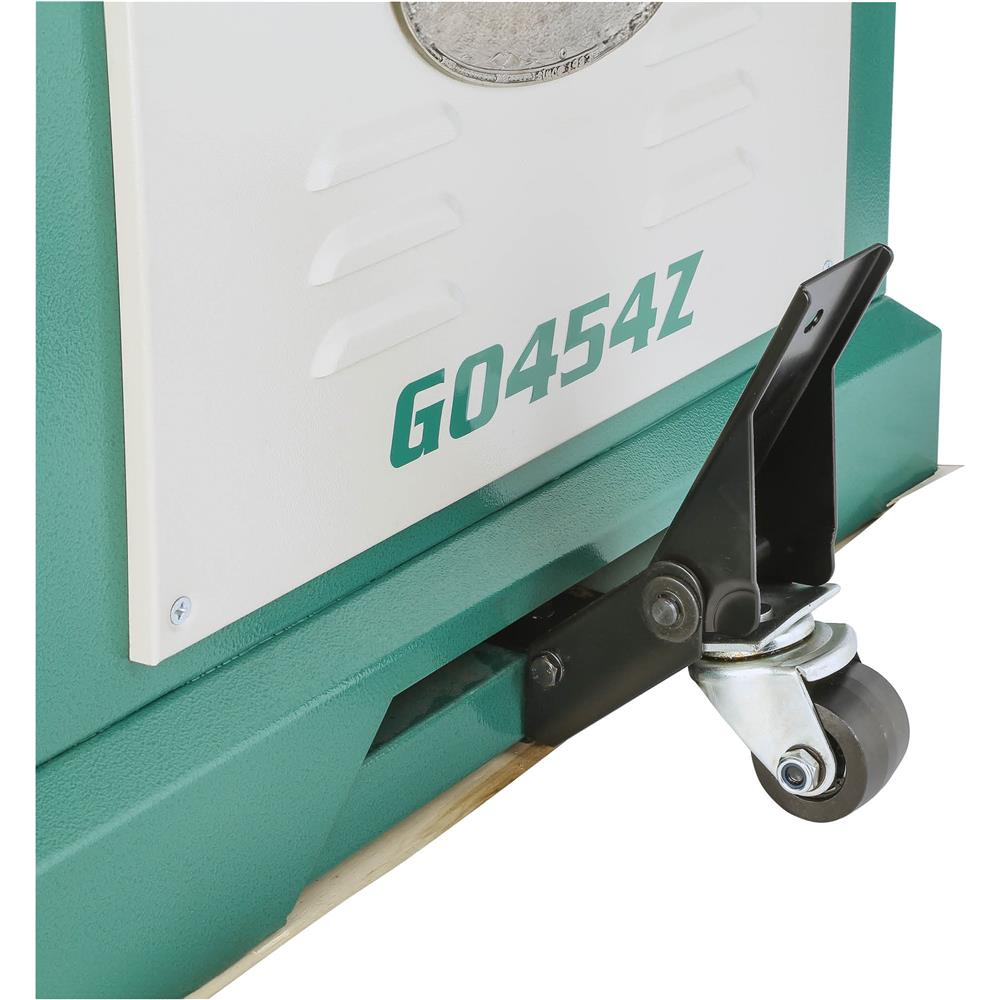

• Built-in mobile base
• Precision-ground cast-iron table and extension wings
• Board return rollers
• Built-in lifting rods
• Angled dust port hood
• Rubber-coated outfeed roller
• Adjustable bed rollers
• Magnetic switch with thermal overload protection

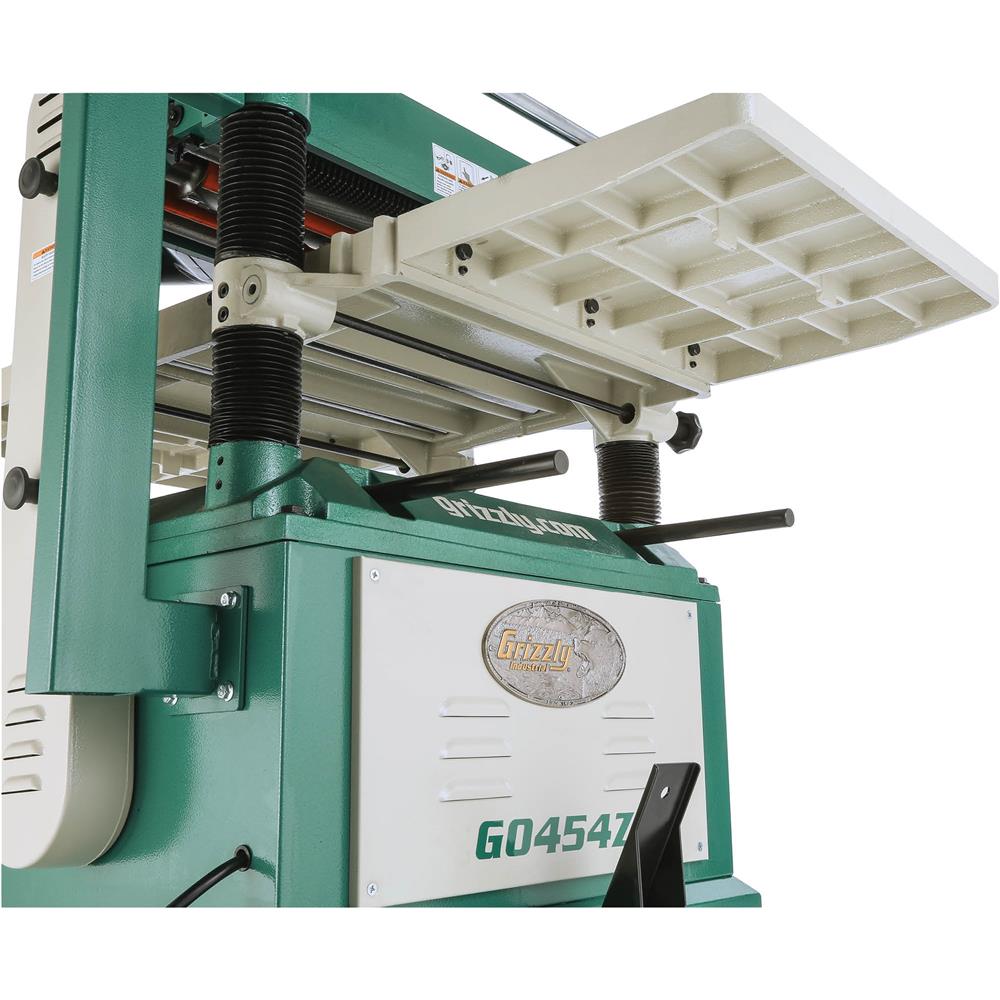

• Four-column support with table locks
• Two-speed feed rate
