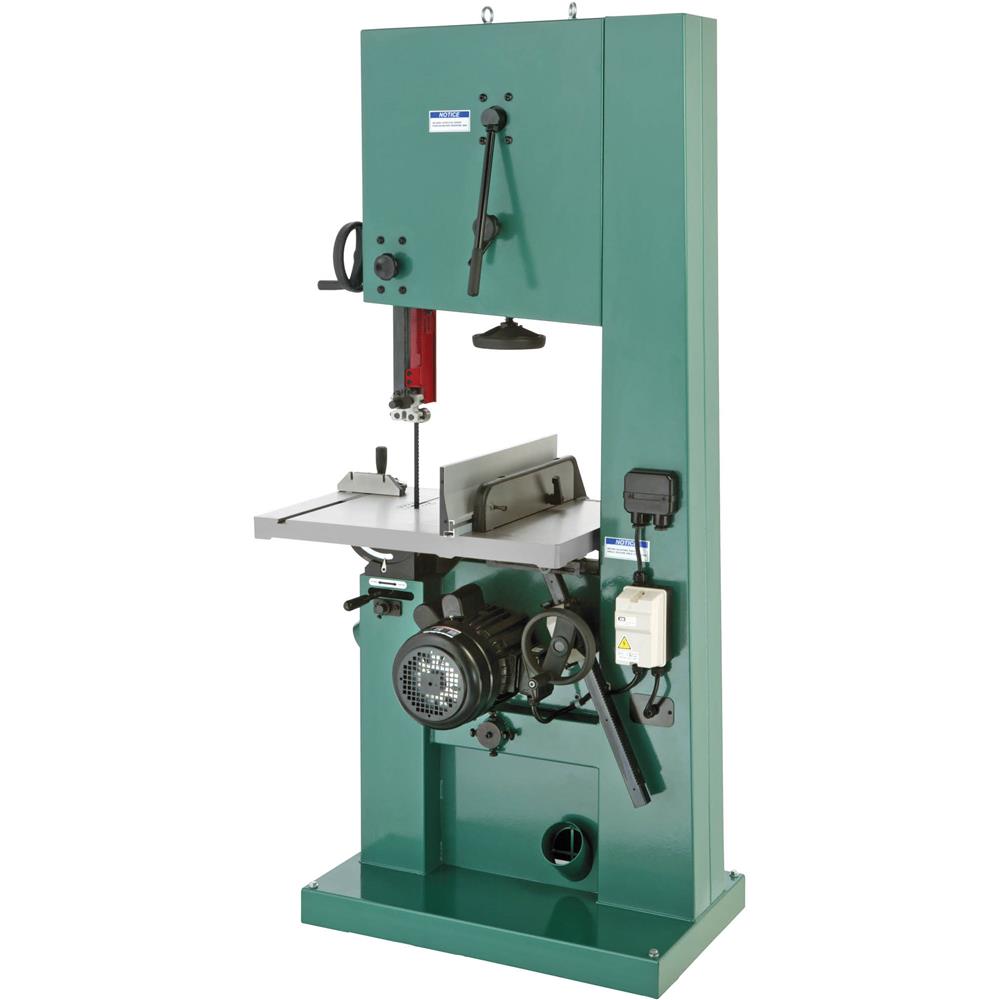

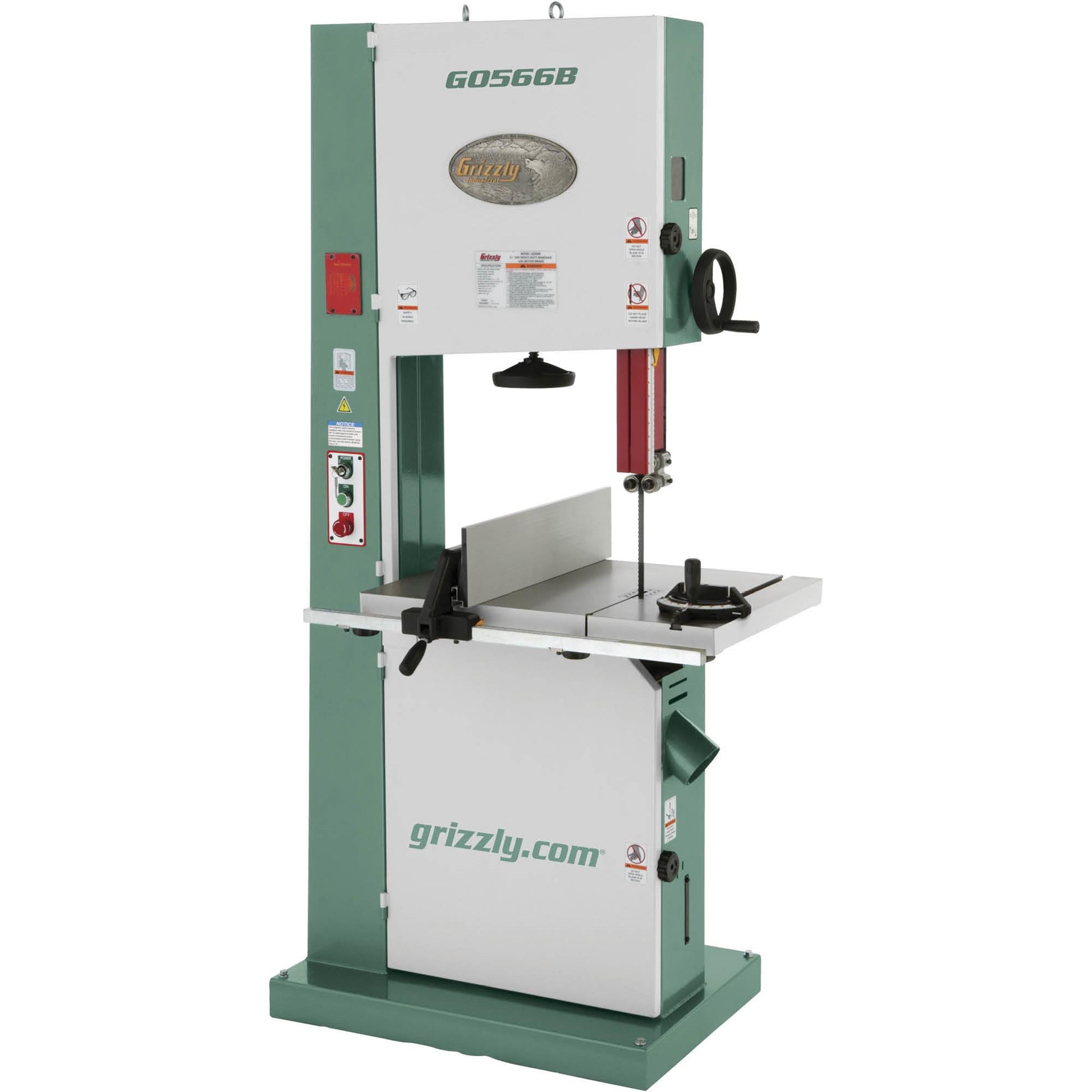

G0566B 21" Super Heavy-Duty 3 HP Bandsaw

Take on your toughest cuts with the Grizzly G0566B 21" Super Heavy-Duty 3 HP Bandsaw. This powerful machine is built for professional woodworkers and serious hobbyists who need a bandsaw that can handle anything you throw at it.

With a cutting capacity of 20 inches wide and 14-1/4 inches tall, the G0566B can easily resaw and rip thick hardwoods. The powerful 3 HP TEFC motor ensures smooth operation even during heavy-duty use.

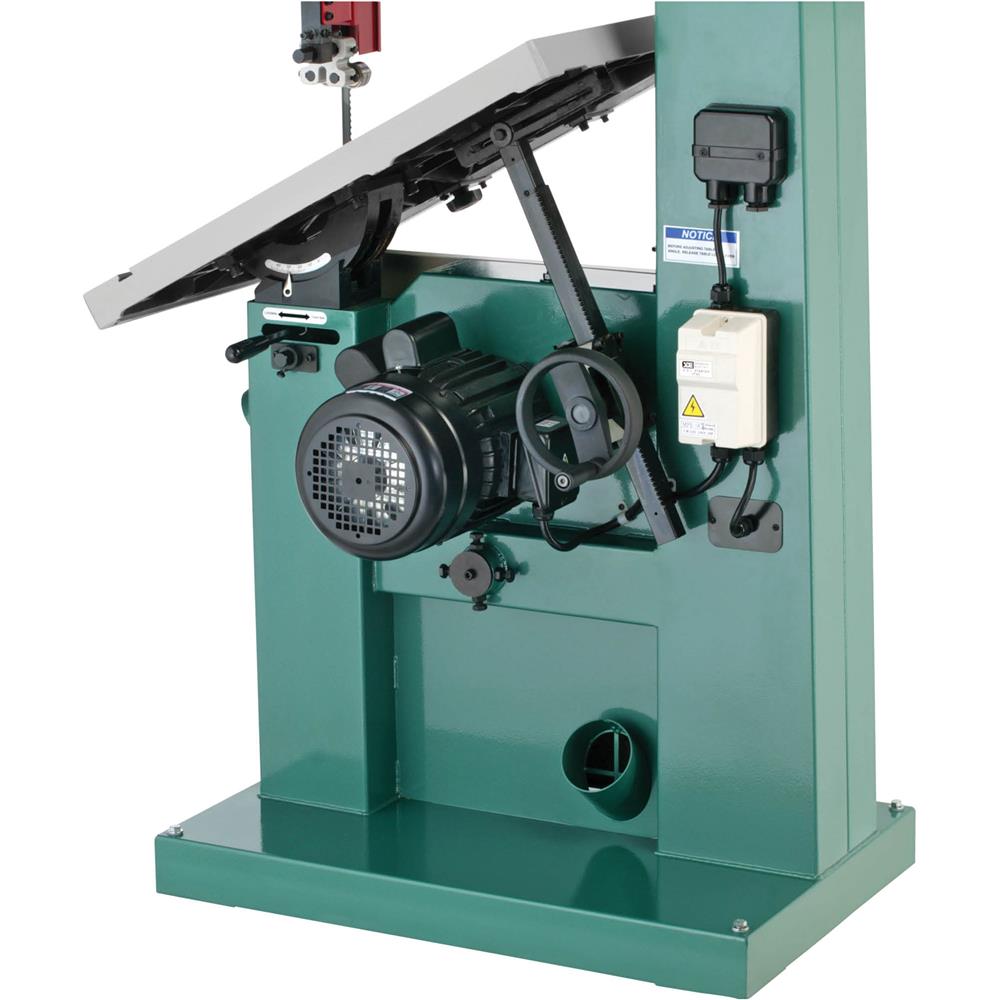

The G0566B is packed with features that make it a joy to use. The rack-and-pinion upper guide adjustment allows for quick and precise blade tracking, while the micro-adjusting table tilt ensures accurate cuts. The cast-iron table tilts from 5° left to 45° right for angled cuts.

Other user-friendly features include a blade tension indicator, a motor brake that stops the saw in under 3 seconds, and a large cast-iron table for superior stability.

For a full range replacement and resaw blades for the G0556B shop here.

SPECIFICATIONS:

• Motor: 3 HP, 230V, single-phase, 16A
• Throat (max. width left of blade): 20"
• Resaw capacity: 14-1/4"
• Table size: 20-3/4" x 20-1/2"
• Table tilt: 5° left, 45° right
• Floor-to-table height: 35-1/2"
• Blade size: 164"–165-1/2" (1/4"–1-3/8" wide)
• Blade speed: 4600 FPM
• Overall dimensions: 39-1/2" W x 28-5/8" D x 78" H
• Footprint: 21-5/8" x 33-1/2"
• Approximate shipping weight: 680 lbs.

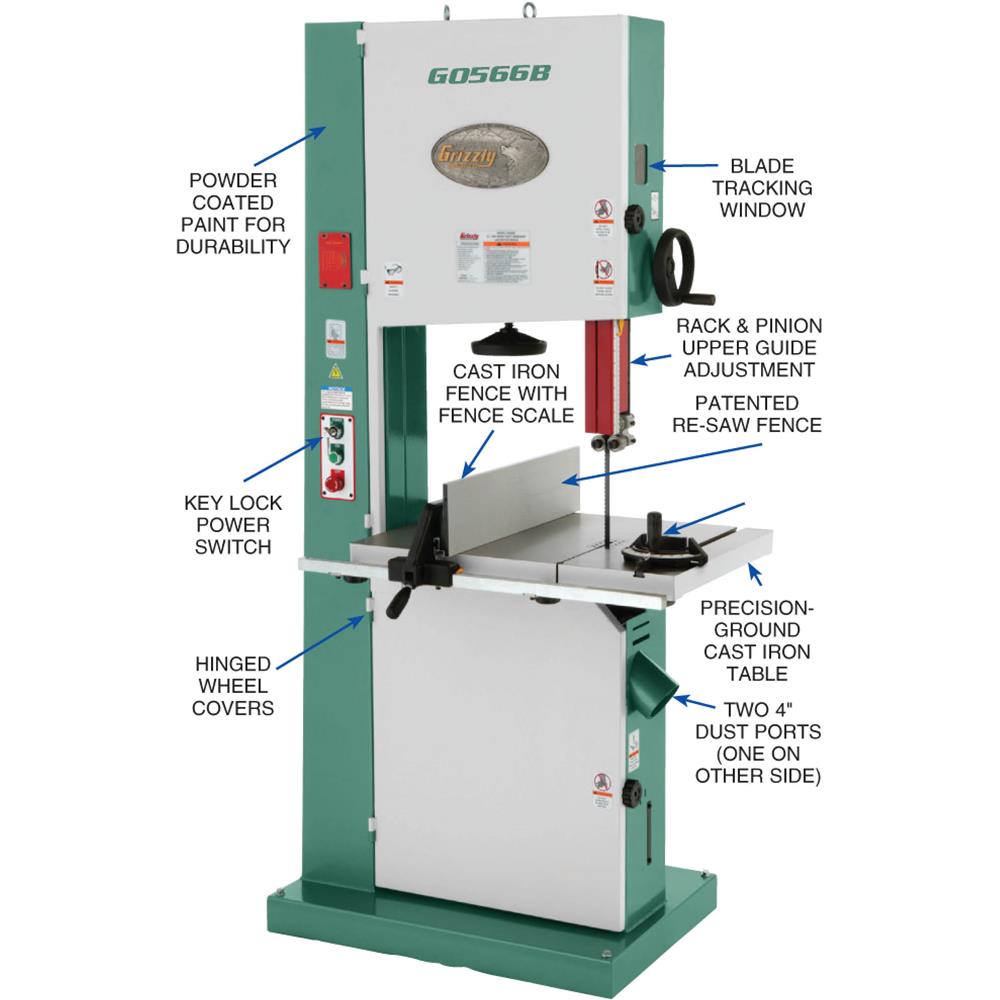

FEATURES:

• Motor stops in under 3 seconds after switch is turned off
• Quick-release blade tensioning
• Blade tension indicator
• Blade tracking window

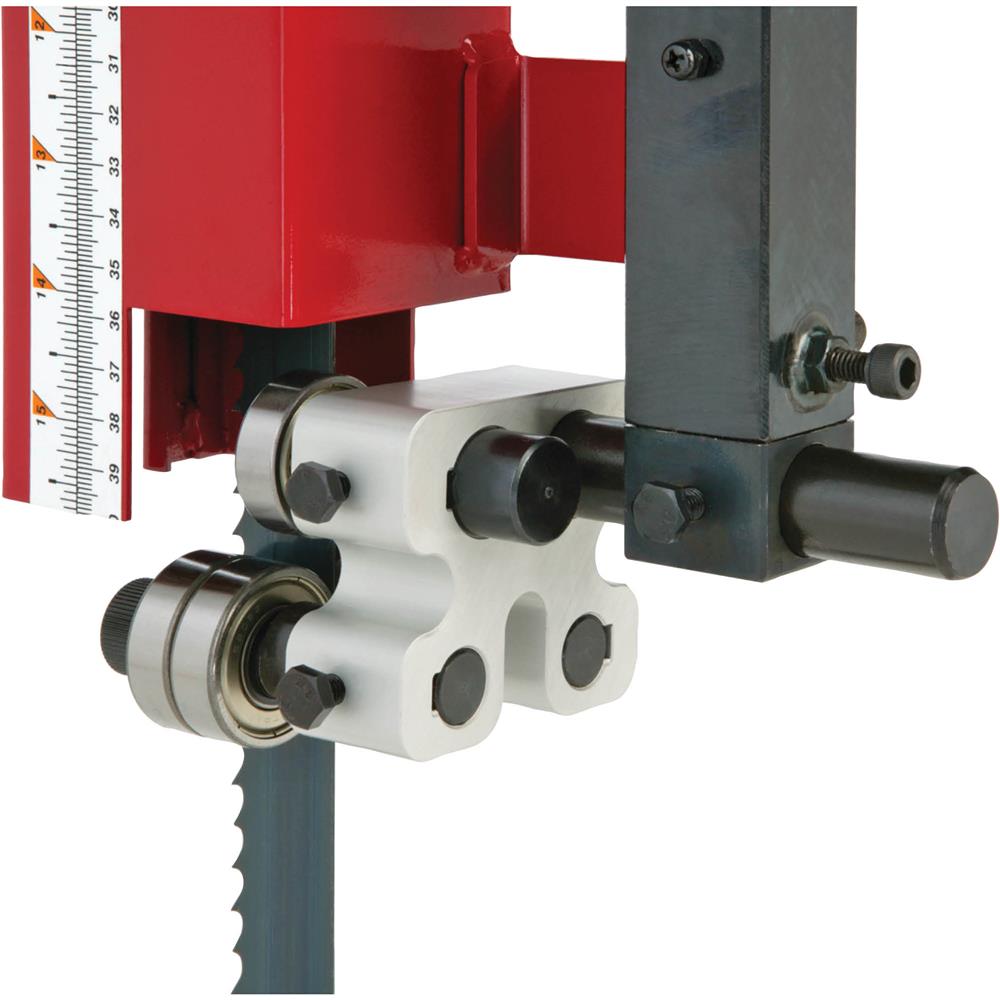

• Double ball-bearing blade guides
• Height scale measurement
• Rack-and pinion upper guide adjustment
• Micro-adjusting rack-and-pinion table tilt
• Heavy-duty cast-iron fence with extruded aluminum resaw fence
• Computer-balanced cast-iron wheels

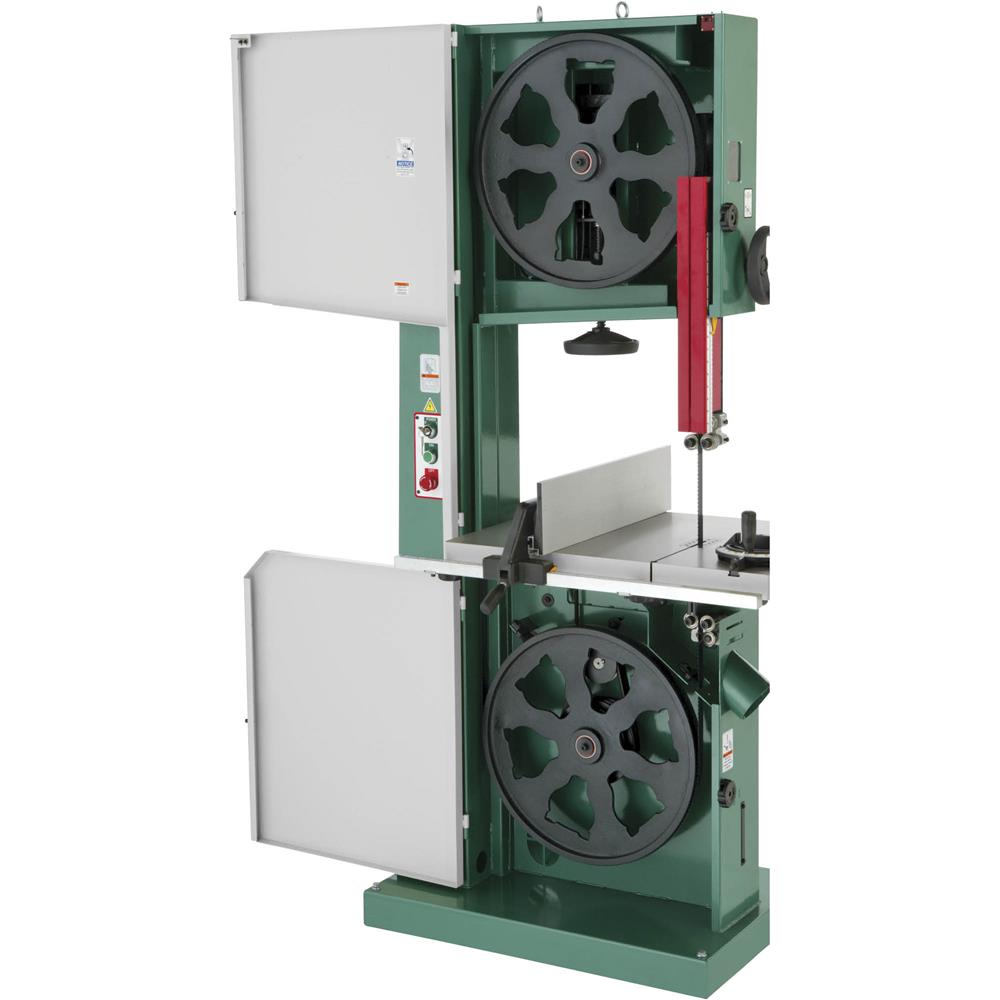

• Hinged wheel covers with safety lock
• Dual 4" dust ports
• 1" 3-TPI wide hook blade

CSA certified
