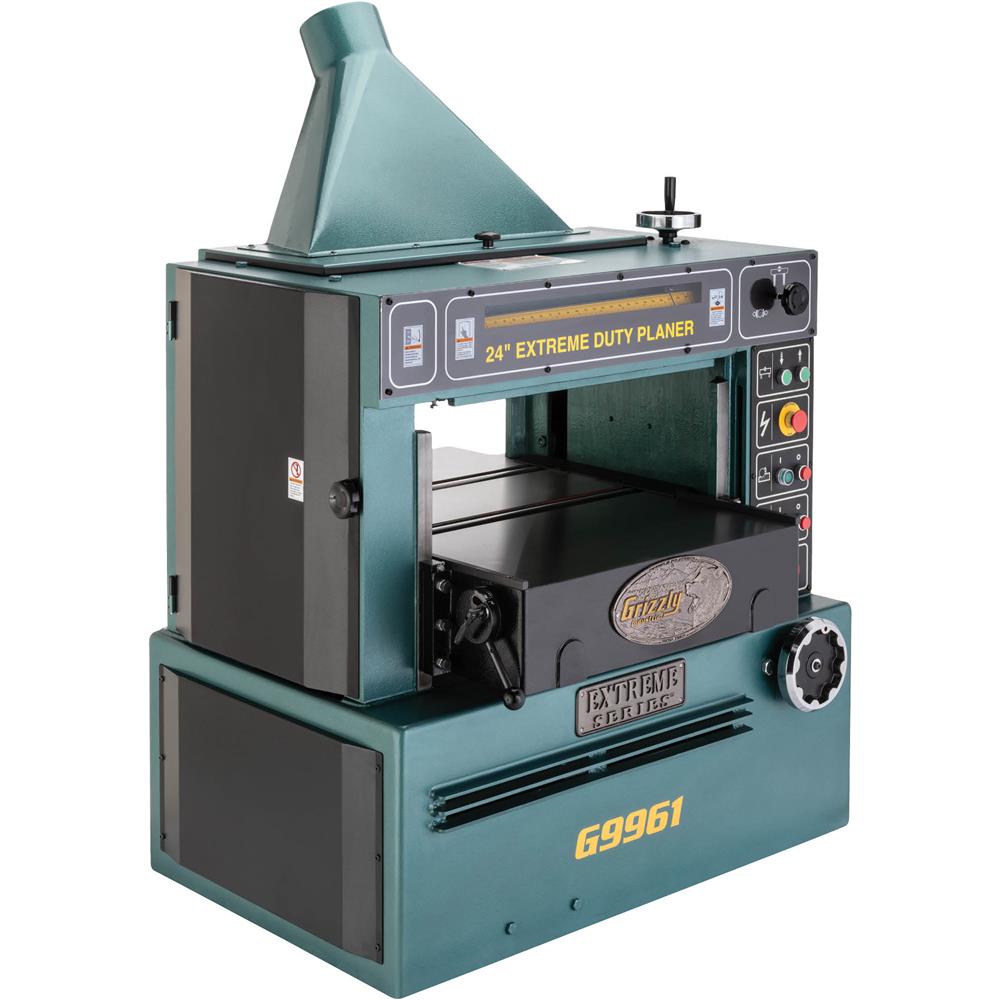

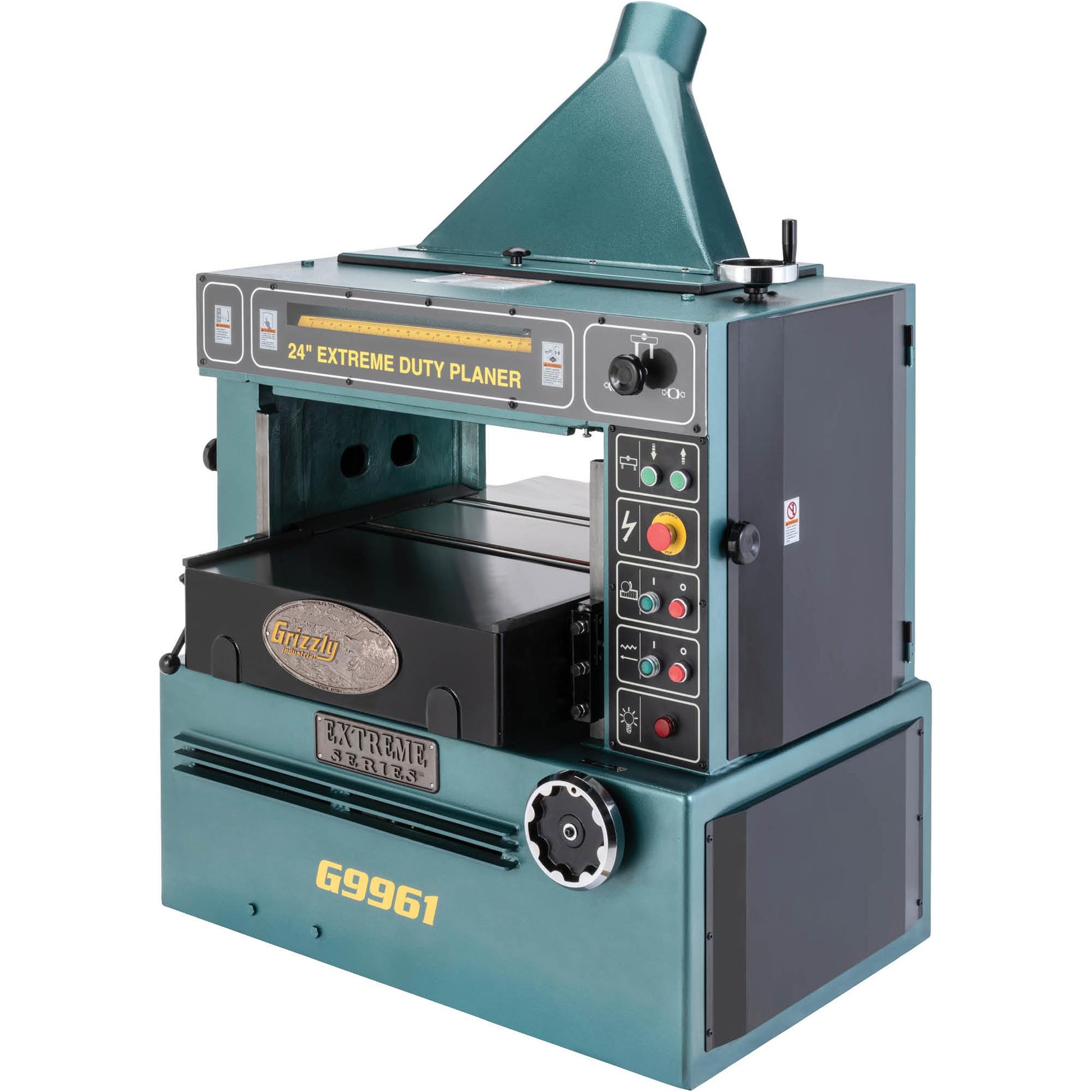

G9961 24" 10 HP 3-Phase Industrial Planer w/ Spiral Cutterhead
Complete extended production runs with this extreme-duty planer.

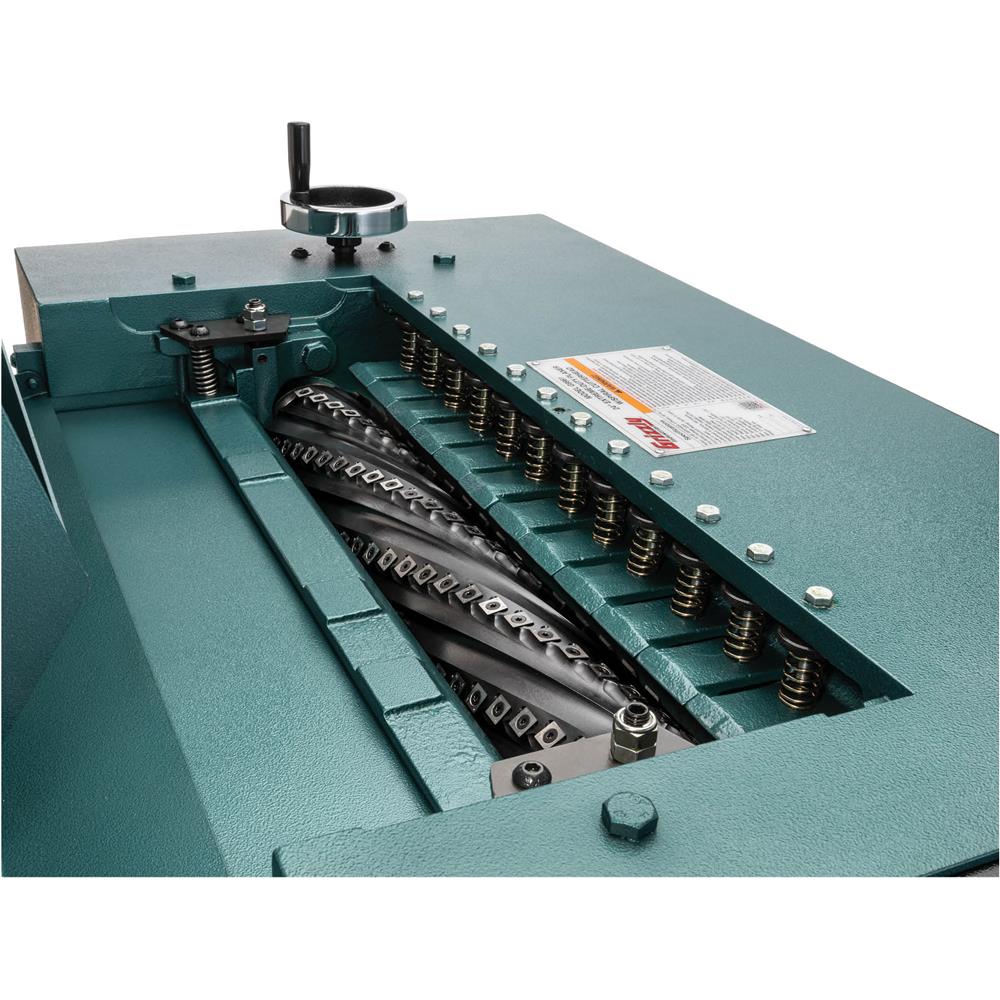

The G9961 24" 10 HP 3-Phase Industrial Planer features a 6-row spiral cutterhead with 160 indexable carbide inserts.
The variable-speed feed rate of 20 to 40 feet per minute means you can get the best possible finish.

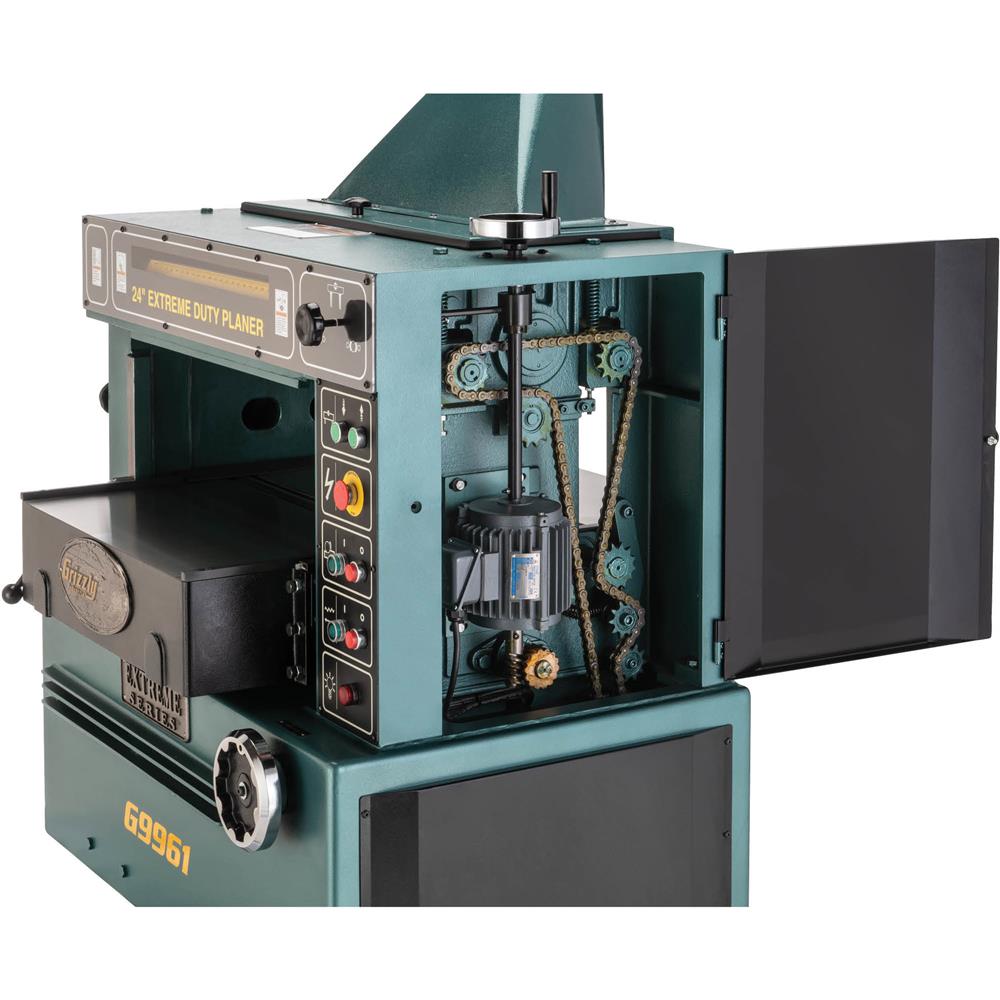

The G9961 has motorized table elevation and the bed rollers on this machine are also power driven and adjustable for height when milling rough-cut lumber.

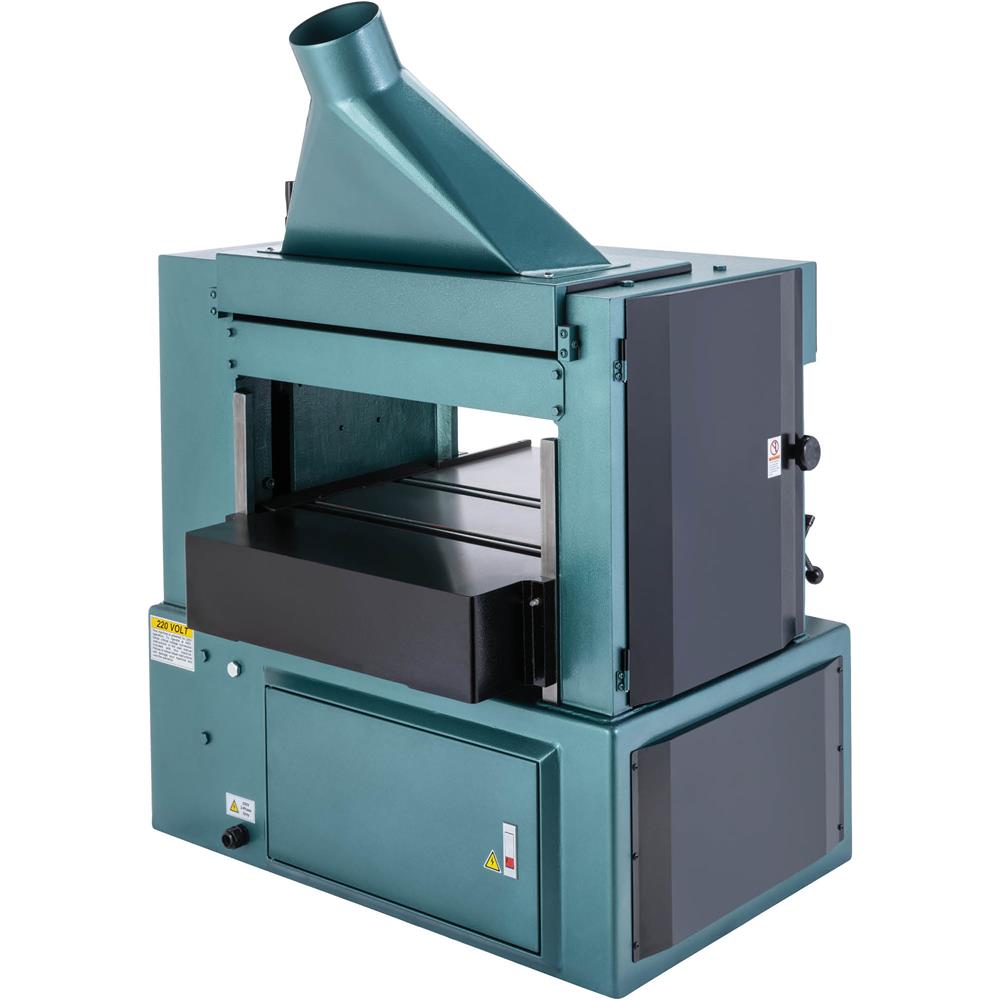

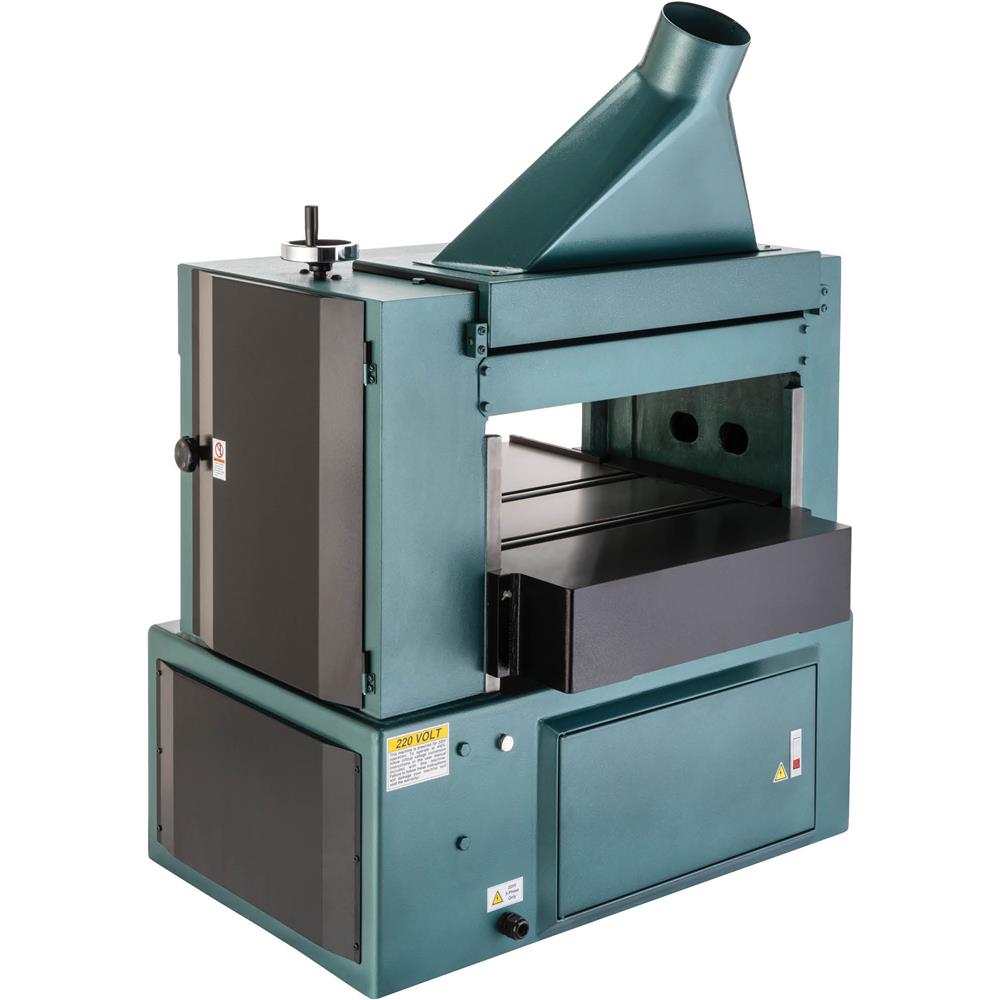

The built-in chip deflector leads directly into the dust hood with a 5" dust port to help ensure the work area stays as clear as possible.
SPECIFICATIONS:
Cutterhead motor: 10 HP, 220V, 3-phase, 25A
Table elevation motor: 1/2 HP
Maximum stock width: 24"
Maximum stock thickness: 9"
Minimum stock thickness: 1/4"
Minimum stock length: 10-1/2"
Maximum cutting depth: 1/16"
Cutterhead diameter: 4-5/8"
Cutterhead type: 6-Row spiral with 160 inserts
Insert size, type: 14 x 14 x 2mm, indexable carbide
Cutterhead speed: 5000 RPM
Feed rate: Variable, 20–40 FPM
Table size: 24" x 35-1/2"
Dust port size: 5"
Footprint: 30" x 40-1/2"
Overall dimensions: 42-3/8" W x 36" D x 58" H
Approximate shipping weight: 1980 lbs.
FEATURES:

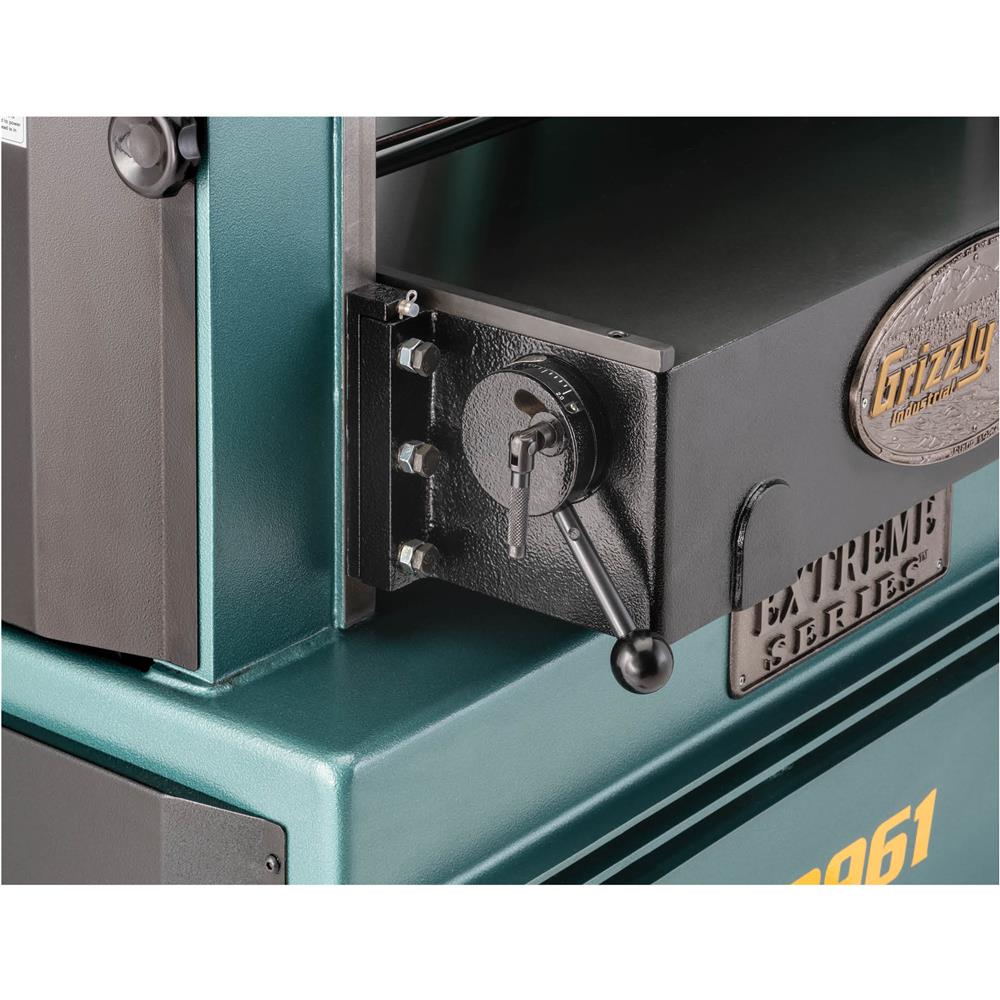

Motorized table elevation with micro-adjust handwheel
