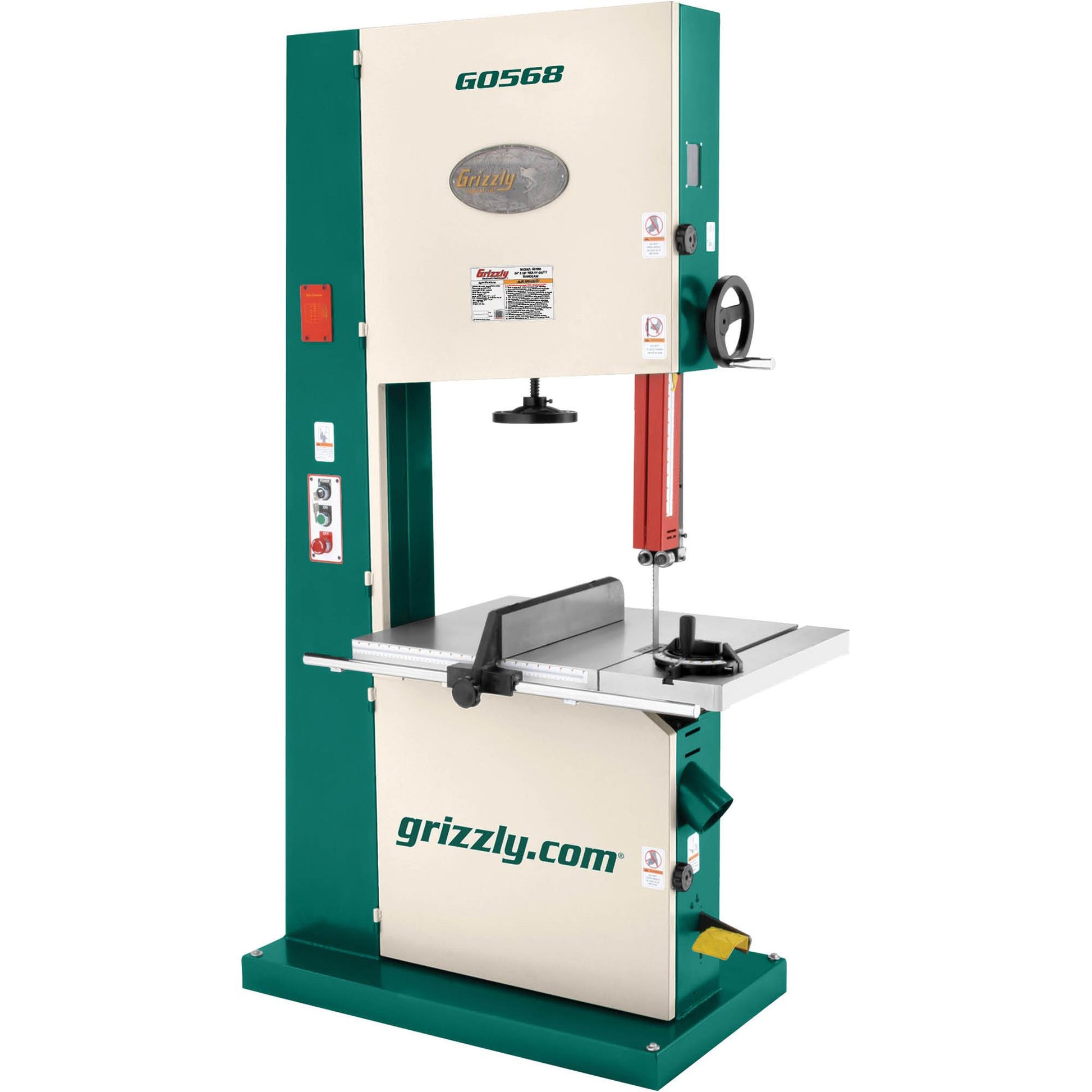

G0568 24" 5 HP Industrial Wood Bandsaw

An industrial bandsaw loaded with features not found in saws costing much more.

The 5 HP motor of the G0568 24" 5 HP Industrial Bandsaw powers through wood at a maximum 24-1/2" cutting capacity and the 16-1/4" resaw capacity is big enough for most applications.

The G0568 has an extra-wide 33-1/2" x 23-5/8" cast-iron table that can tilt 45° right, while also adding additional support to the table for those really big workpieces.

The ball-bearing blade guides ensure accurate cutting, and the quick-release blade tension makes changing blades a breeze.

The conveniently mounted foot brake, blade guard with scale, and removable safety key are features you will be glad to have. For a full range replacement and resaw blades for the G0568, shop here.

SPECIFICATIONS:

• Motor: 5 HP, 220V, single-phase, 23A
• Throat (max. width left of blade): 24-1/2"
• Resaw capacity: 16-1/4"
• Table size: 33-1/2" x 23-5/8"
• Table tilts 45° right
• Floor-to-table height: 32-1/2"
• Blade size: 180–181-1/2" long (1/4" to 1-1/2" wide)
• Blade speed: 5300 FPM
• Footprint: 41-3/8" x 23-1/2"
• Overall dimensions: 48" W x 32" D x 83-1/2" H
• Approximate shipping weight: 951 lbs.

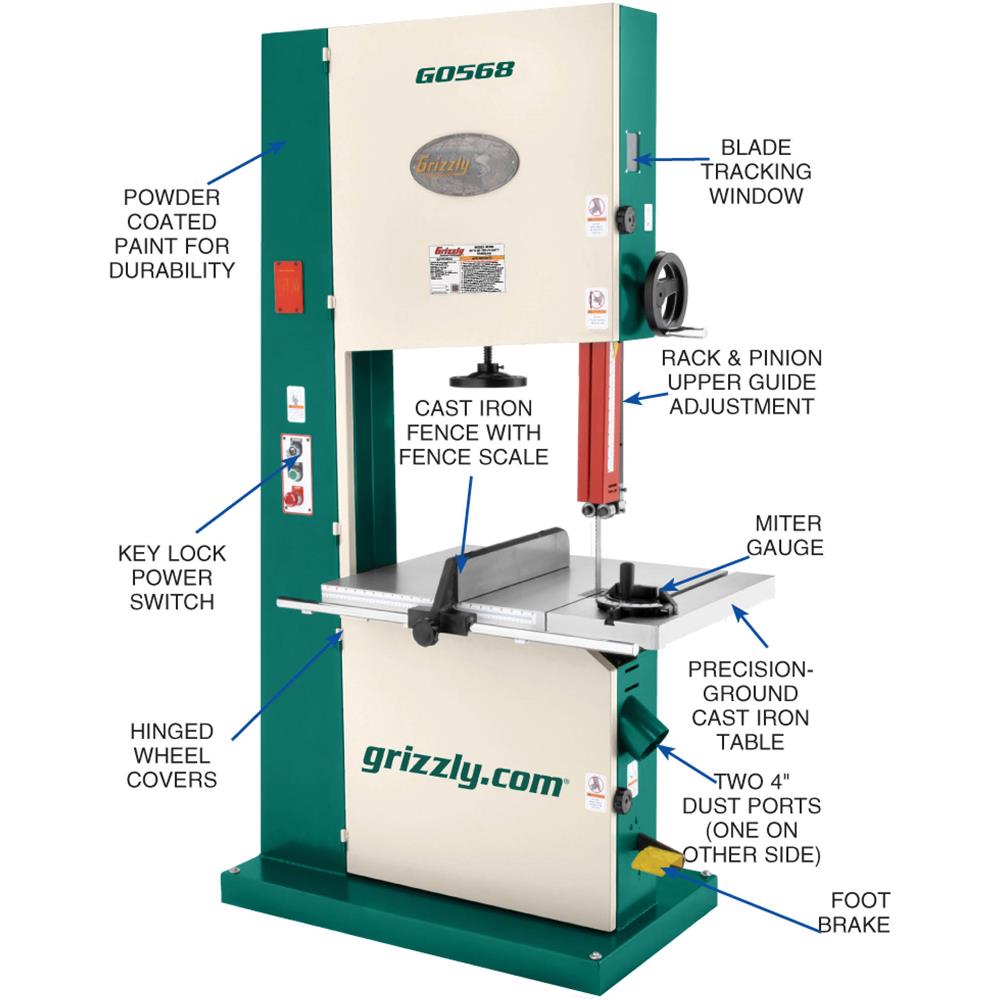

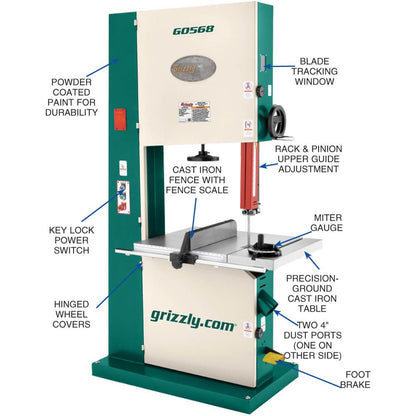

FEATURES:

• Foot brake stop
• Two built-in 4" dust ports
• Quick-change blade release/tensioner
• Rack-and-pinion table tilt mechanism
• Blade height measurement scale

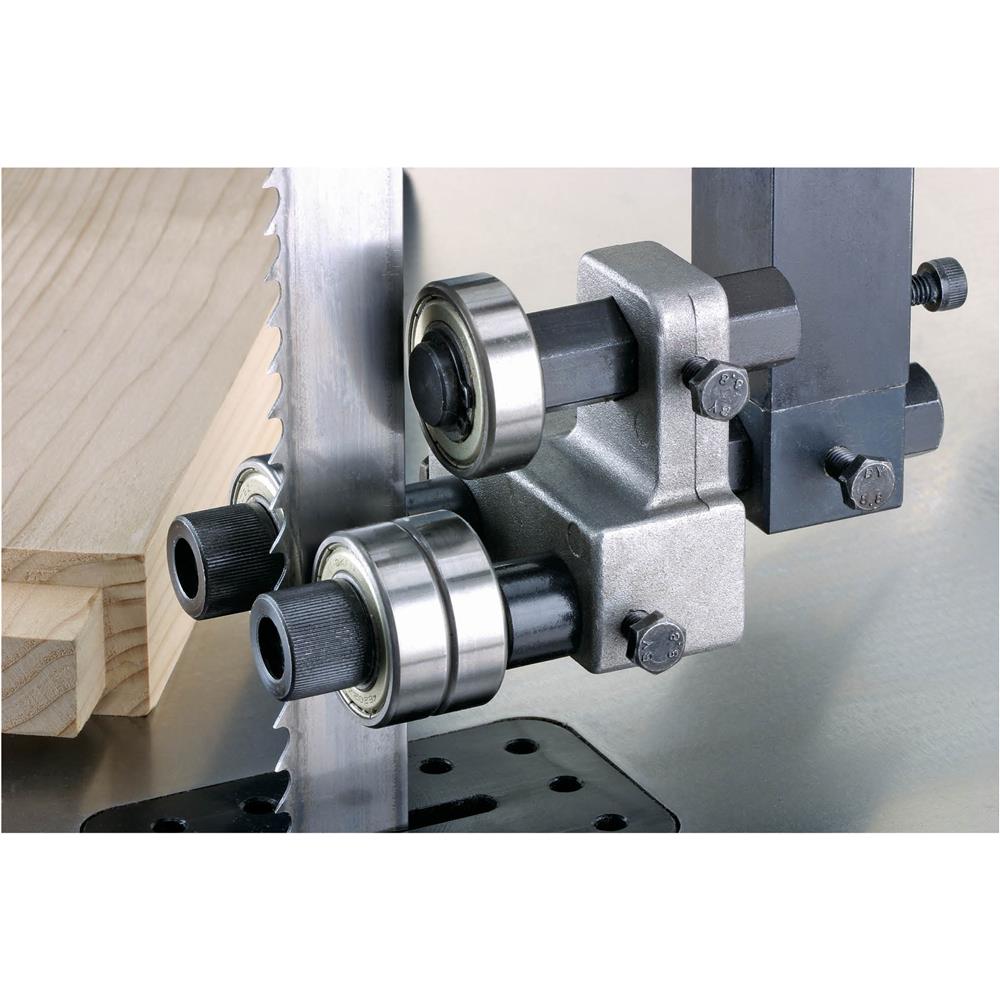

• Ball-bearing blade guides provide rigid, positive side support
• Sealed and lubricated bearings
• Balanced cast-iron wheels
• Convenient blade tension scale
• Rack-and-pinion upper guide adjustment
• Includes precision-ground cast-iron fence, 1" hook blade, and miter gauge

Please note: To accommodate the machine's footprint, extension bars may be necessary when using a mobile base.

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
