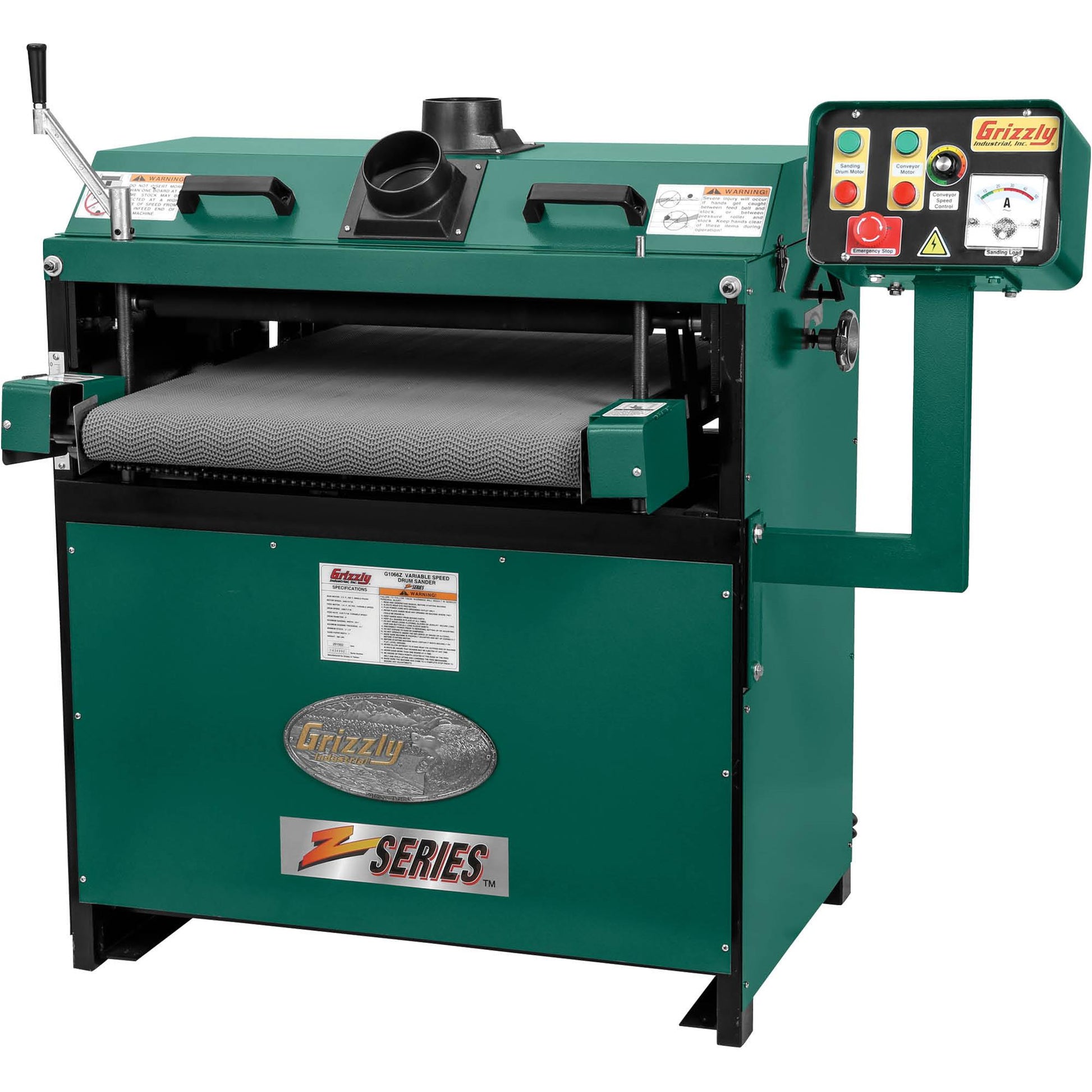

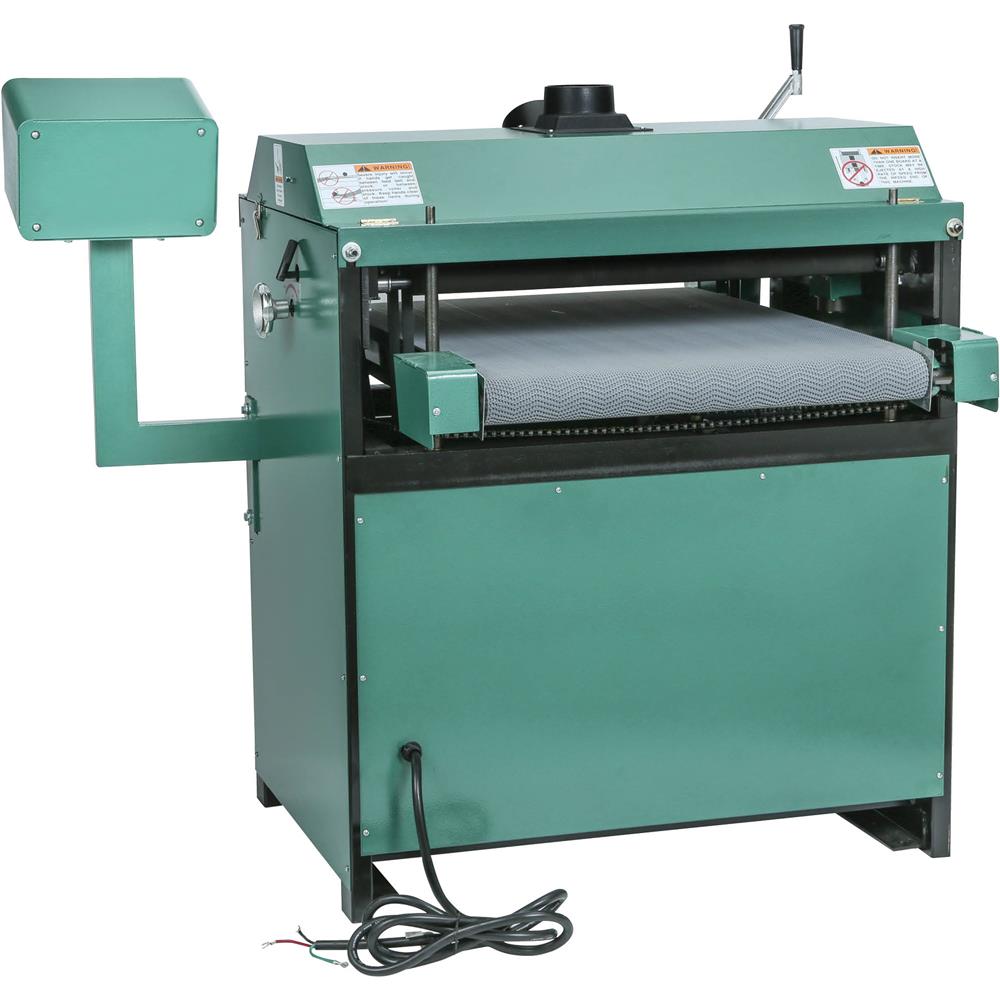

G1066Z 24" 5 HP Variable-Speed Drum Sander

Perfect sanding results in a fraction of the time.

The G1066Z features dual 6" aluminum sanding drums allow a coarse and fine sanding in one pass doubling the efficiency of a single drum sander so allowing you to work faster and be more productive.

The variable-speed feed from 0 to 20 feet per minute allows you to find the perfect feed rate for your sanding project.

The G1066Z accepts large materials, up to 4" thicknesses and 23-1/2" wide.

Wired to run on 220V, the 5 HP has all the power you will ever need to continuously sand large surfaces.

Customers have asked us why our drums are not rubber coated. The rubber-coated drums become "spongy" and do not sand evenly or parallel to the ends.

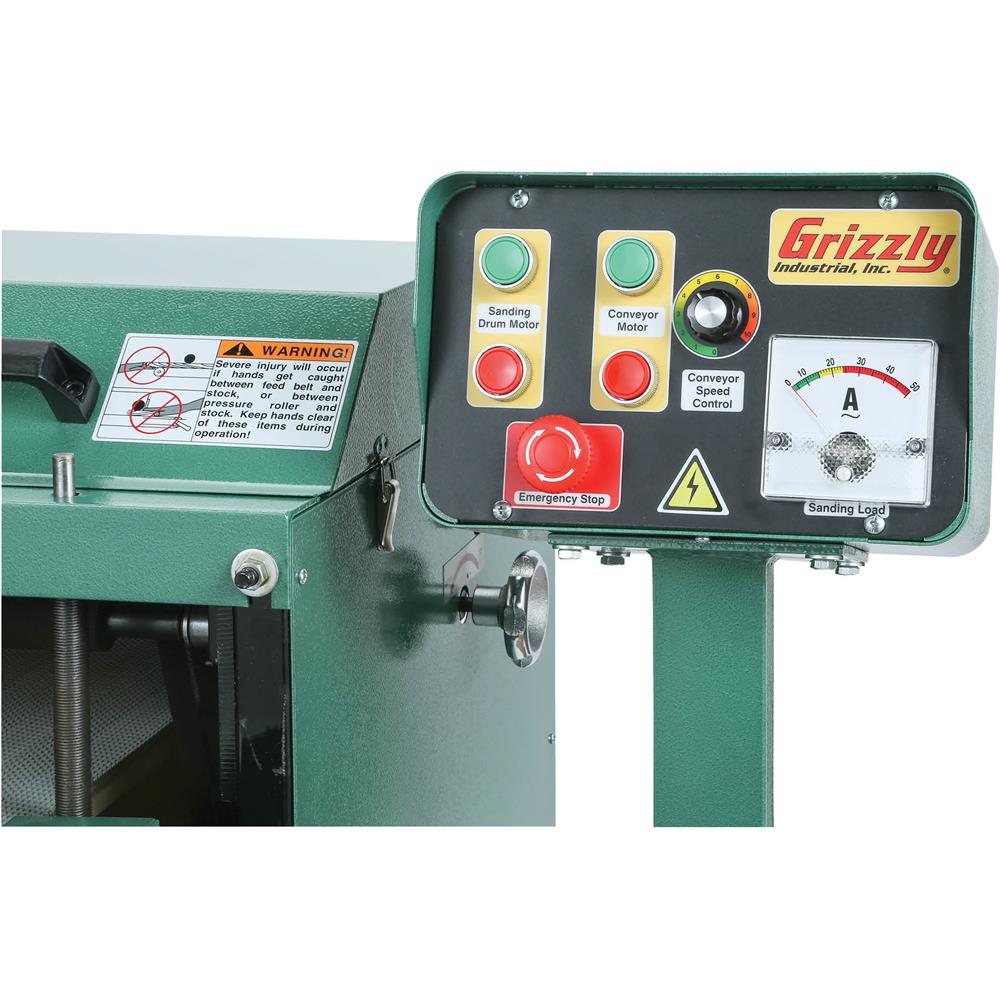

For your convenience, the G1066Z has an easy access control panel and built-in amp meter to gauge workload.

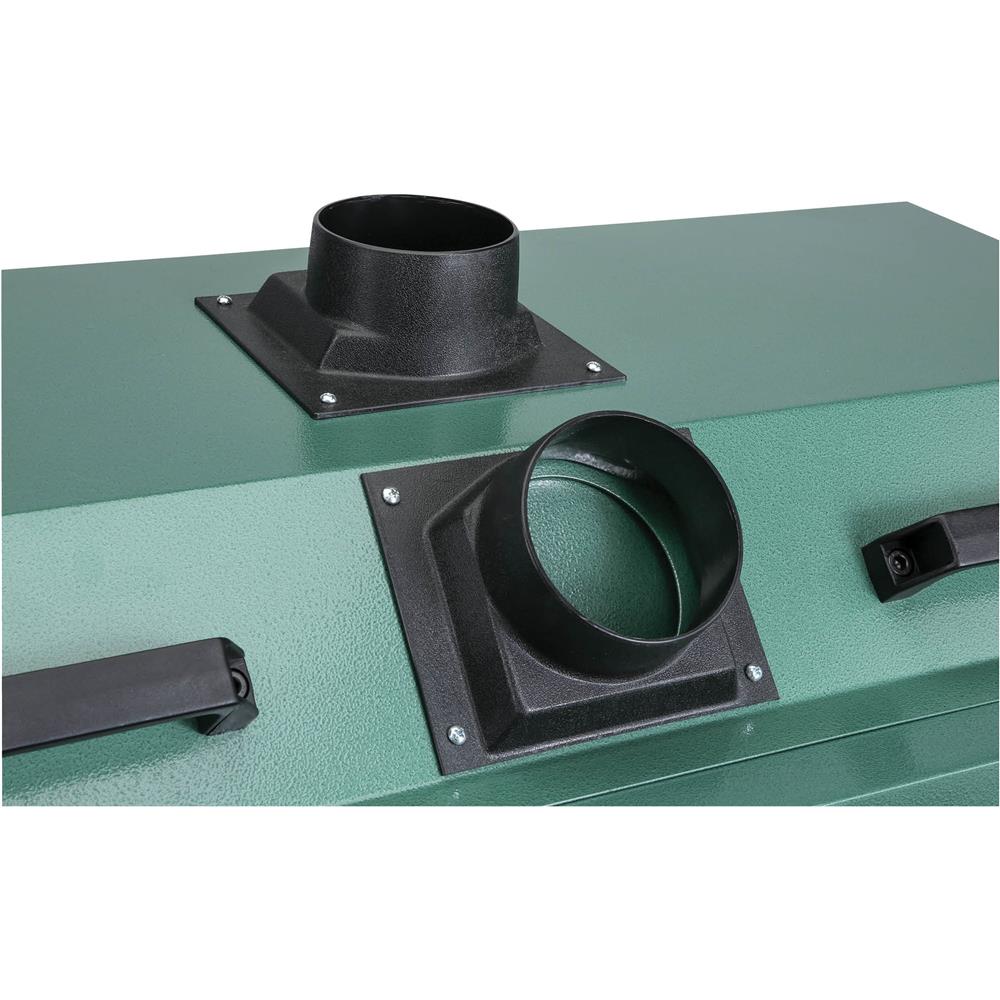

To keep the dust to a minimum, two 4" dust ports have been added for easy hook-up to a collection system.

The hook-and-loop sandpaper length needed is 3" wide by 176" long. A wide selection of replacement sanding rolls, from coarse grits for fast material removal to ultra-fine grits for a flawless, high-grit finish.

SPECIFICATIONS:

• Sanding motor: 5 HP, 220V, single-phase drum, 25A
• Feed motor: 1/3 HP, 2A
• Maximum board width: 23-1/2"
• Minimum board width: 2"
• Maximum board thickness: 4"
• Minimum board thickness: 1/8"
• Minimum board length: 9"
• Drum surface speed: 2300 FPM
• Conveyor feed rate: Variable, 0-20 FPM
• Sandpaper type: 3" x 176" hook-and-loop
• Footprint: Footprint: 34-1/2" x 24"
• Overall dimensions: 50" W x 37" D x 44-1/2" H
• Approximate shipping weight: 484 lbs.

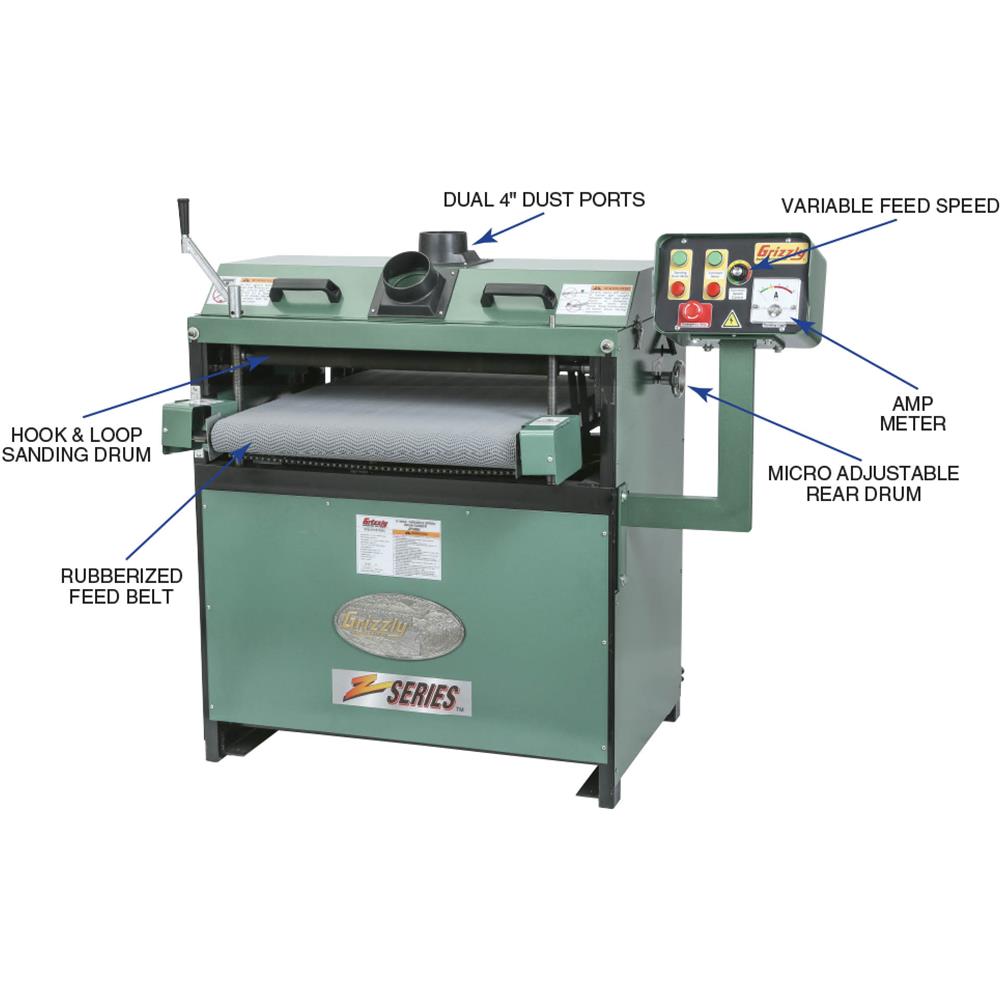

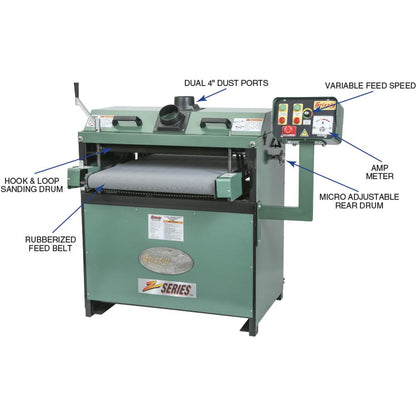

FEATURES:

• Industrial-duty rubber conveyor belt
• Two 4" dust ports for easy hook-up to a collection system
• Variable-speed conveyor

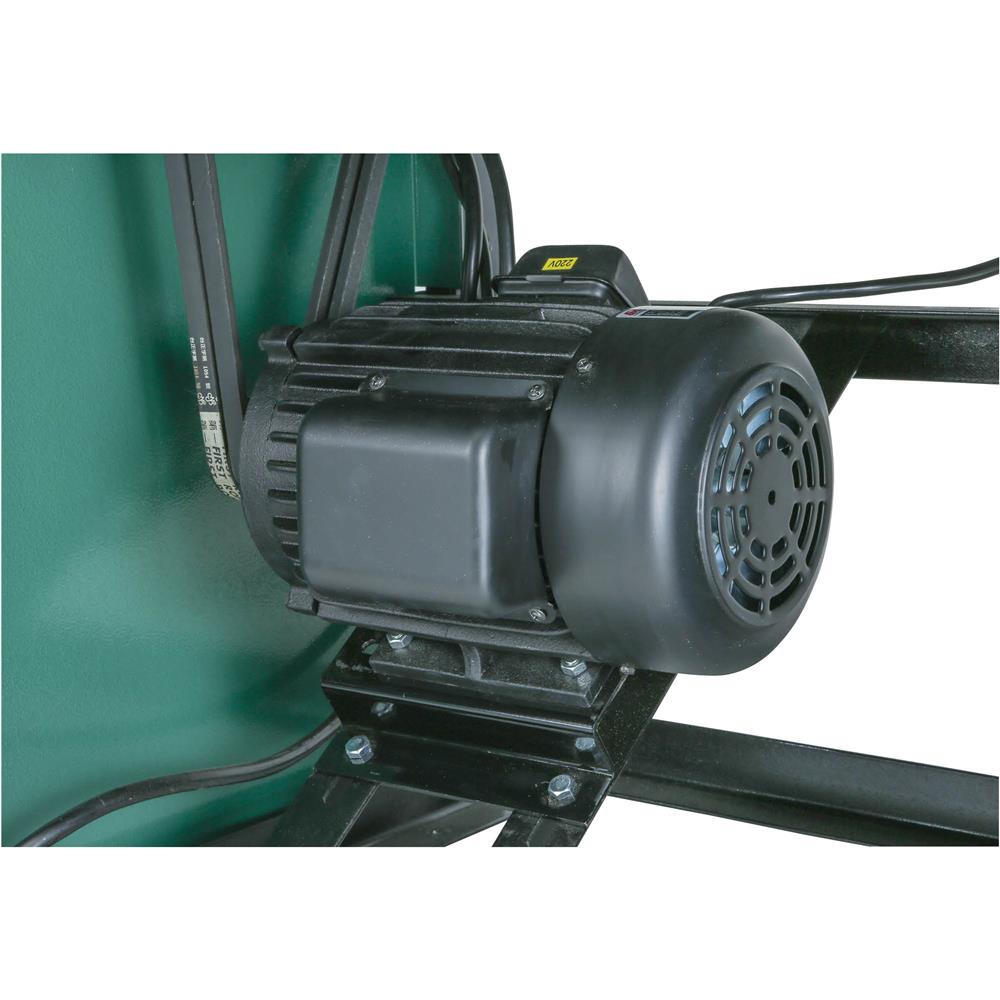

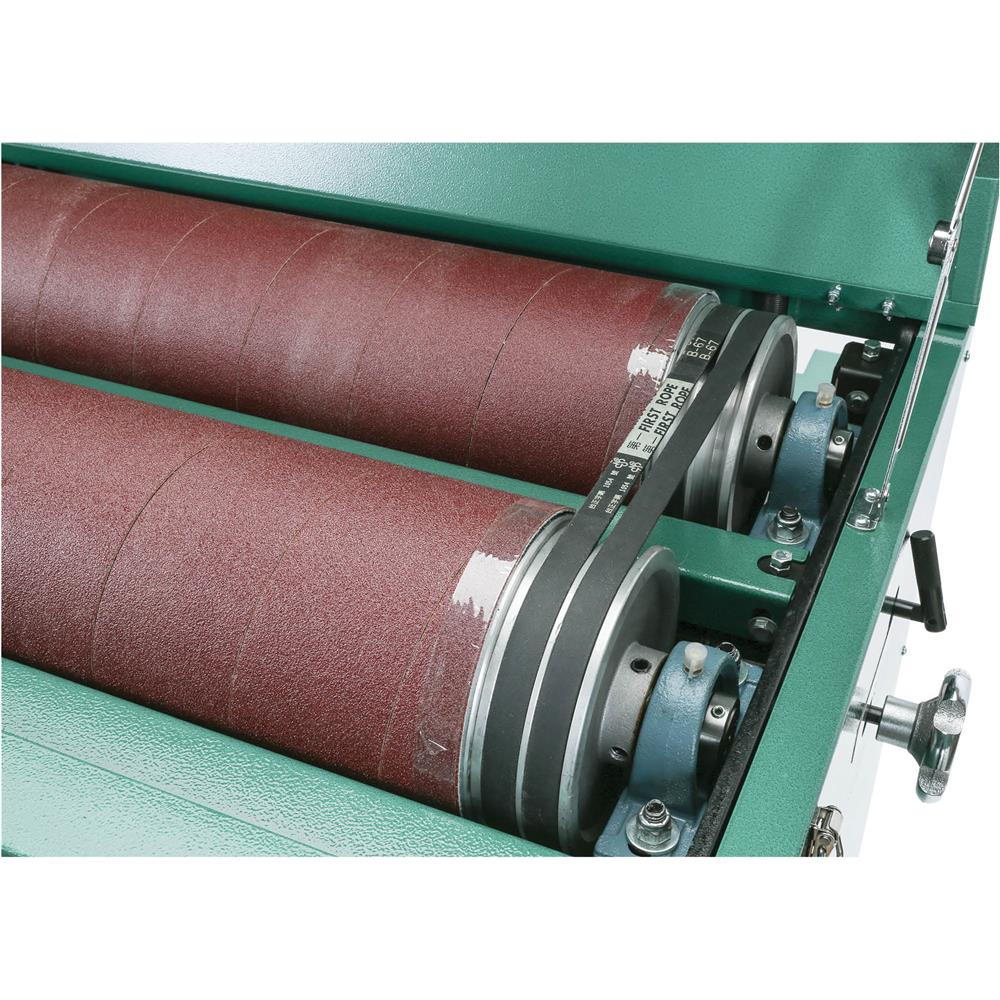

• V-belt main motor; chain drive feed motor

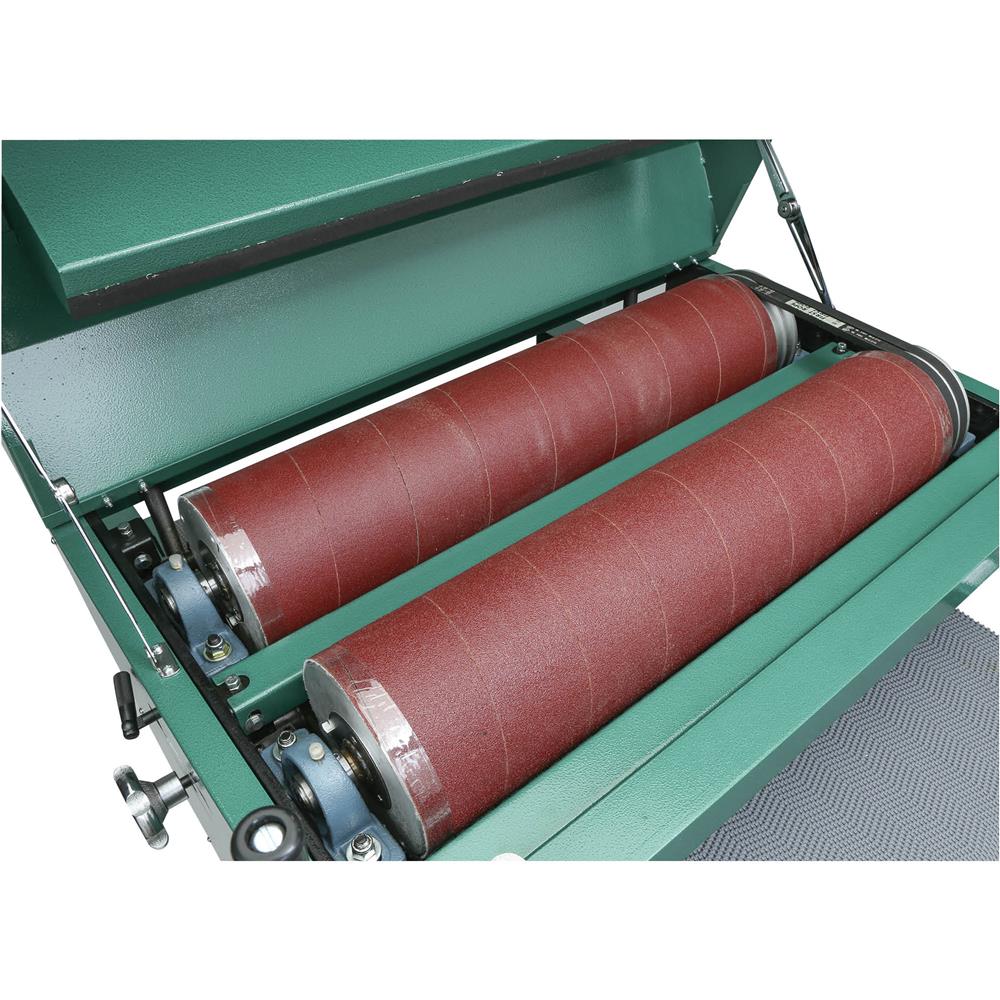

• Dual 6" aluminum sanding drums

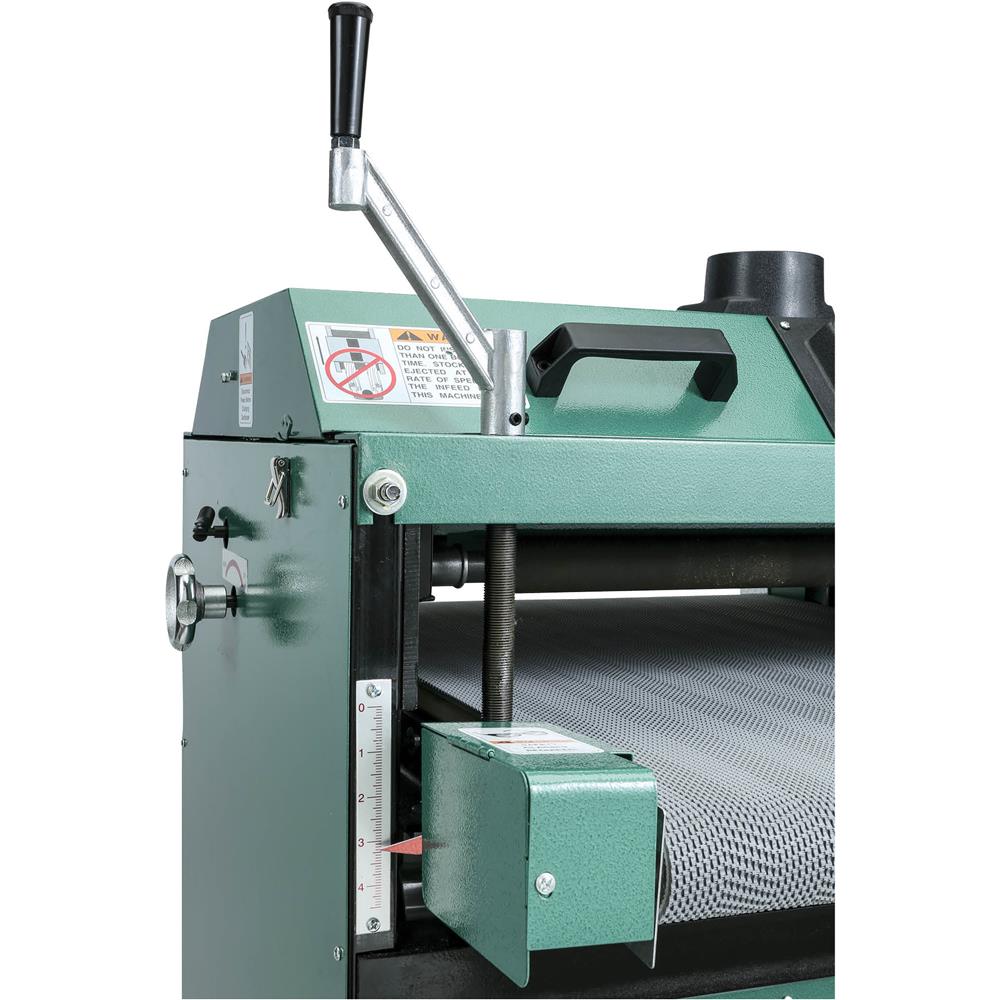

• Four leadscrew table elevation system
• State-of-the-art computer balanced drums
• Easy-access control panel with amp load meter
• External micro adjustment on outfeed drum
• 1-year limited warranty

Please Note: If you are purchasing the D2058A Mobile Base for use on the G1066-series 24" Drum Sanders, you must also purchase the D2246A Extension Bars for the Mobile Base.
