3HP Dust Collector

If you are ready to take your dust collection system to the next level, make this your first choice.

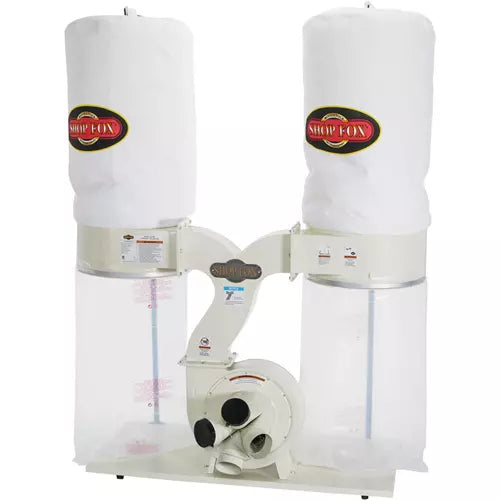

The increased air suction capacity of the Shop Fox W1687 3 HP Dust Collector will allow you to build a bigger and more complex dust collection system with room to spare.

The double collection setup means less downtime emptying and shaking out bags, which means you'll be able to spend more time actually making the dust!

For wood dust only.

Models manufactured after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE) lower collection bag.

The upper 2.5 micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3 HP, 240V, single phase, 12A
• Air suction capacity: 2830 CFM
• Static pressure: 14.4
• Impeller: 13" aluminum, radial fin
• Max inlet size: 8"
• Inlet adapter: 4-way x 4" inlets
• Bag size:19"Dia. x 33"Depth
• Height (with bags inflated): 78"
• Bag capacity: 10.8 cubic feet
• Standard bag filtration: 2.5 micron
• Approximate shipping weight: 167 lbs.

FEATURES:

• Two-year warranty!!
