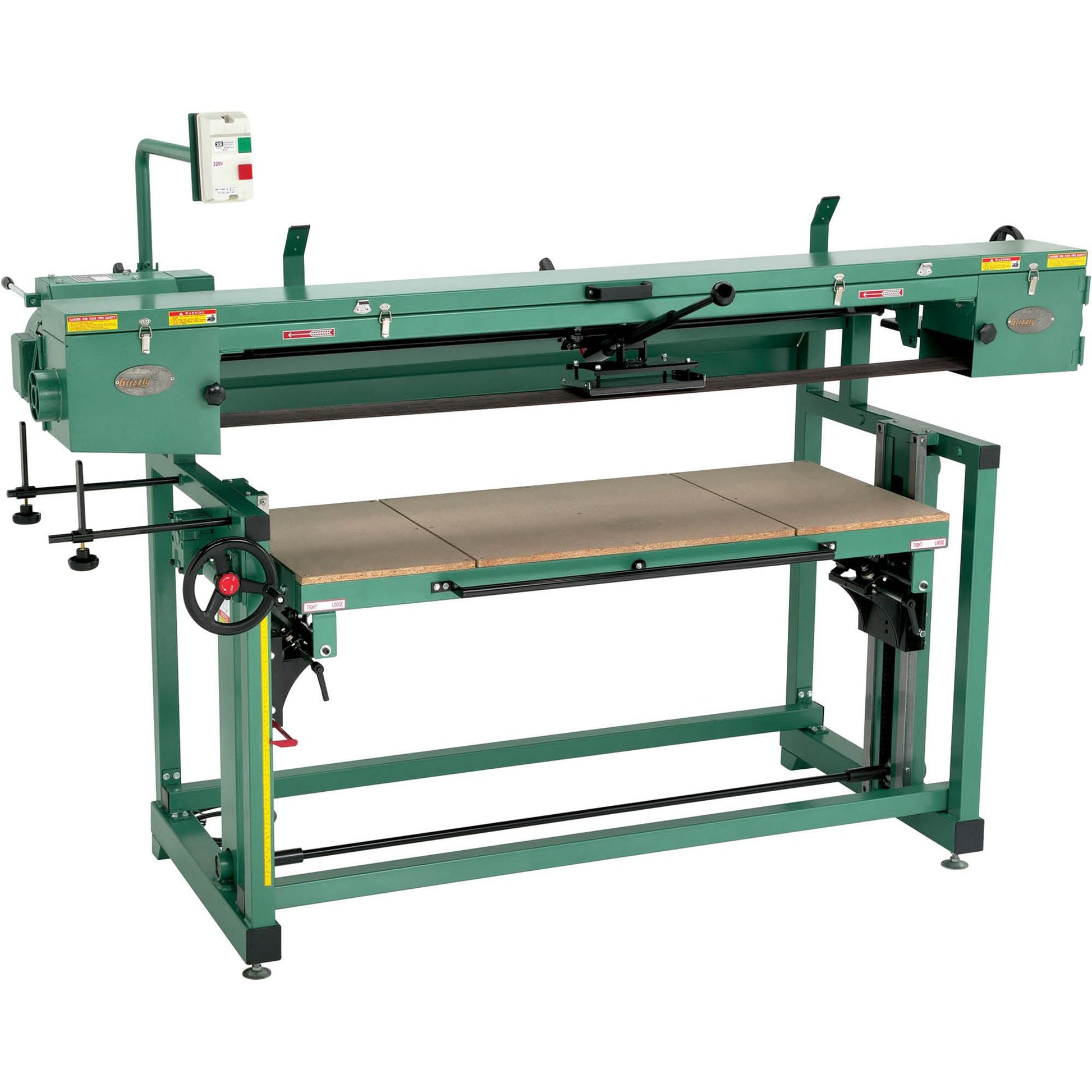

G0679 6" x 186" Combination Stroke/Edge Sander

Precise positioning for perfect finishing: A must-have for door and cabinet shops!

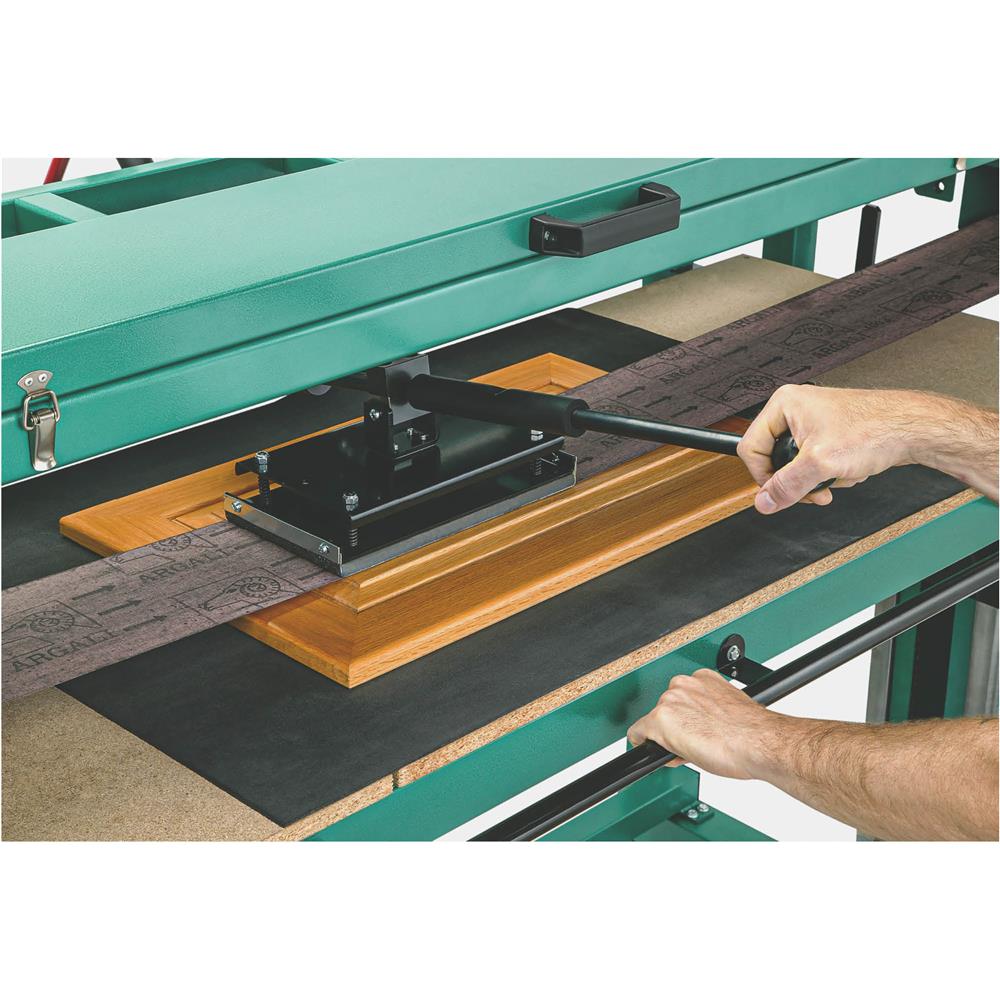

If you make doors, cabinet doors, or face frames, you’ll love the G0679 6" x 186" Stroke Sander. The worktable slides forward and backward, while the 6" x 10-1/2" movable, graphite-coated platen glides left and right, allowing you to apply just the right amount of pressure precisely where you need it.

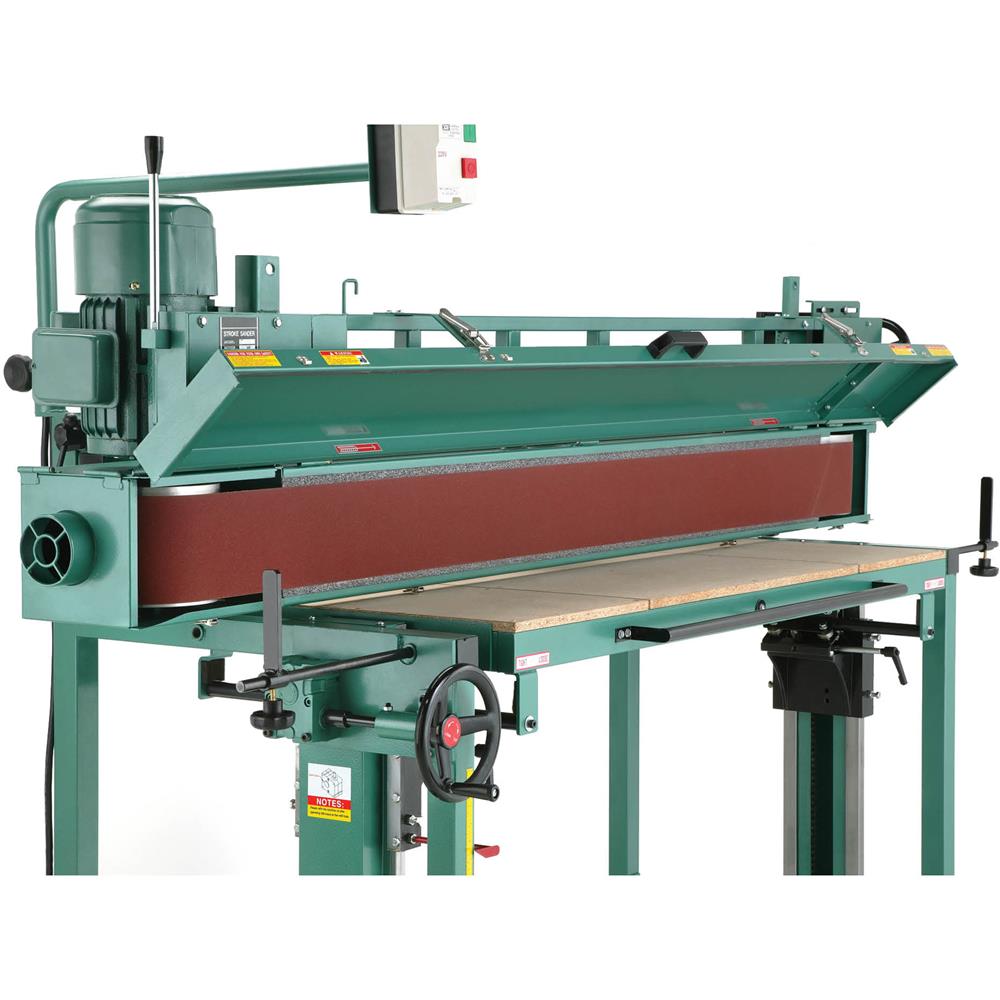

Need to sand edges? This machine converts to a large-capacity edge sander in seconds, featuring a 69" long, graphite-coated platen.The G0679 also boasts ball-bearing table and platen guides, two 4" dust ports, a prominent magnetic switch that swivels for optimal positioning, adjustable work stops, and handwheel belt tensioning. For enhanced safety and quick set-up transitions, it even includes a motor brake!

The sanding belts are 6" wide by 186" long. A full range of replacement belts are available.

The G0679 is a real workhorse in any custom woodworking shop.

SPECIFICATIONS:

• Motor: 3 HP, 220V, single-phase, 17A
• Table size: 59" x 23-3/4"
• Table vertical travel: 21-3/8"
• Platen horizontal travel: 50-1/2"
• Table lateral travel: 18"
• Sanding belt size: 6" x 186"
• Belt speed: 3600 SFPM
• Drive wheel diameter: 8"
• Overall size: 98" x 47-5/8" x 67-1/2"
• Approximate shipping weight: 744 lbs.

FEATURES:

• Sanding belt tilts 90° for edge sanding
• Fully adjustable belt tracking and tension
• Table travels on ball-bearings

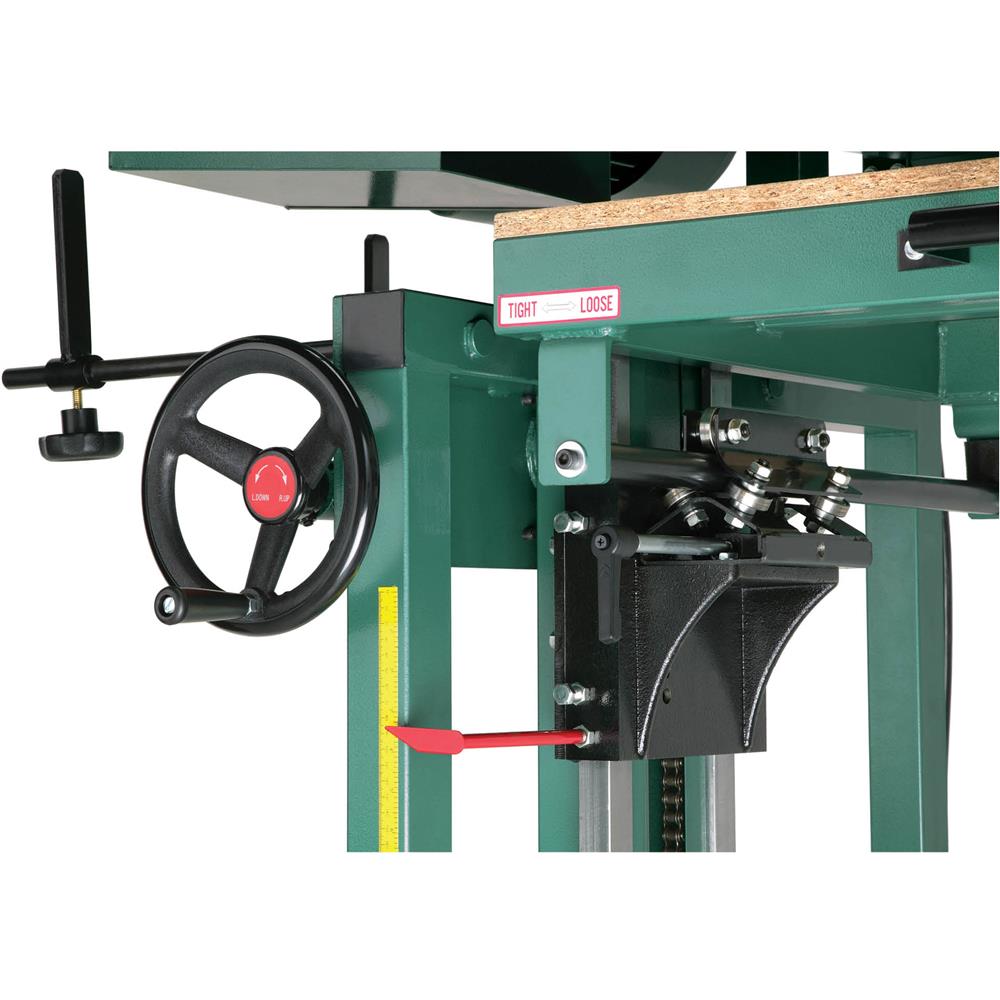

• Table elevation is manually operated
• Two 4" dust ports
• Pedestal mounted magnetic switch
• Motor brake

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
