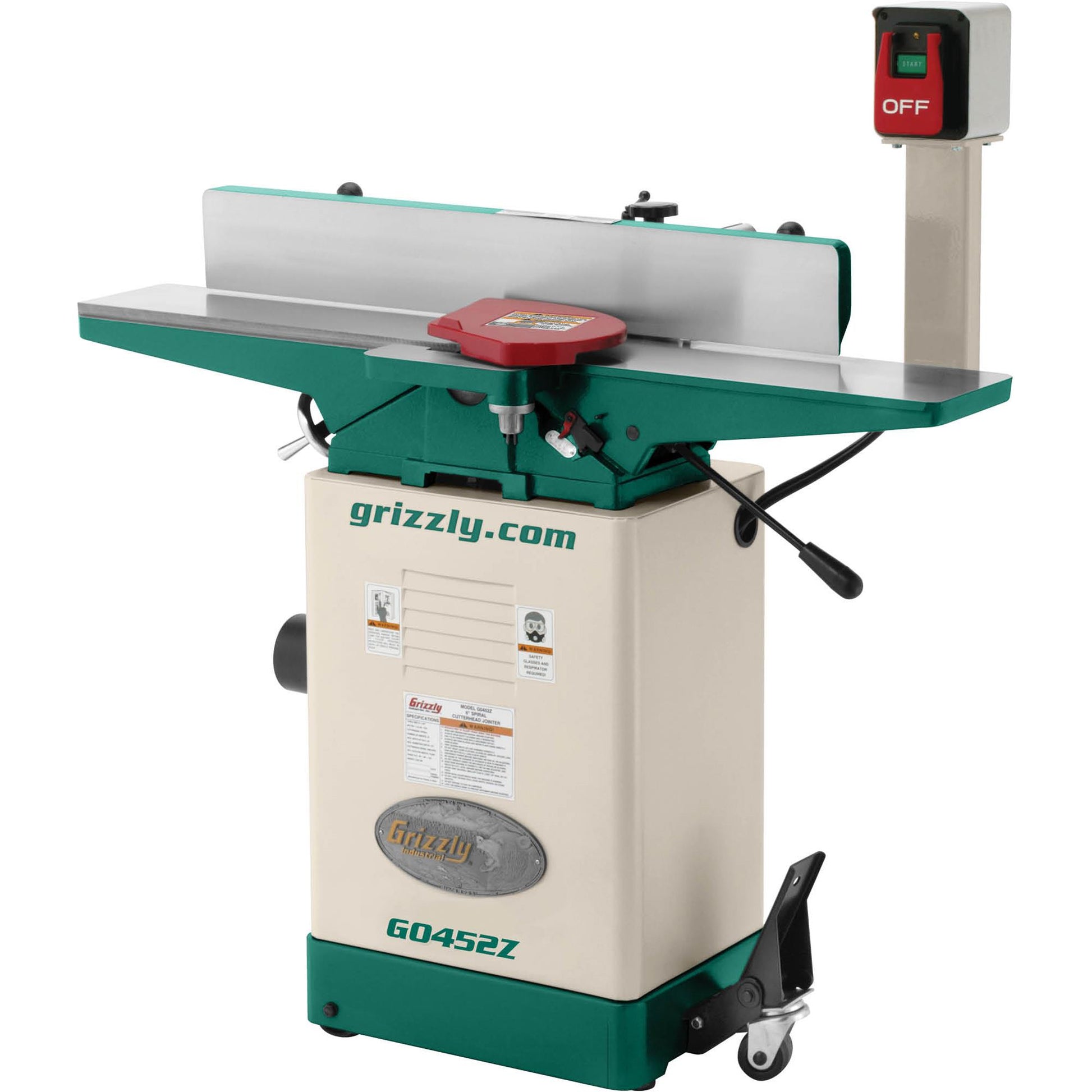

G0452Z 6" x 46" Jointer with Spiral Cutterhead

A quality 6" spiral cutterhead jointer at a price that can't be beat!

This top-of-the line G0452Z 6" x 46" Jointer has everything you need for a home shop or production facility.

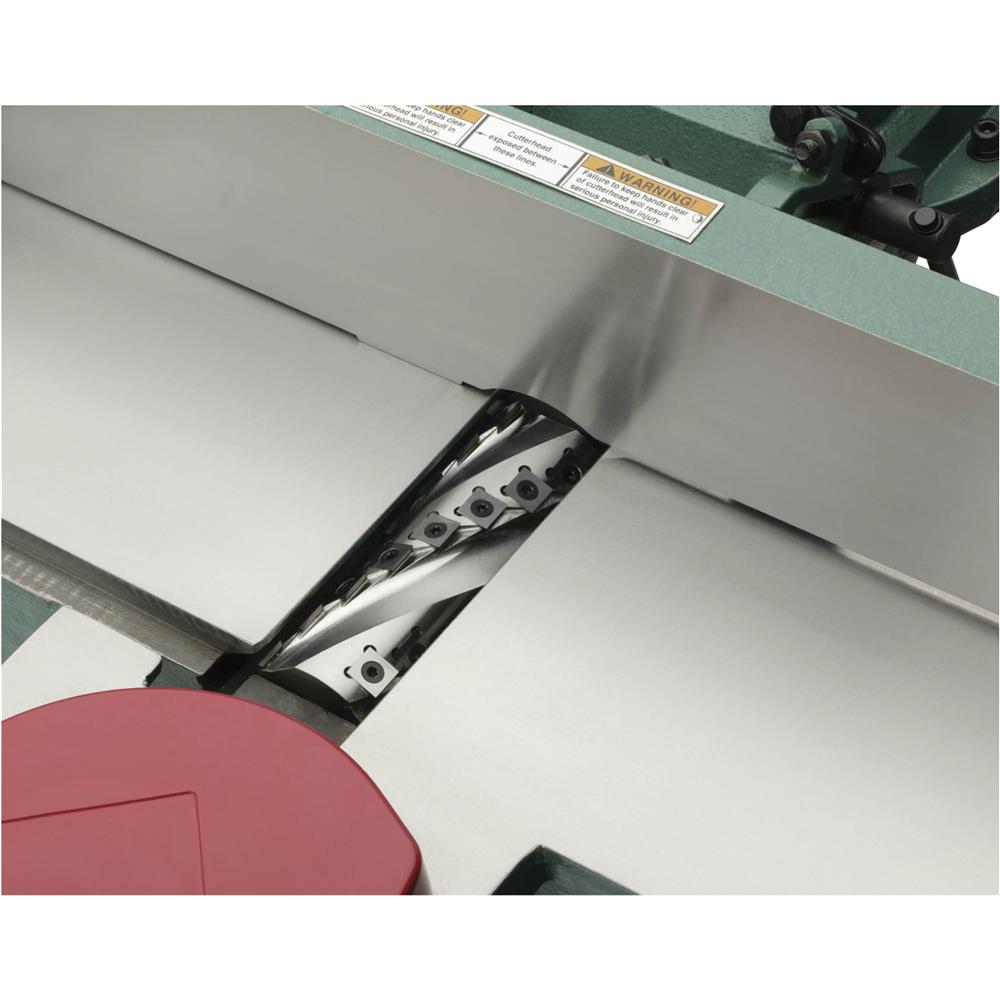

The 4-row spiral cutterhead with 32 indexable carbide inserts gives you smoother finishes and quieter operation over straight-knife cutterheads–without the hassle of having to sharpen knives.

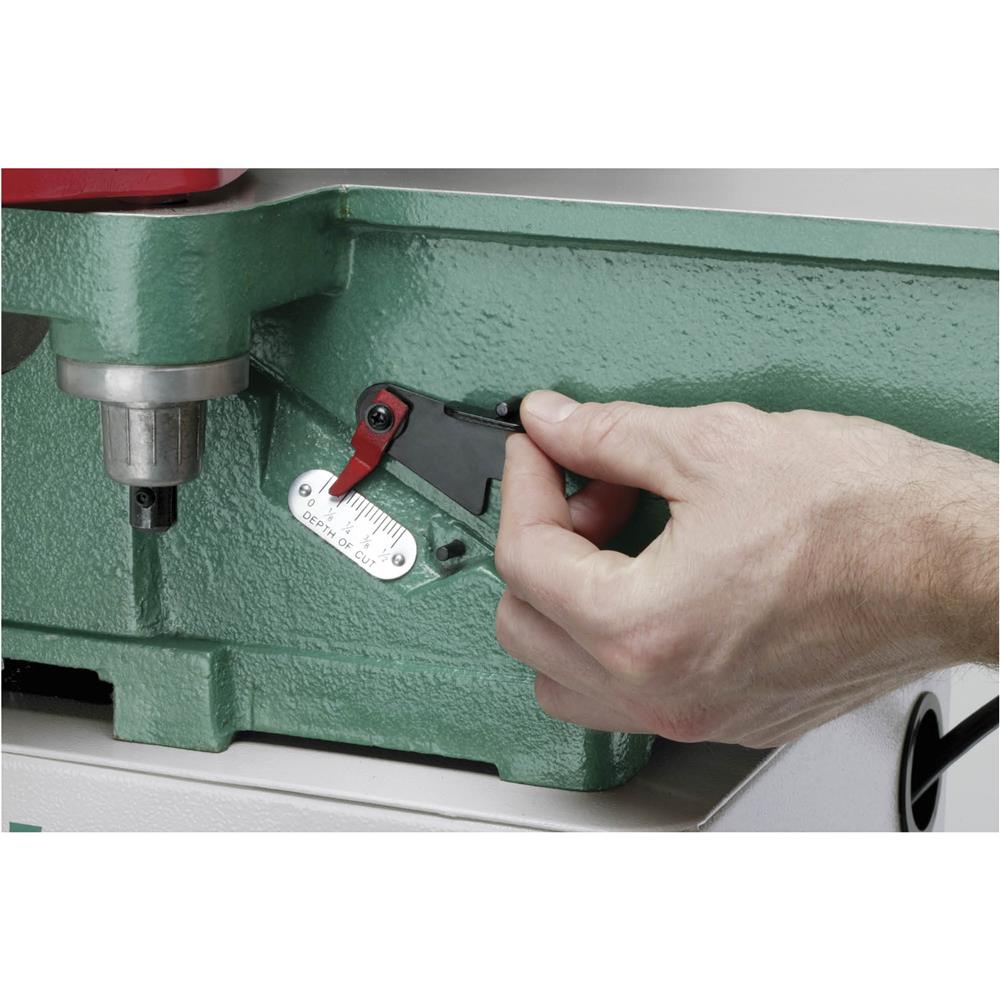

Adjusting the cut depth is easy with the quick-action adjustment lever on the infeed table, while a large handwheel on the outfeed side allows for dead-on accurate outfeed table adjustments.

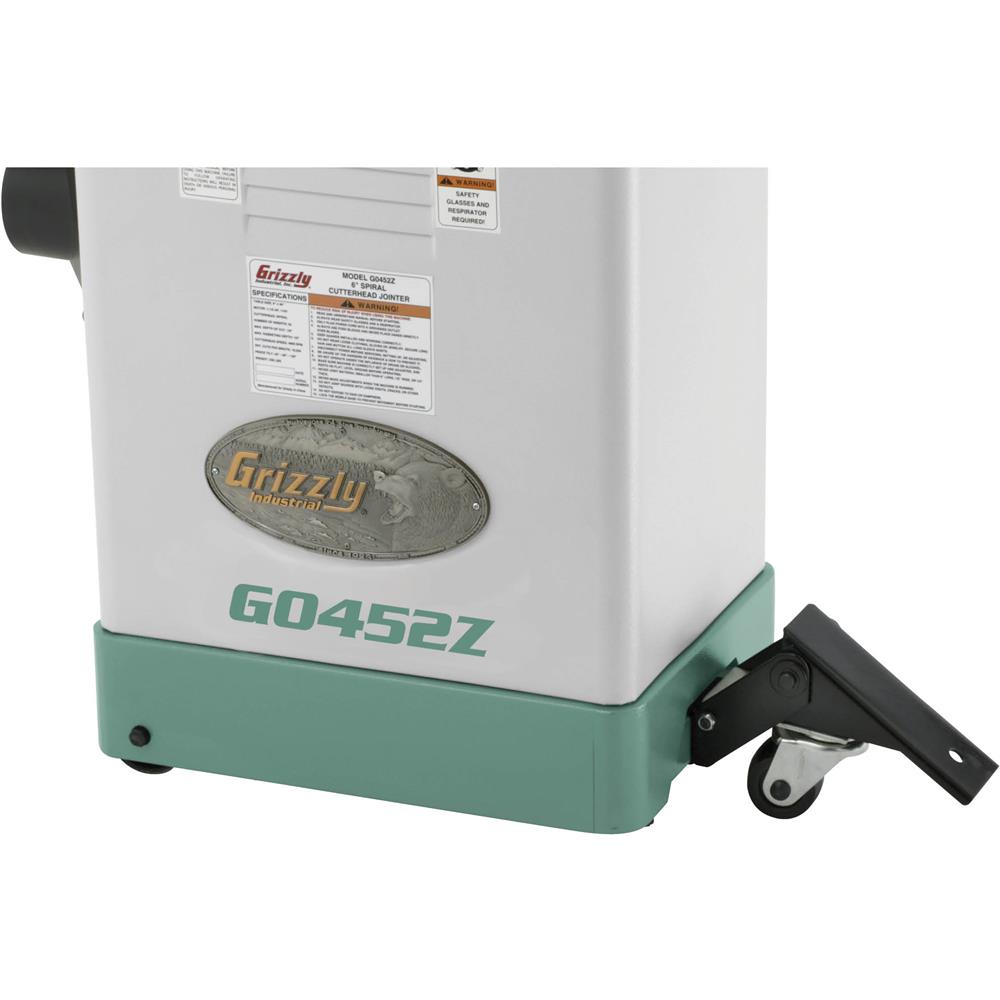

Cramped floor space is not a problem as this jointer can be easily moved around the shop and stored out of the way when not in use, thanks to the easy-to-use built-in mobile base.

Additional features include dovetailed-way tables, handwheel control for dead-on accurate outfeed table adjustment, and a large 5" x 35" cast-iron fence.

The H7319 replacement inserts are available when the stock inserts get dull.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

CSA certified

SPECIFICATIONS:

• Motor: 1-1/2 HP, 120V/240V (prewired 120V), single-phase, 15A/7.5A
• Maximum width of cut: 6"
• Maximum depth of cut: 1/8"
• Maximum rabbeting depth: 1/2"
• Cutterhead diameter: 2-1/2"
• Cutterhead type: 4-row spiral with 32 inserts
• Insert size, type: 14 x 14 x 2mm, indexable carbide
• Cutterhead speed: 4800 RPM
• Table size: 7-1/2" x 46"
• Fence size: 35" L x 5" H
• Minimum stock length: 8"
• Minimum stock thickness: 1/2"
• Dust port size: 4"
• Footprint: 18" x 13-1/2"
• Overall dimensions: 46" W x 27-1/2" D x 49" H
• Approx. shipping weight: 266 lbs.

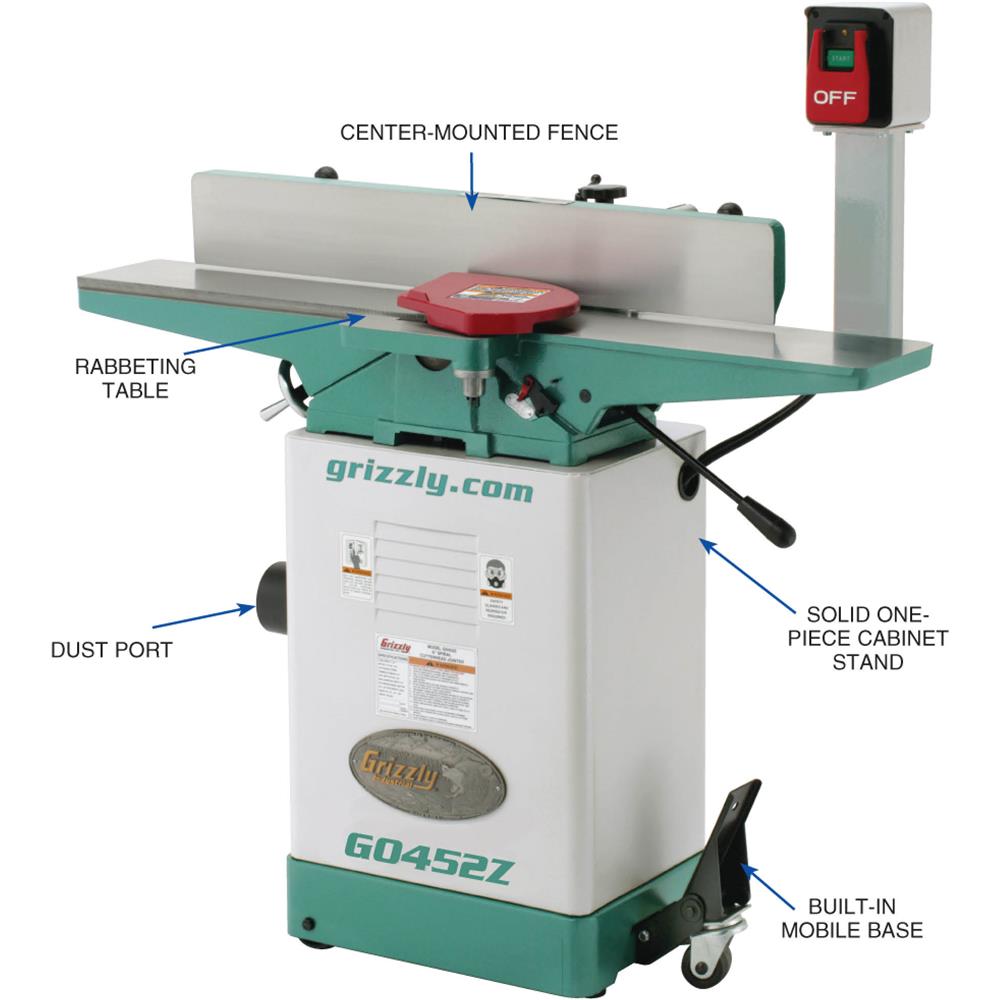

FEATURES:

• Precision-ground cast-iron tables and fence
• Handwheel-adjusted outfeed table
• Lever-adjusted infeed table with depth gauge
• Rabbeting table
• Pedestal-mounted switch with large shut-off paddle

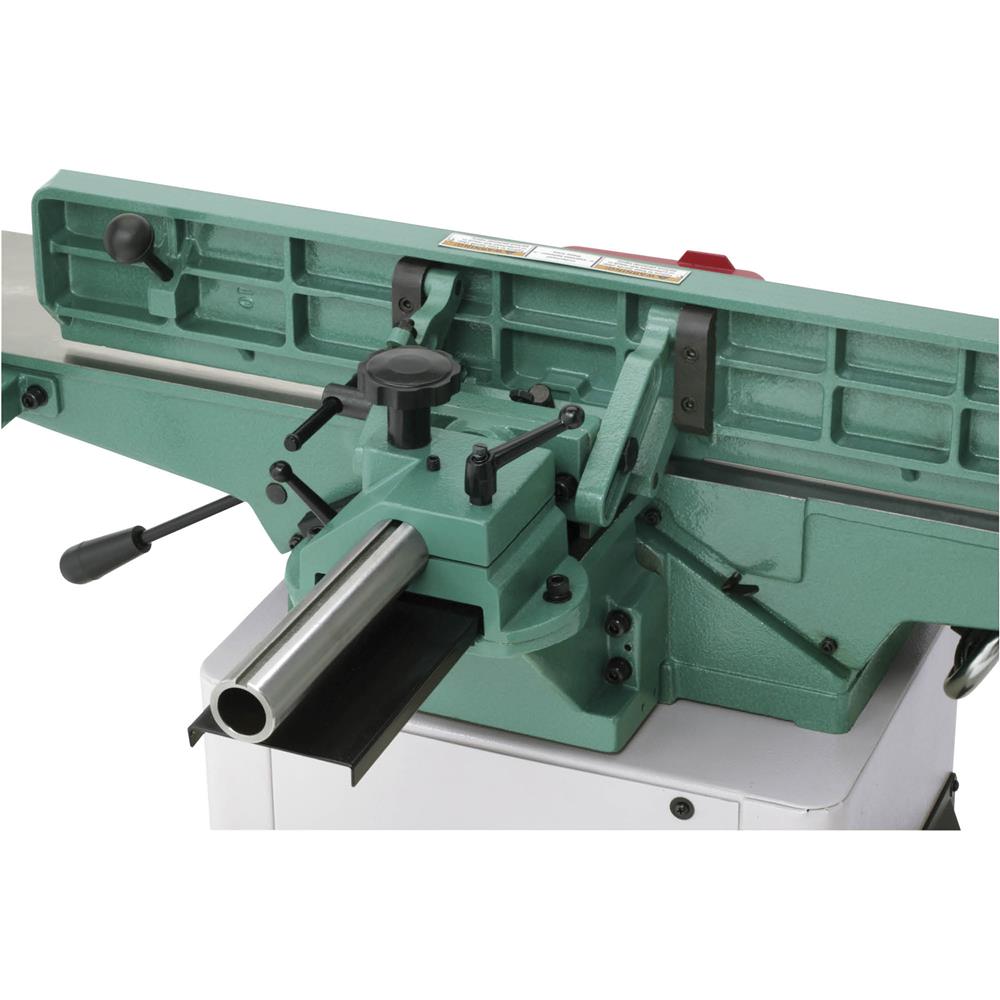

• Center-mounted fence with rack-and-pinion adjustment
• Fence stops at 45°, 90°, and 135°
• Pair of push blocks included
