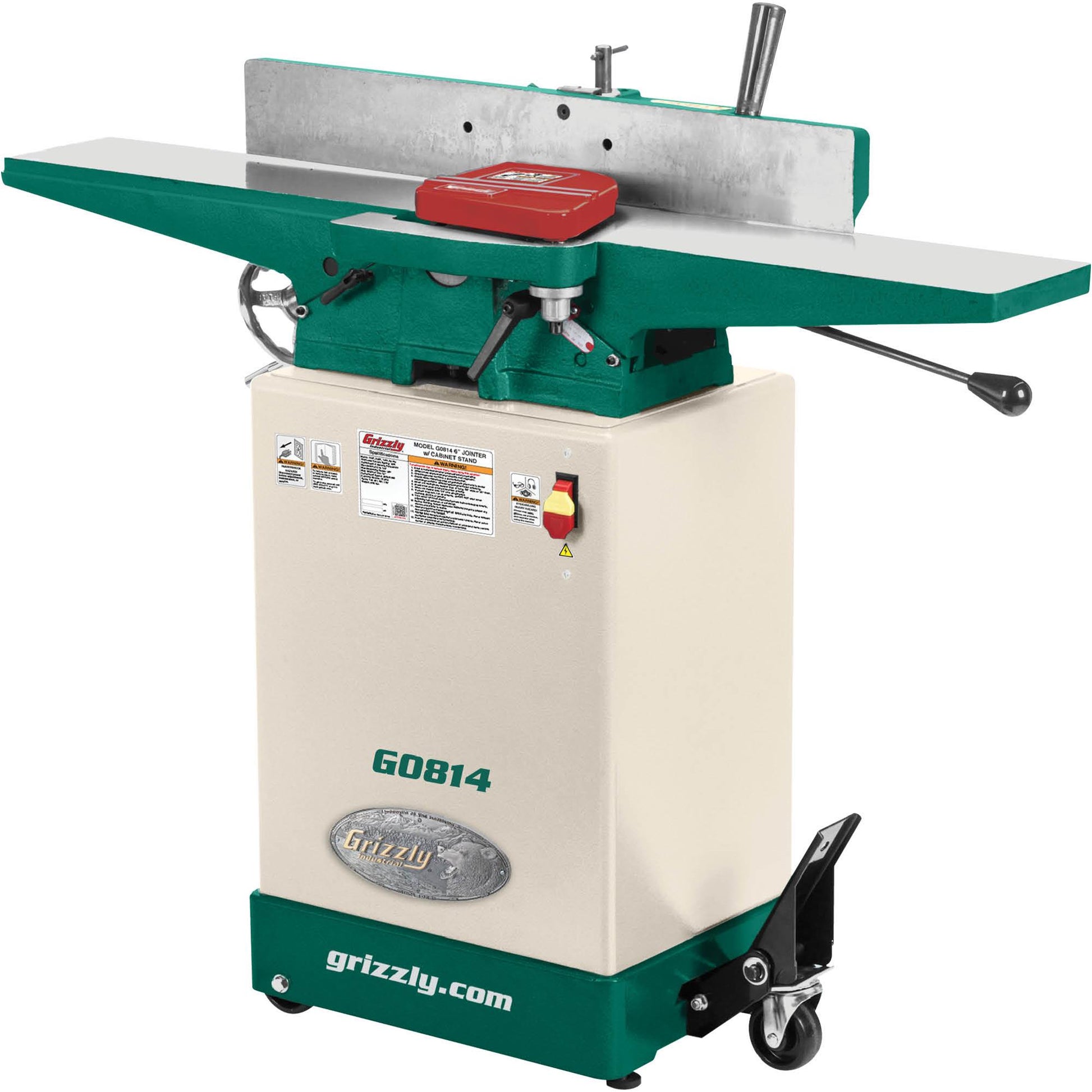

G0814 6" x 48" Jointer with Cabinet Stand

A dual-voltage 6” jointer with built-in mobile base — ideal for small shops.

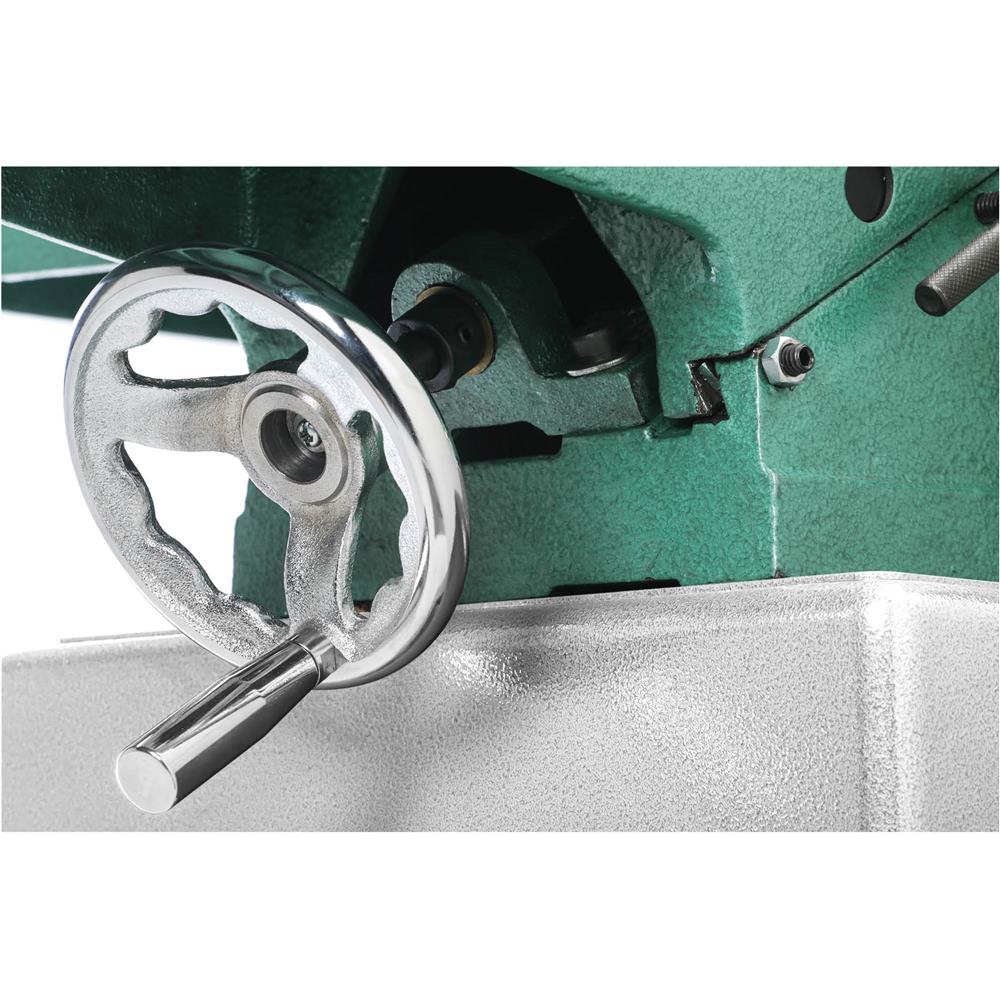

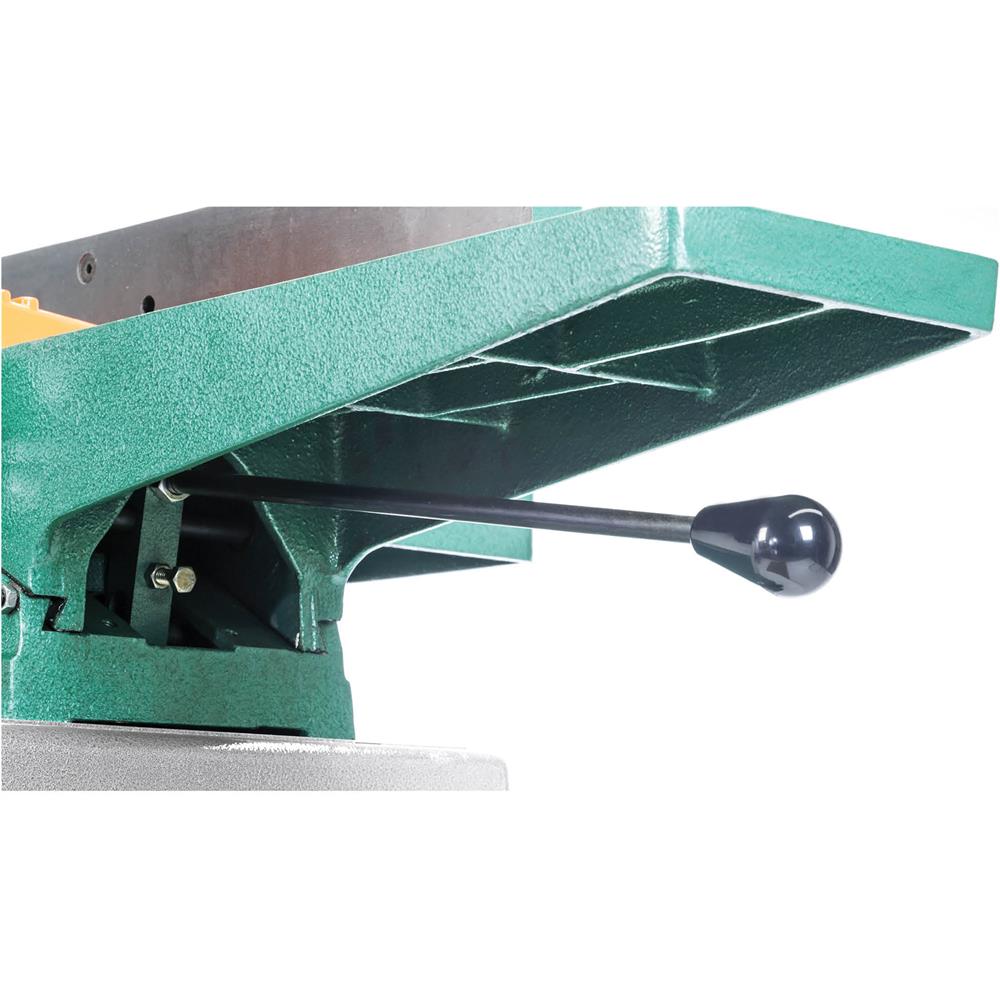

This 6" jointer features precision-ground cast-iron tables on dovetail ways for smooth and accurate table adjustments.

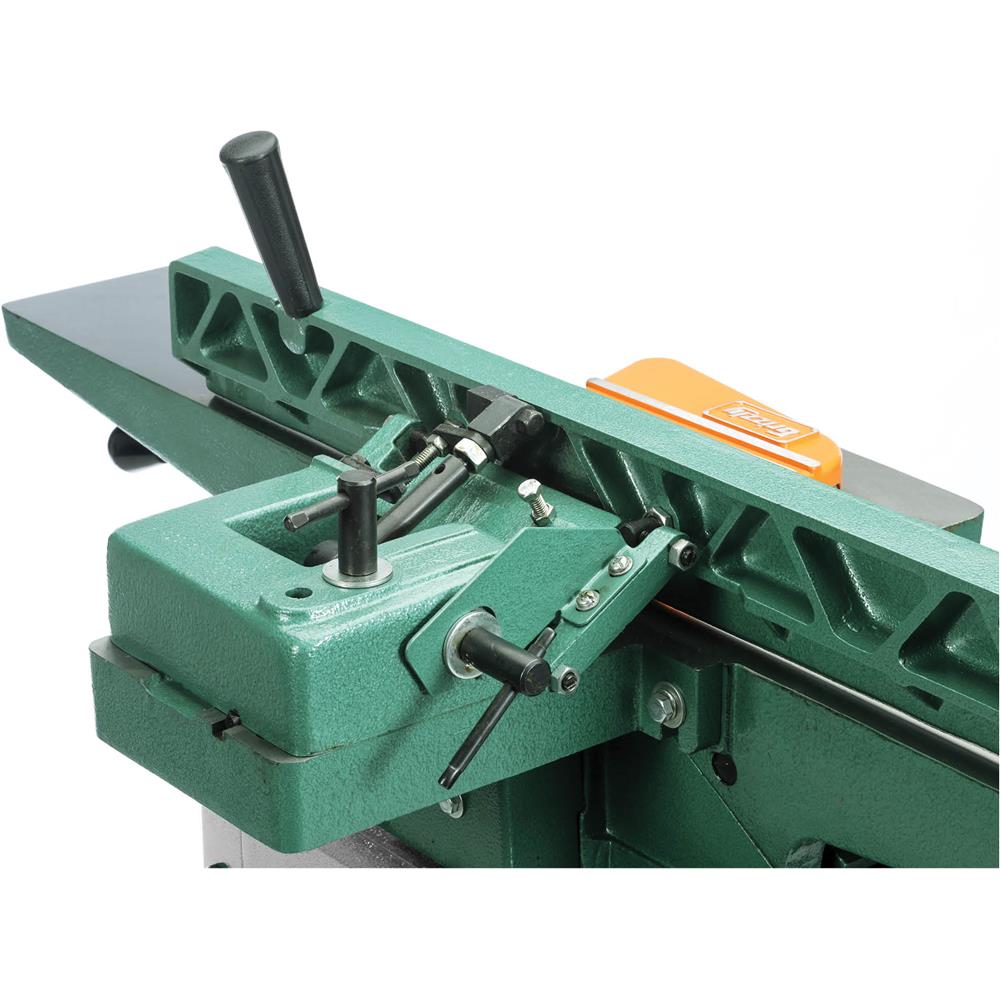

The center-mounted fence is fully adjustable with convenient stops at 45°, 90° and 135° for the most common bevels.

The one-piece cabinet-stand gives a solid, clean appearance and provides stability.

The G6697 replacement blades are available when the stock blades get dull. An upgraded V-helical cutter head of the T31849 is also available for cleaner cuts with no tearout.

For increased mobility, the cabinet stand comes with a built-in mobile base.

The Grizzly Customer Service and Technical Support Teams are U.S. based.

SPECIFICATIONS:

• Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 14A/7A
• Maximum width of cut: 6"
• Maximum depth of cut: 1/8"
• Maximum rabbeting depth: 1/2"
• Cutterhead diameter: 2-1/2"

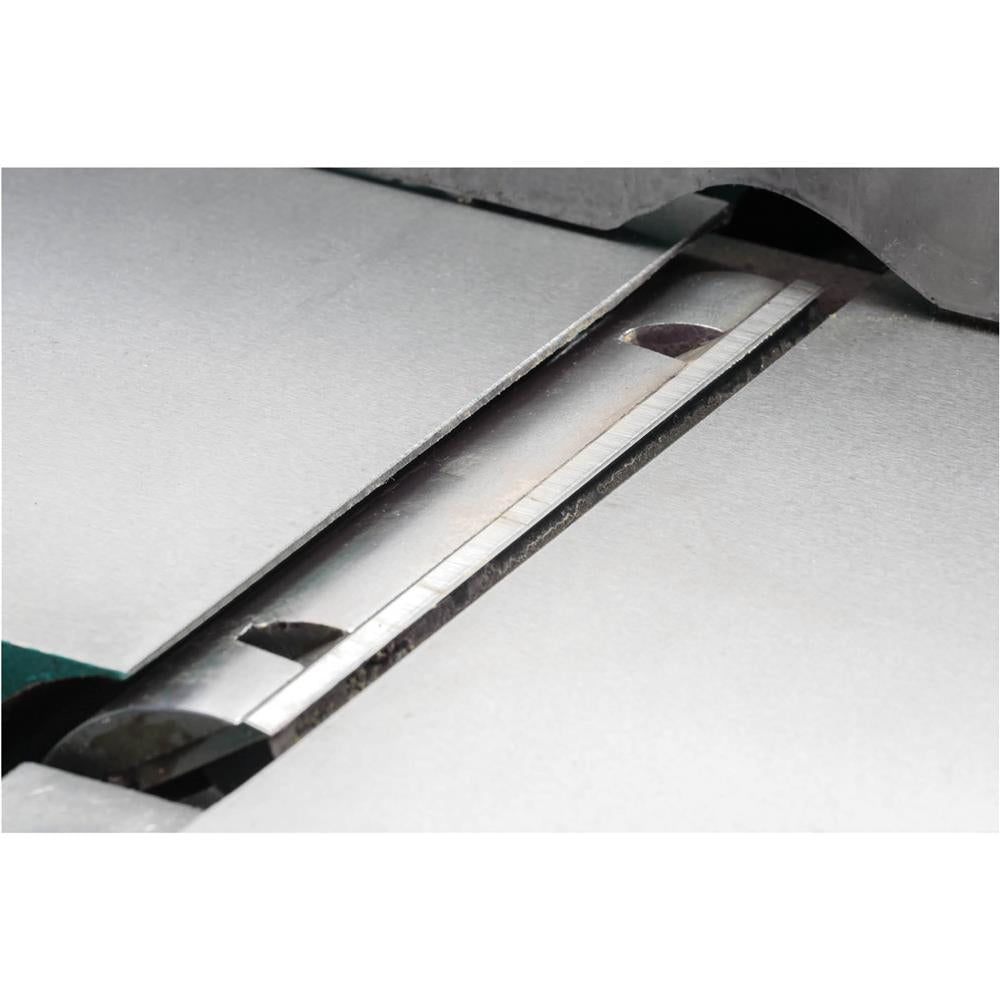

• Cutterhead type: 3-knife
• Knife size: 6" x 1" x 1/8"
• Cutterhead speed: 5000 RPM
• Table size: 6-5/8" x 47-3/8"
• Fence size: 29-1/8" x 4"
• Minimum stock length: 8"
• Minimum stock width: 3/4"
• Minimum stock thickness: 1/2"
• Dust port size: 4"
• Footprint: 13-1/2" x 18"
• Overall dimensions: 47-1/2" W x 20" D x 42" H
• Approx. shipping weight: 260 lbs.

FEATURES:

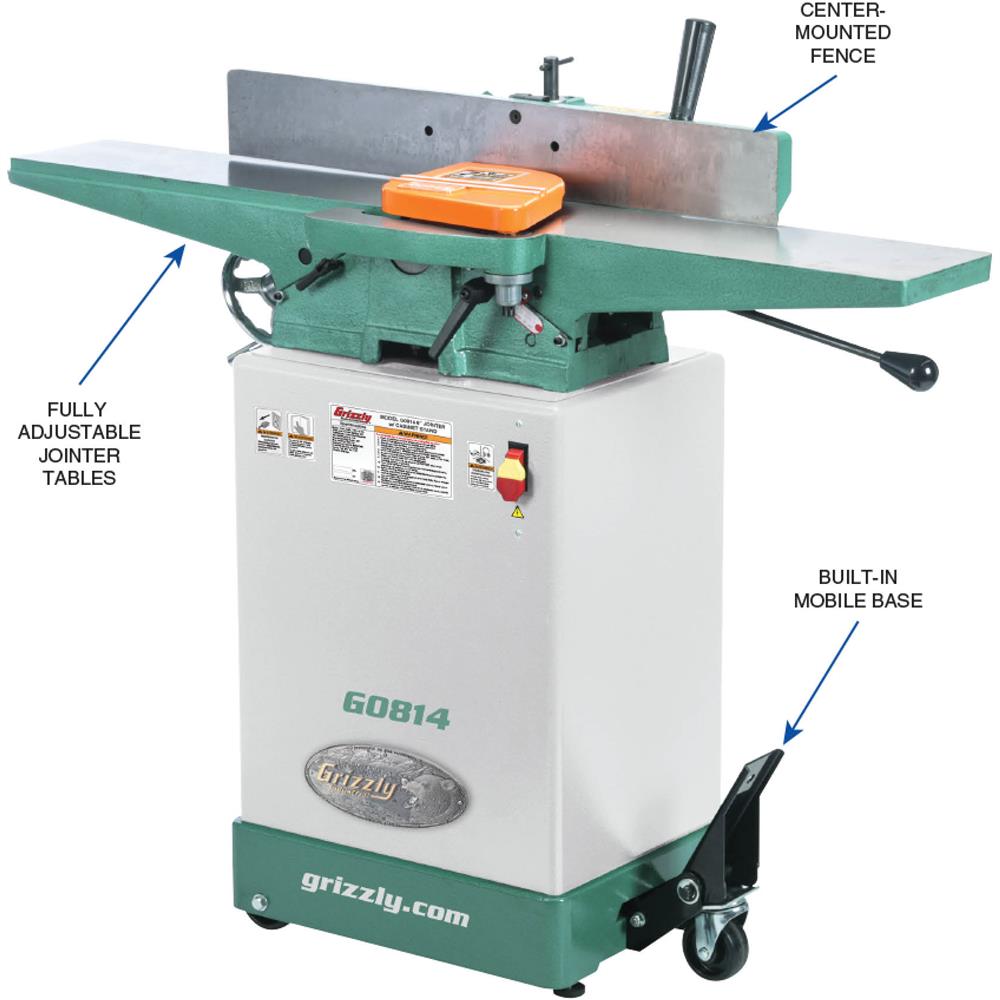

• Cabinet stand with built-in mobile base
• Precision-ground cast-iron tables with dovetailed ways
• Heavy-duty center-mounted fence with stops at 45°, 90° & 135°
• V-belt drive
