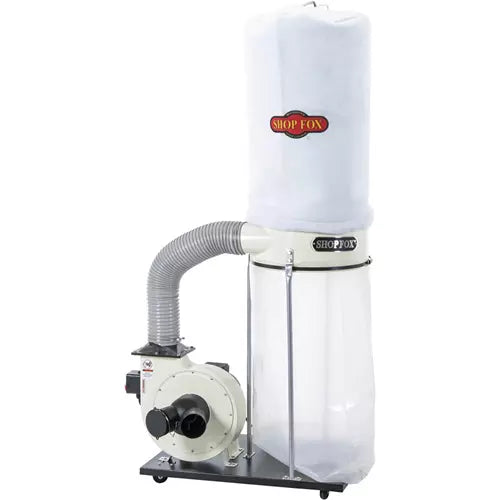

1-1/2HP Dust Collector

A powerful dust collector from Shop Fox!

The W1685 is a powerful, yet portable dust collector with large collection capacity for a 1-1/2 HP model.

This dust collector has air suction capacity of 1280 CFM and has a max static pressure of 10.1 inches. Static pressure is produced by the 12" balanced steel, radial fin impeller to move the wood chips into the collector.

It's perfect for collecting wood, dust, and chips from sanders, router tables, jobsite table saws, benchtop jointers and planers, and other woodworking machines.

The upper 2.5-micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.

The complete and easy-to-read W1685 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

Like all Shop Fox dust collectors, the W1685 comes with a two-year warranty.

Parts for the dust collector may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 1-1/2 HP, 110V, single phase, 16A
• Air suction capacity: 1280 CFM
• Static pressure: 10.1"
• Intake hole size: 6"
• Bag sizes (diameter x length): 19" x 33"
• Bag filtration: 2.5-Micron
• Collection capacity: 40 Gallons
• Impeller: 12" Balanced steel, radial fin
• Overall dimensions: 31-1/2" W x 21-1/4" L x 78" H
• Approximate shipping weight: 94 lbs.

FEATURES:

• Two-year warranty!!
• Powder coated finish
• Steel base with casters
• 6" inlet has a removable "Y" fitting with two 4" openings

Replacement bags for the W1685 include the G1034 Upper Fabric Filter Bag and G1034 Lower Plastic Dust Collection Bags.
