10HP 37" Drum Sander

Designed for production shops, this sander has what it takes to get those big jobs done—fast.

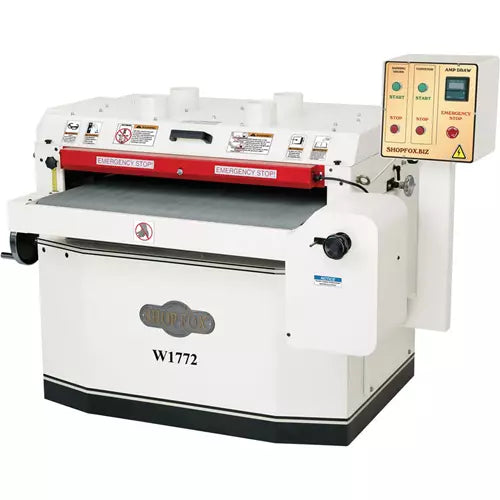

The W1772 37" 10 HP Drum Sander sands boards and panels up to 4" thick and 36-1/2" wide, using two different abrasive grits in the same pass with the dual 6" sanding drums.

Feed speed is adjustable from 6 to 18 FPM. The variable-speed knob conveyor adjustment and amp meter make it easy to monitor the sanding load to ensure maximum efficiency.

The sandpaper length needed is 6" wide by 138" long. For a full range of replacement rolls for the W1772, shop here.

Other great features include a hinged hood, emergency stop bar, pedestal-mounted controls, four 4" dust ports, and a 10 HP, 240V, single-phase motor.

The W1772 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1772 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The easy-to-read manual provides full instructions on how to assemble and maintain your sander.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts for the sander may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Sanding drum motor: 10 HP, 240V, single-phase, 44A
• Conveyor motor: 1/3 HP, 2.7A
• Maximum board width: 36-1/2"
• Maximum board thickness: 4"
• Minimum board length: 9"
• Minimum board thickness: 1/16"
• Feed rate: Variable, 6–18 FPM
• Sanding belt size: 6" x 138"
• Drum surface speed: 2800 FPM
• Drum diameters: 6"
• Dust ports: (4) 4"
• Footprint: 32" W x 45" L
• Overall dimensions: 62" W x 53" D W x 49" H
• Approximate shipping weight: 1379 lbs.

FEATURES:

• Industrial rubber conveyor belt
• Easy-access control panel with load meter
• Variable-speed conveyor
• State of the art computer-balanced drums
• 0.020" Table lift with 360° handwheel turn
• Advanced dust collection
• Hinged hood with gas struts for easy drum access
