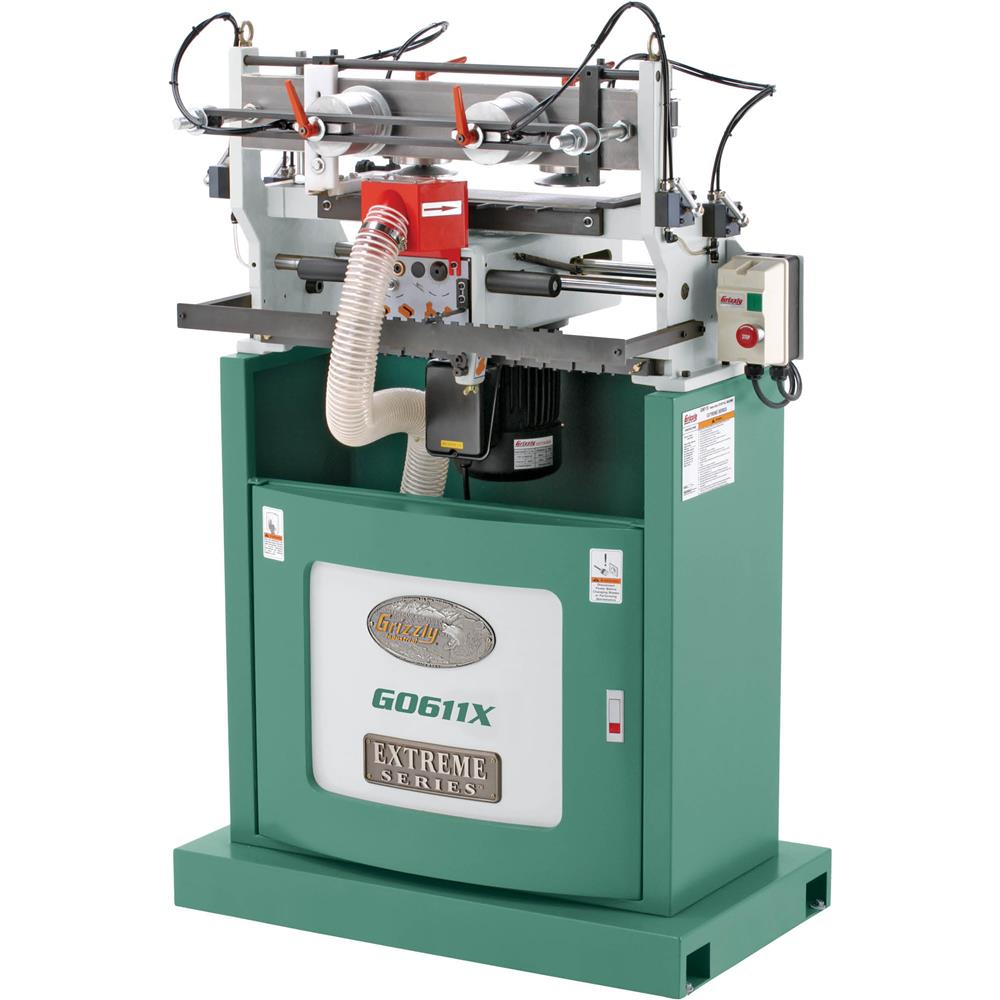

G0611X 16-1/2" Extreme Series Dovetail Machine

Produce strong and attractive half-blind dovetail joints at scale.

If you're wanting to upgrade from producing dovetails with a dovetail jig, this dovetail machine will quickly pay for itself!

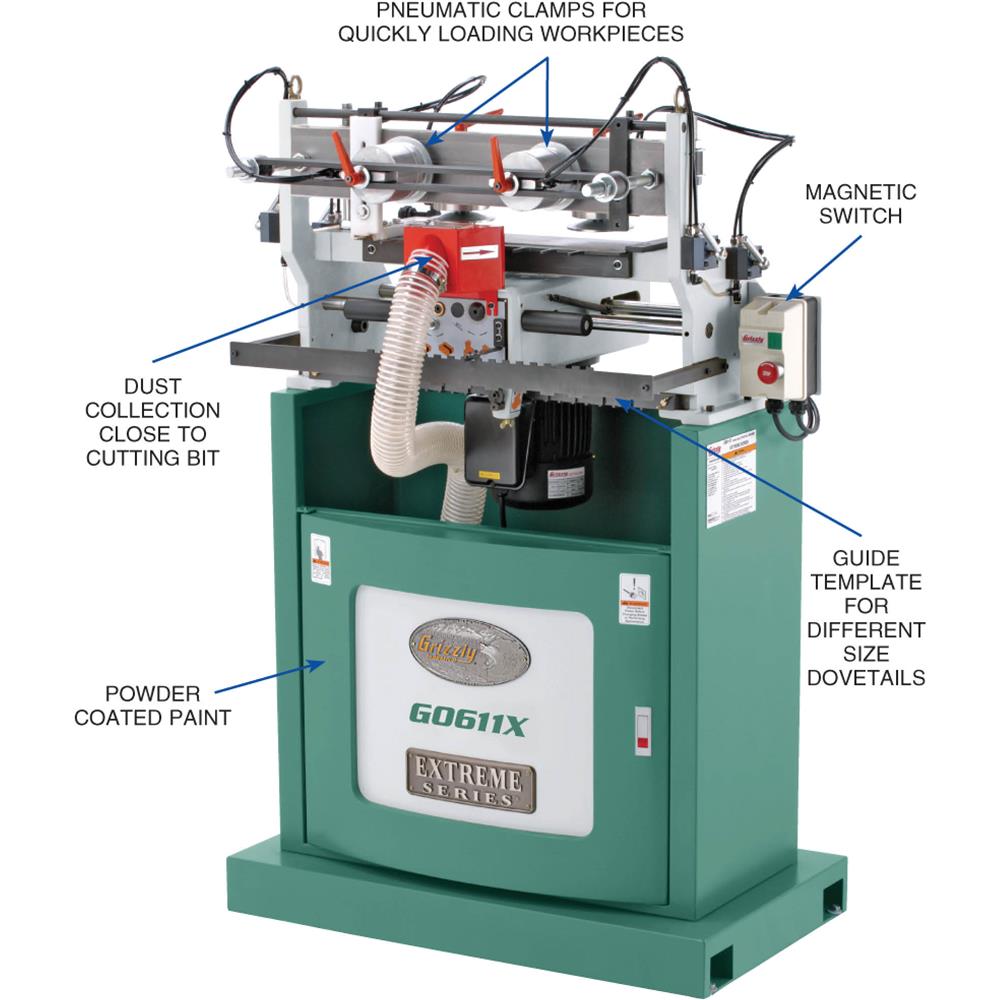

The G0611X features pneumatic clamps for quickly loading workpieces and a 4-sided template for cutting 1", 1-1/2", 2", and 2-1/2" dovetails.

With the ability to cut two joints at a time, the G0644X can produce a 4-sided drawer in under two minutes if the boards are prepared properly.

Also spindle heads are micro-adjustable to give you complete control of dovetail "fit."

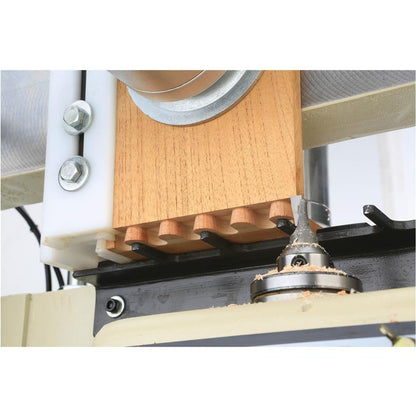

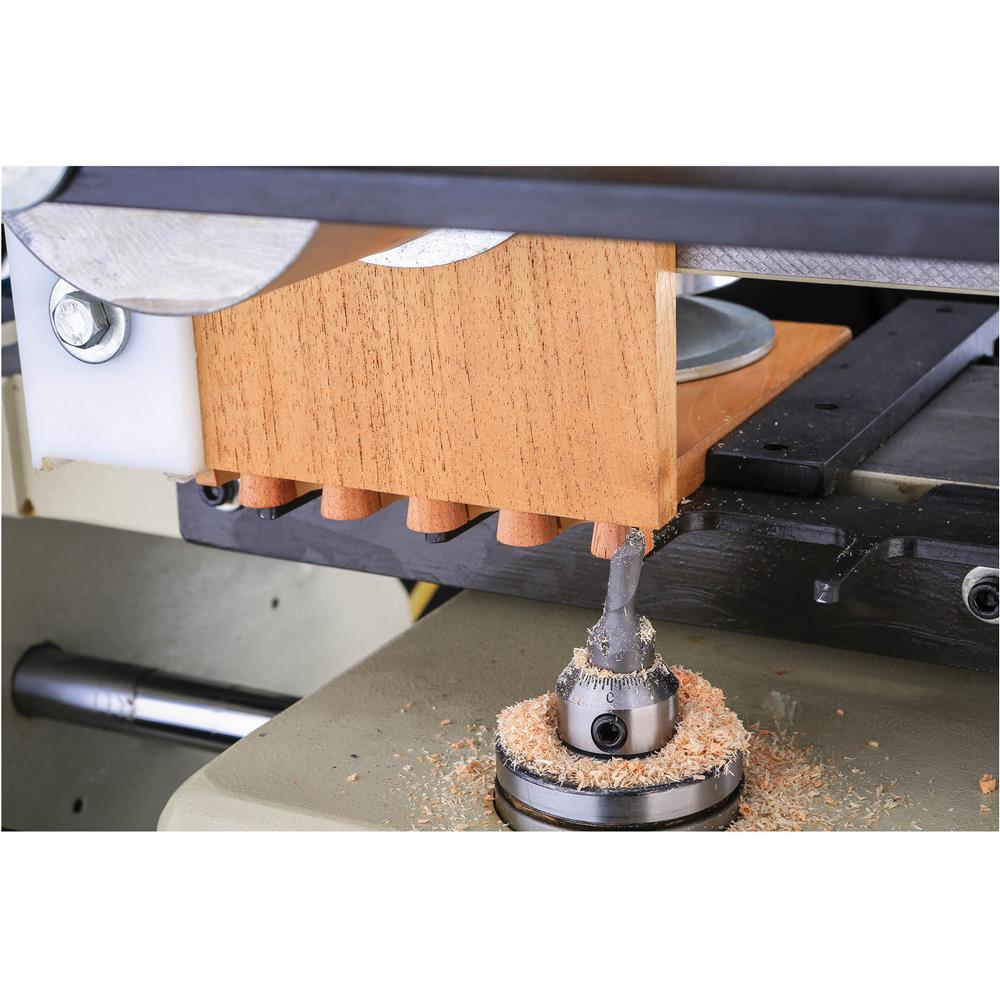

The replacement dovetail bits are available when your stock bits start getting dull.

SPECIFICATIONS:

FEATURES:

• Micro-adjustable spindle head

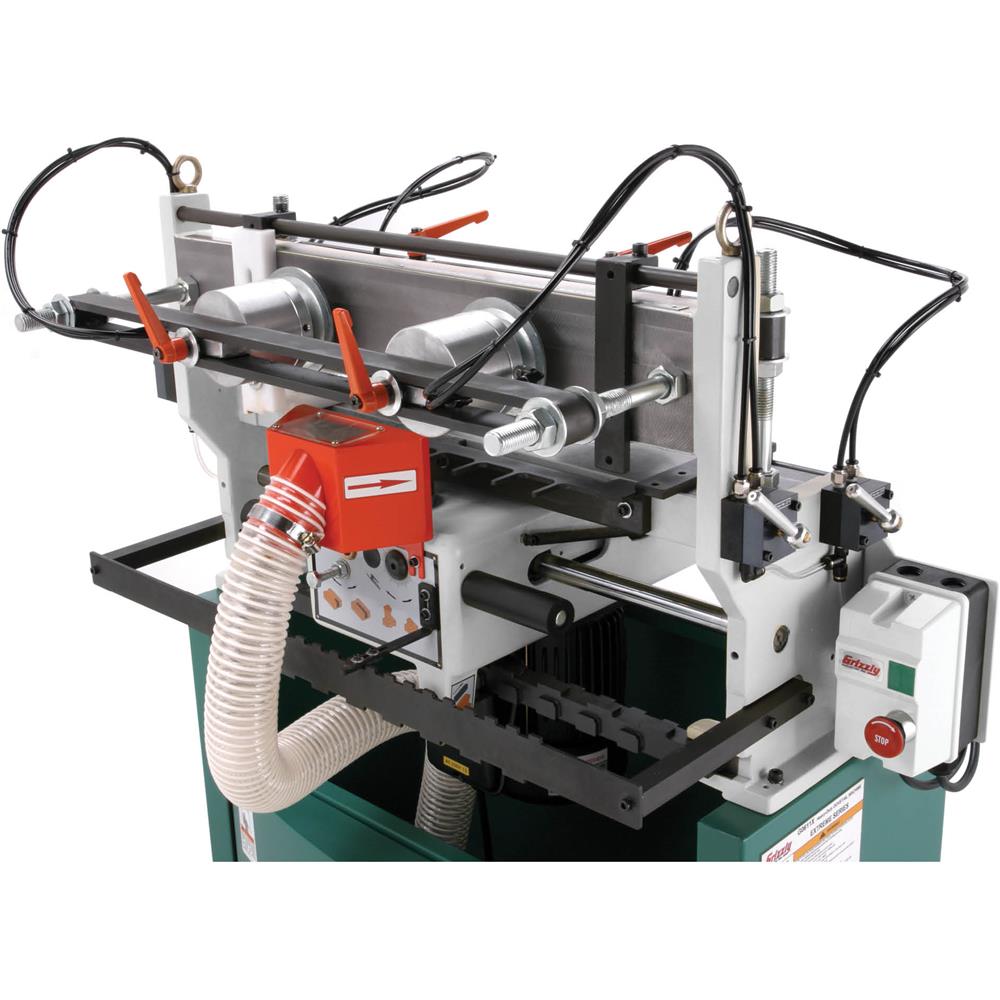

• Dual pneumatic clamping system
• Four-way dovetail template
• Cast aluminum, spring-loaded carriage
• Precision-milled cast-iron table frame
• Hardened and ground chrome steel slide ways
• Quick air-cylinder clamp, air filter/regulator/lubricator with pressure gauge
• Magnetic switch with thermal overload protection
• Ball-bearing linear guides
• Workpiece stops
• 4" dust port

Need help?

Please note: To accommodate the machine's footprint, extension bars may be necessary when using a mobile base.
