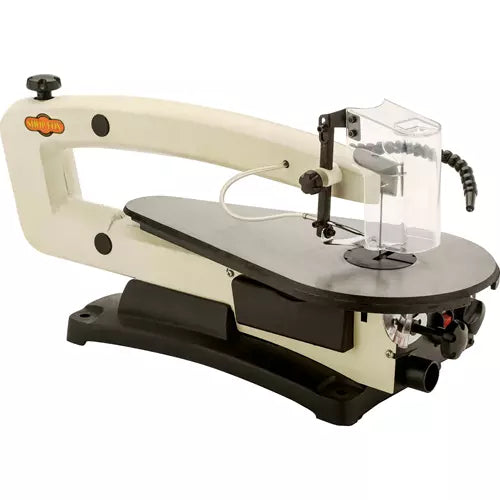

18" Variable Speed Scroll Saw w LED and Rotary Tool Kit

The W1870 Shop Fox Scroll Saw allows you to make tight, intricate, and inside cuts of your workpieces.

The cast-iron tilts -15° to 45° for bevel cuts allowing miters, cope joints, and making relief or recessed projects.

The variable-speed dial adjusts the blade speed between 550–1650 strokes per minute. The W1870 can use both pin-end and plain-end (pinless) blades. Tensioning the blade is as easy as twisting the blade tension knob.

The flexible shaft rotary tool is what makes the W1870 so versatile. It offers variable-speed convenience for full-speed applications such as routing, cutting, sharpening, drilling, engraving, buffing, smoothing, routing, carving, and sanding applications.

The air nozzle blows air at the blade to keep wood debris away from the line of the cut. Combined with the flexible LED light, this combination makes it easier to follow your cutting lines with accuracy.

Like all Shop Fox saws, the W1870 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1870 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts and accessories for the scroll saw may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Motor: 1/6 HP, 120V, single phase, 1.2A
• Max. cutting depth: 18-1/8"
• Max. cutting thickness: 2"
• Blade speed: Variable, 550-1600 SPM
• Blade size and type: 5-1/4", pinless
• Blade stroke: 3/4"
• Table size: 19-3/16" x 10-1/4"
• Table tilt: -15° to 45°
• Dust port size: 1-1/4"
• Overall dimensions: 14" W x 27-1/2" D x 21" H
• Approximate shipping weight: 43 lbs.

FEATURES:

• Two-year warranty!!
• Flex-Shaft rotary tool attachment
• Precision-ground cast-iron table
• LED work light
• Chip blower
• Variable-speed control

INCLUDES:

• Rotary tool with tool kit
• Pinless blade adapters
• Single pinless blade
