Shop Fox

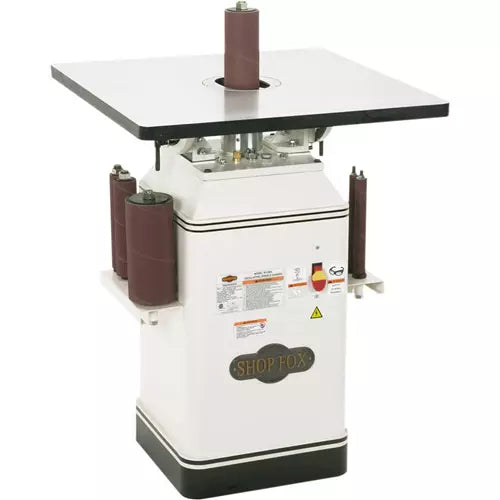

1HP Oscillating Spindle Sander

1HP Oscillating Spindle Sander

SKU: W1686

Regular price $1,633.00
Regular price $2,049.95 Sale price $1,633.00
Sale Sold out

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

No expense has been spared to bring you this feature packed spindle sanding monster!

With a whopping 25-1/4" x 25-1/4" precision-ground cast-iron table, no other machine comes close to the W1686 1 HP Oscillating Spindle Sander in size and capacity.

The heavy-duty trunnion assembly will effortlessly support your heaviest oversized workpieces and the 1 HP motor will gracefully sculpt the hardest woods.

Built for everyone from the demanding shop boss to the amateur who has it all, the W1686 will without a doubt meet the highest of expectations!

Like all Shop Fox sanders, the W1686 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1686 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

The Woodstock Customer Service and Technical Support Teams are U.S. based. Parts for the sander may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified


  • Motor size: 1 HP, 120V/240V, pre-wired 120V, 12A/6A, TEFC motor
  • Ten spindle sizes: 1/4" x 5", 3/8" x 6", 1/2" x 6", 5/8" x 6", 3/4" x 9", 1" x 9", 1-1/2" x 9", 2" x 9", 3" x 9", 4" x 9", tapered and threaded
  • Table tilt: 45° front and 20° back
  • Table size: 25-1/4"L x 25-1/4"W
  • Spindle speed: 1725 RPM
  • Oscillation speed: 72 SPM
  • Stroke length: 1-1/2"
  • Dust port: 4"
  • Footprint: 16" x 16"
  • Approximate shipping weight: 381 lbs.


  • Two-year warranty!!
  • Precision-ground cast-iron table
  • Powder-coated finish
  • Steel table inserts
  • 100-grit sanding sleeve included for each spindle drum
