Shop Fox

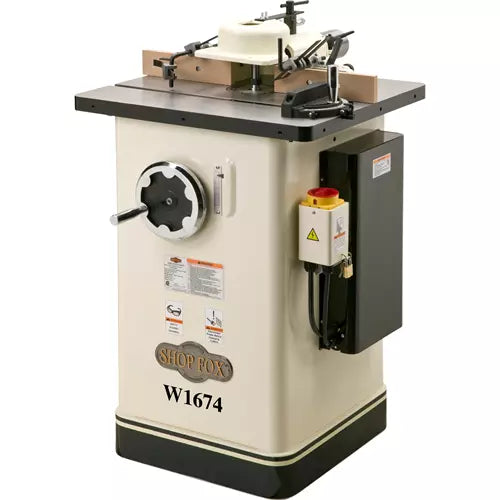

2HP Shaper

2HP Shaper

SKU: W1674

Regular price $1,536.00
Regular price $1,536.00 Sale price $1,536.00
Sale Sold out

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

Designed to compete with the power of larger machines, while capitalizing on the mobility of smaller models.

Shapers are designed to provide precise and consistent cuts, which is essential when creating complex shapes or replicating patterns.

The 2 HP Shop Fox® Shaper offers the perfect balance for serious woodworkers.

The extra power of the 2 HP motor will have you racing through profiles in even the heaviest hardwoods.

The large 24" x 21" table gives you the added working surface found only on larger shapers.

This shaper comes with 1/2" and 3/4" spindles sizes to work efficiently in combination with different sized cutters and spacers.

Unleash your creativity with the versatility of a shaper.

Table size can be increased with the D3124 Optional 23" x 40" Wrap Around Table.

Like all Shop Fox shapers, the W1674 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1674 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your shaper.

The Service and Technical Support Teams are U.S.-based. Parts for the shaper may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 2 HP, 120V/240V (prewired 240V), single-phase, 18A/9A
  • Maximum cutter height: 2-1/2"
  • Maximum cutter diameter: 5"
  • Spindle diameters: 1/2", 3/4"
  • Spindle length: 5"
  • Spindle travel: 3"
  • Spindle capacity under nut: 2", 2-3/8"
  • Spindle speeds: 7000, 10,000 RPM
  • Spindle openings: 1-1/4", 3-1/2", 5"
  • Table counterbore: 5" dia. x 0.60" deep
  • Table size: 24" x 21"
  • Footprint: 19-1/4" x 18-1/2"
  • Approximate shipping weight: 293 lbs.

FEATURES:

  • Two-year warranty!!
  • Large precision-ground cast-iron table
  • Spindles: 1/2" and 3/4" (included)
  • Powder-coated finish
  • Mirco-adjustable split fence system
  • Heavy-duty miter gauge
  • Motor reversing switch
  • 3" Dust port
  • Split-fence has independent micro-adjustment feature
  • Cast-Iron table and handwheel
  • Lockable reversing switch
