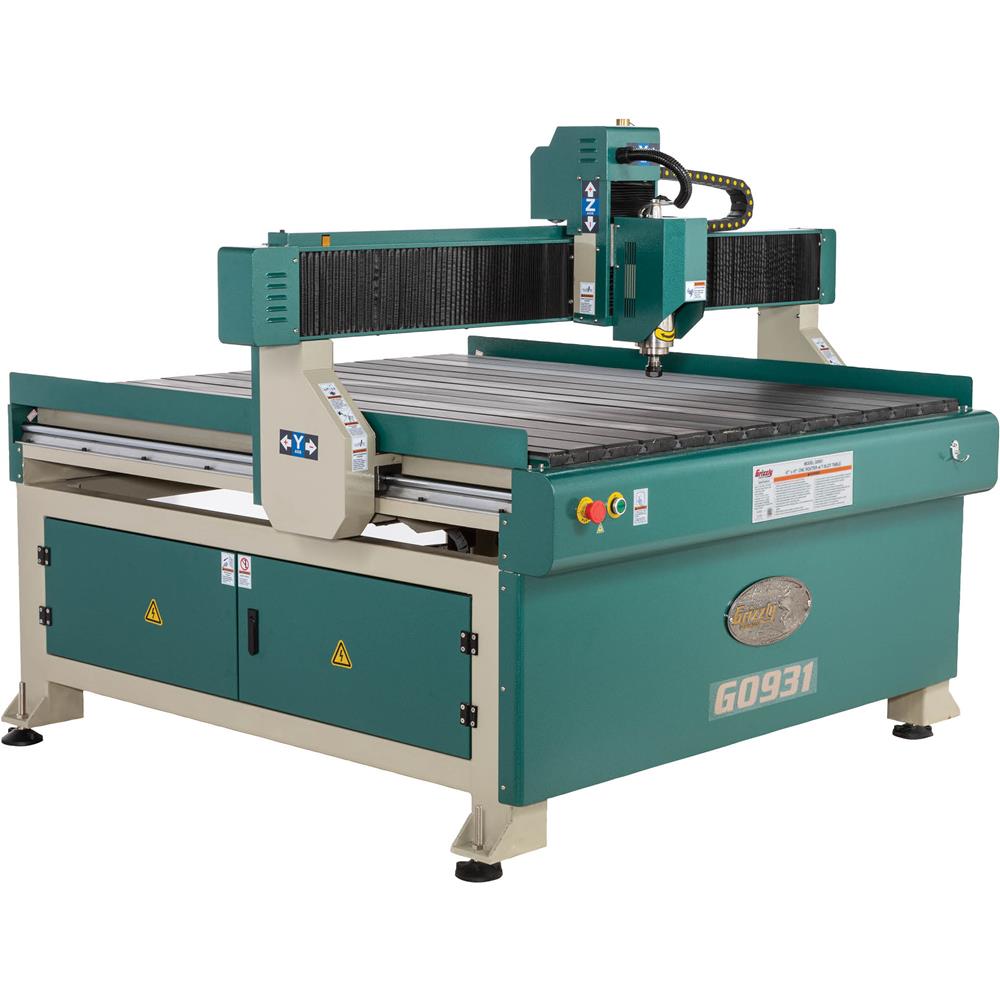

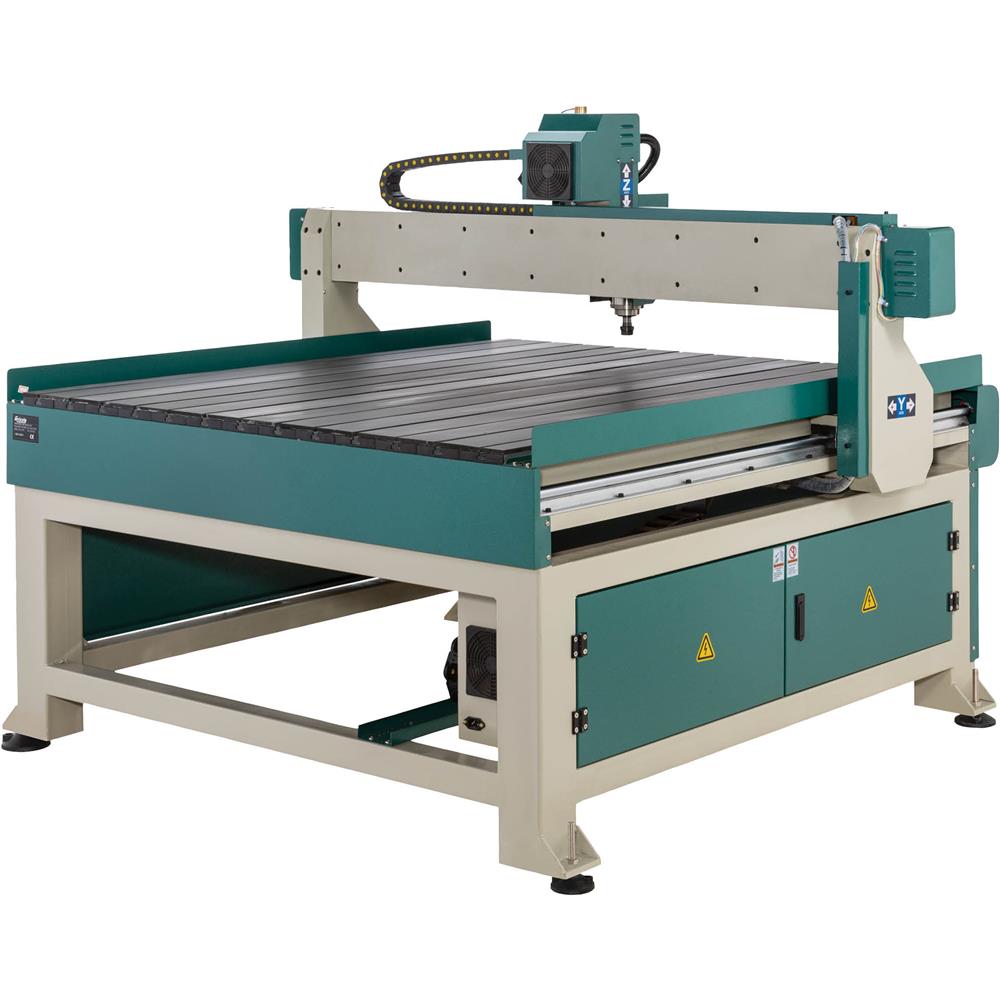

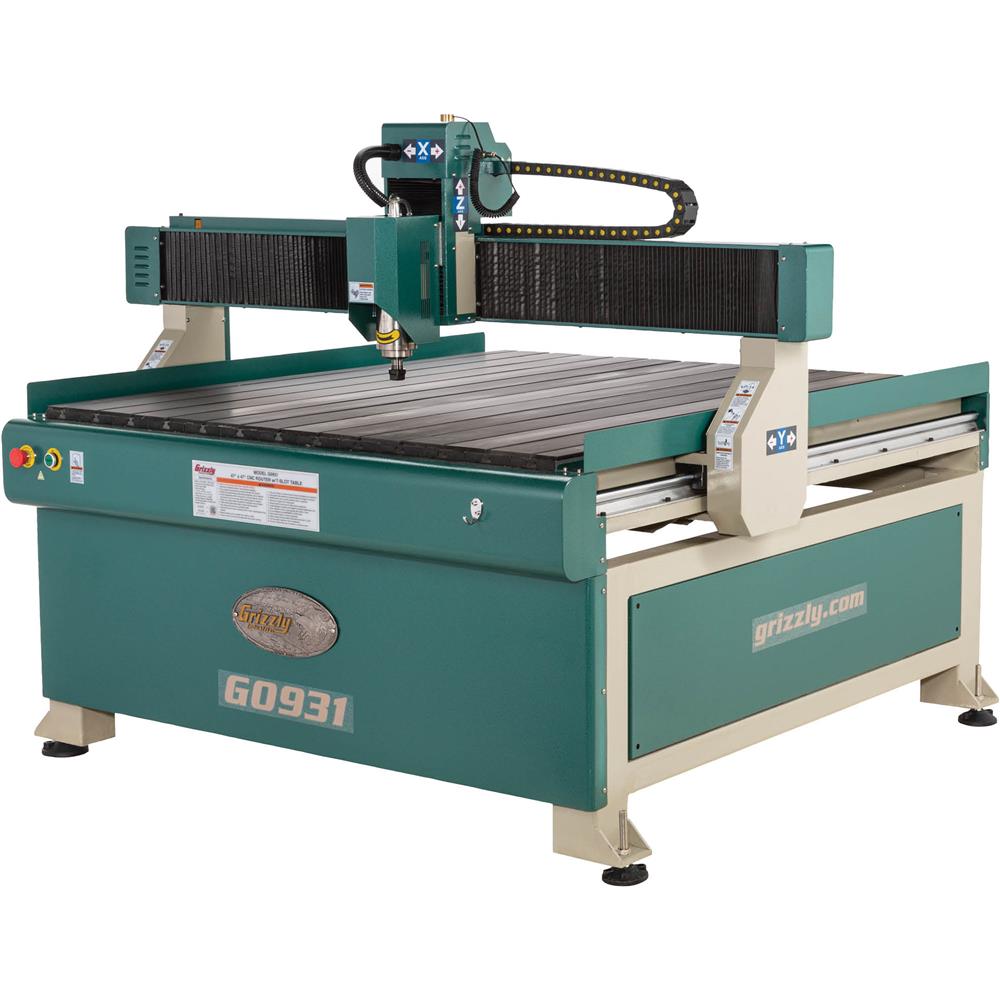

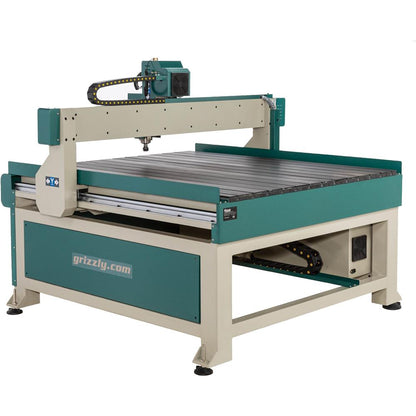

G0931 47" x 47" CNC Router With T-Slot Table

A CNC router with production-level cutting capability for your small shop.

The G0931 CNC Router With T-Slot Table is ready to cut a wide range of parts from basic shapes up to highly detailed 3D geometry using wood, plastics, and other non-metallic materials.

It comes equipped with a rigid steel frame and a 47-1/4" x 47-1/4" x 6-1/4" cutting area.

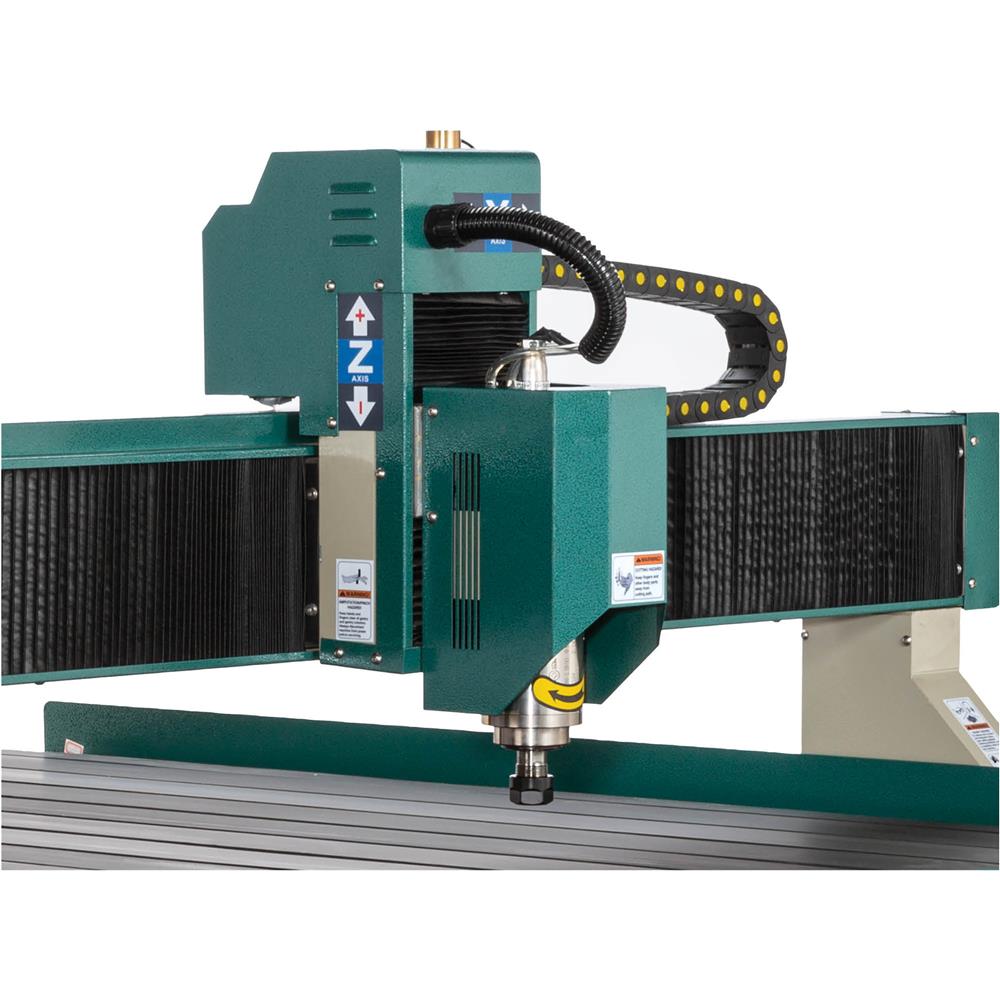

Extruded aluminum T-slots provide virtually unlimited clamping configuration, and a water-cooled 24,000 rpm spindle allows for heavy-duty machining.

The welded-steel gantry and ball-screw driven linear guides on all 3 axes contribute to this router’s top-notch precision.

The included ER20 collets ensure the use of a broad selection of tooling options, while the tool touch-off pad allows you to quickly set the Z-height.

This machine is compatible with many common CAD/CAM platforms including, but not limited to:

• Vcarve and Vcarve Pro
• Aspire
• Cut2D
• Fusion360
• Solidworks
• Type3
• Artcam
• UG
• Pro/E
• MasterCAM
• Cimatron
• Ucancam

Store your frequently used programs on the handheld controller or run them directly from a thumb drive. A PCI interface also allows you to connect directly to your PC.

SPECIFICATIONS:

FEATURES:

• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• RichAuto DSP A11 handheld controller with USB port and keypad
• Aluminum table with T-slots and PVC padding
• Tool touch-off pad for quickly setting Z-axis height
• 80W submersible water pump for spindle cooling
• Water-cooled spindle with included water pump
