4x36" Horizontal / Vertical Belt Sander w 6" Disc

The compact design of this sander is ideal for the smaller workshop.

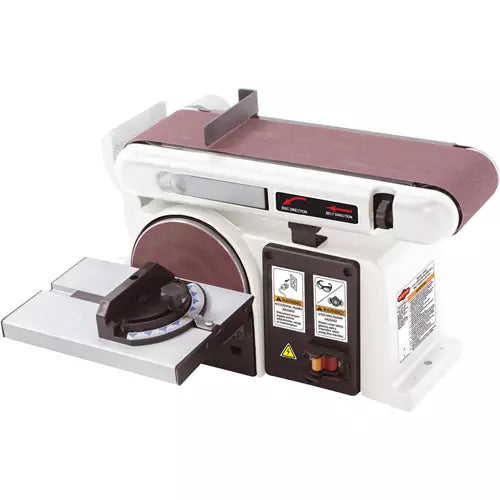

The Shop Fox W1855 4" x 36" Horizontal/Vertical Belt Sander with 6" Disc offers all the power and control you need for sanding smaller workpieces.

The 4" x 36" sanding belt tilts from 0°–90°, allowing both horizontal and vertical belt sanding. For a full range of replacement belts for the W1855, shop here.

The back stop supports workpieces on the belt sander in any position.

The 6-1/4" W x 9" L work table supports workpieces when using the 6" sanding disc. It tilts from 0°–45°. Replacement PSA sanding discs are available in a variety of grits.

The belt tensioning lever provides tension to the sanding belt when pushed in and releases it when pulled out for changing belts.

A tracking control knob allows the user to adjust the alignment of the sanding belt to the sanding bed.

Additional features include a built-in 2-1/2" dust port, an adjustable miter gauge, and work table angle scale.

Like all Shop Fox benchtop machines, the W1855 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1855 manual was written by the U.S. based Woodstock Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your sander.

The Woodstock Customer Service and Technical Support Teams are U.S.-based. Parts and accessories may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 1/2 HP, 120V, single-phase, 4.3A
• Belt size: 4" x 36"
• Sanding belt speed: 1900 FPM
• Sanding belt tilt: 90°
• Belt tension release type: Quick-release lever
• Platen: steel, 4-7/8" W x 12" L
• Disc size: 6"
• Disc table size: 6-1/4" W x 9" L
• Disc table tilt: 0–45°
• Floor-to-table height: 4-3/4"
• Dust port size: 2-1/2" (compatible with standard shop vacuums)
• Footprint: 6" W x 15" L
• Overall size: 17-1/2" W x 14-1/2" D x 13" H
• Approximate shipping weight: 41 lbs.

FEATURES:

• Two-year warranty!!
• 0 - 45° cast aluminum disc sanding table
• Fast-tracking adjustment knob
• Quick-release belt lever
• Adjustable miter gauge
• Cast-iron base
