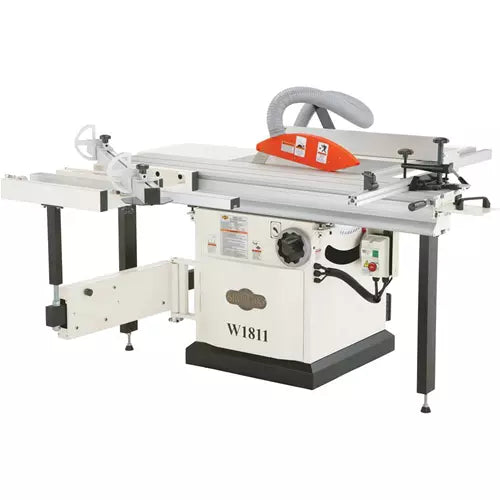

5HP 10" Sliding Table Saw

Perfect for cutting wide panels in limited shop space.

The 10" W1811 10" 5 HP Sliding Table Saw from Shop Fox features a scoring blade to eliminate cross grain tear-out and a 78-1/2" wide crosscut capacity.

The telescoping crosscut fence has two rock-solid flip stops.

The fully-adjustable miter fence has its own flip stop.

This 10" Sliding Table Saw makes quick work of all standard plywood panels.

Accepts 10" saw blades with 5/8" arbor bores or dado blades up to 13/16" wide.

Additional features include the two-position extruded-aluminum rip fence and a large blade guard with integral dust port.

The W1811 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1811 manual was written by our U.S.-based Technical Documentation Department. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.

The Woodstock Customer Service and Technical Support Teams are also U.S.-based. Parts may be available online and shipped from the Woodstock parts warehouse in Springfield, MO.

CSA certified

SPECIFICATIONS:

• Motor: 5 HP, 230V, single-phase, 19A
• Rip capacity: 33"
• Crosscut capacity: 78-1/2"
• Blade tilt: 0° –45°
• Max. depth of cut at 90°: 3-1/8"
• Max. depth of cut at 45°: 2-1/4"
• Table size with extension wings: 40" x 47"
• Sliding table size: 12-1/4" x 63"
• Main blade size: 10"
• Main blade speed: 4000 RPM
• Main blade arbor: 5/8"
• Scoring blade size: 3-1/8"
• Scoring blade speed: 8000 RPM
• Scoring blade arbor: 22mm
• Max. dado width: 13/16"
• Floor space required: 150" W x 123" D
• Dust port sizes: 2-1/2", 4"
• Overall size: 76" W x 124-3/4" D x 46" H
• Approximate shipping weight: 688 lbs.

FEATURES:

• Two-year warranty!!
• Shielded and lubricated bearings
• Magnetic switch with thermal overload protection
• Includes extended-reach push stick
