Shop Fox

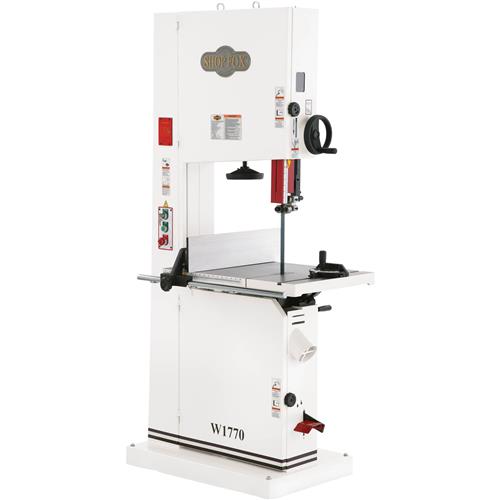

5HP 21" Bandsaw
5HP 21" Bandsaw
SKU: W1770
Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.
A 21" bandsaw with the power and capacity to handle any bandsaw cutting operation with ease.
Its 5 HP motor powers 165" blades up to 1-3/8" wide through the hardest wood with a 14" resaw capacity.
Rigidly constructed to tension the widest blades, this bandsaw eats through wood like a mini saw mill.
The precision-ground, 20-3/4" x 29-1/2" cast-iron table includes micro-adjusting rack-and-pinion table tilt from 5° left to 45° right.
The foot brake cuts power to motor and allows bandsaw blade to be quickly brought to a stop.
Additional features include ball-bearing blade guides, a blade tension indicator, and a deluxe fence with 2-position resaw fence attachment.
As an industrial machine, the W1770 does not come with a plug or wire. The T28429 30 Amp 250V NEMA L6-30 Single-Phase Twist Lock Plug can be purchased separately.
The W1755H manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
Parts for the bandsaw may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
- Motor: 5 HP, 230V, single-phase, 22A
- Max. cutting width left of blade: 20"
- Resaw capacity: 14"
- Table size: 20-3/4" x 29-1/2"
- Table tilt: 5° left, 45° right
- Floor-to-table height: 35-1/2"
- Blade size: 165" (1/4"¬–1-3/8" wide)
- Blade speed: 4600 FPM
- Overall dimensions: 39-1/2"W x 28-5/8"D x 78"H
- Footprint: 21-5/8" x 33-1/2"
- Approximate shipping weight: 692 lbs.
FEATURES:
- Two-year warranty!!
- Computer-balanced cast-iron wheels with polyurethane tires
- Micro-adjusting rack-and-pinion table tilt
- Rack-and-pinion upper guide adjustment
- Quick-release blade tension lever
- Blade tension indicator
- Foot brake stop
- Two 4" dust ports
- Sealed and permanently lubricated bearings
- Includes deluxe extruded-aluminum rip fence, 1" blade, and miter gauge
