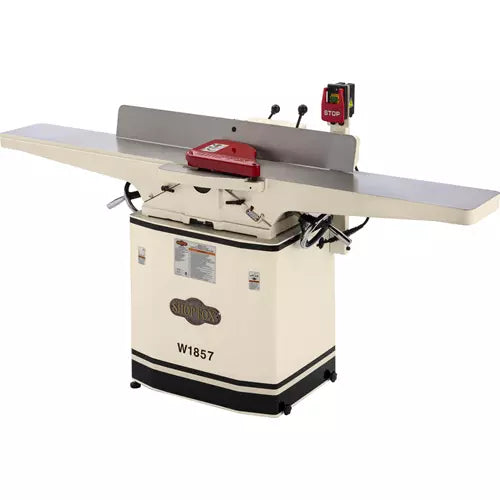

8" Dovetail Jointer w Mobile Base

All the best features on an 8" jointer.

The W1857 Jointer is a feature-packed machine with so much to offer, especially the 4-row helical cutterhead with 36 indexable carbide inserts.

The inserts slice through wood at an angle to achieve a sheering effect. You’ll get quieter operation, and most importantly, a significantly better finish with less tear-out.

Each insert can be rotated three times to expose a new, sharp edge. They don't require finicky adjustment and setup that traditional straight-knife jointers do. You'll save valuable time and money from the start.

The 9" x 72" precision-ground cast-iron table is ready to surface plane, edge joint, bevel joint, and square stock.

The tables are easily adjusted by heavy-duty cast-iron handwheels and move along dovetail ways.

The easy-to-use fence has built-in stops to simplify adjustments between 45°, 90°, and 135°.

Additional features include a thermal protection switch, built-in mobile base, and integrated 4" dust port.

Like all Shop Fox jointers, the W1857 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)

The W1857 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your jointer.

The Customer Service and Technical Support Teams are also U.S.-based. Parts for the jointer may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

• Motor: 3HP, 230V, single phase, 12A
• Maximum width of cut: 8"
• Maximum depth of cut: 1/8"
• Maximum rabbeting depth: 1/2"
• Minimum stock length: 10"
• Minimum stock thickness: 1/2"
• Cutterhead diameter: 3-1/16"
• Insert size: 15 x 15 x 2.5 mm
• Cutterhead speed: 5500 RPM
• Total table size: 9" x 72"
• Fence size: 4-5/8" x 38"
• Fence system: positive stops
• Overall dimensions: 72-1/2" W x 25-1/2" D x 42" H
• Approximate shipping weight: 373 lbs.

FEATURES:

• Two-year warranty!!
• Super long 6' table
• Center mounted fence
• Built-in mobile base with internally-mounted, non-directional casters
• Beds slide on dovetailed ways
• Rabbeting table
• Handwheel-adjustable tables with depth gauge
• Built-in mobile base

INCLUDES:

• 5 replacement indexable carbide inserts
• Pair of push blocks
