Shop Fox

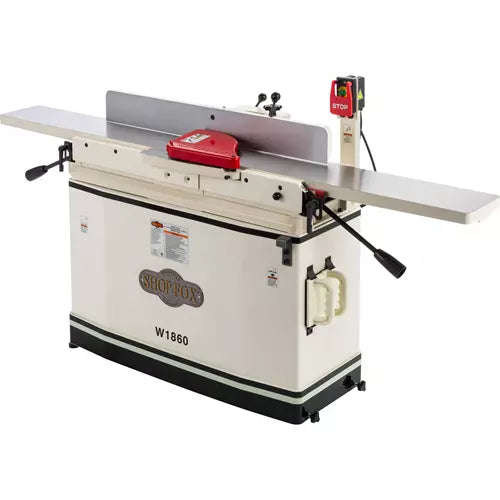

8x76" Parallelogram Jointer w Helical Cutterhead & Mobile Base

8x76" Parallelogram Jointer w Helical Cutterhead & Mobile Base

SKU: W1860

Regular price $3,180.00
Regular price $3,499.99 Sale price $3,180.00
Sale Sold out

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

Get professional-grade results at home with a 8" parallelogram jointer.

The W1860 8" x 76" Parallelogram Jointer comes equipped with a 4-row helical cutterhead with 36 indexable carbide inserts that can each be rotated three times to expose a new, sharp edge.

The inserts slice through wood at an angle to achieve a sheering effect. You’ll get quieter operation and a significantly better finish with less tear-out using this cutterhead versus a straight-knife model.

This is like getting three knife changes with each set of inserts—which also don't require the finicky adjustment and setup that knives do. You'll save valuable time and money from the start.

With the parallelogram table setup—each table is mounted on four pivot points—table adjustments are smooth and precise, allowing you to have both infeed and outfeed tables perfectly parallel.

Table levers with positive table locks provide quick and precise height adjustments, and the pedestal-mounted switch is conveniently located for easy on/off.

For increased mobility, the cabinet stand comes with a built-in mobile base. Engage the foot pedal caster to move your machine around. Lock the machine down when you are ready to work.

Like all Shop Fox jointers, the W1860 comes with a 2-year warranty which covers parts and assures the unit is free from factory defects.

The W1860 manual was written by our U.S.-based Technical Documentation Department. The complete and easy-to-read manual makes it easier to assemble and maintain your jointer.

The Customer Service and Technical Support Teams are U.S.-based. Parts may be available online and shipped from the parts warehouse in Springfield, MO.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 3 HP, 230V, single-phase, 12A
  • Max. width of cut: 8"
  • Max. depth of cut: 1/8"
  • Max. rabbeting depth: 1/2"
  • Cutterhead diameter: 3-1/16"
  • Cutterhead type: 4-row helical with 36 inserts
  • Insert size, type: 15 x 15 x 2.5mm, indexable carbide
  • Cutterhead speed: 5500 RPM
  • Table size: 8" x 76"
  • Fence size: 38" L x 4-1/2" H
  • Dust port size: 4"
  • Overall dimensions: 76" W x 25" D x 41-1/2" H
  • Approximate shipping weight: 470 lbs.

    FEATURES:

  • Two-year warranty!
  • Parallelogram table design
  • Lever-adjusted table height with depth gauge
  • Center-mounted fence with rack and pinion adjustment
  • Built-in mobile base
  • Precision-ground cast-iron tables
  • Extra-long 40" infeed table
  • 4" dust port with built-in dust chute
  • Magnetic push-button switch with large off paddle for safety
  • Fence stops at +/- 45 and 90 degrees
  • Pair of push blocks and five replacement indexable carbide inserts are included

    Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate service is not available.
