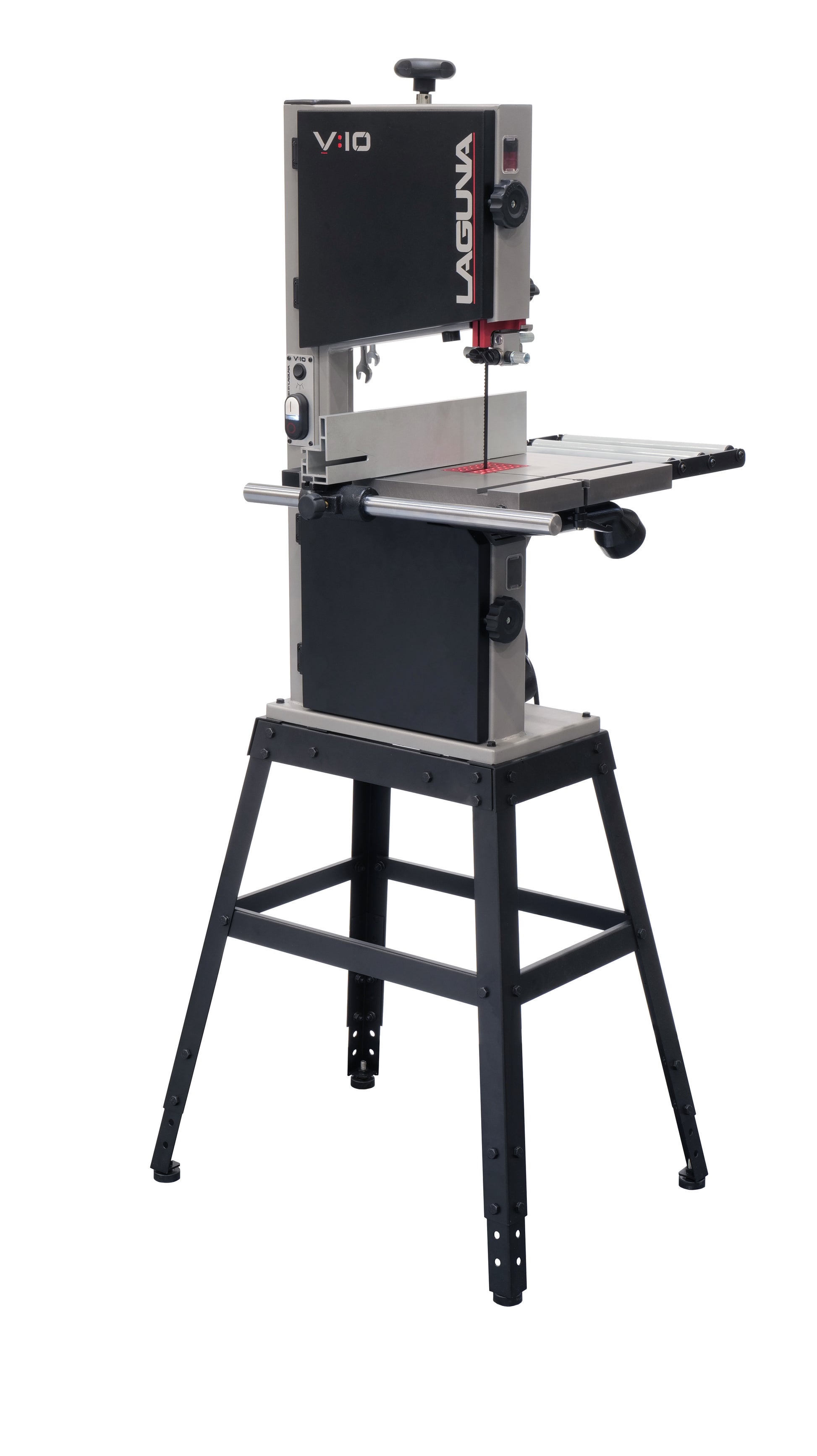

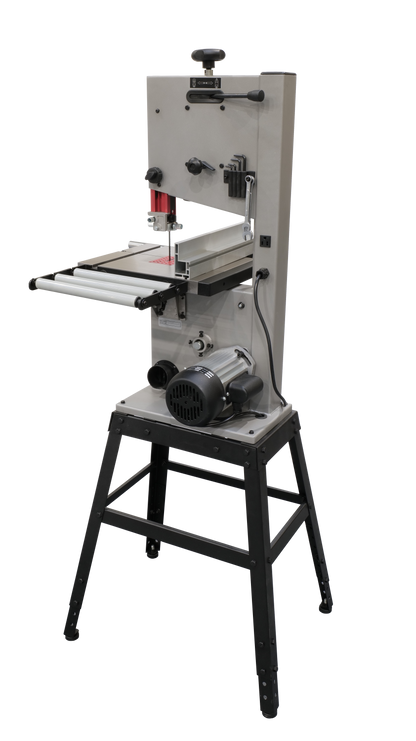

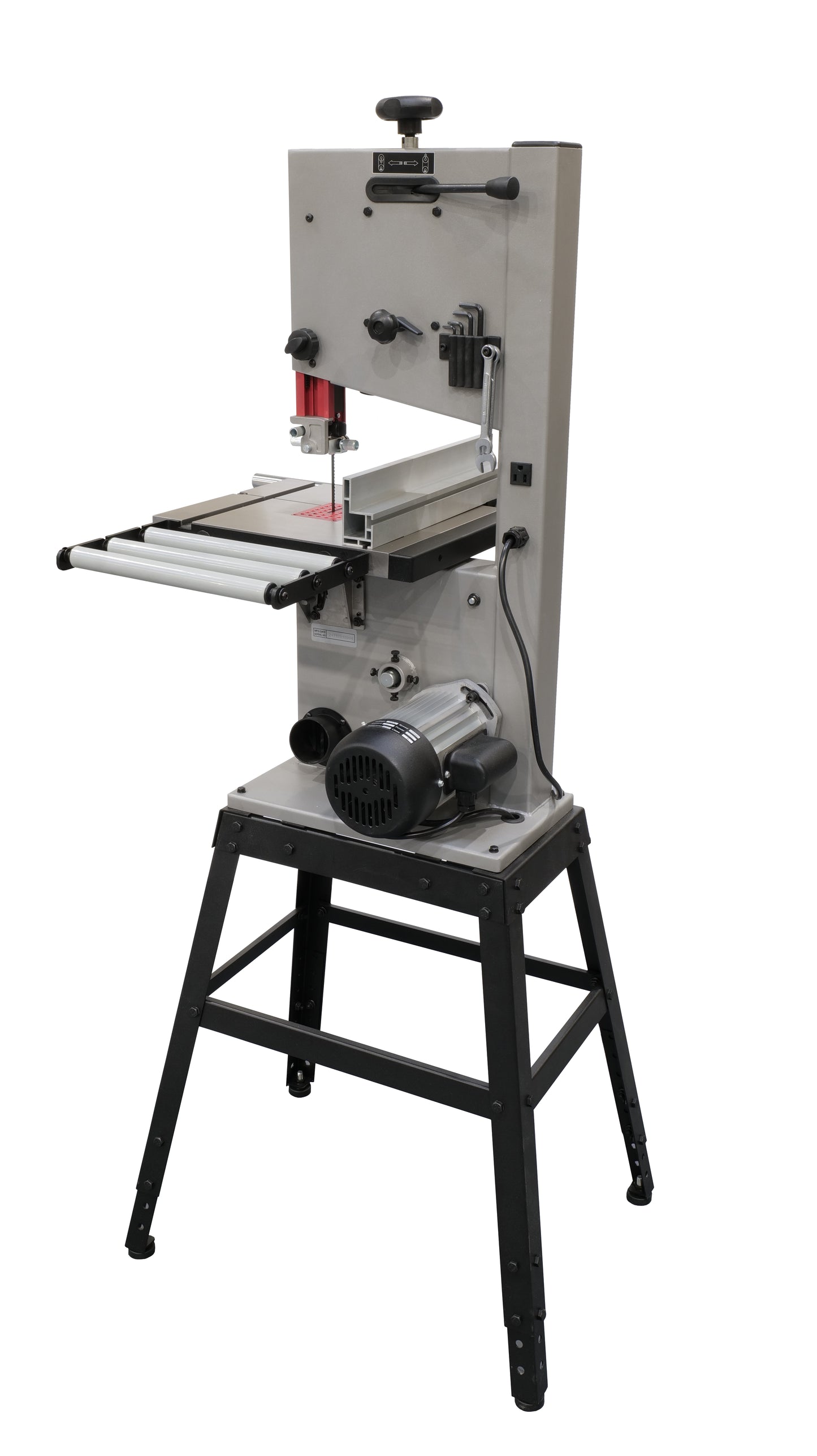

V:10 10" Bandsaw 110V, 1Hp

V:10 10" Bandsaw 110V, 1Hp

$584.10
$584.10
Sale Sold out
Shipping calculated at checkout.

SKU: MBAND10V10

Laguna

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

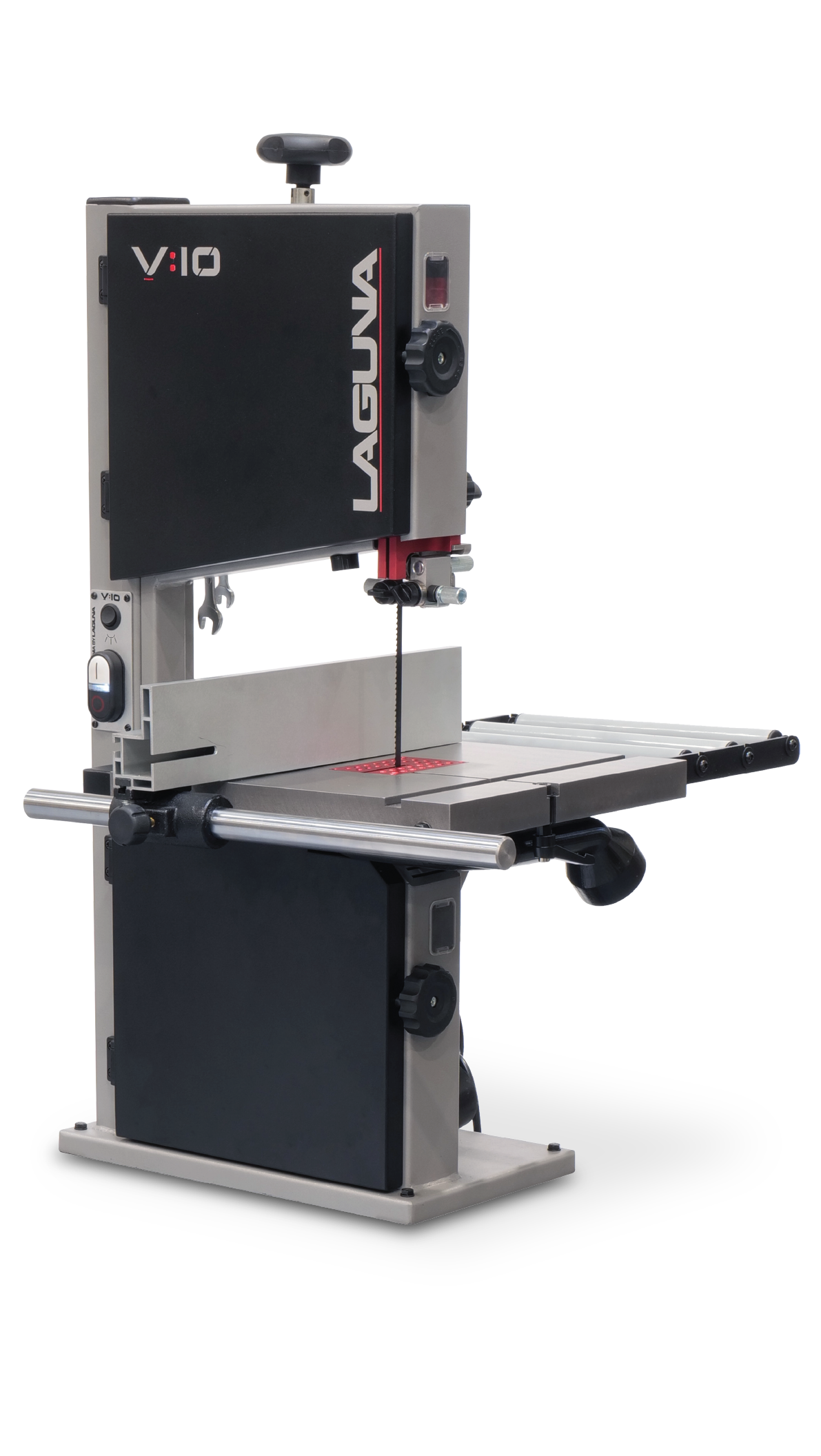

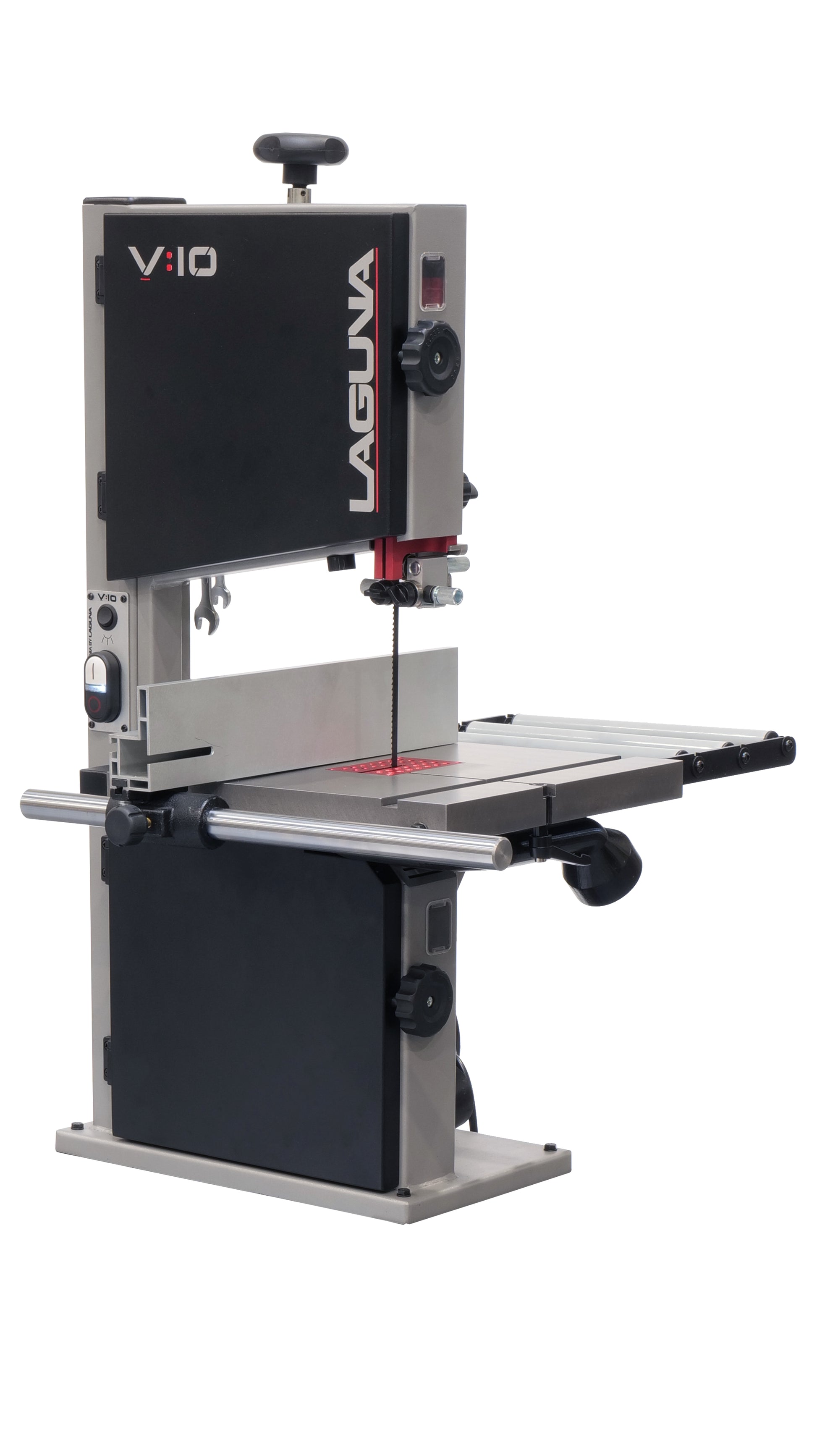

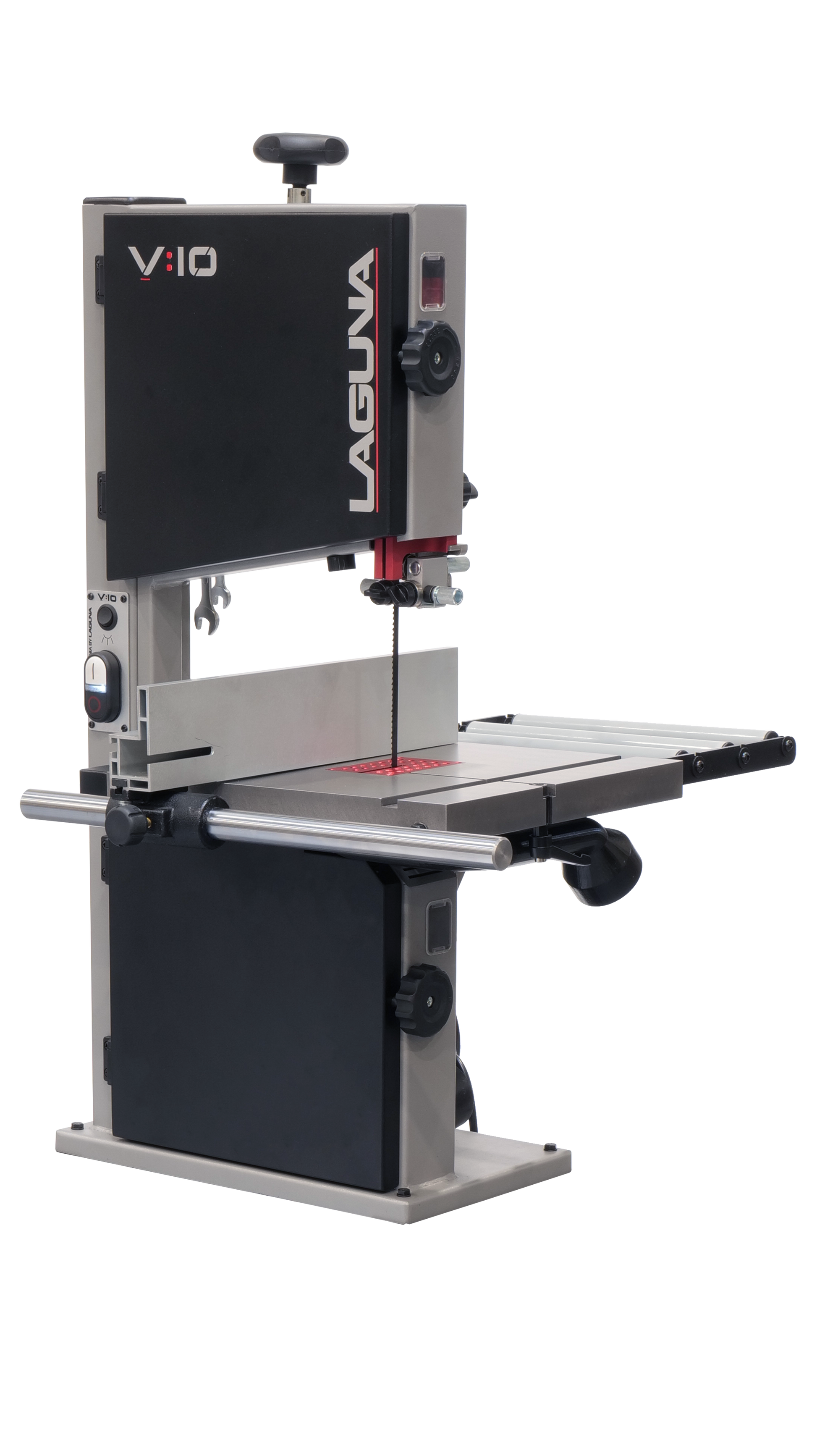

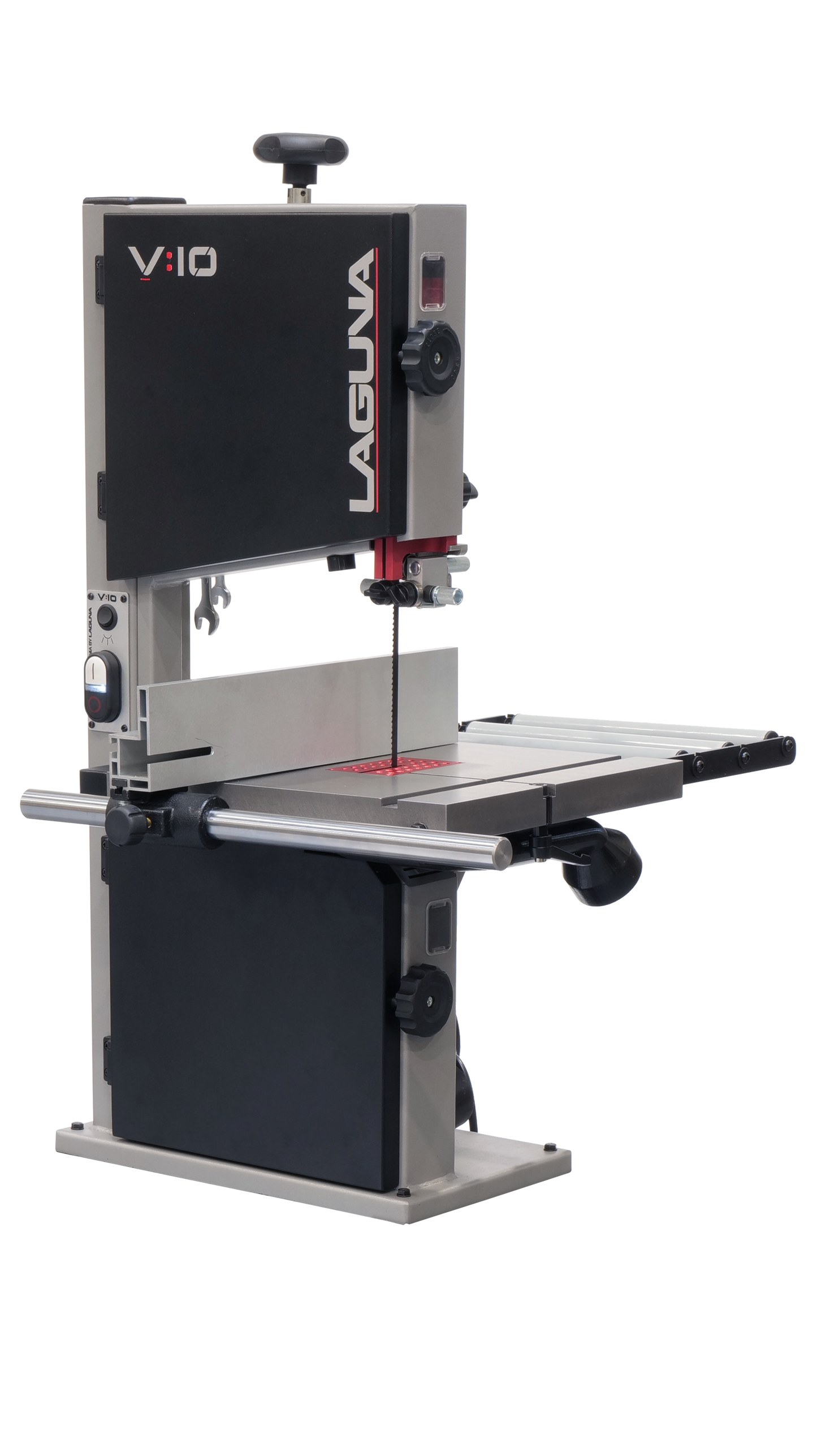

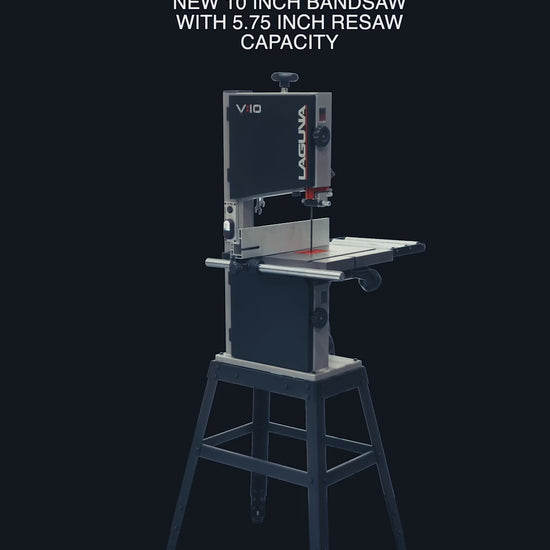

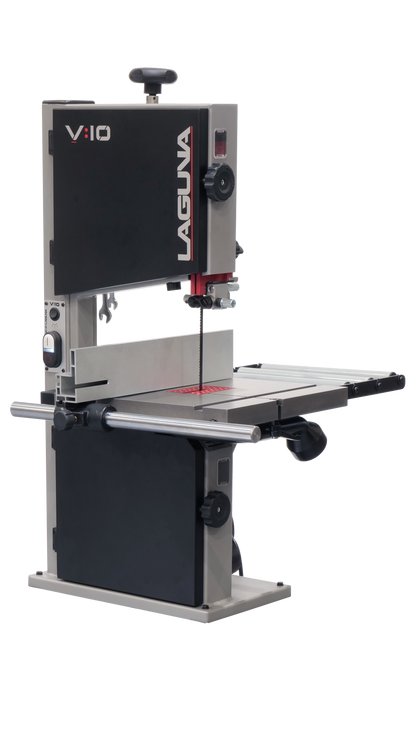

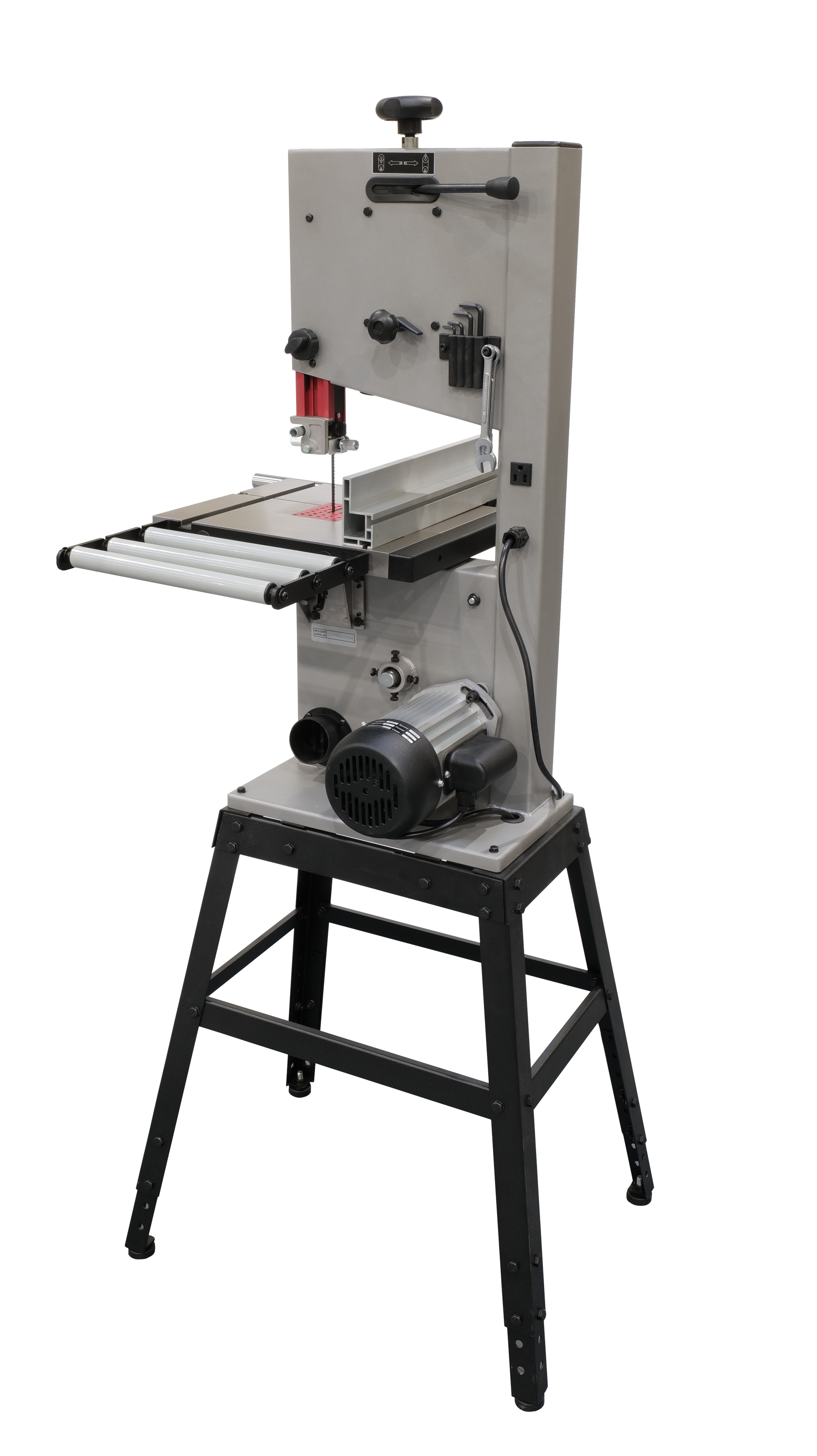

The All-New Laguna V:10 bandsaw leads the competition with many Best-In-Class features for 10” bandsaws. Our smallest bandsaw is loaded with innovative features normally found in larger machines. These features along with the superior performance of the V:10 make it the best value for the price in 10” bandsaws.

Features:

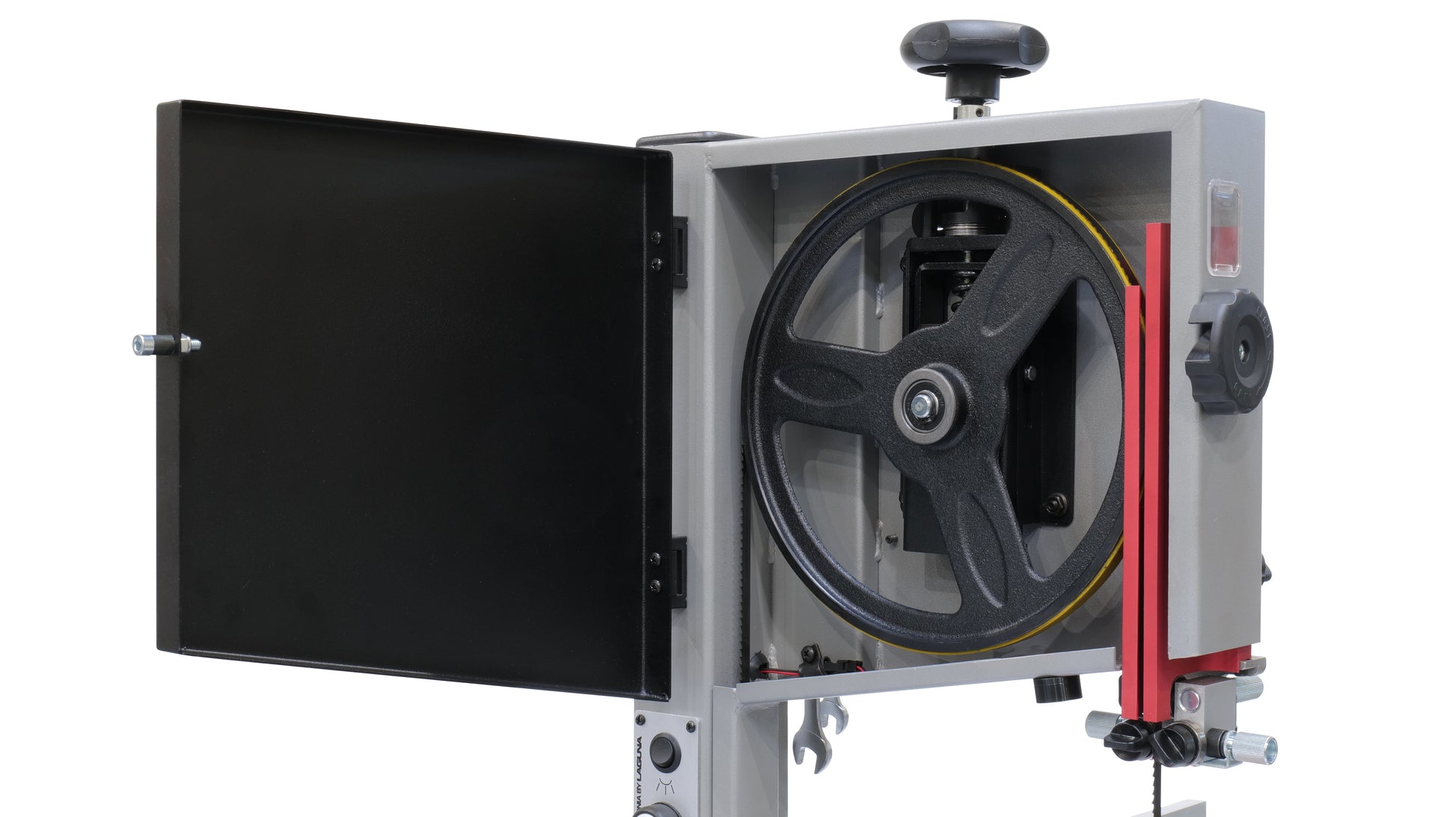

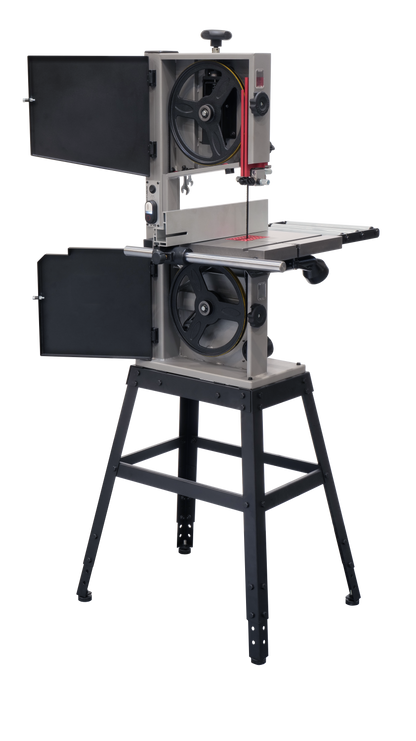

  • Cast Iron Wheels

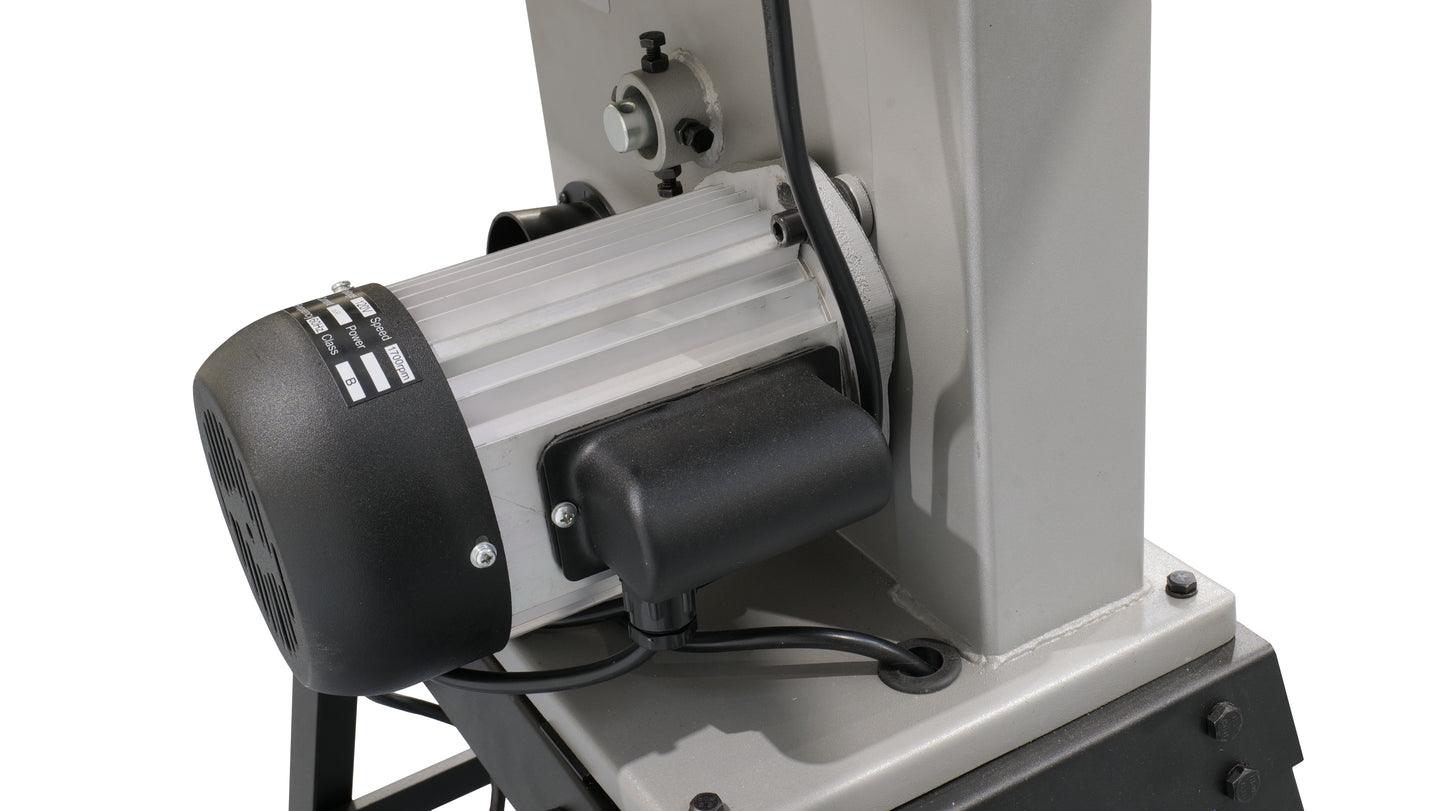

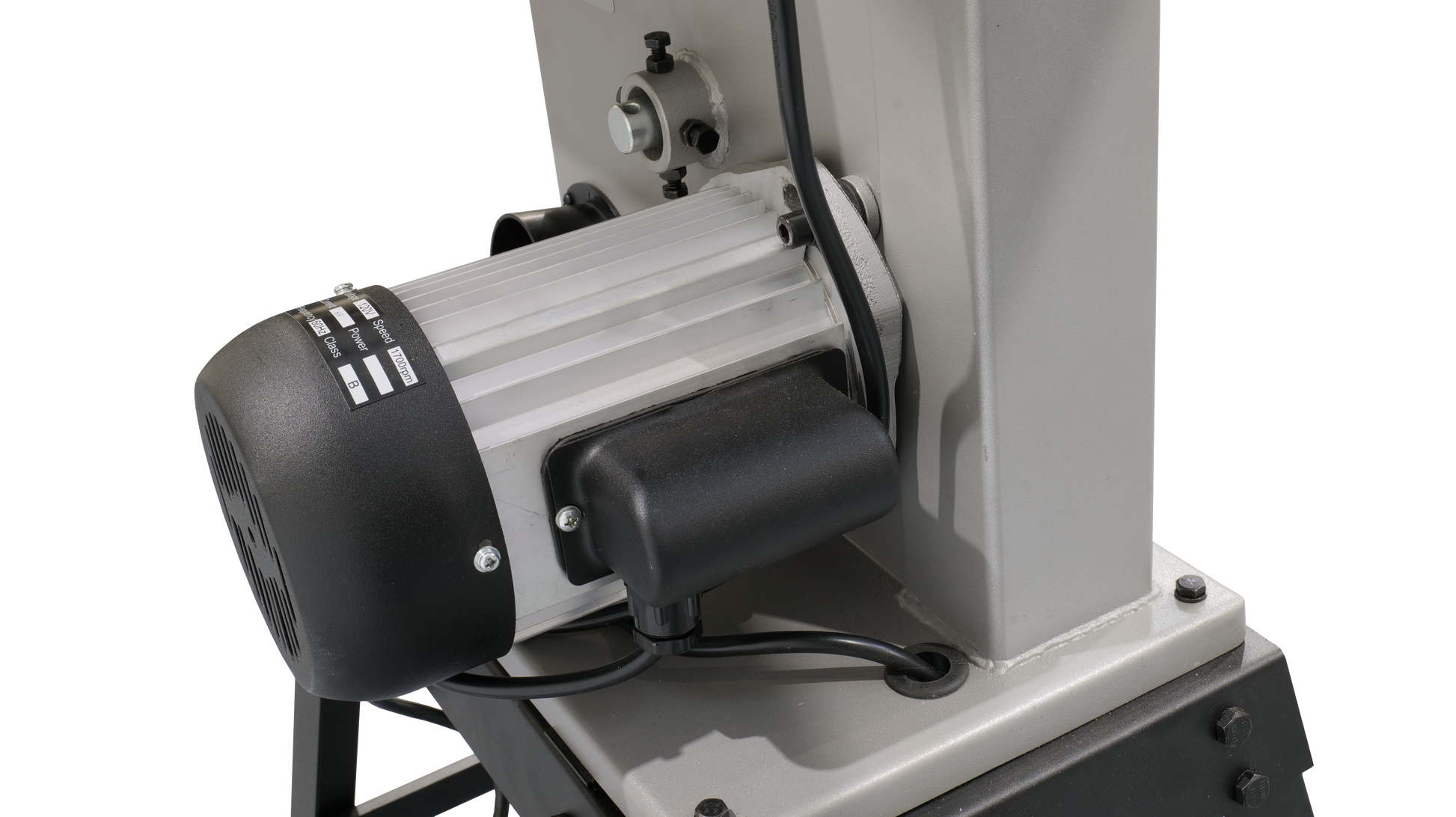

  • 1 HP Induction Motor

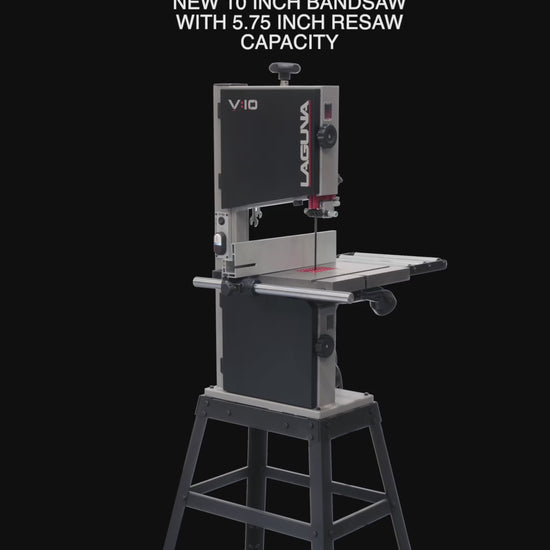

  • 5.75” Resaw Capacity

Additional Features

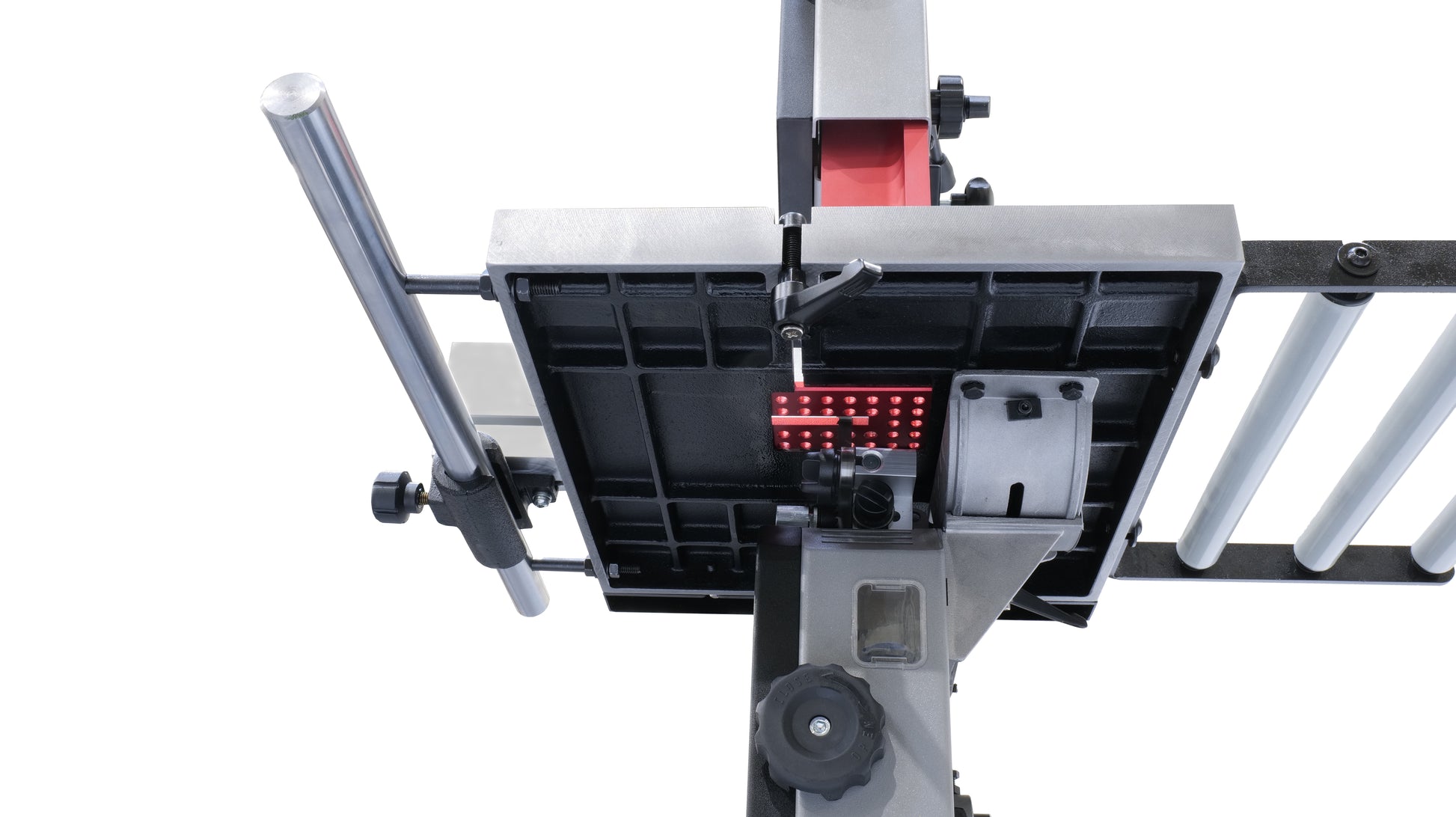

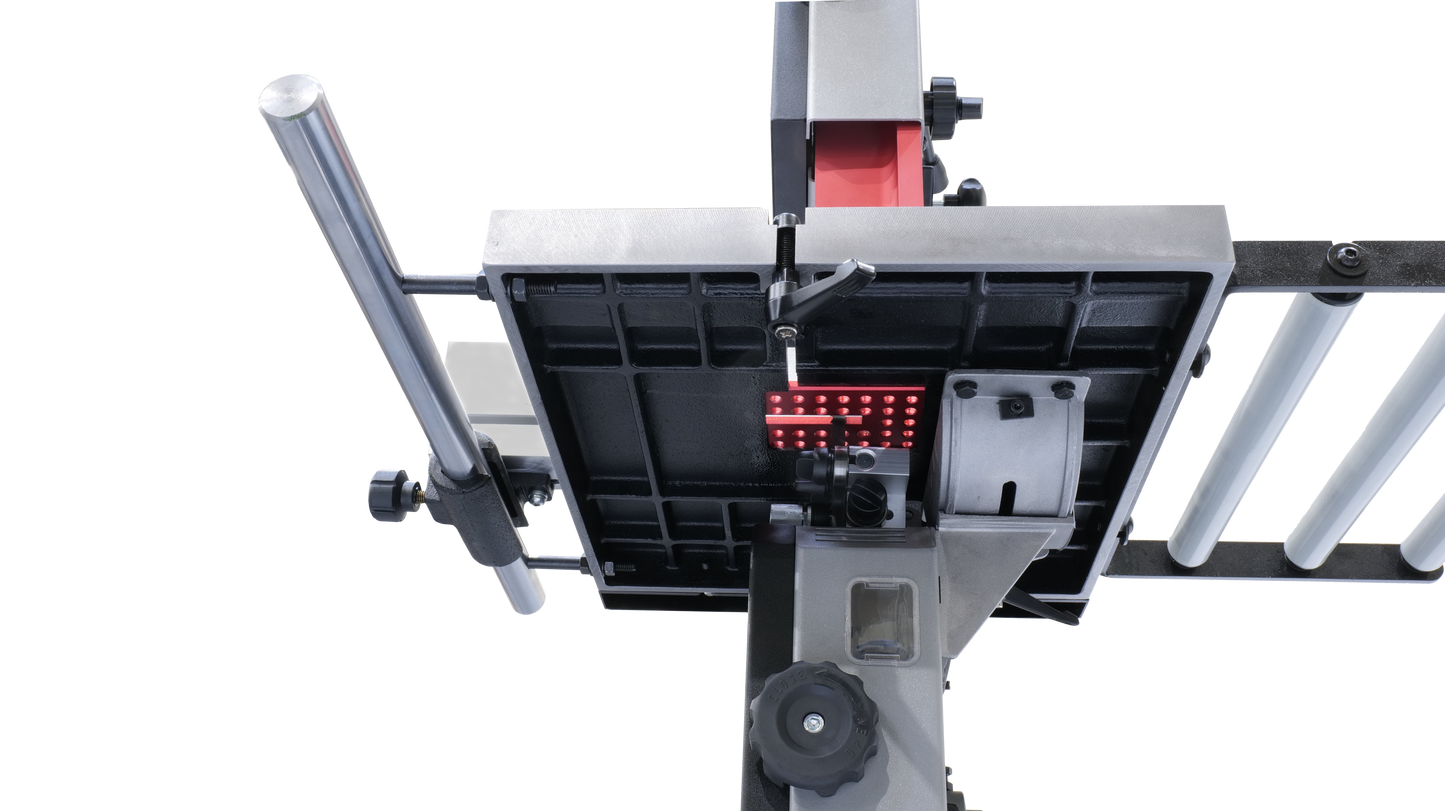

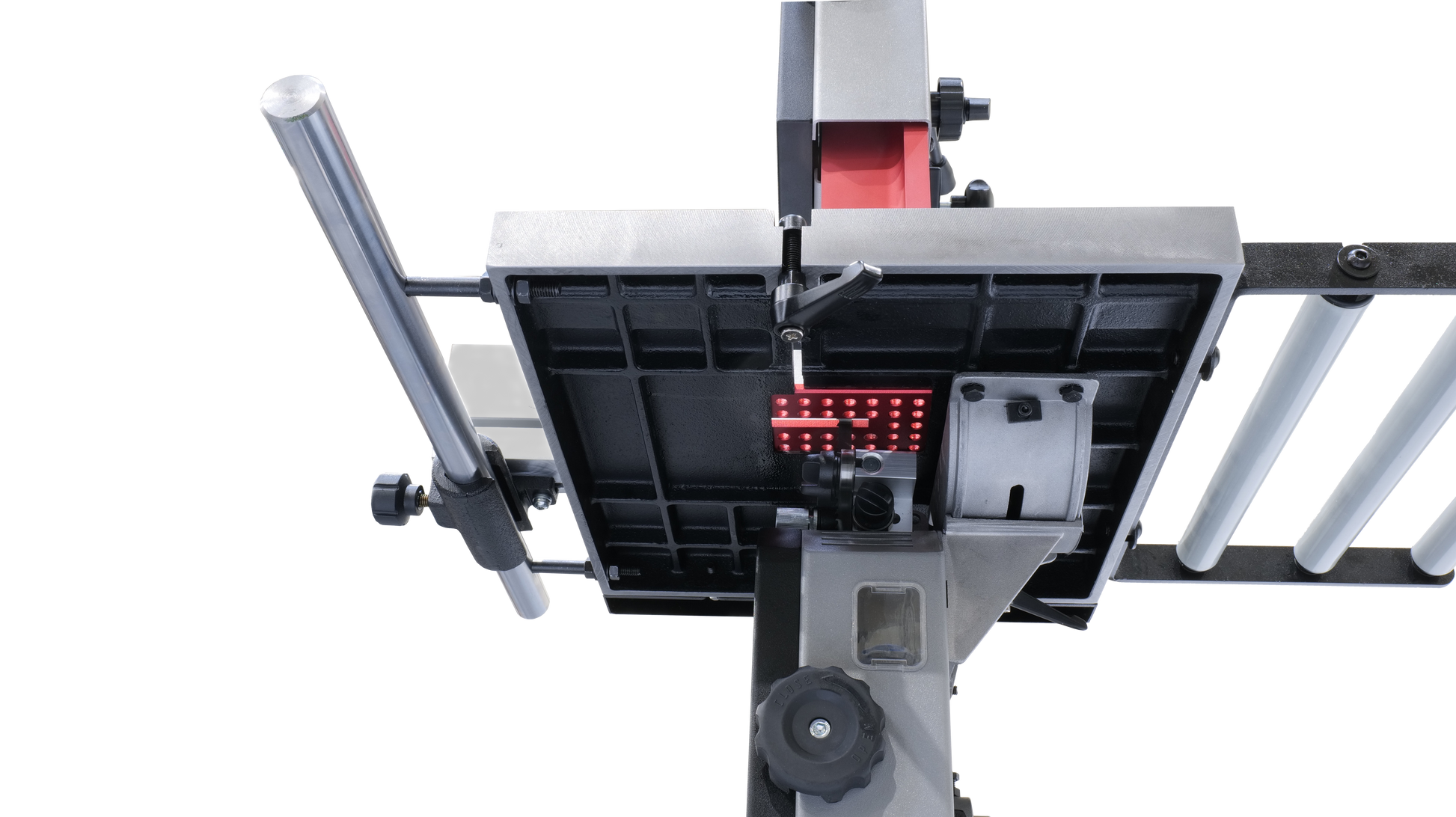

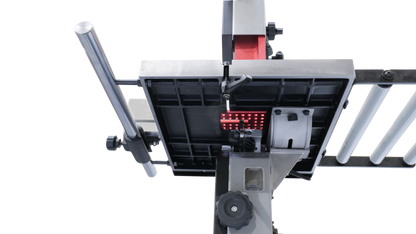

  • Quick-release magnetic under-table dust port

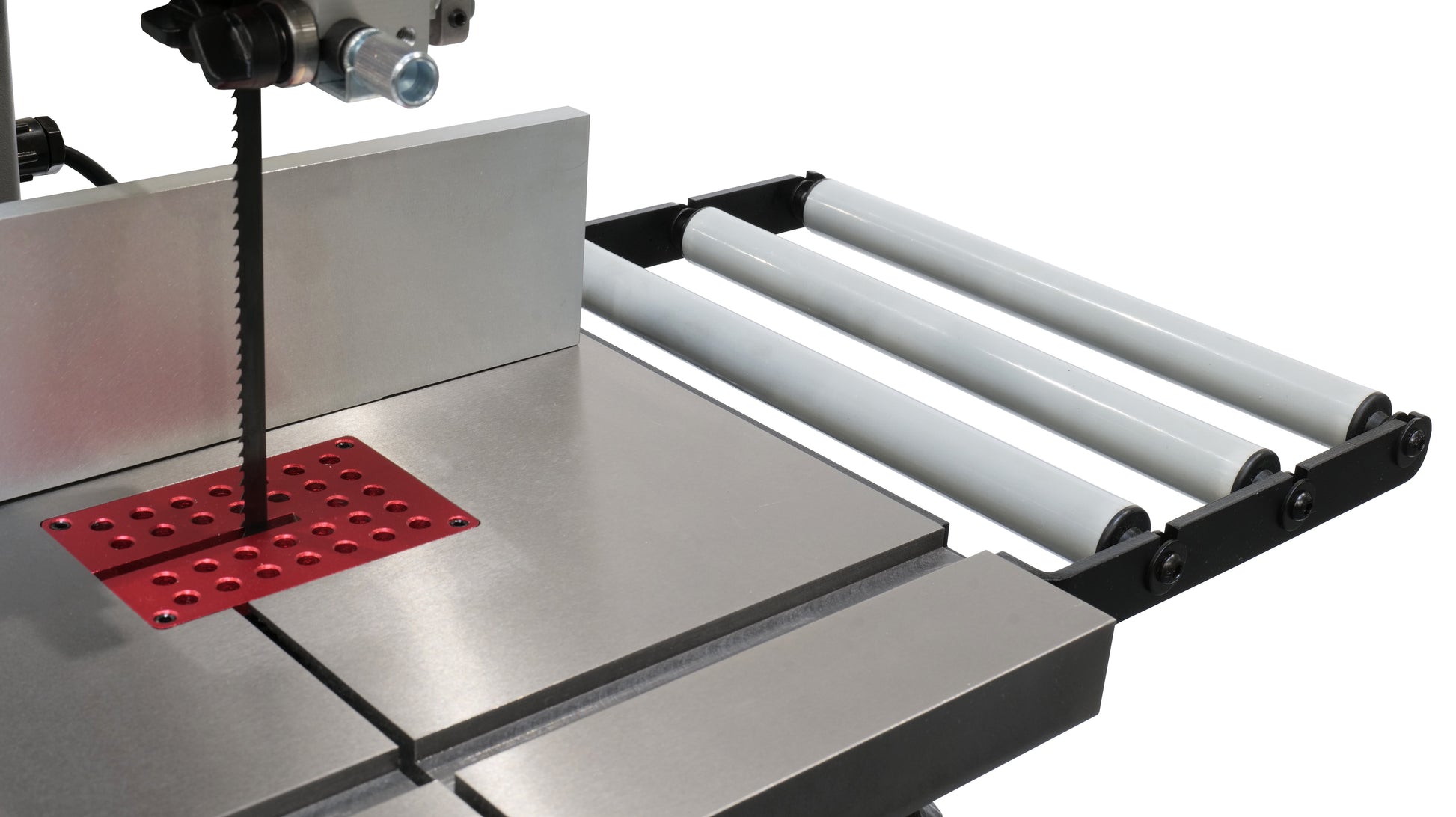

  • Perforated Throat-Plate Insert with levelling screws

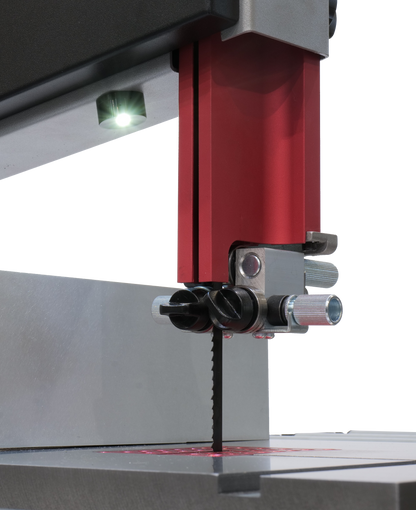

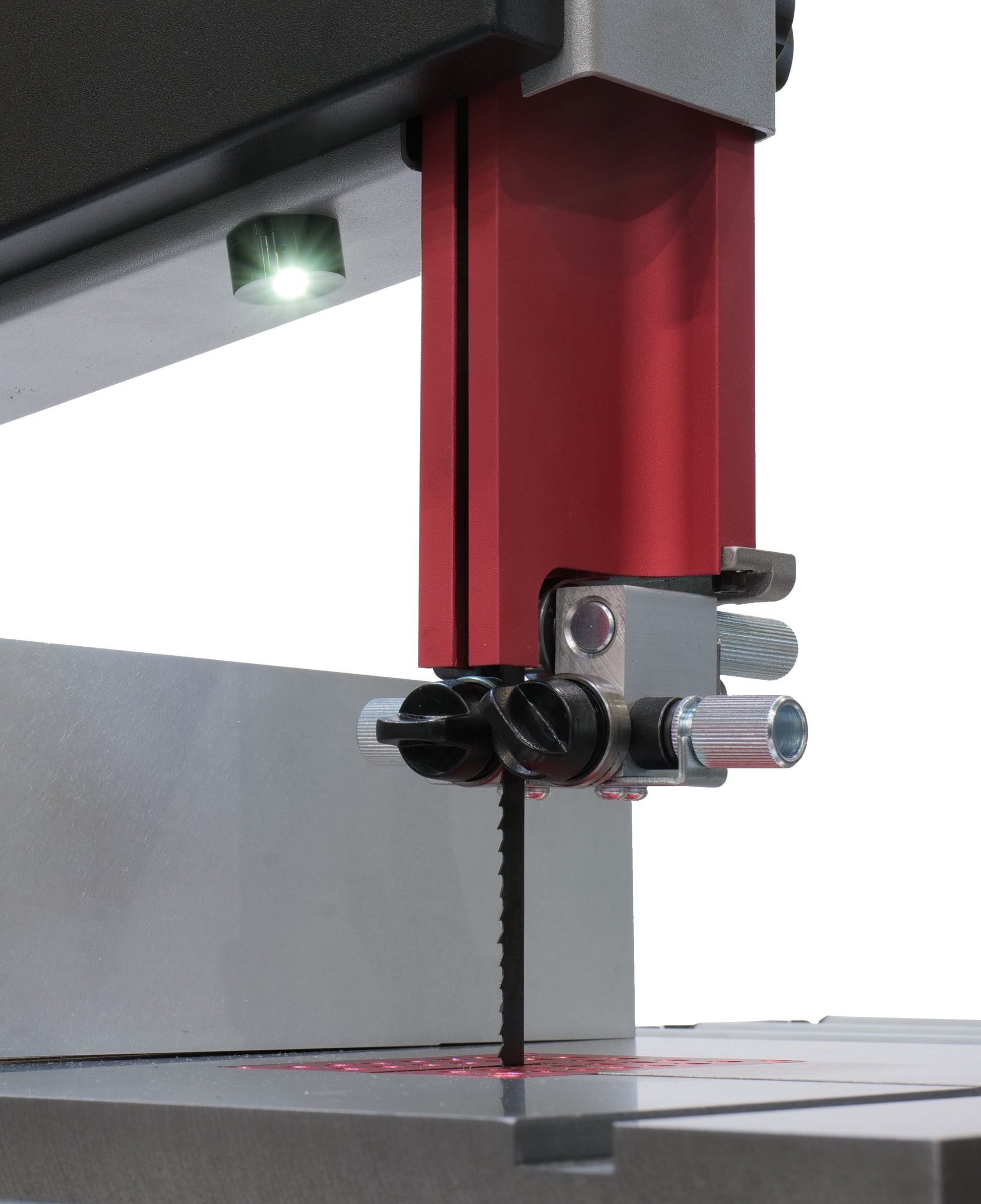

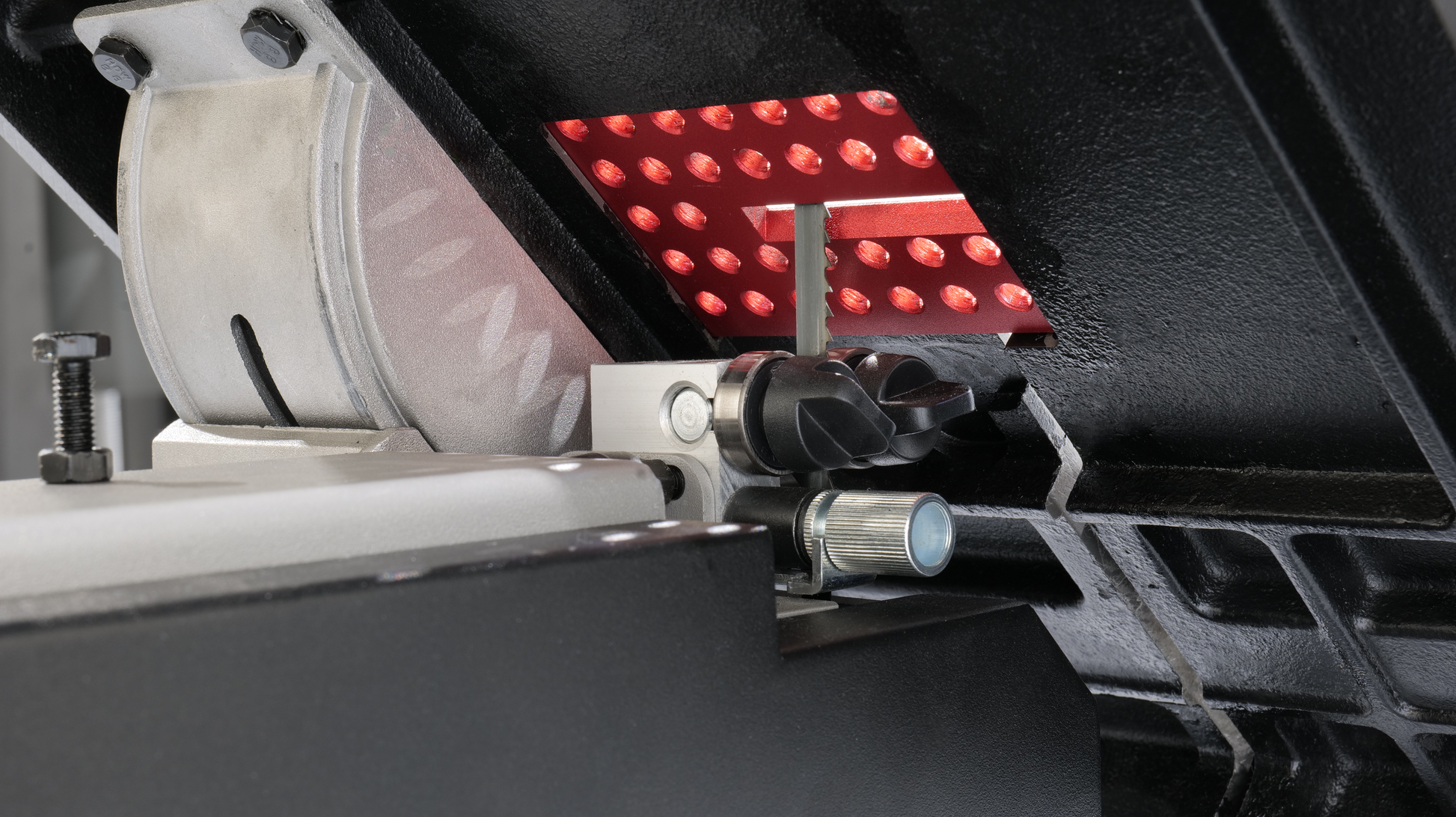

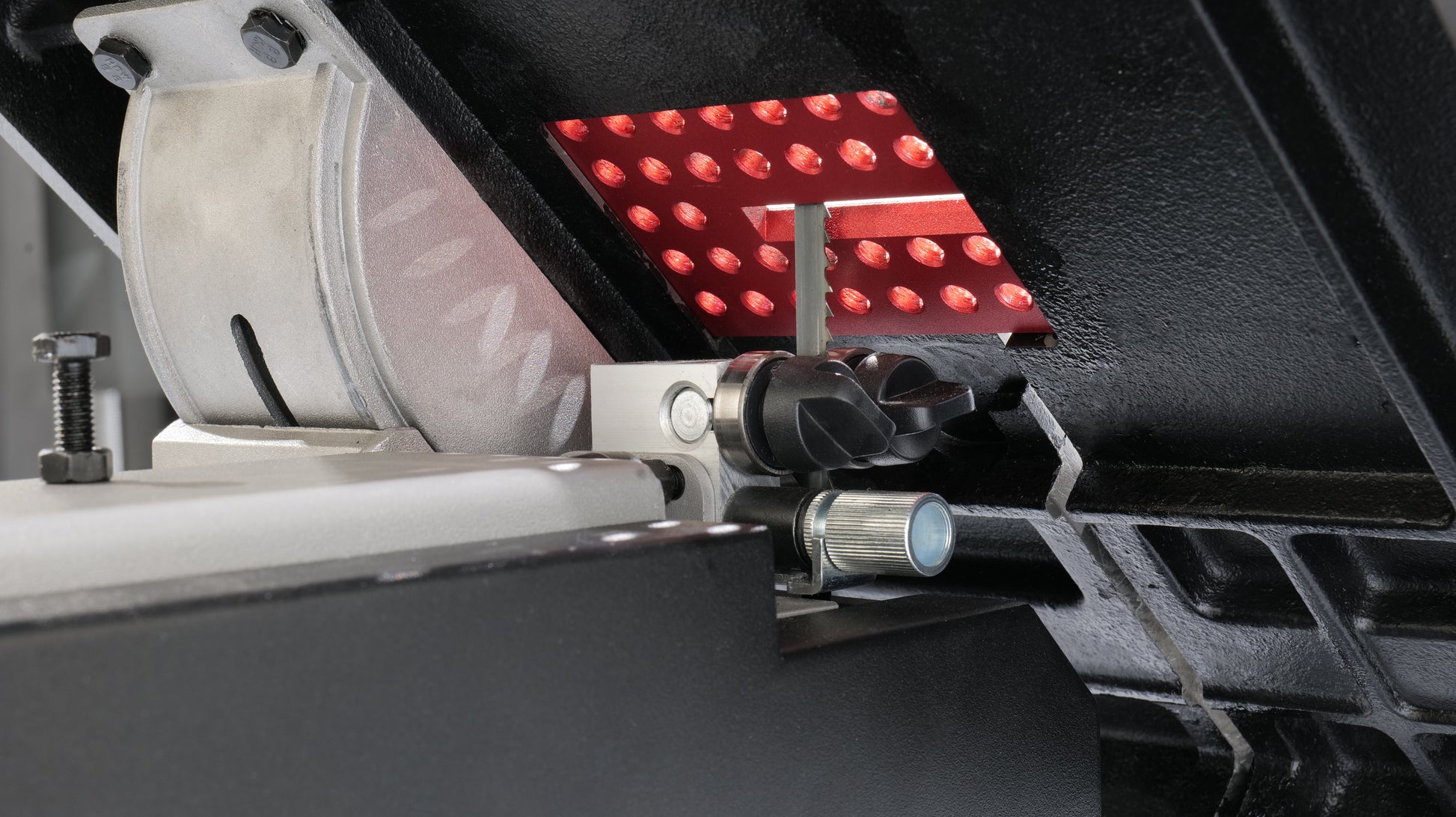

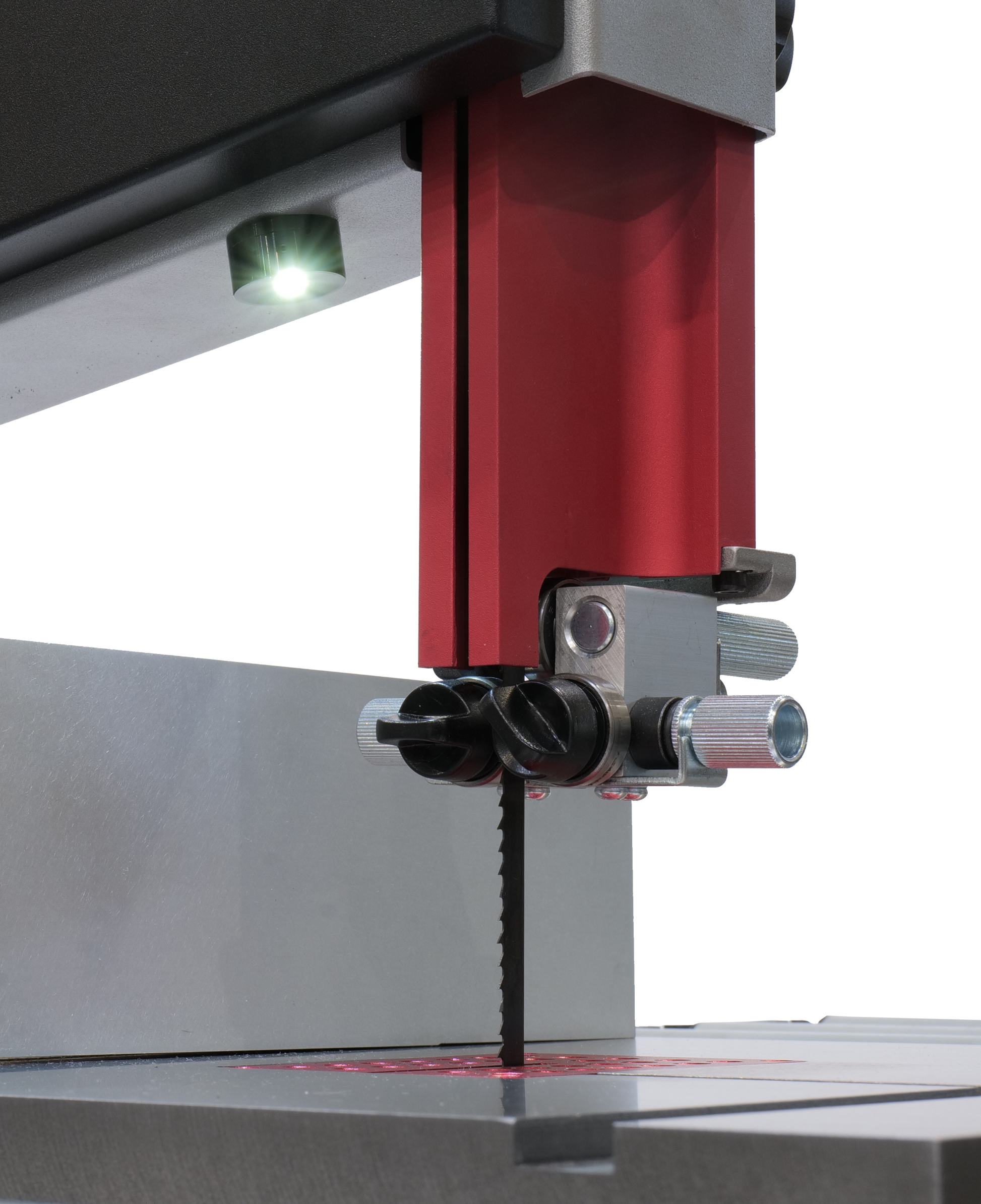

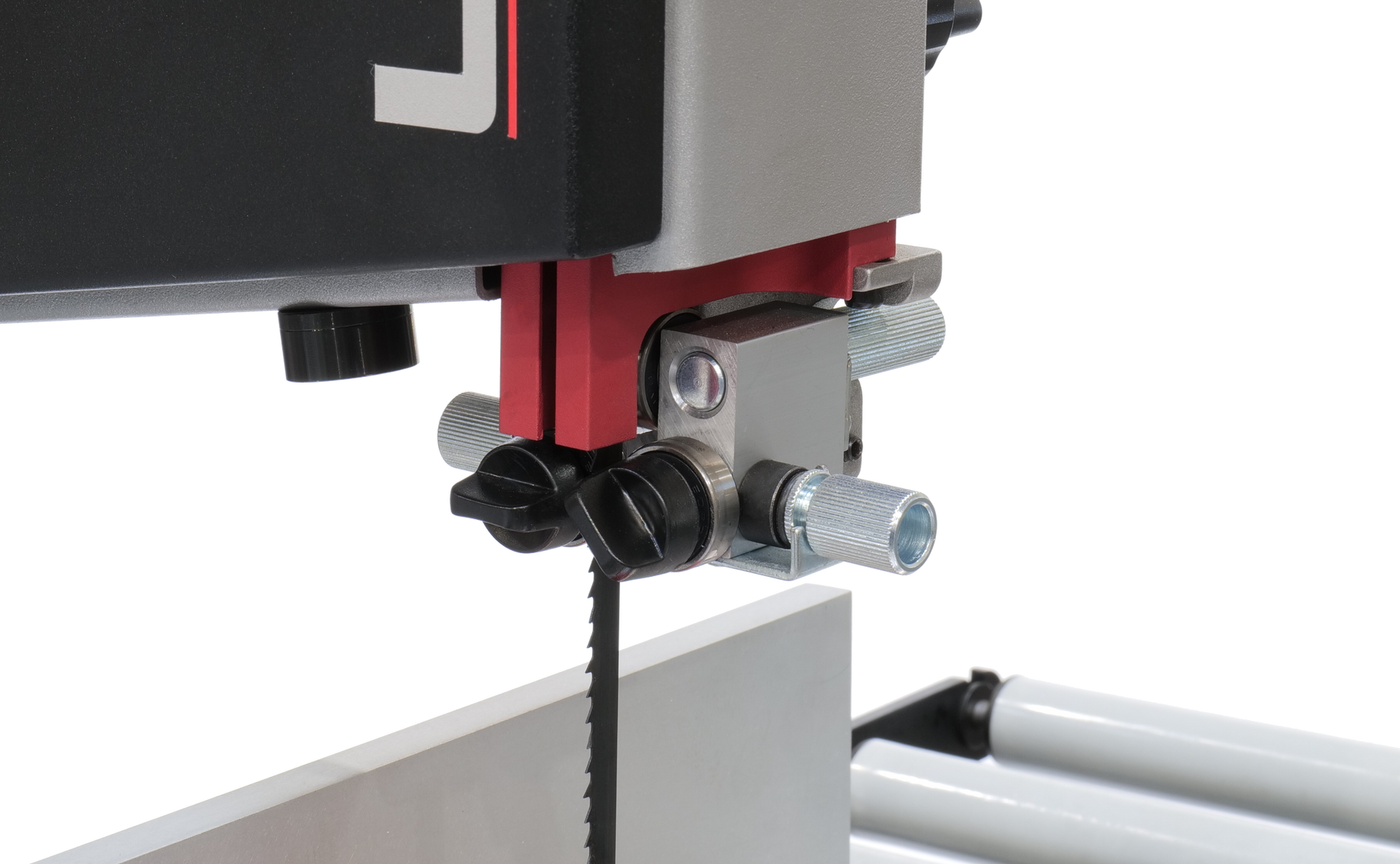

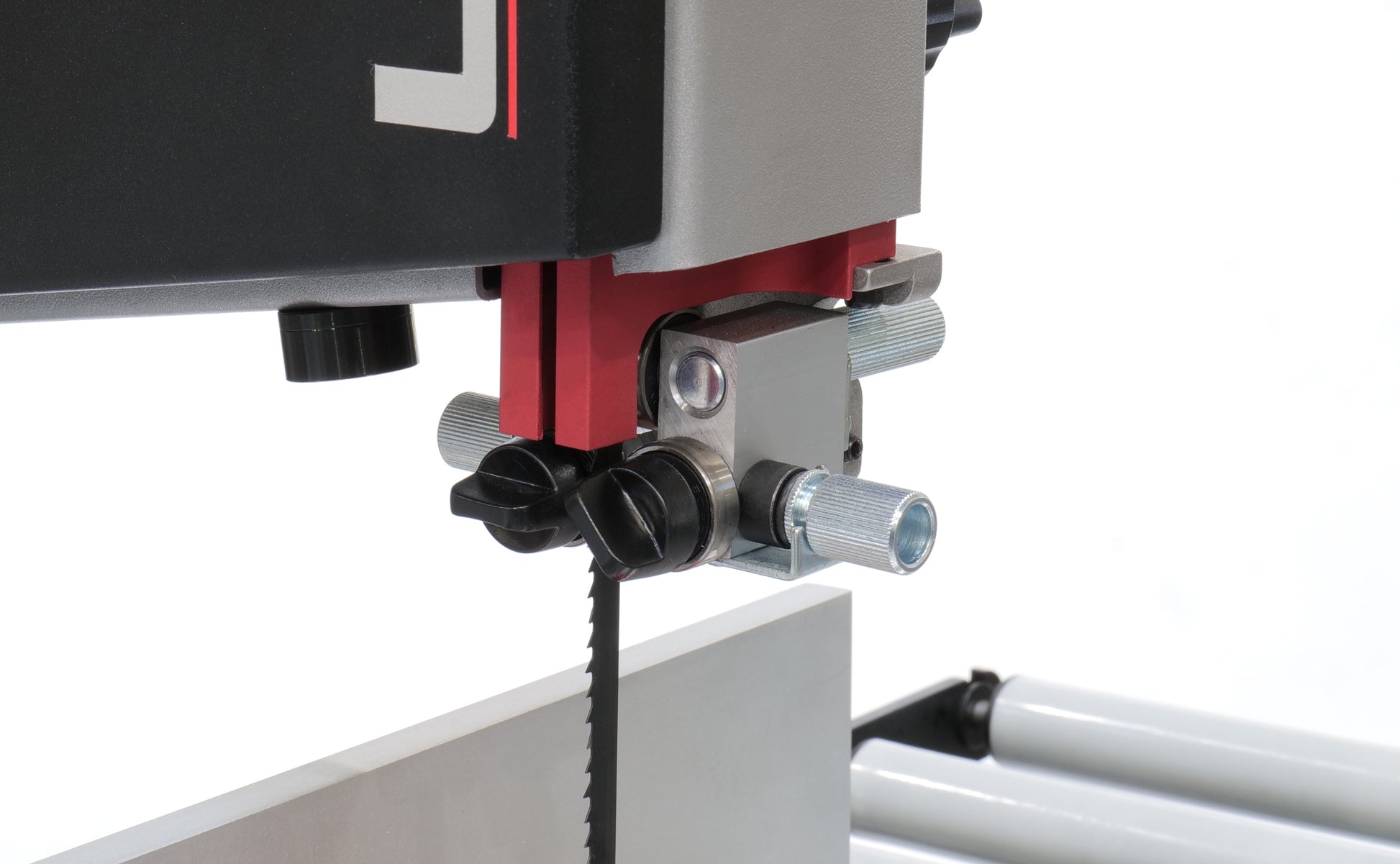

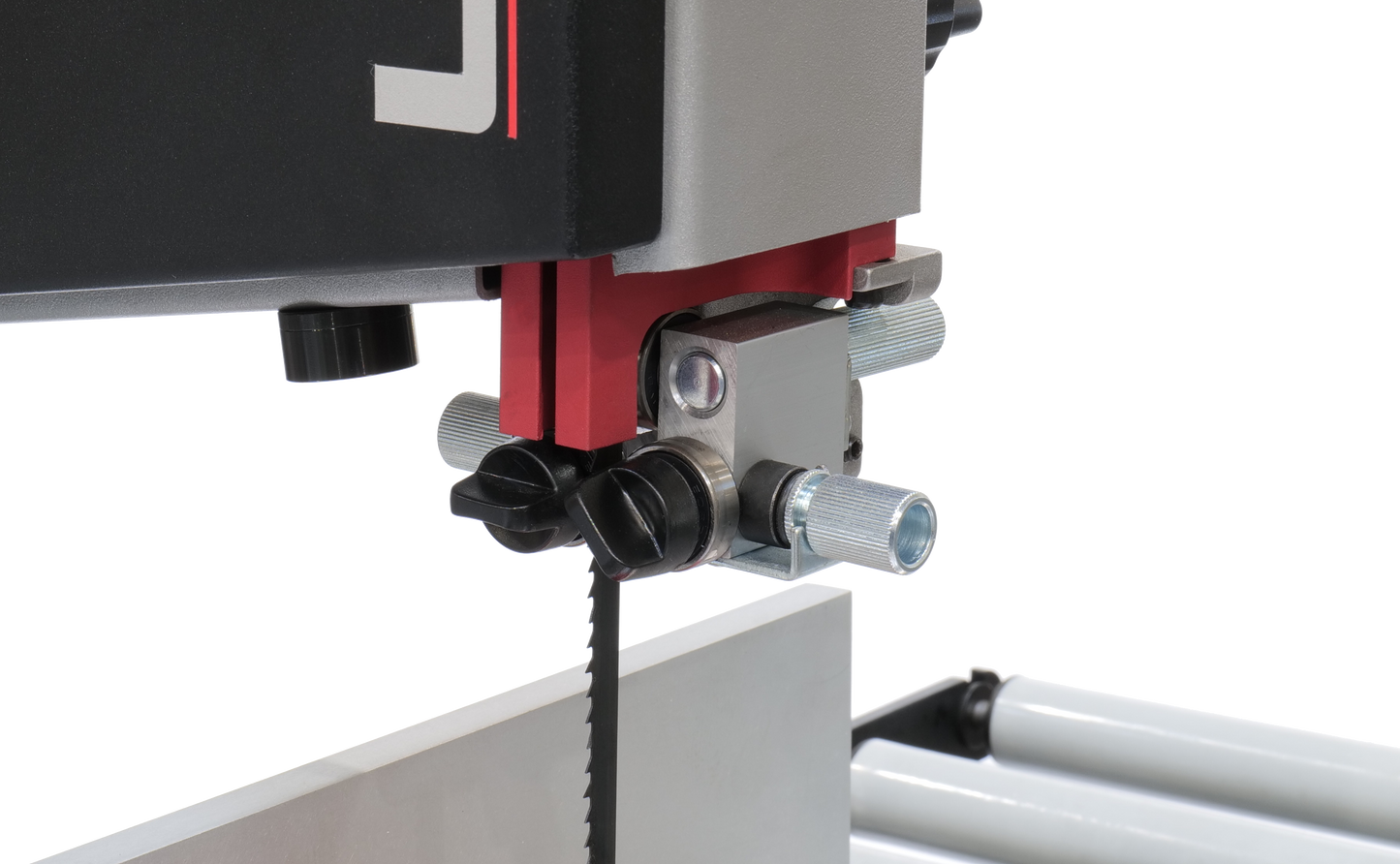

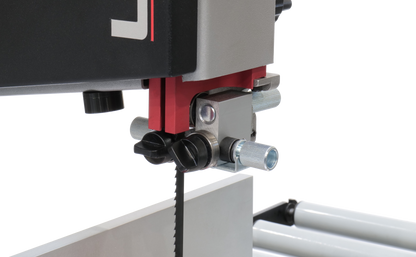

  • Roller Bearing blade guides with micro-adjustment

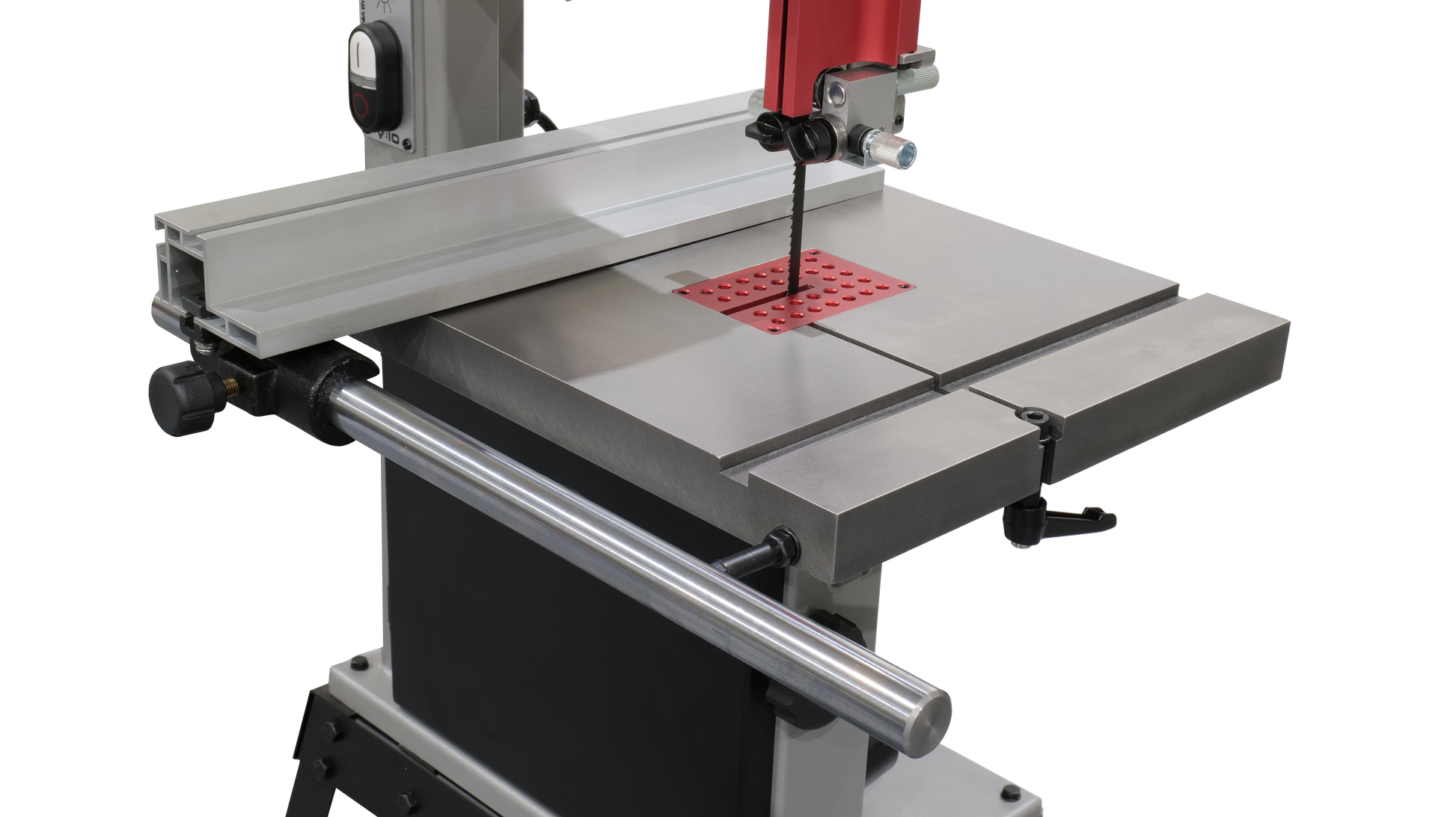

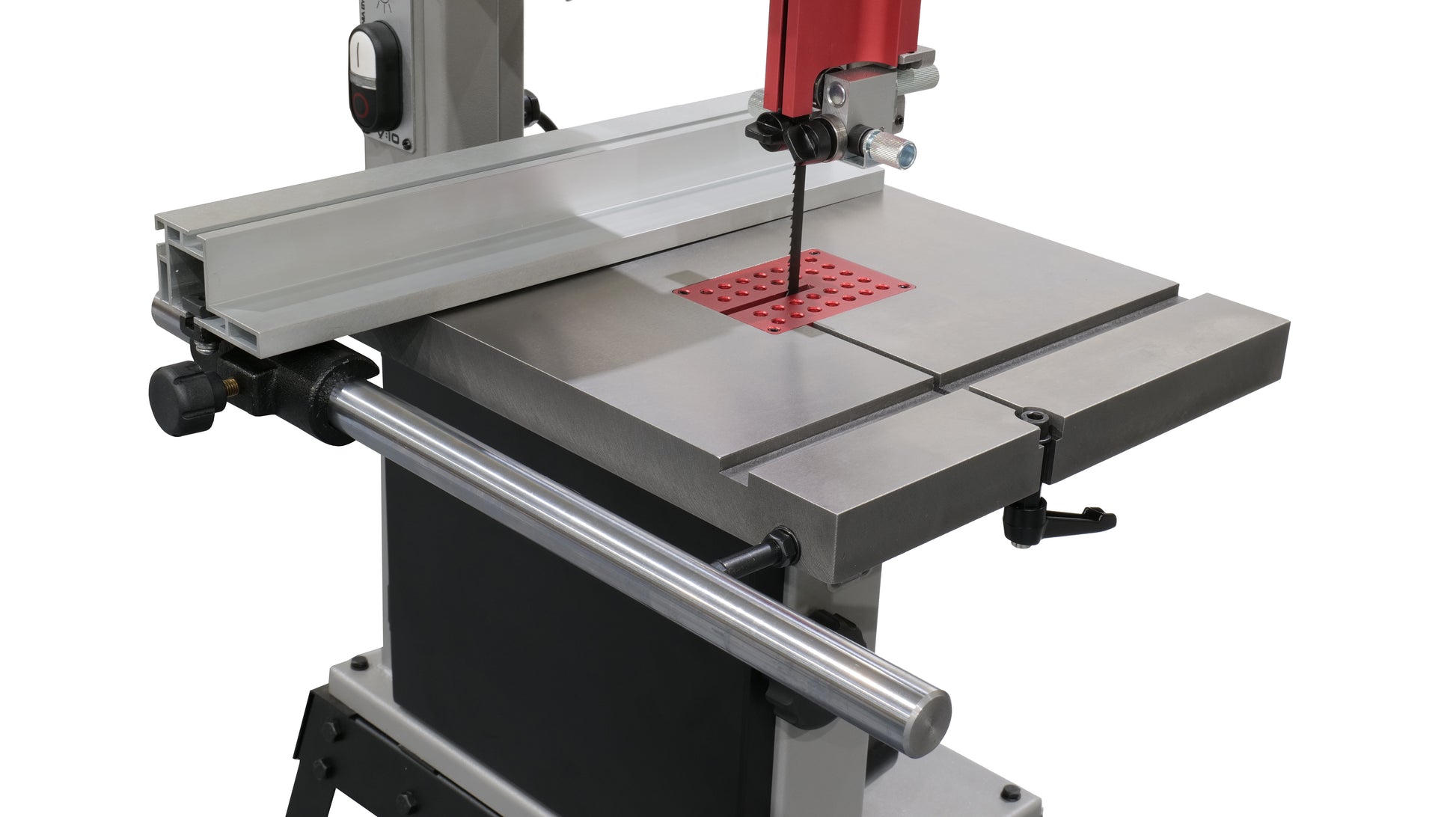

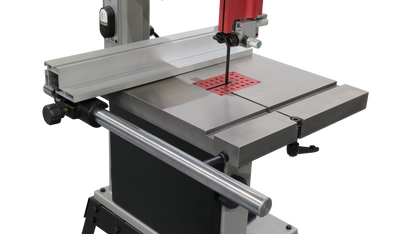

  • Hi/Low fence with solid steel rail

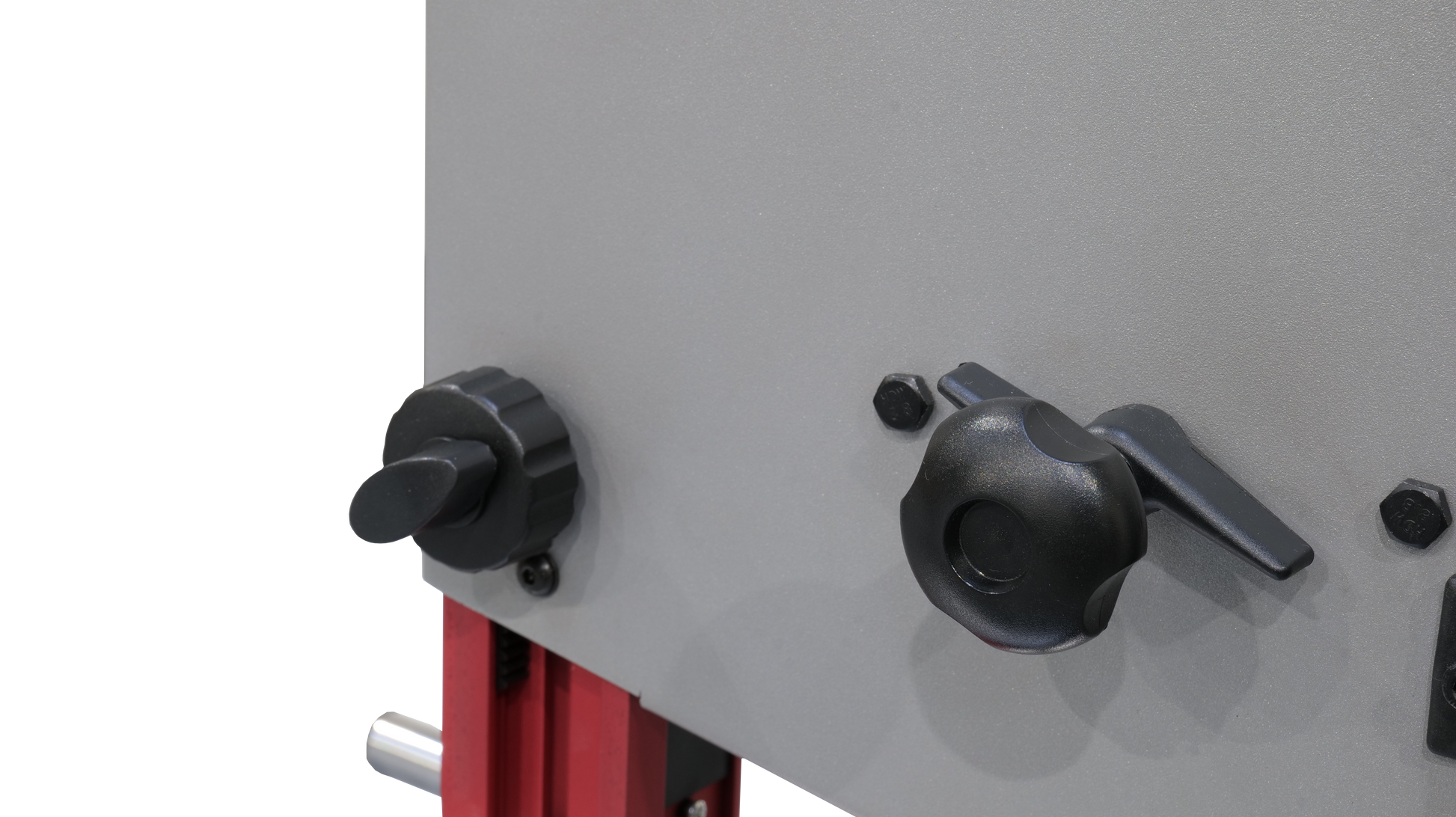

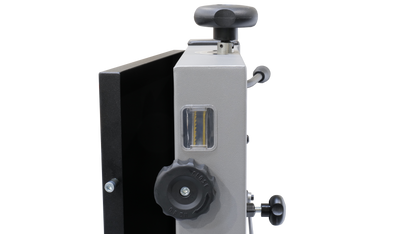

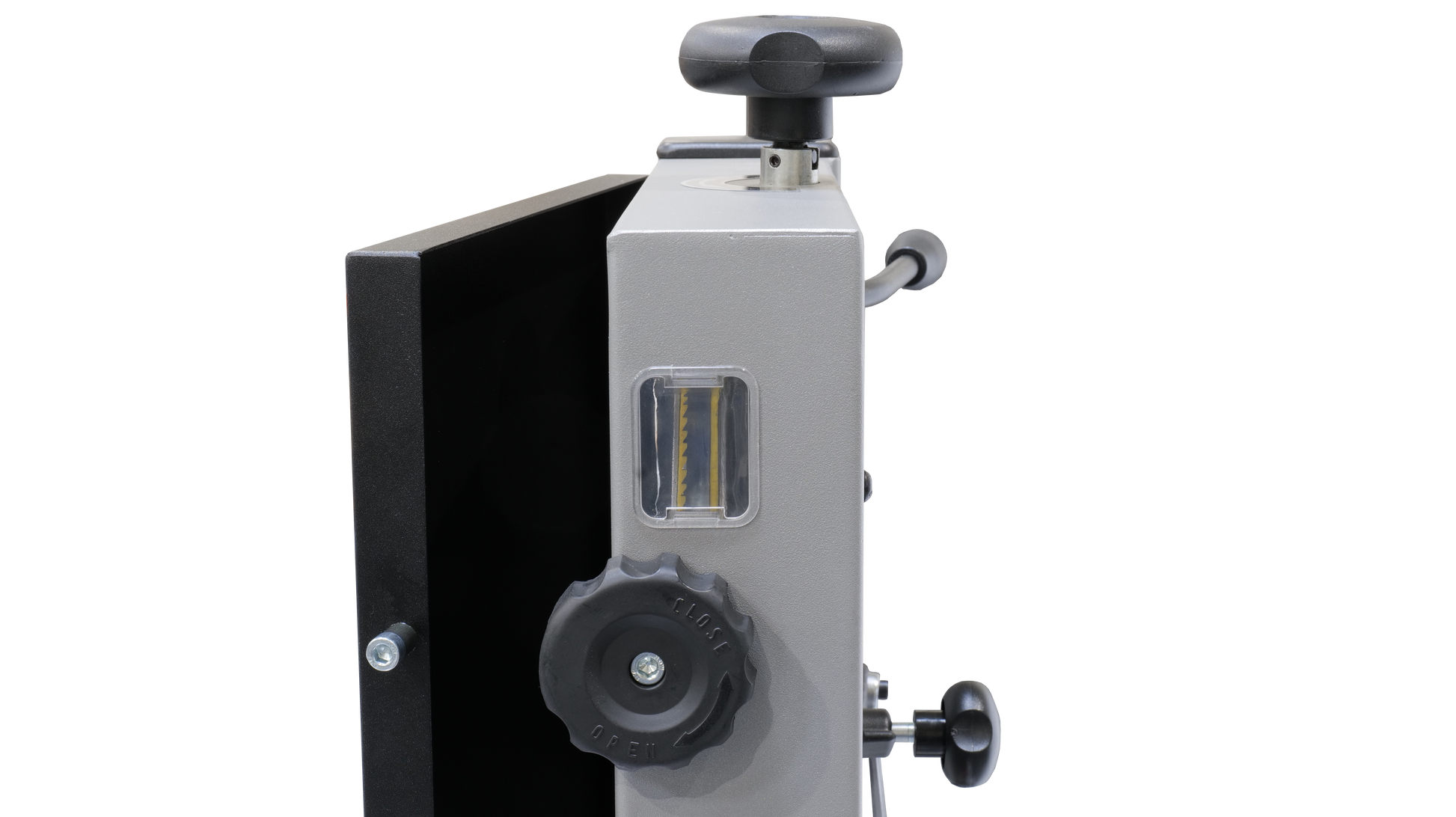

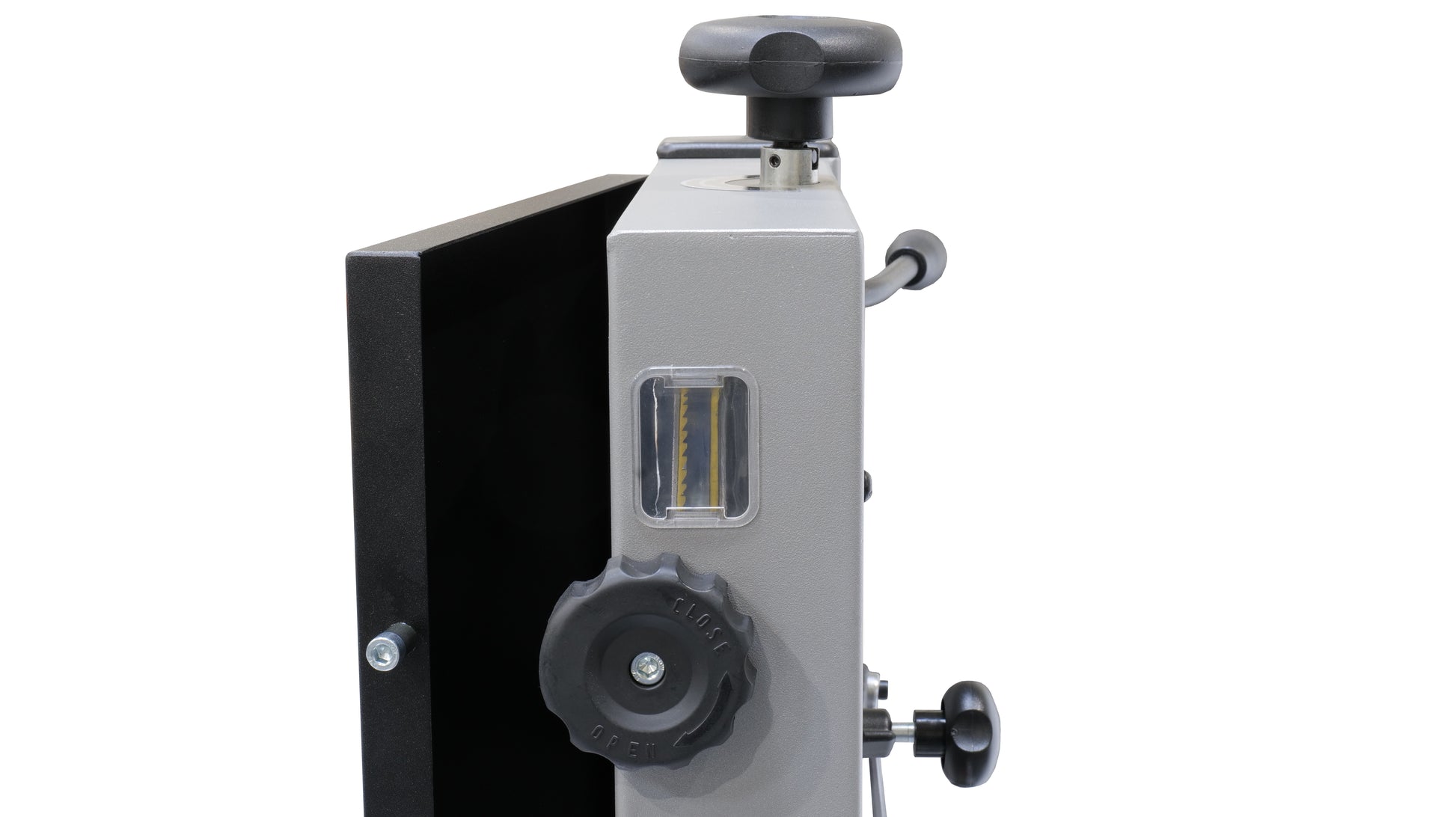

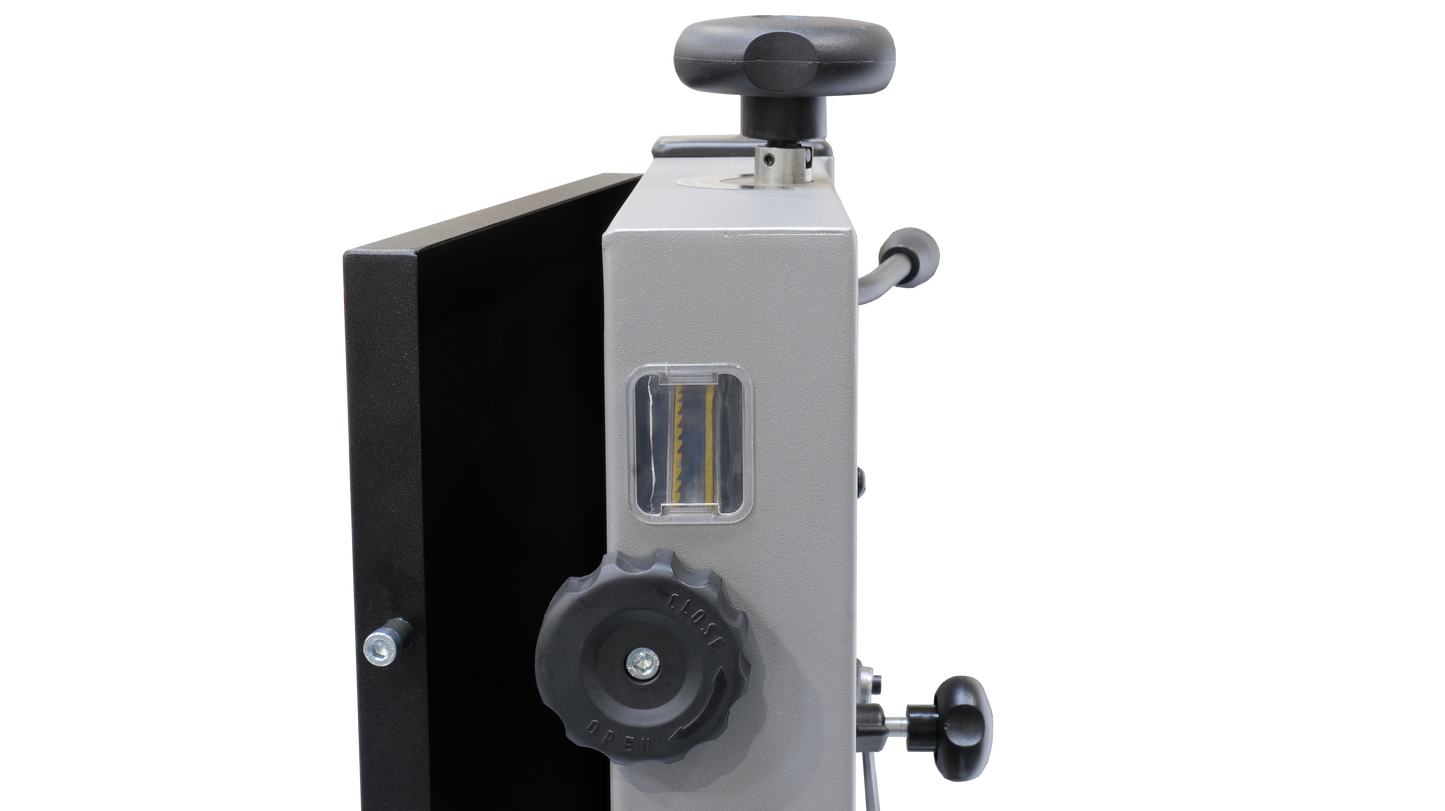

  • Dual blade tracking windows

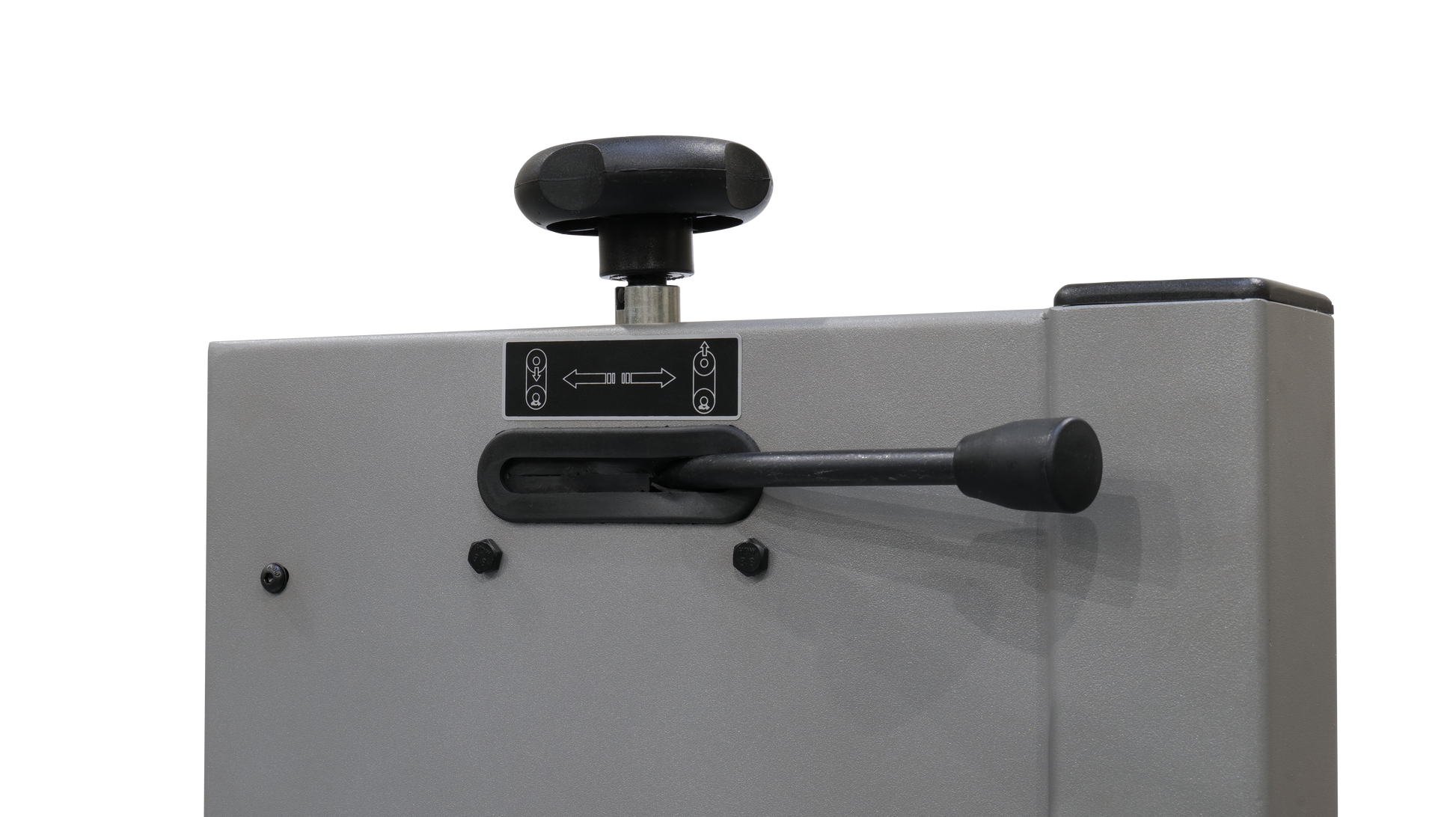

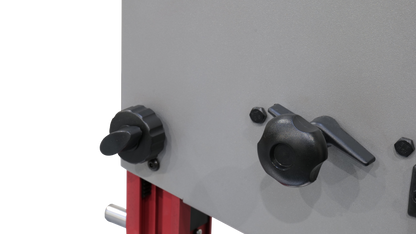

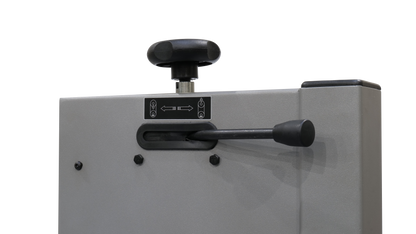

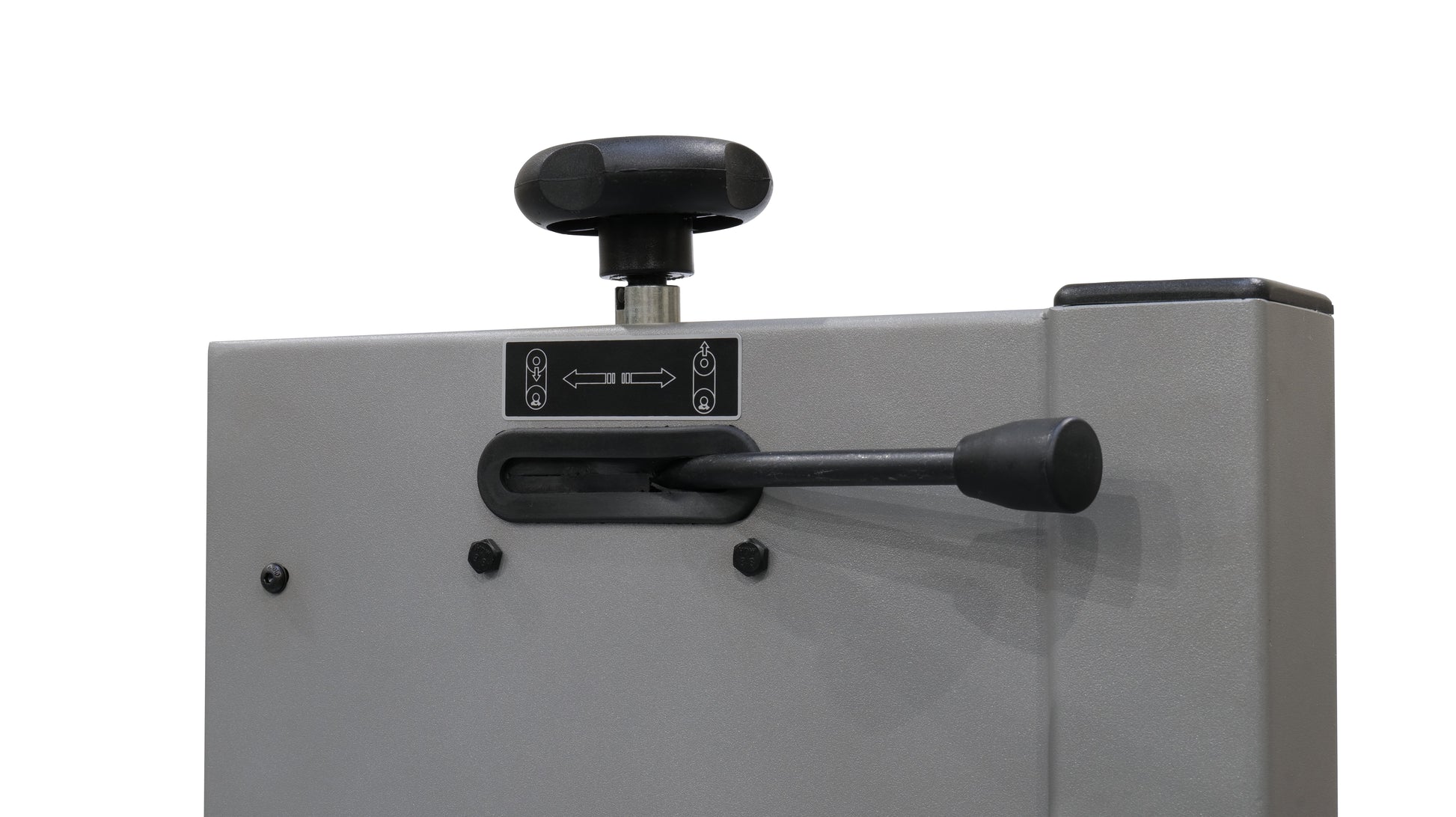

  • Quick-release blade tension lever
  • Dual blade speeds

Specifications

  • Motor –  1 HP Induction Motor
  • Power – 120 Volt 60 Hz
  • Flywheel Size –  10” Diameter
  • Resaw Height –  5.75” (146.05 mm)
  • Throat –  9-5/8” – 245 mm)
  • Blade Length –  70-1/2” (1791 mm)
  • Blade Width –  1/8” – Max 1/2” (3.18 – 12.7 mm)
  • Blade Speed – 1515 High / 3280 Low Ft/Min – (462 / 1000 m/min)
  • Table Size –  13-3/4” x 12-1/2” (350 x 318 mm) (+ 1.25” left extension)

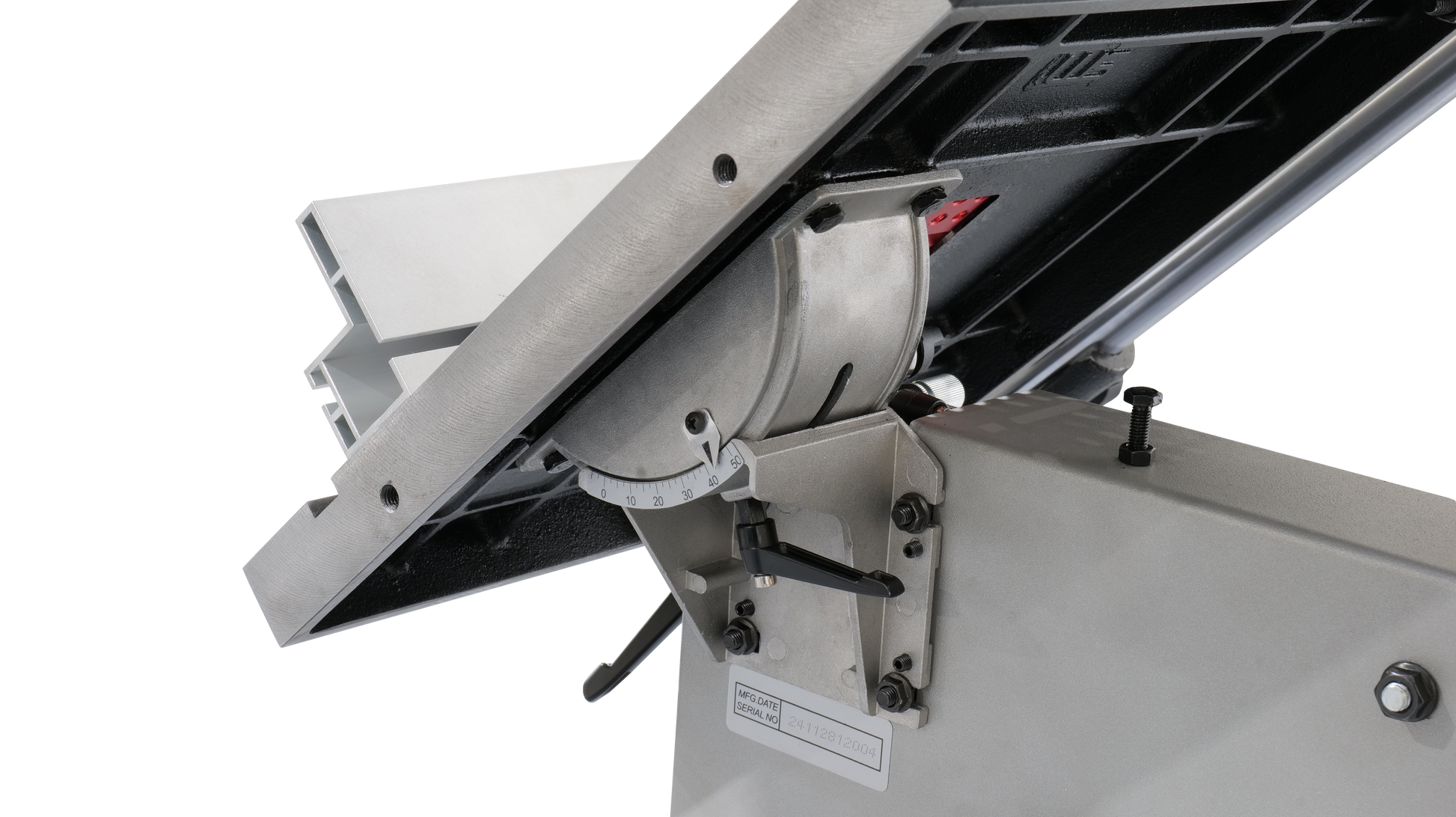

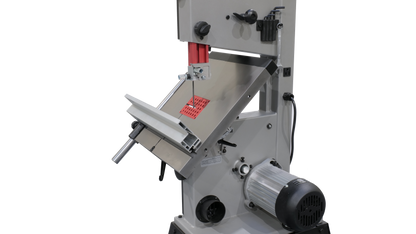

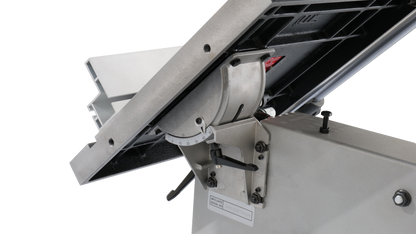

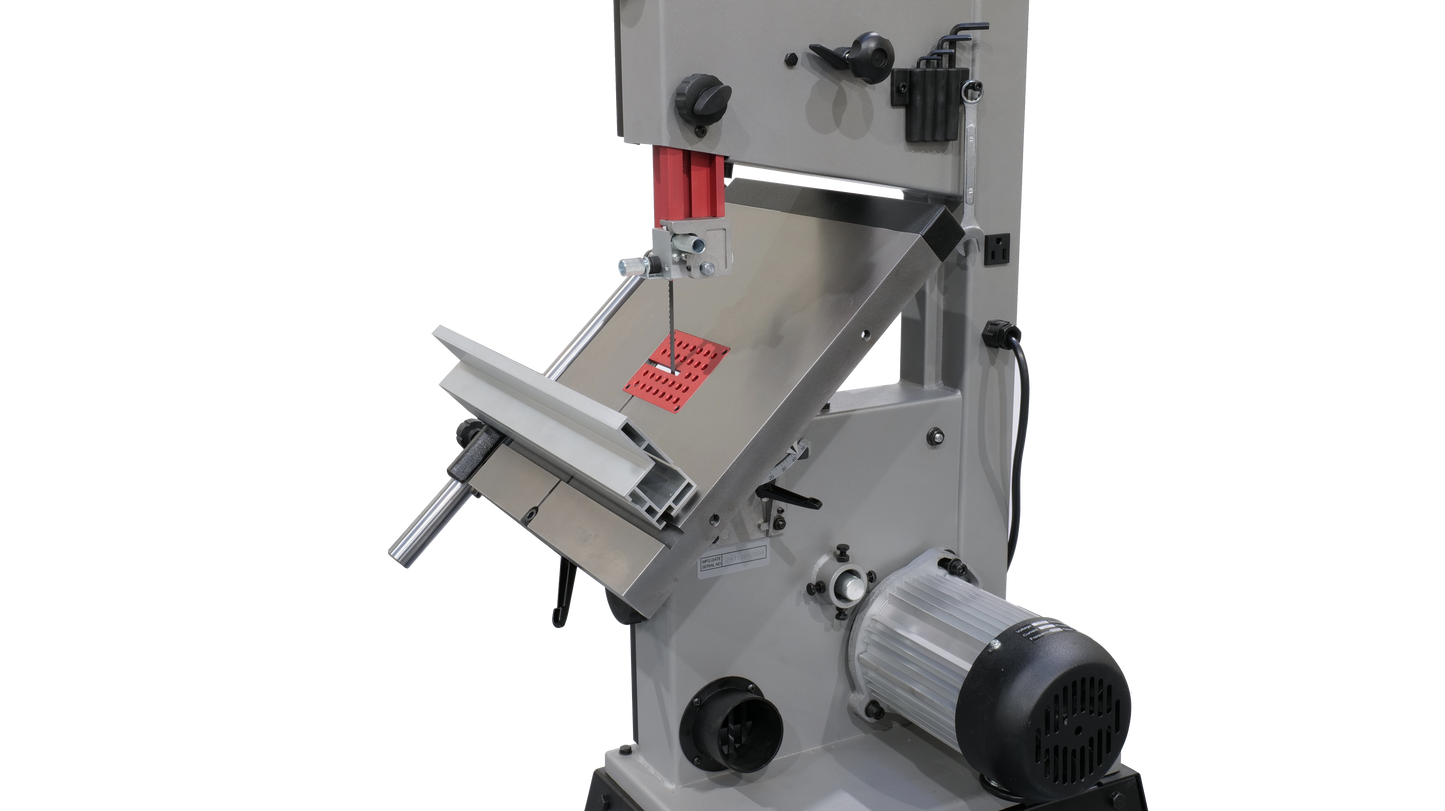

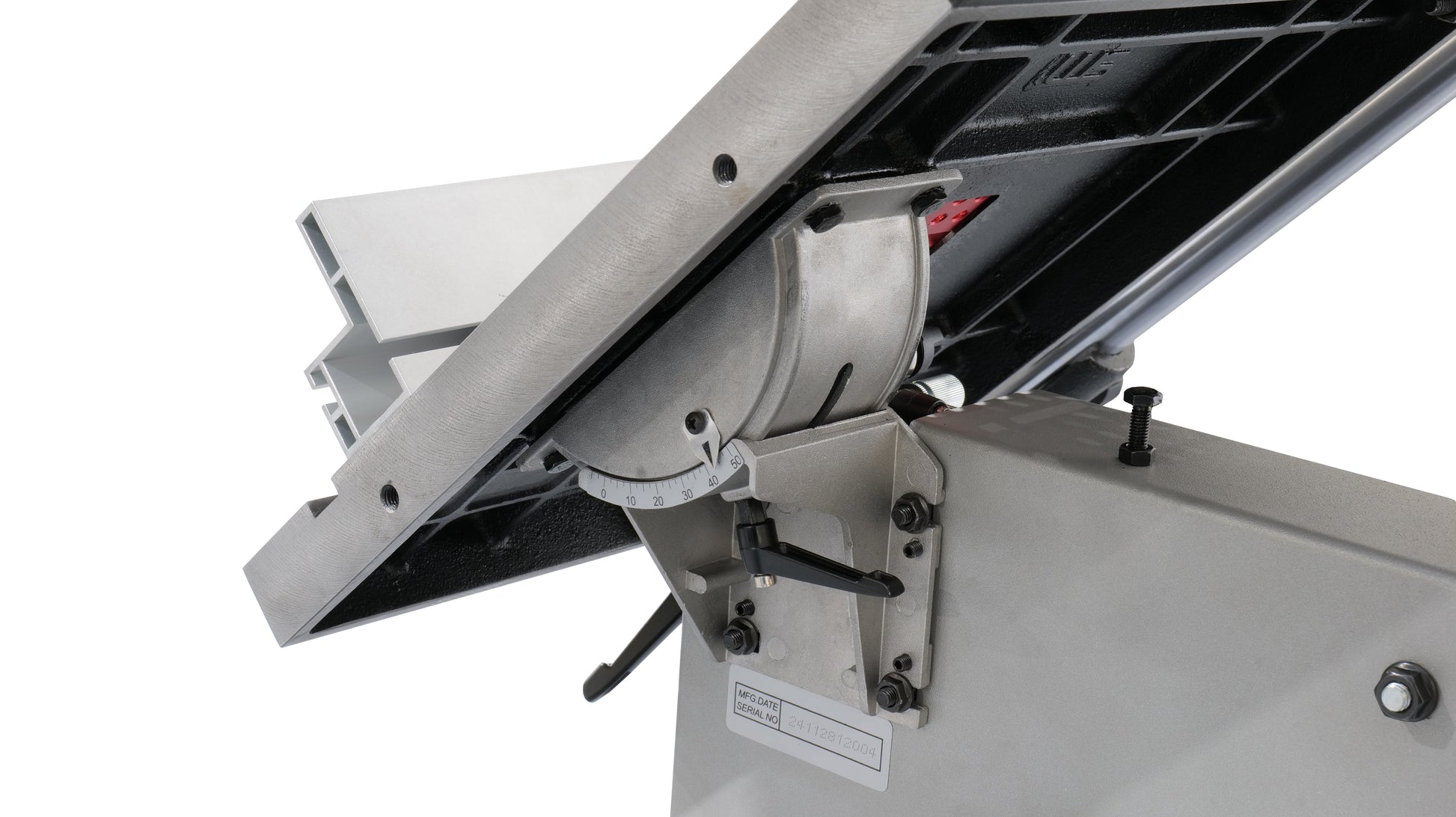

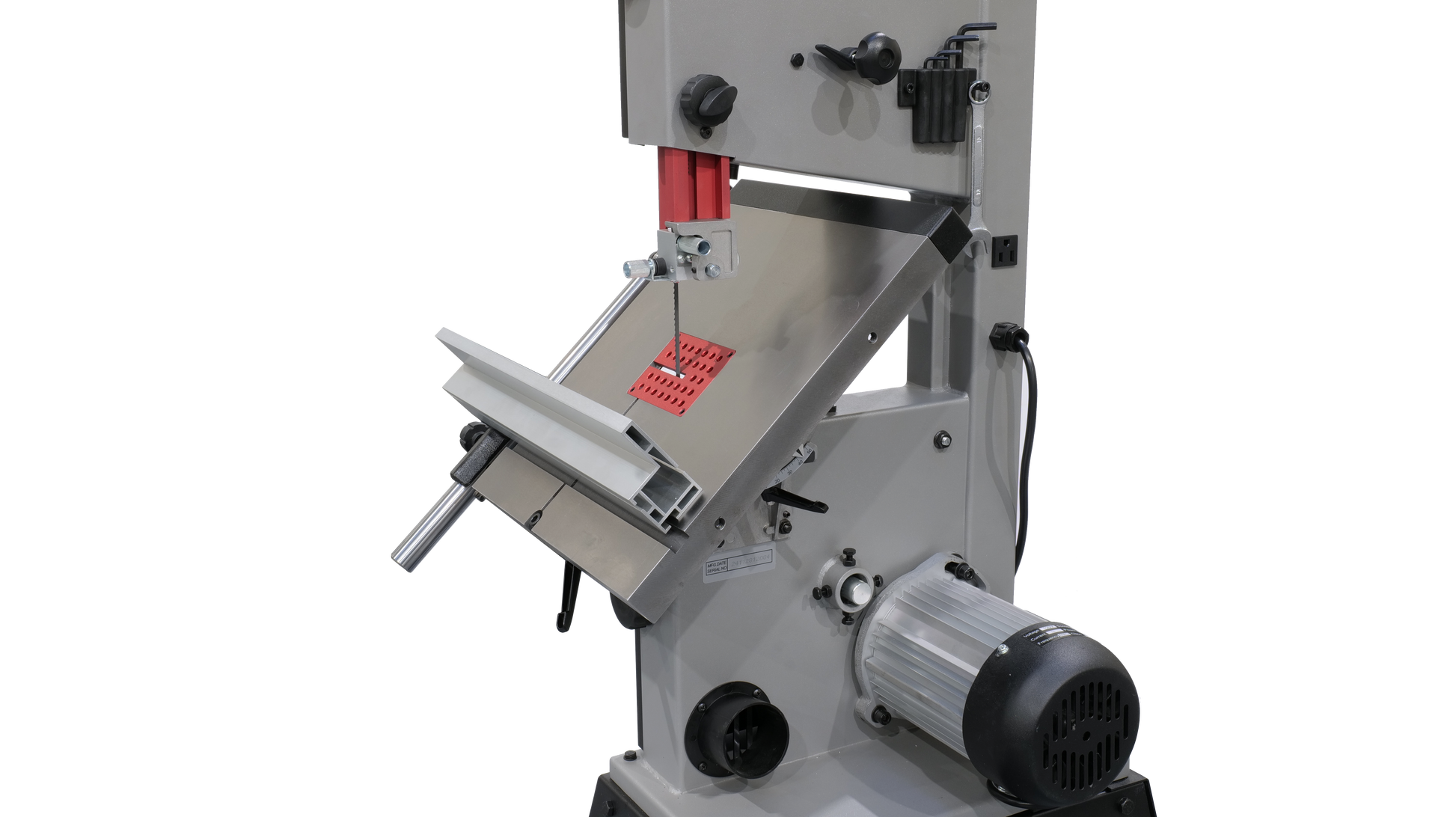

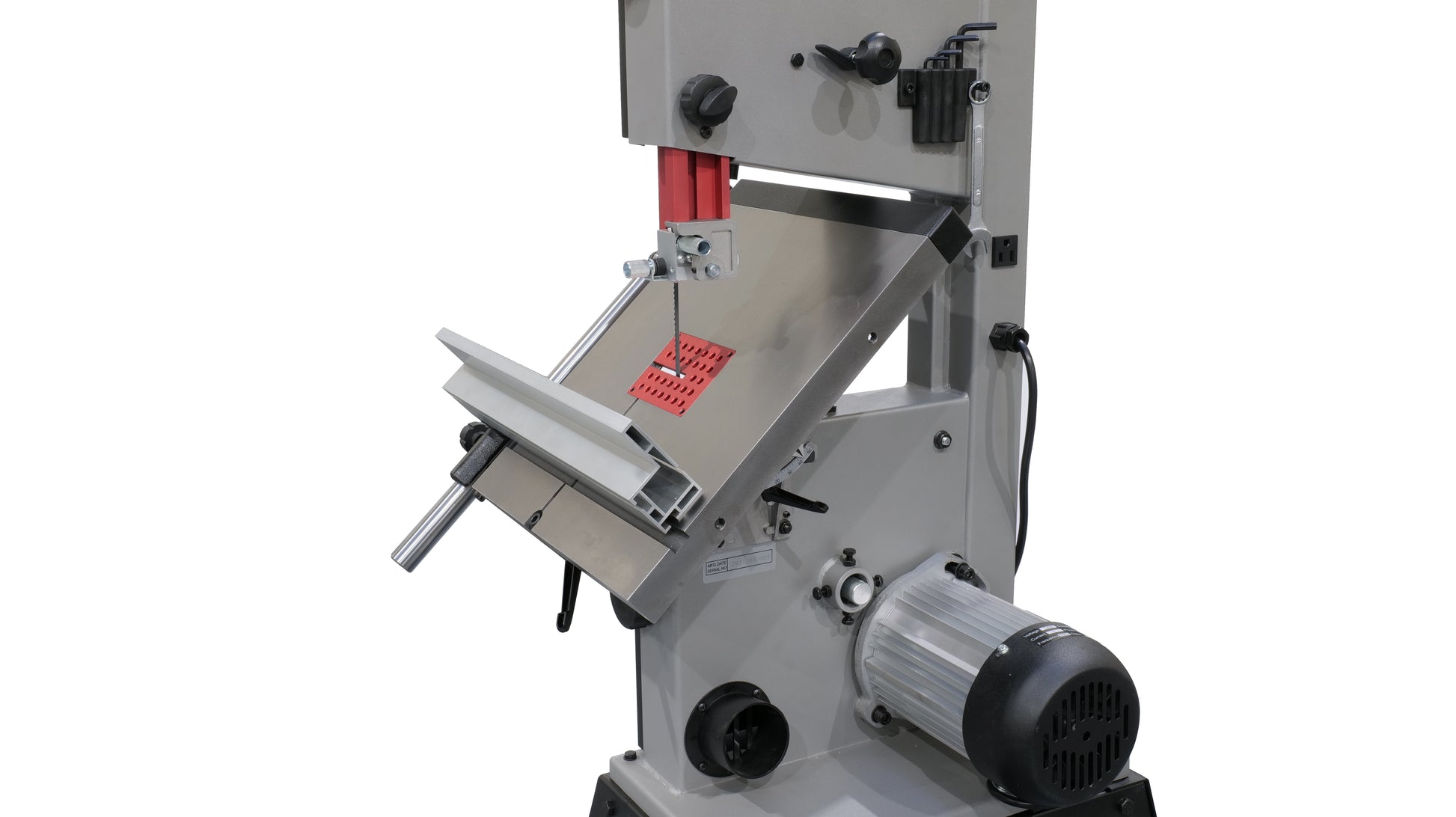

  • Table Tilt –  Left -5° / Right 45°

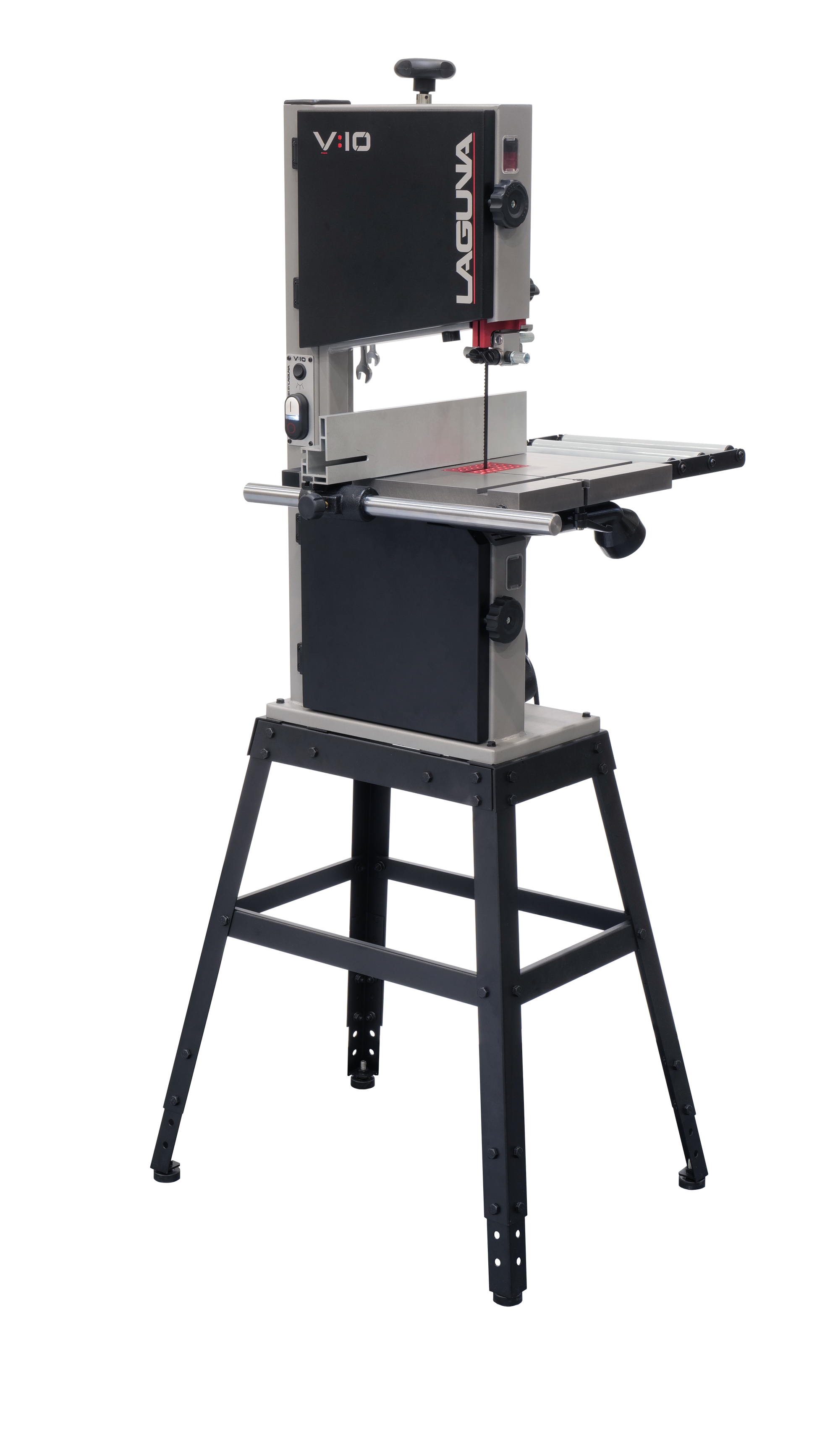

  • Table Height –  14-1/2”  (368 mm) (without optional stand)
  • Dust Port Diameter –  2-1/2” x 2 (64mm)
  • Base Size –  9-1/4” x 15-3/4”  (235 x 400 mm)
  • Overall Size –  22-1/2” x 21” x 34-1/2” (546 x 533 x 876 mm) LxWxH
  • Included: 3/8” Blade
  • Blade Material: Carbon Steel
