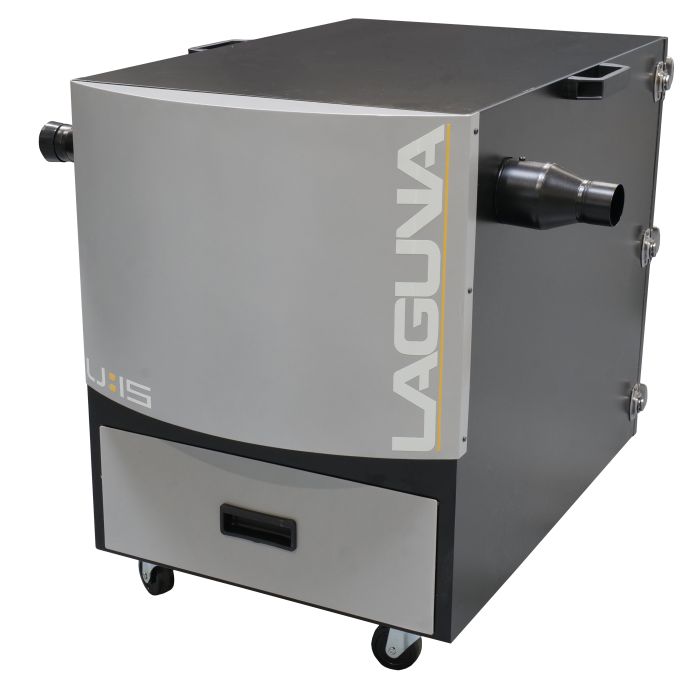

U|15 Metal Dust Collector

The Laguna Tools U|15 Metal Dust Collector combines power and efficiency in a compact design, perfect for smaller shops. Its 1.5 HP motor delivers up to 490 CFM, effectively capturing metal dust and shavings from multiple machines through two 3-inch inlets (+2-inch adapter).

Built with a durable steel cabinet and aluminum impeller, the U|15 is designed for consistent performance. The 4.4-gallon metal collection drawer is easy to empty, while the fire-resistant micro mesh filter ensures cleaner air. With low noise output at 71.5 dB and smooth-rolling casters, this dust collector provides reliable dust control without disrupting your workspace.

Specifications:

• Motor — 1.5 HP
• Motor Speed — 3450 RPM
• Electrical — 110 volt / 60 Hz / 1 Ph
• Amps — 10 FLA
• Switch — Magnetic
• Power Cord — 6 Ft
• Plug — 5-15P
• Inlet Size — 3" x 2 (+2" adapter)
• Noise Volume — 71.5 dB
• Maximum Air Flow — 490 CFM
• Static Pressure — 9.4" H2O
• Impeller Size — 11" Diameter
• Collection Volume — 4.4 Gallons
• Filter Material — Galvanized micro mesh
• Filter Size — 19.25" x 9.5" x 1.8"
• Construction — Steel Cabinet - Aluminum Impeller
• Start Capacitor — 200F/125V
• Run Capacitor — 300F/250V
• Wheels — 2.5" Swiveling

Dimensions:

• Assembled Size (LxWxH) — 35.5" x 32" x 29.3"
• Shipping Size (LxWxH) — 35" x 26" x 30.7"
• Weight (Net/Gross) — 165 lb / 185 lb
