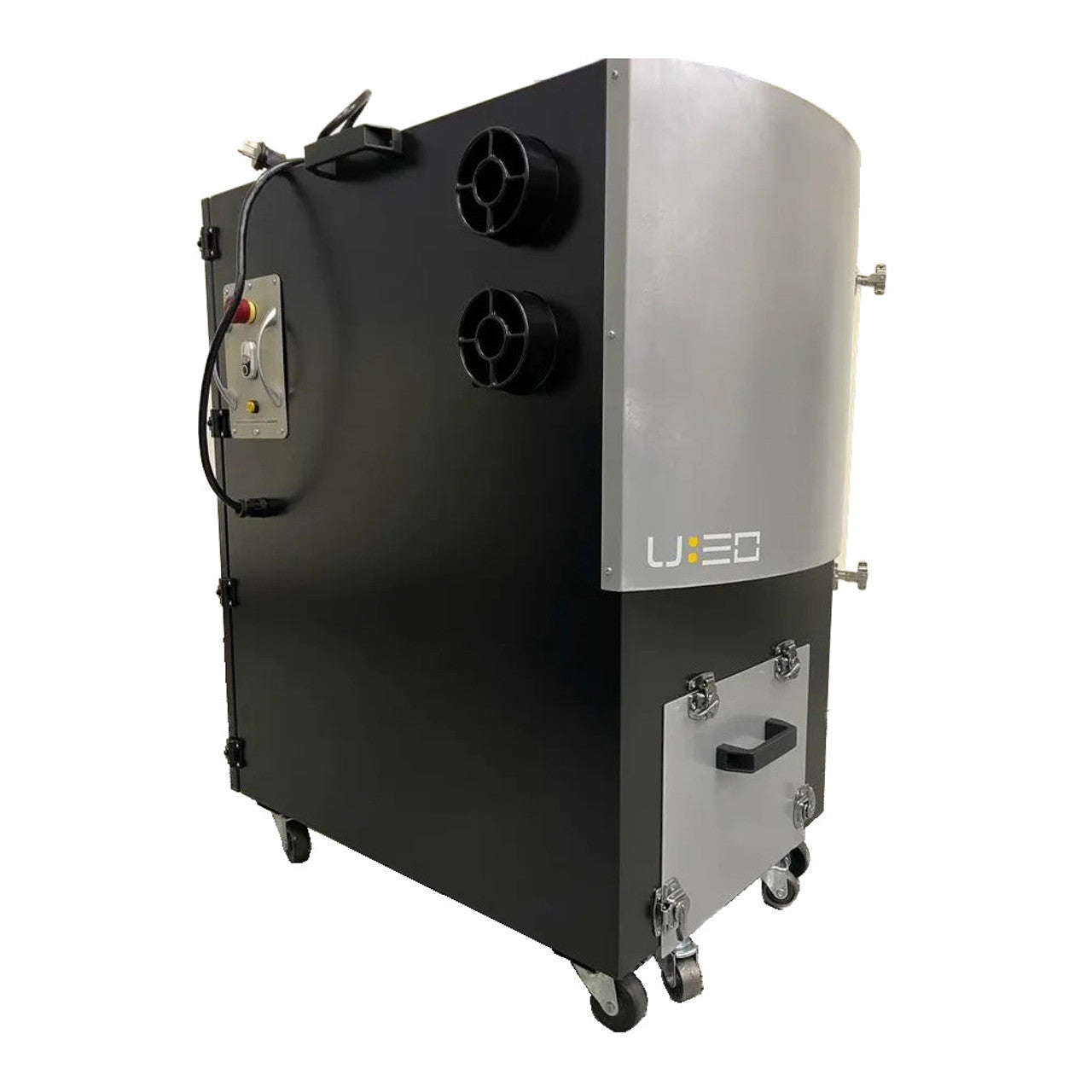

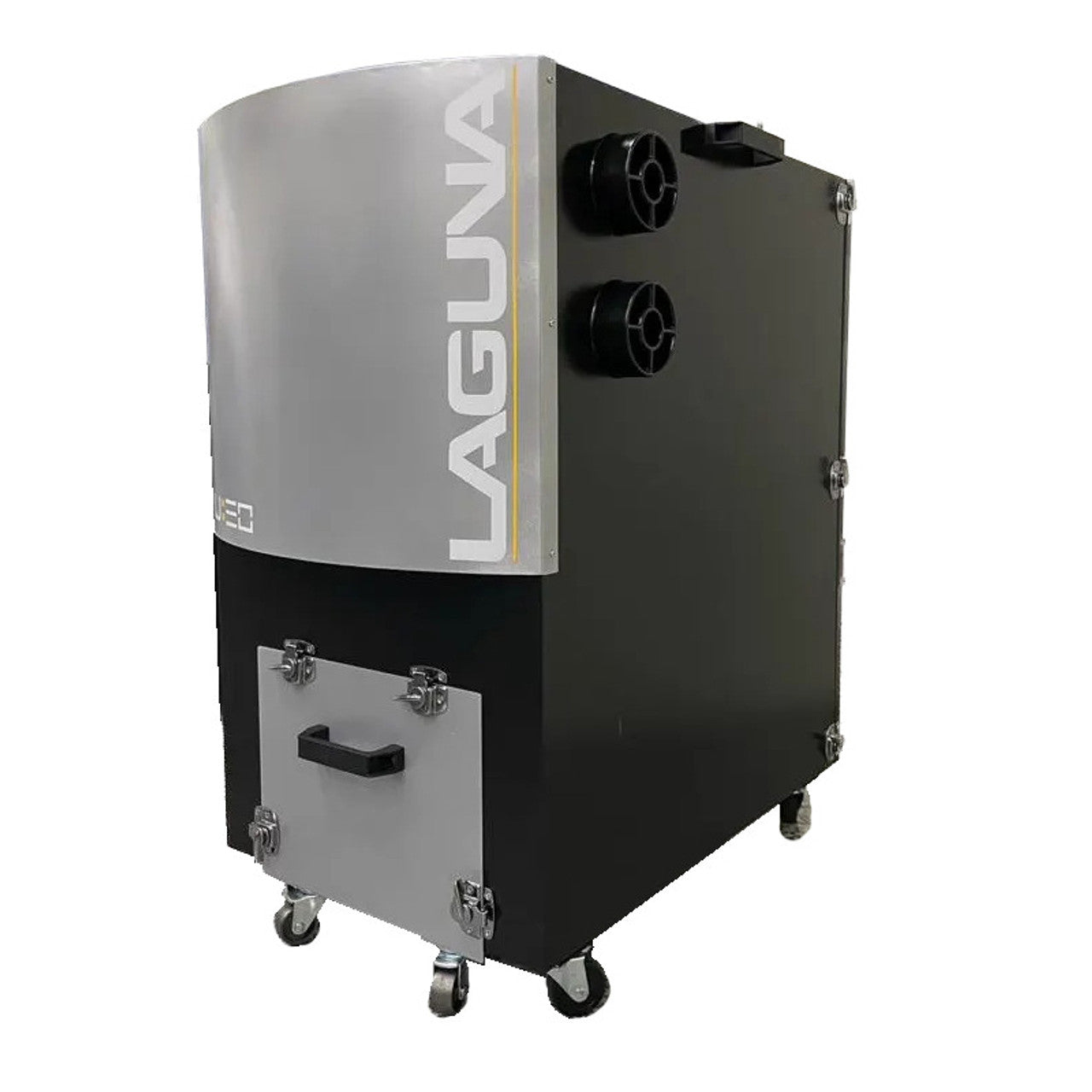

U|30 Metal Dust Collector

The Laguna Tools U|30 Metal Dust Collector offers industrial-level dust collection with its 3 HP motor, producing up to 957 CFM of airflow. Four 4-inch inlets allow for easy connection to multiple machines, making it ideal for larger shops.

Constructed with a steel body and durable drum, the U|30 is built for heavy use. The 5.6-gallon metal drawer collects debris efficiently, while the fire-resistant micro mesh filter traps fine dust for cleaner air. Despite its powerful performance, it operates at a quiet 74 dB and is easily movable thanks to built-in casters.

Specs:

• Motor: 3 HP
• Motor Speed: 3450 RPM
• Electrical: 220 volt / 60 Hz / 1 Ph
• Amps: 11 FLA
• Switch: Magnetic
• Power Cord: 6 Ft
• Plug: No Plug
• Inlet Size: 4" x 4"
• Noise Volume: 74 dB
• Maximum Air Flow: 957 CFM
• Static Pressure: 9.4" H2O
• Impeller Size: 12" Diameter
• Collection Volume: 5.6 Gallons
• Filter Material: Galvanized micromesh
• Filter Size: 19.25" x 25" x 1.8"
• Construction: Steel Cart – Stainless Drum
• Start Capacitor: 600F/125V
• Run Capacitor: 450F/350V
• Wheels: 2.5" Machine / 2" Drum
• Assembled Size (LxWxH): 35.4" x 24.6" x 40"
• Shipping Size (LxWxH): 35" x 26" x 42"
• Weight (Net/Gross): 230.5 lb / 253.5 lb

Uses:

• Collecting sawdust from table saws
• Extracting particles from sanding operations
• Removing metal debris from grinding machines
• Capturing dust from miter saws
• Clearing airborne particles from jointers
• Maintaining clean air around planers
• Enhancing safety and cleanliness in routing operations
• Supporting dust collection from bandsaws
• Keeping lathe areas free of metal and wood dust
• Reducing cleanup time in workshop environments
