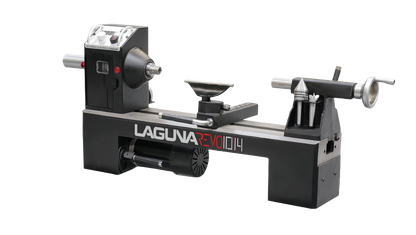

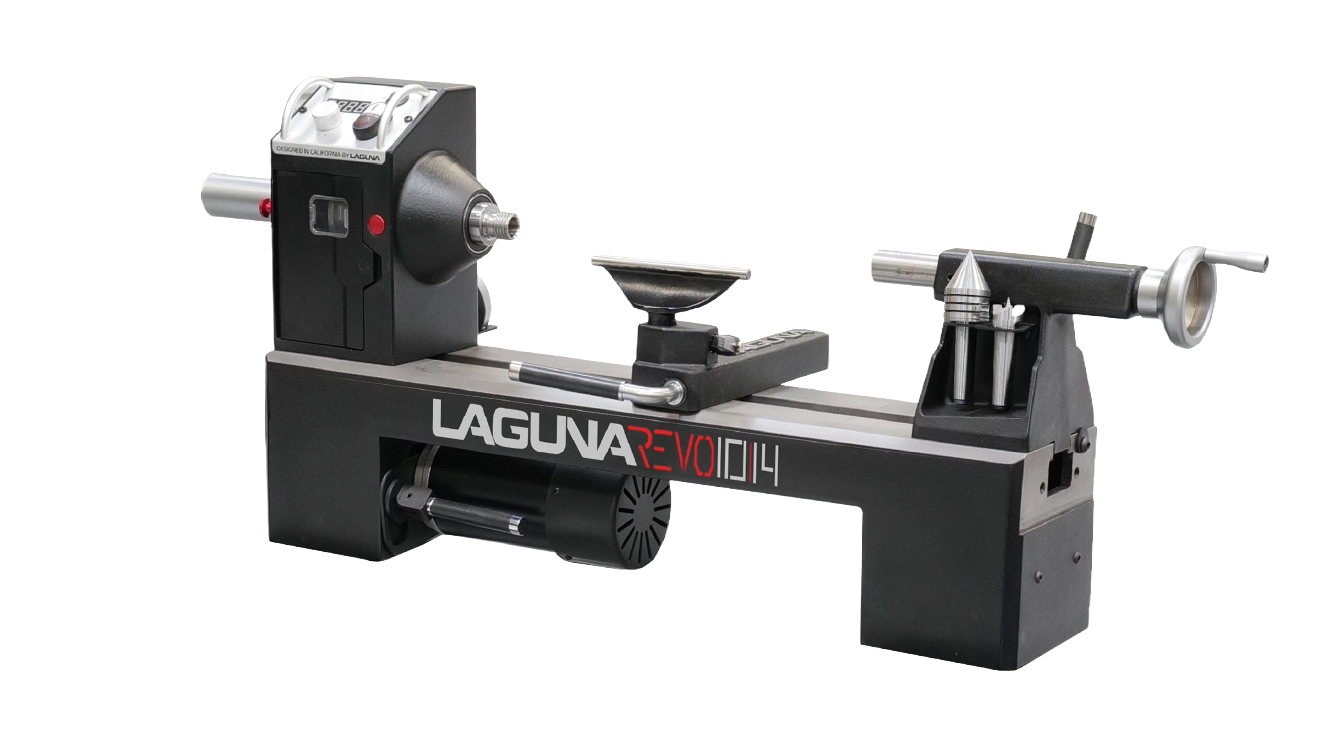

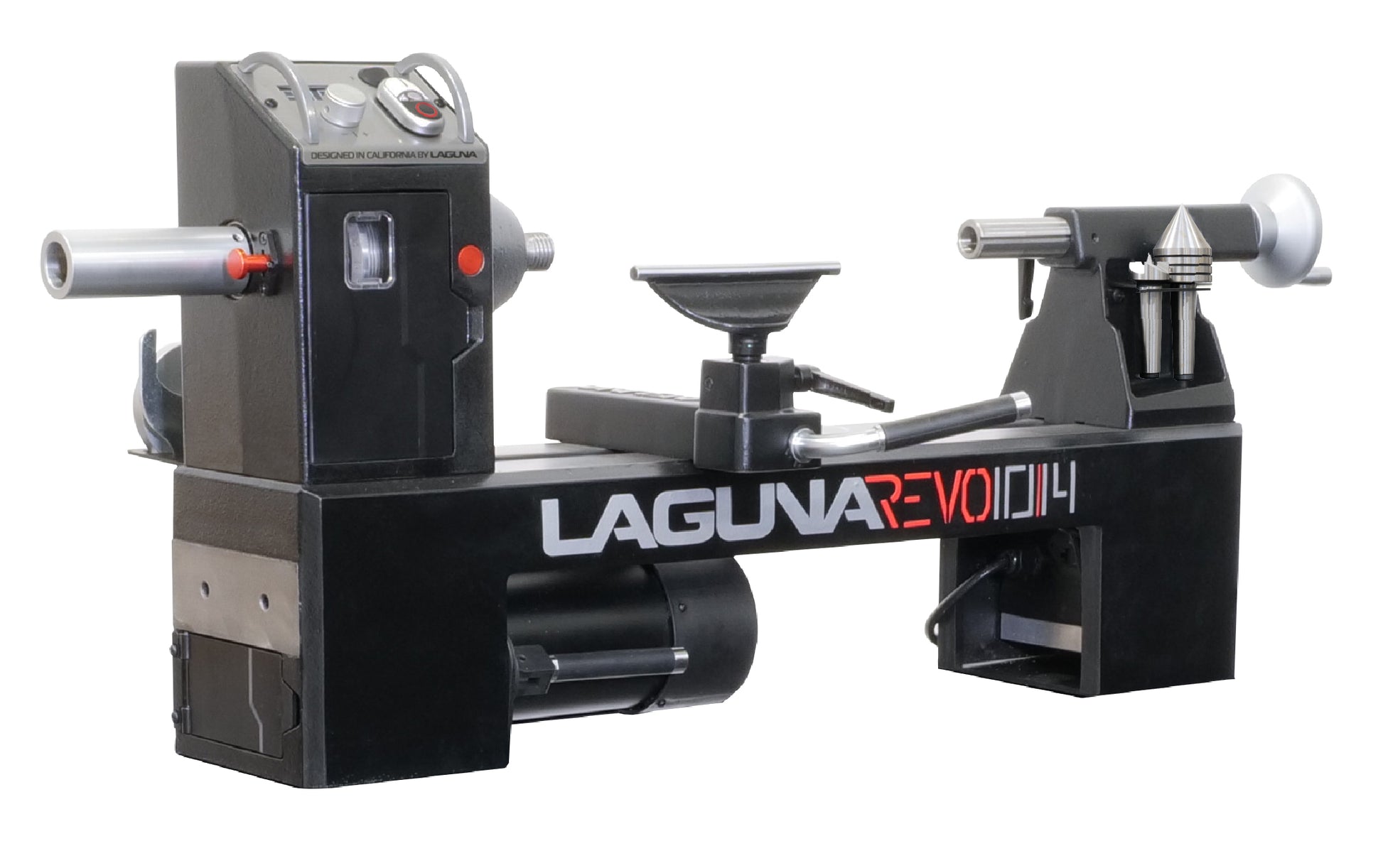

The Laguna Revo 10|14 Lathe brings the performance and features of Laguna's Revo line to a compact 10” lathe. Designed for precision, power, and convenience, this lathe offers an ergonomic control panel with digital readout, a PWM variable speed induction motor, and innovative features for both beginner and experienced turners.
Best-In-Class Features

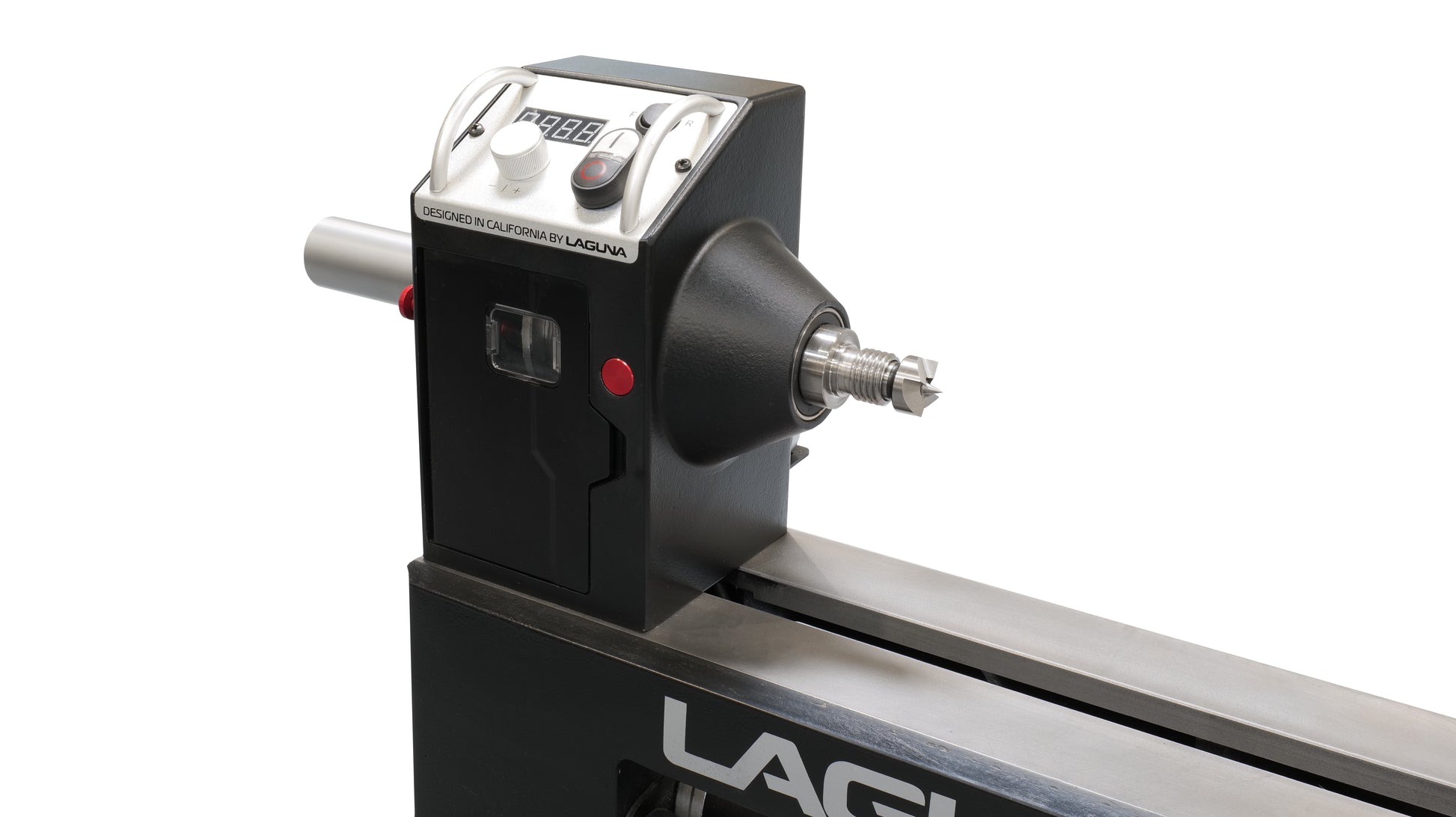

Projected cast iron nose cone on headstock for wider bearing spacing and additional tool clearance
1 HP PWM Induction Motor for smooth, variable speed control

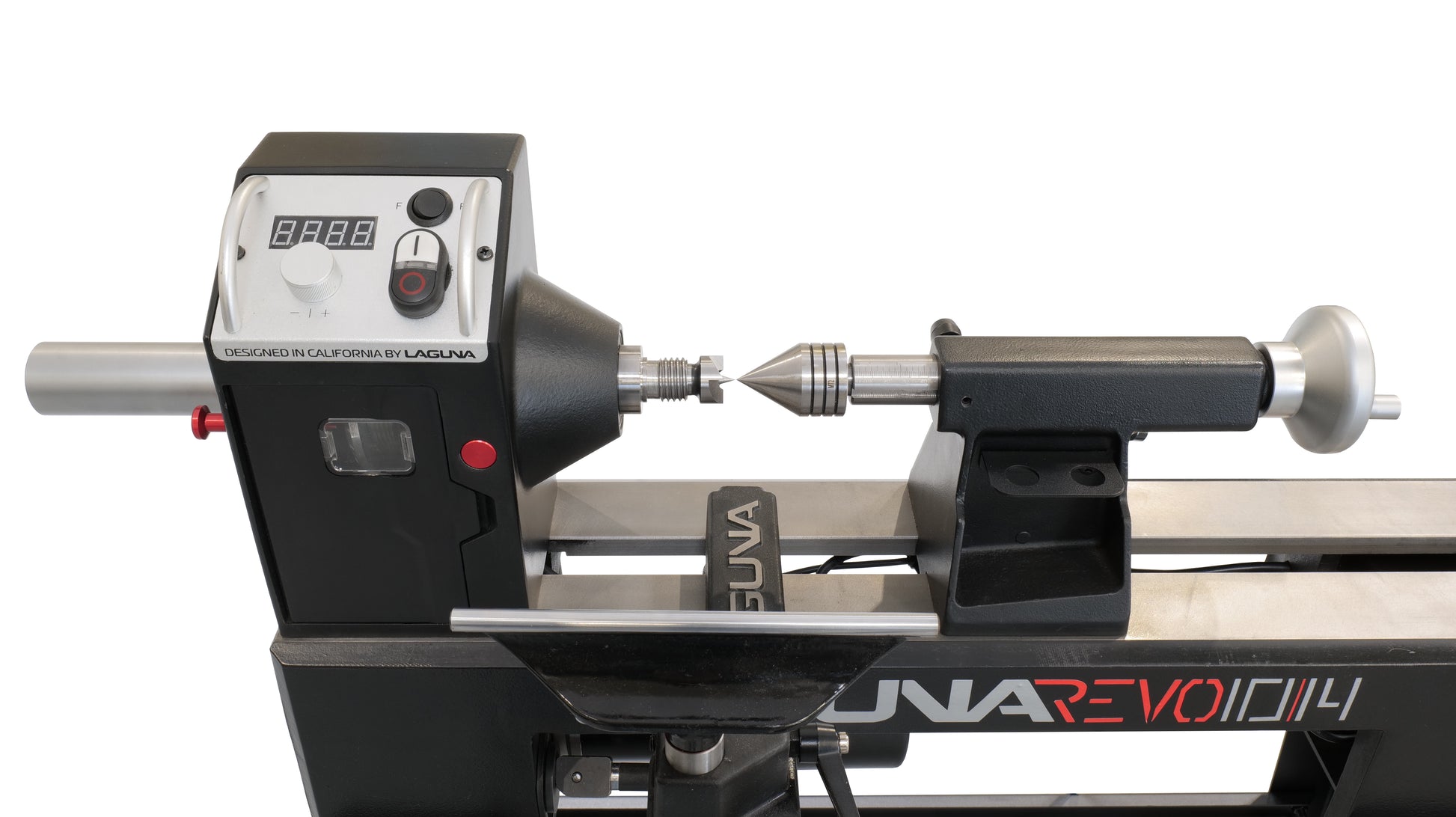

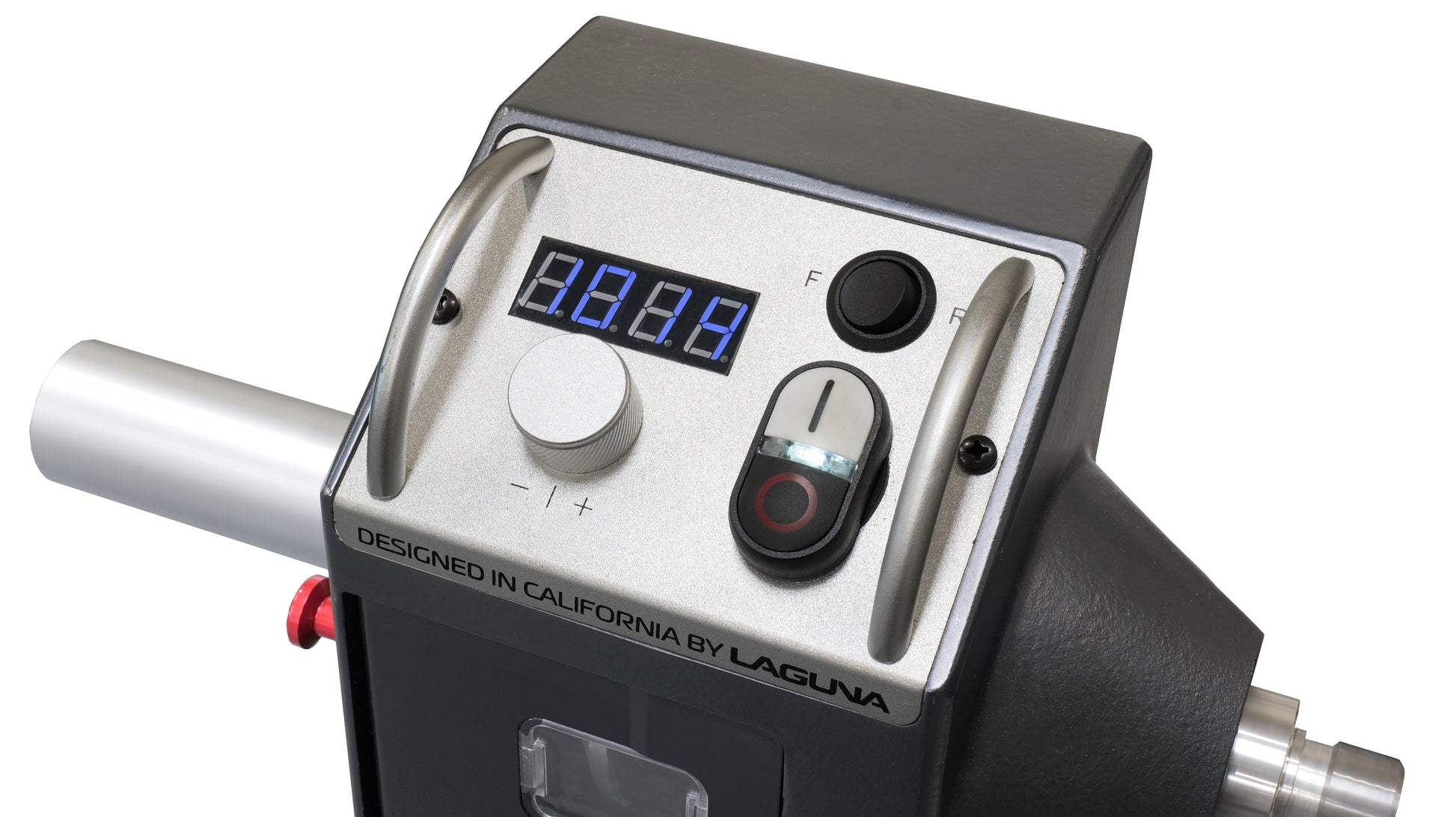

Ergonomic control panel with digital readout

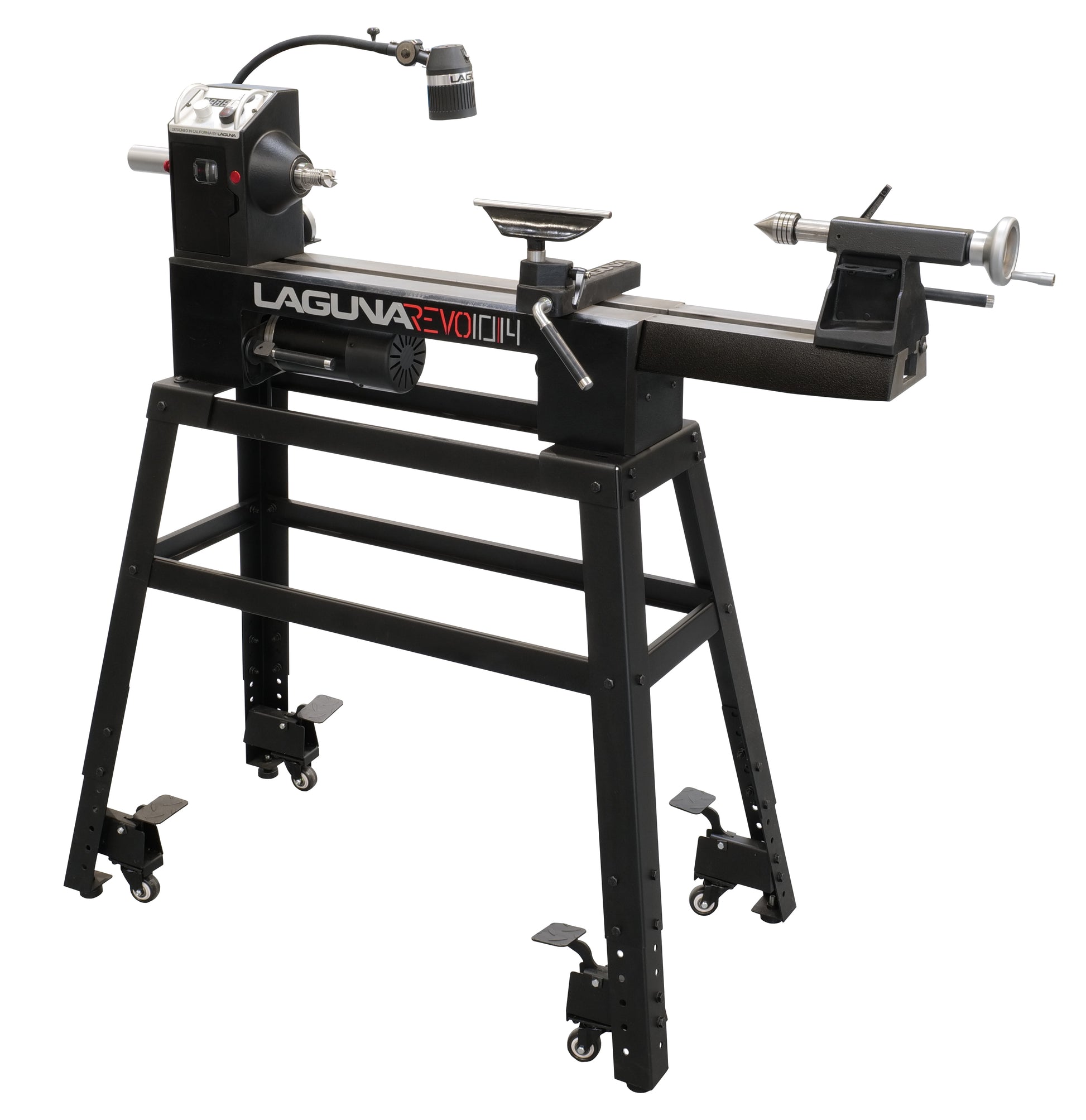

Auxiliary 120V outlet and predrilled mounts for optional LED worklight

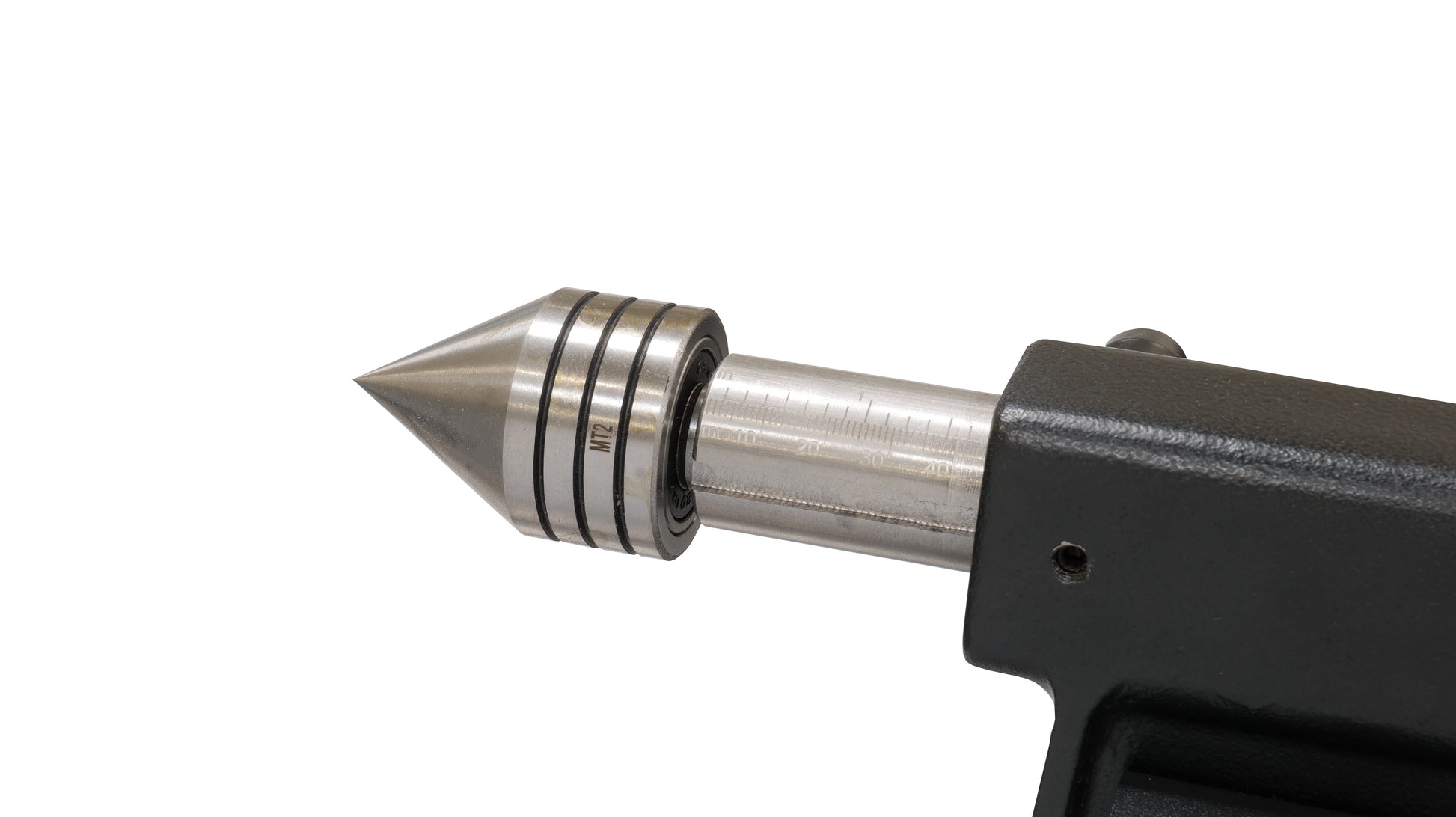

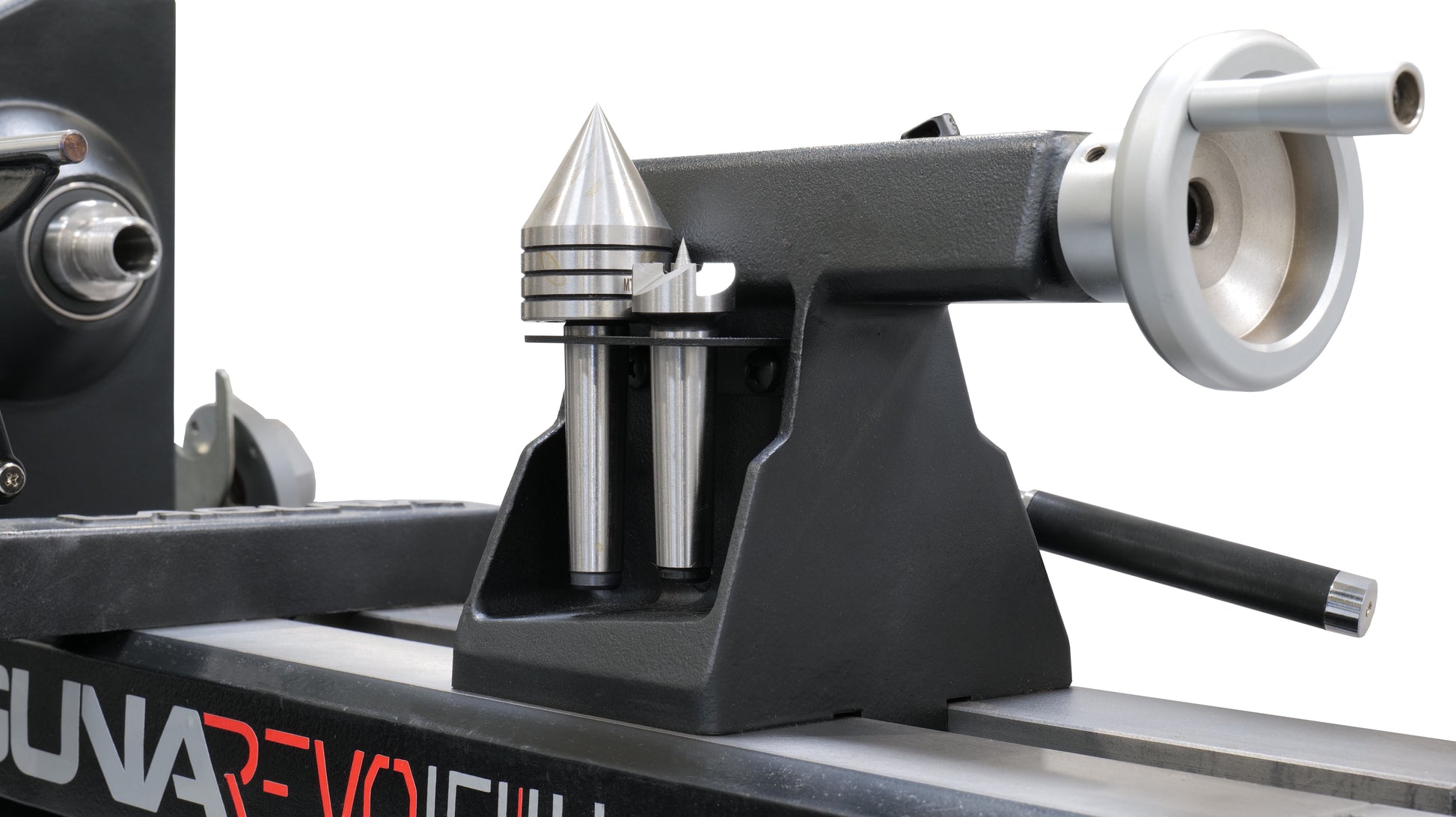

Luxury live center and spur drive with onboard storage
Additional Features

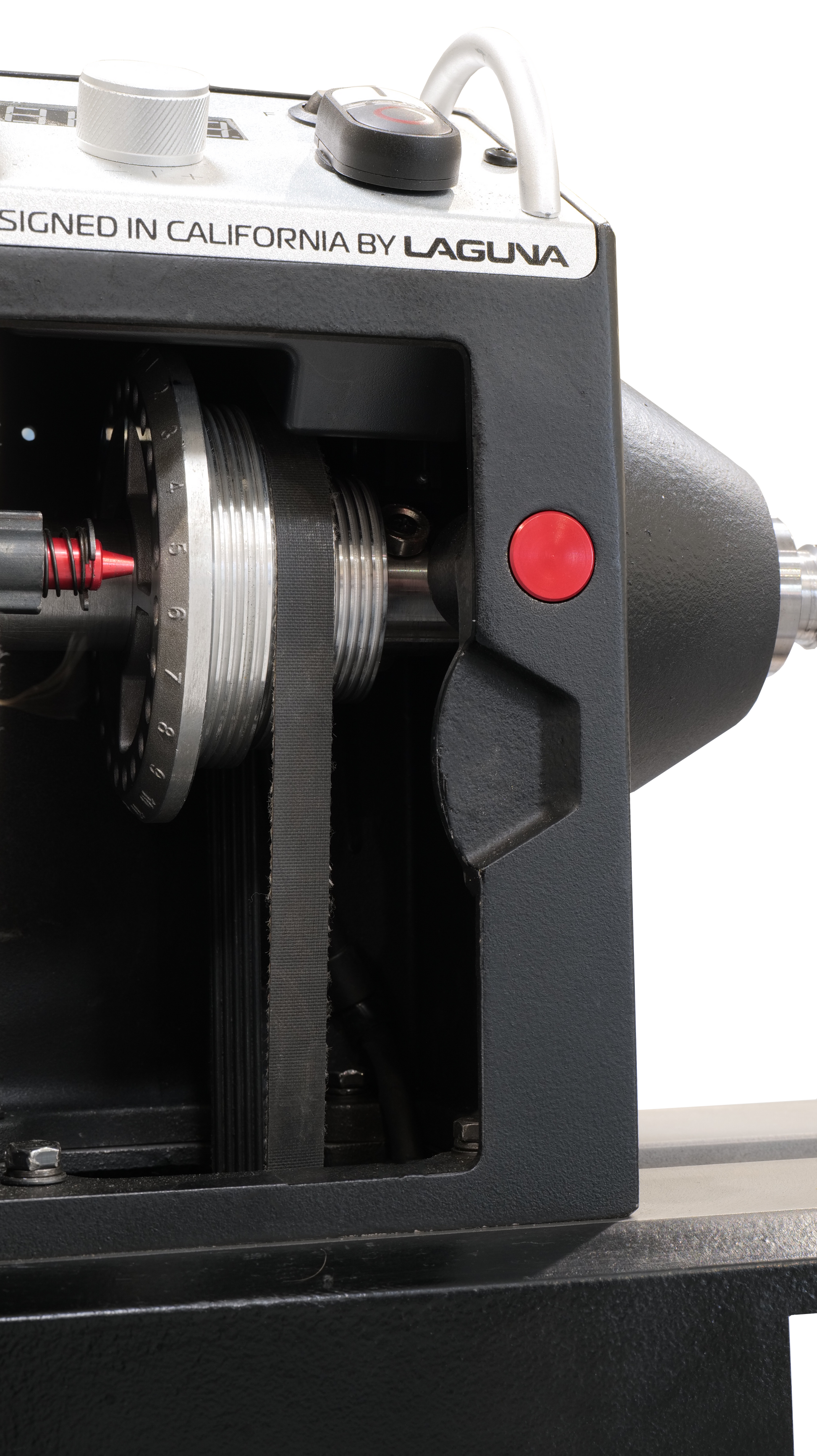

3-pulley drive with poly-groove belt and belt position window
Forward and reverse operation
Electronic speed control with knob
Tool rest with hardened steel leading edge
Etched tailstock quill in inches and mm
Quick belt tension release with dual-door belt change
Heat-treated spindle

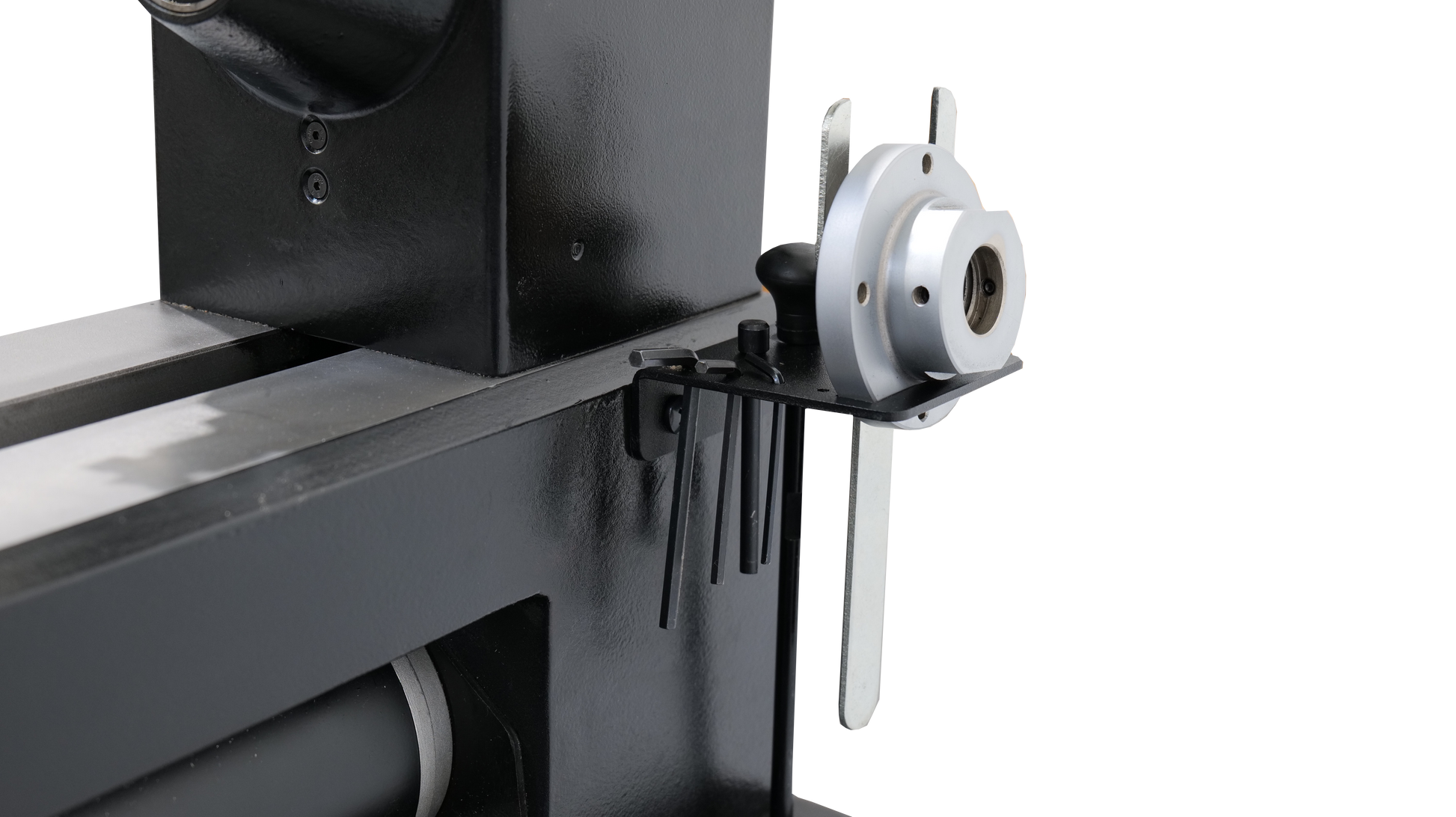

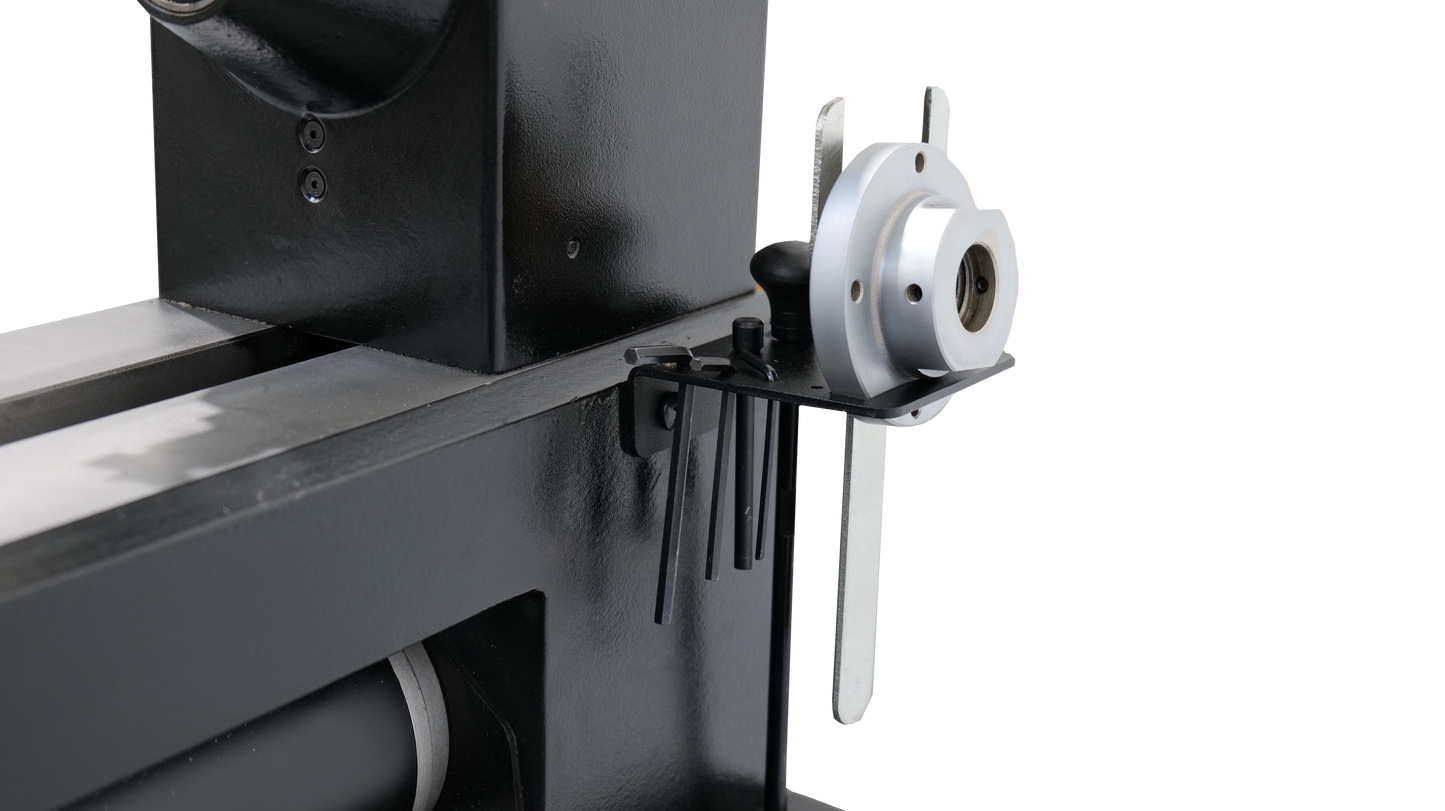

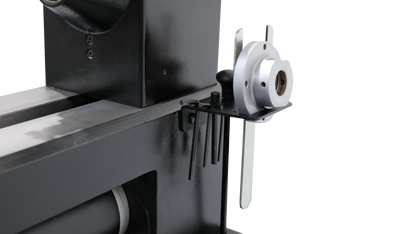

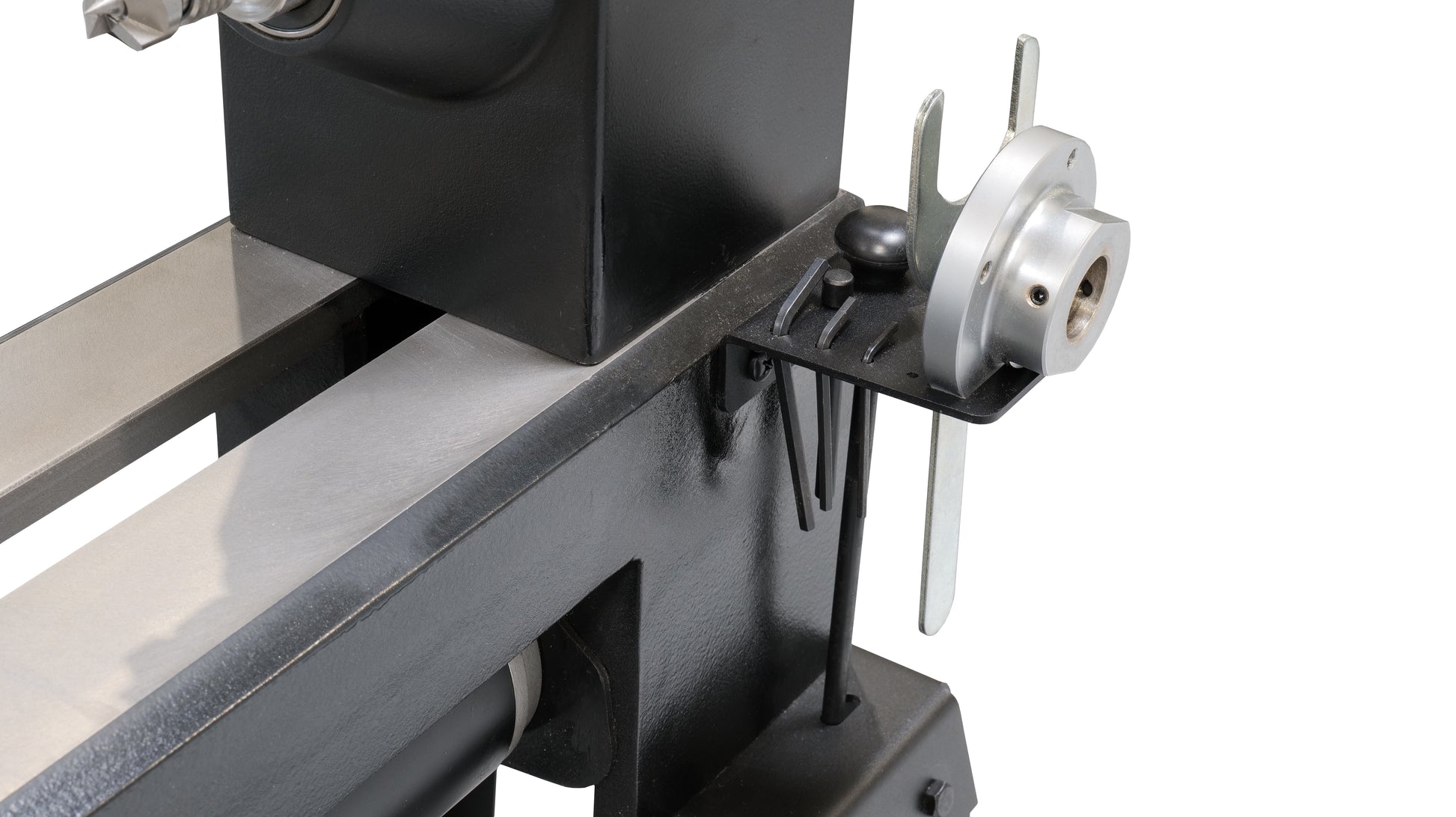

On-board accessory tool storage
Specifications
Motor: 1 HP PWM Induction Motor
Power: 120V, 60 Hz
Turning Capacity: 10” Diameter x 14” Length (254 x 355 mm)
Spindle Threads: 1” x 8 TPI
Spindle Taper: #2 MT (headstock and tailstock)
Tailstock Quill Travel: 3.5” (92 mm)

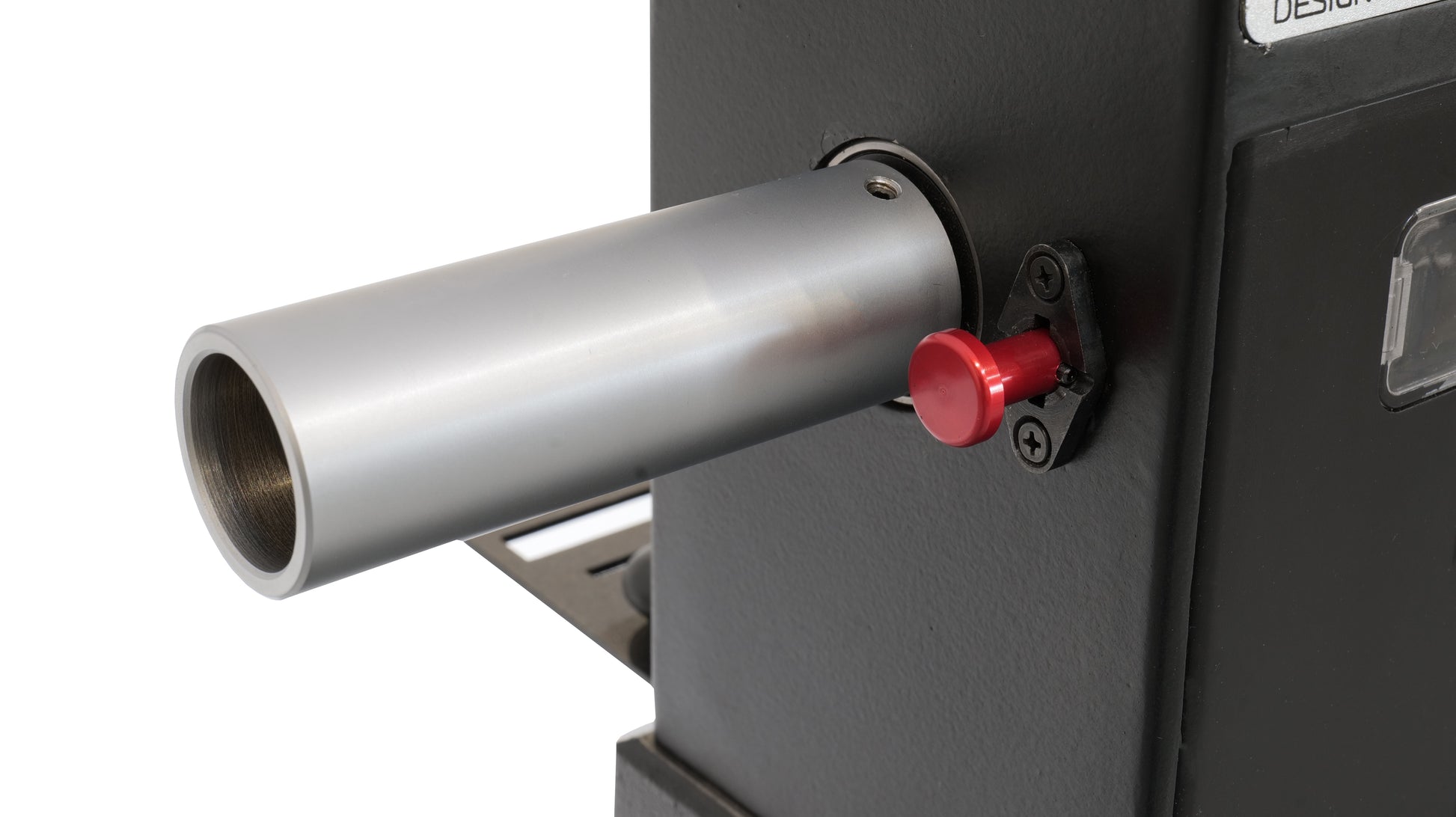

Indexing: 24-position in-head indexing
Spindle Lock: Push button
Power Outlet: Built-in 120V for optional LED light

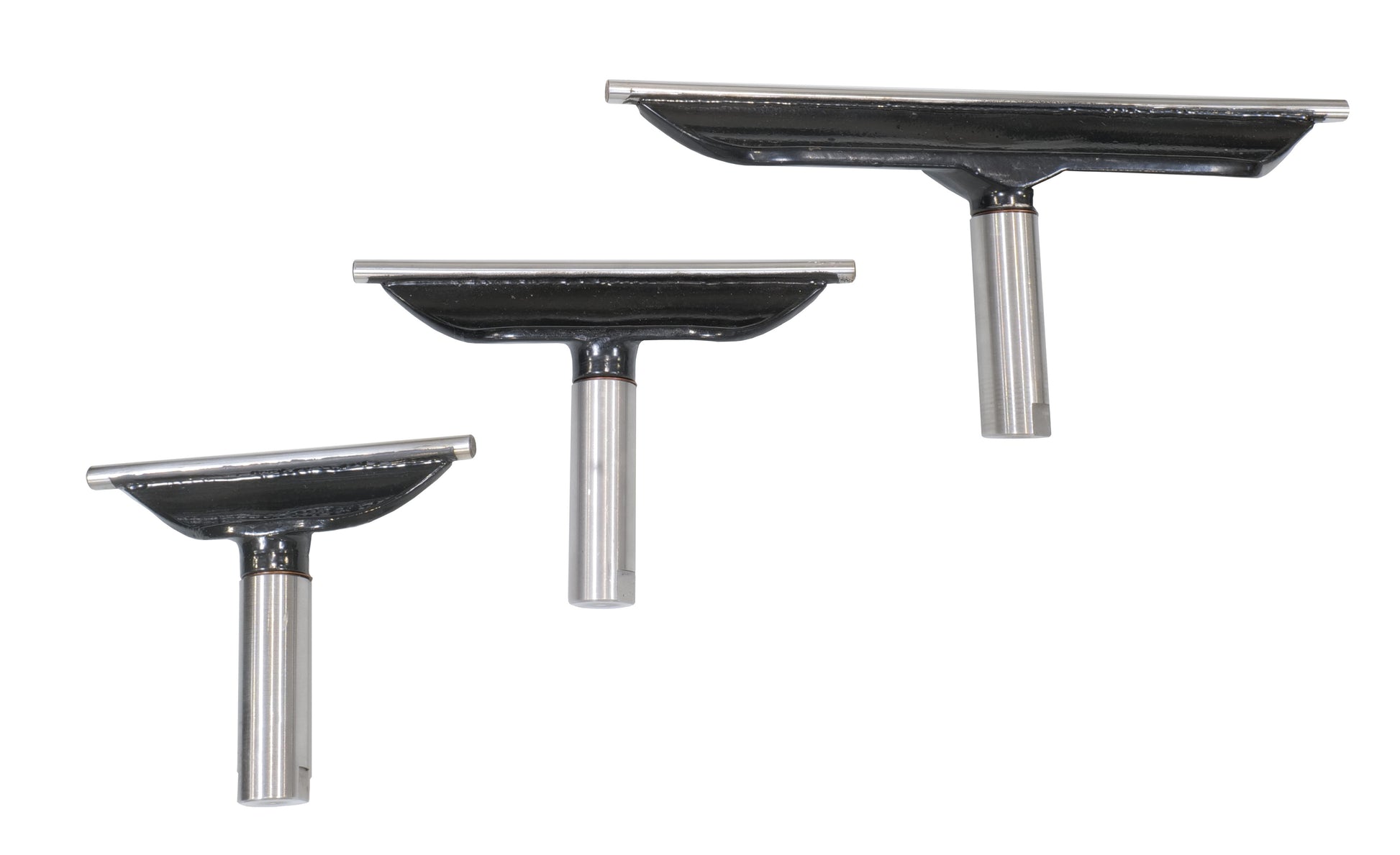

Tool Rest: 6” long, 1” diameter post, 6 mm hardened steel leading edge
Headstock & Tailstock Bore: ⅜” (10 mm) through bore
