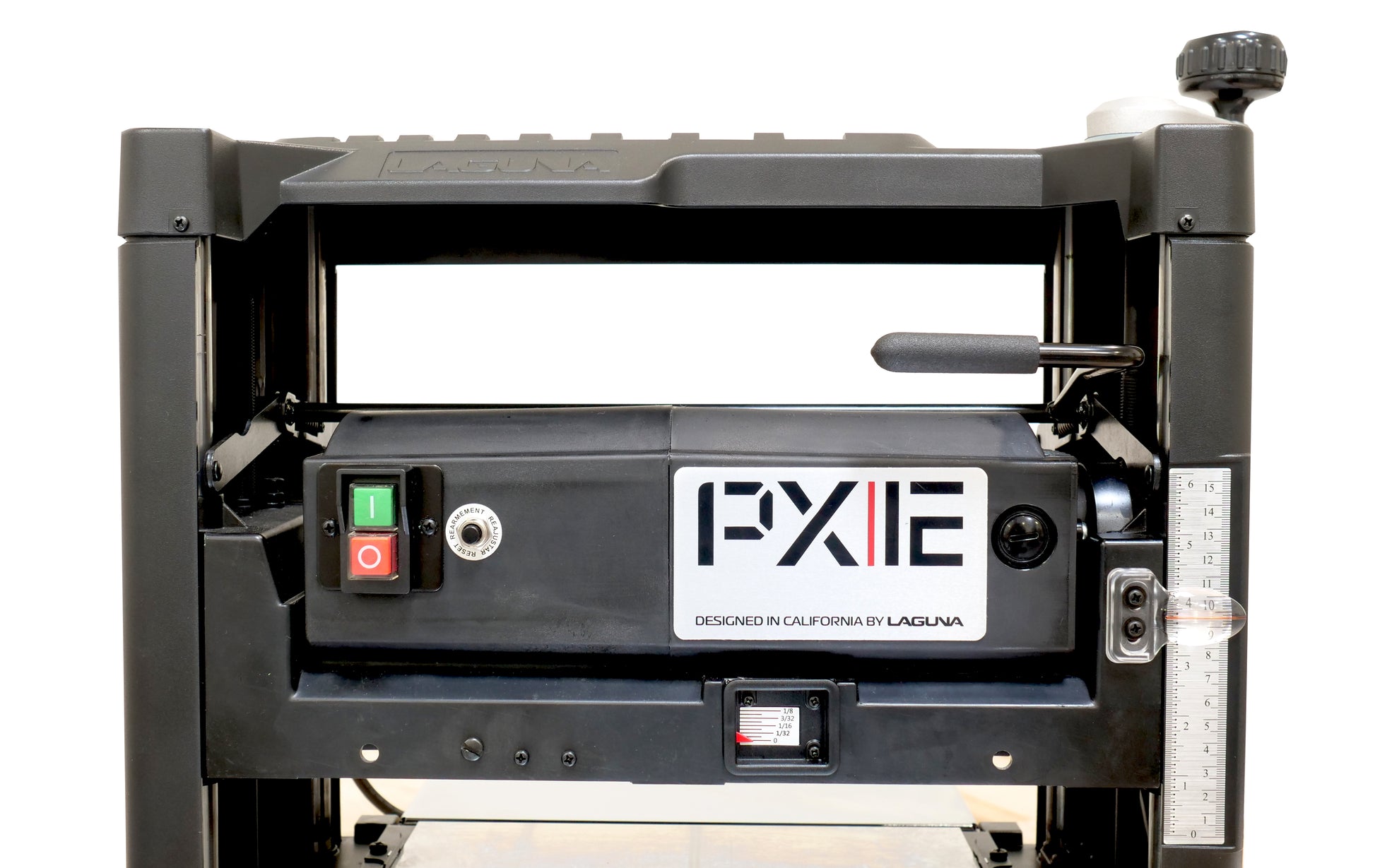

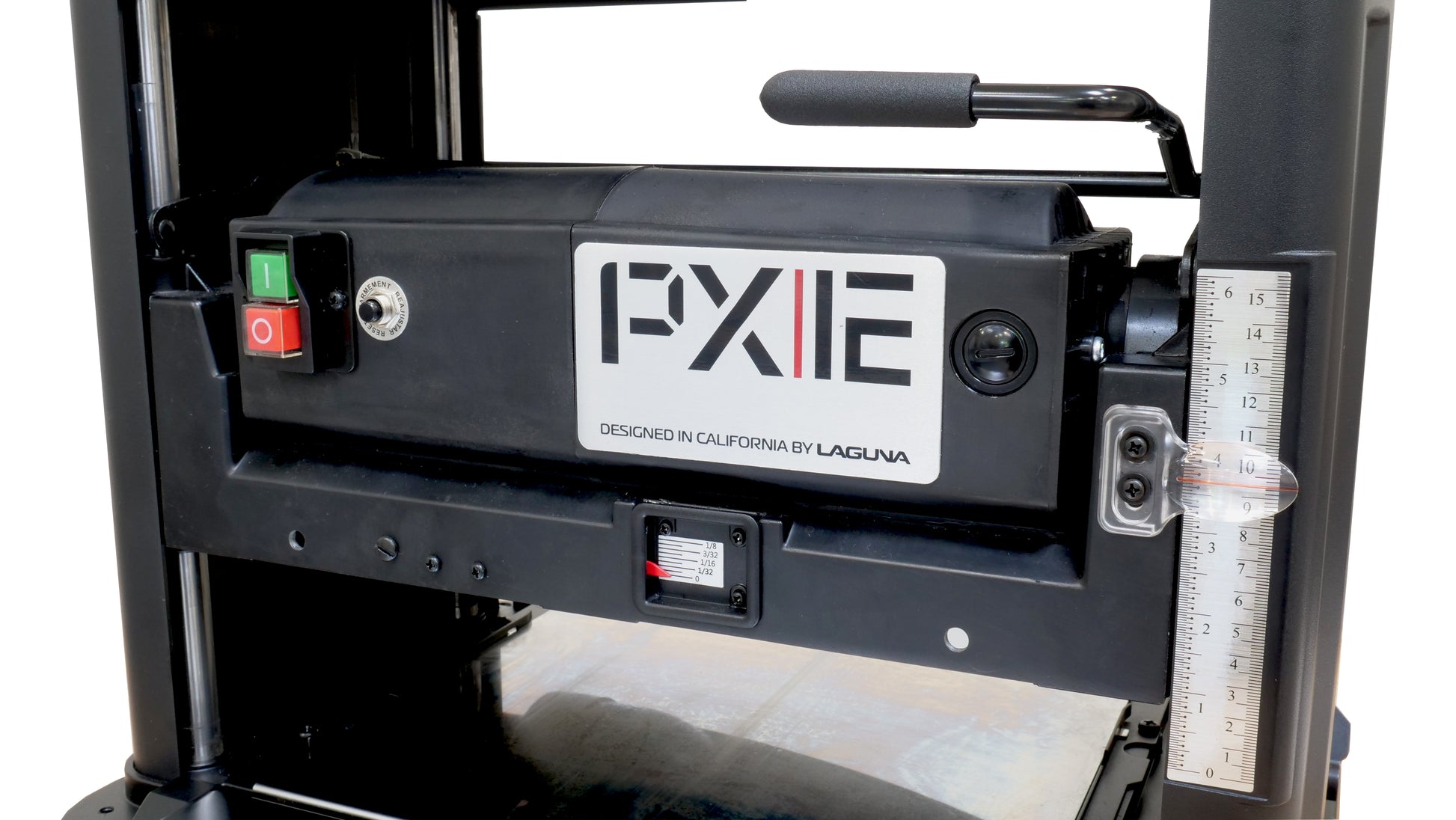

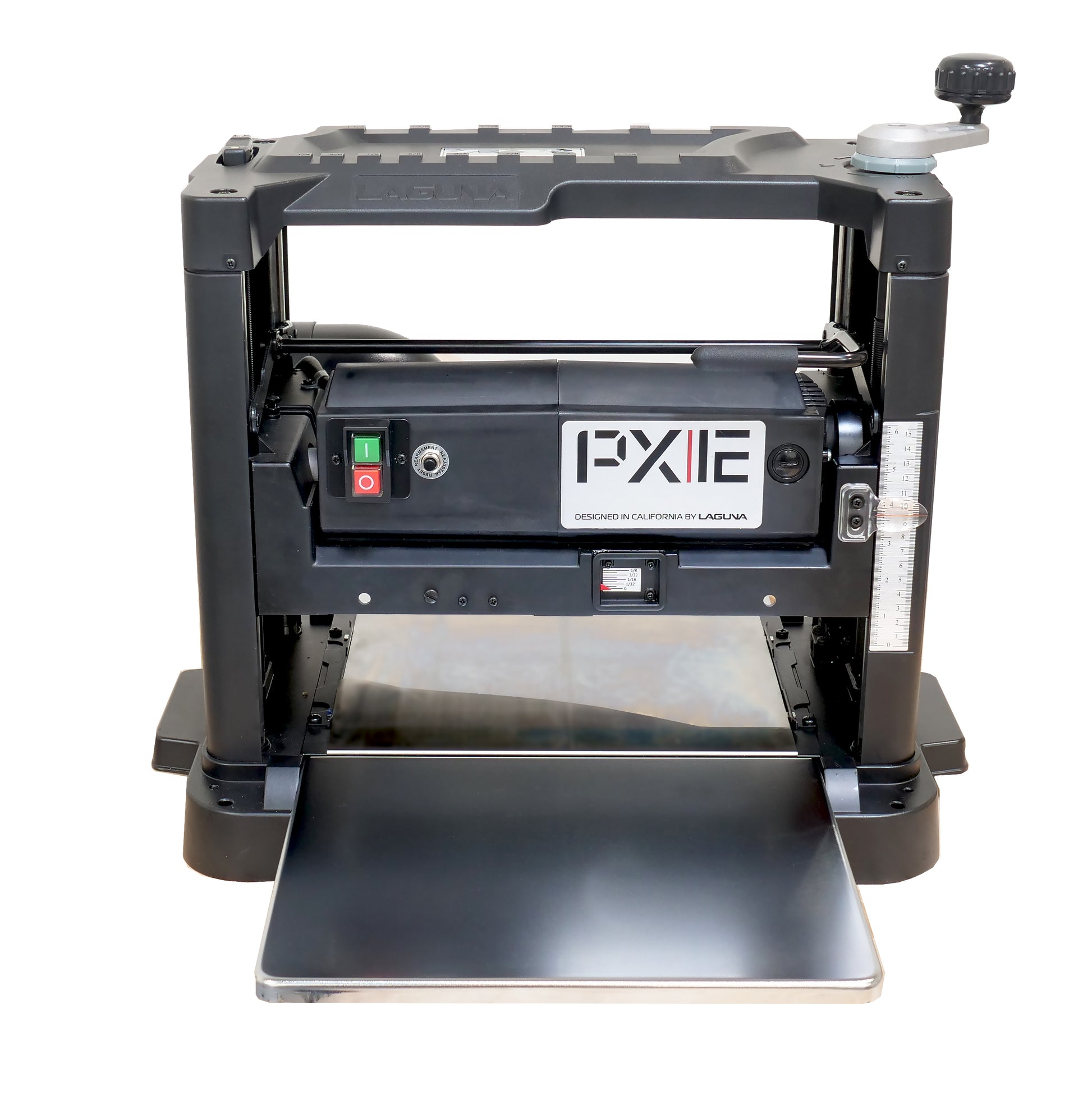

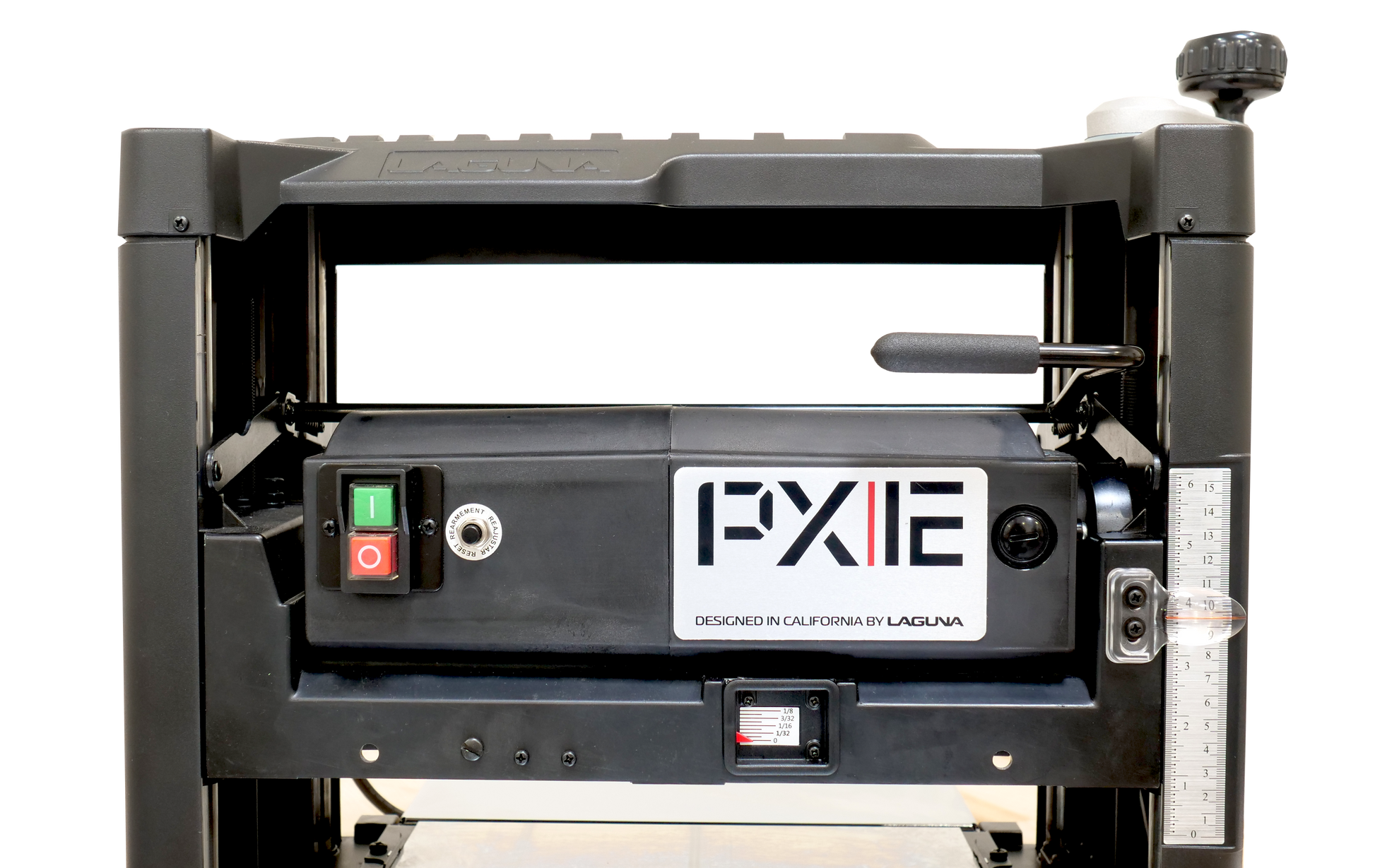

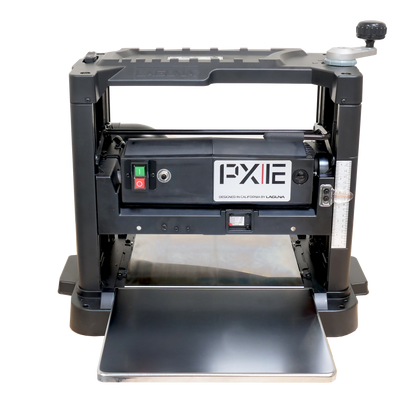

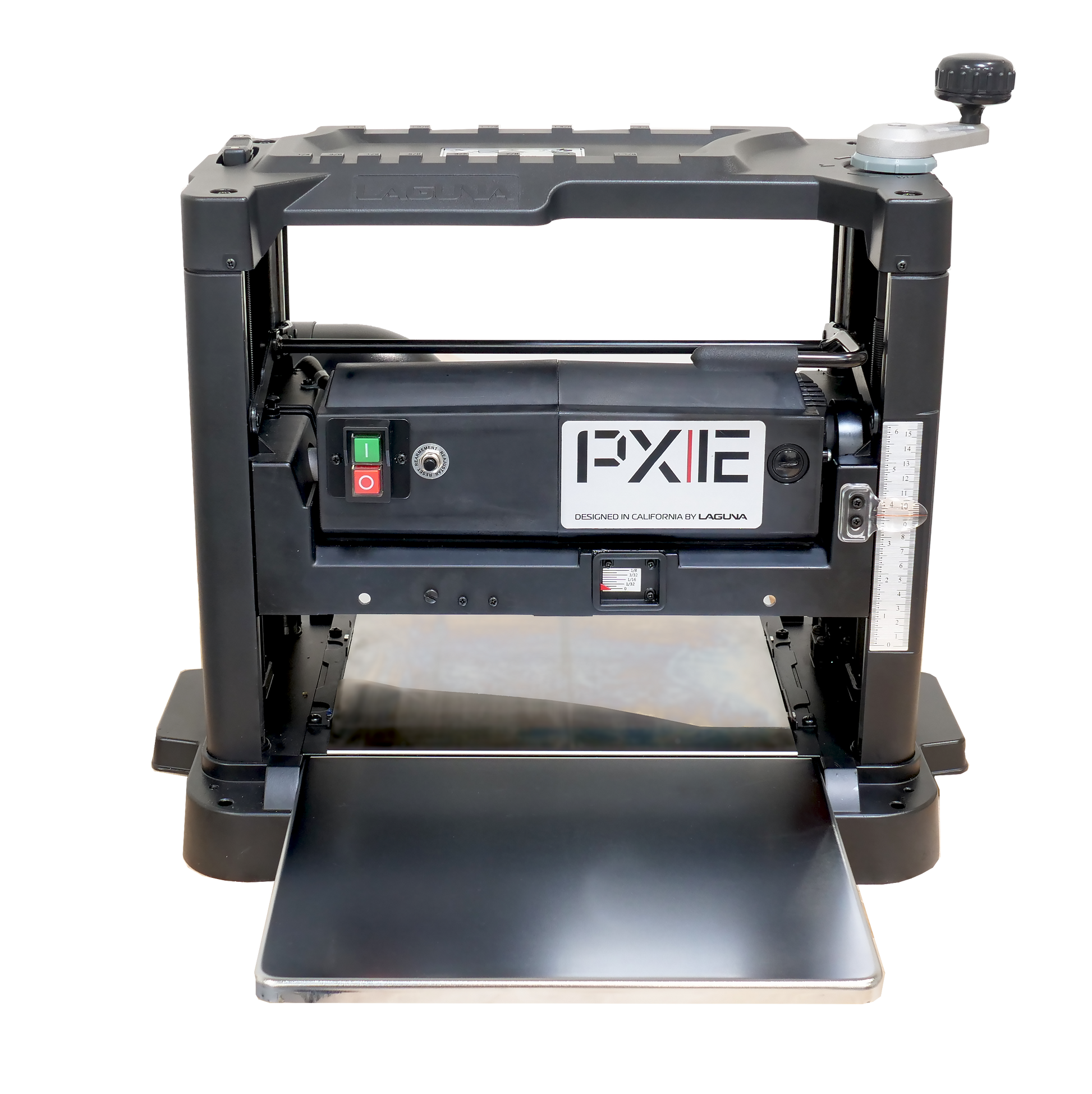

Brand new to the Laguna lineup is the all-new PX|12 benchtop planer featuring the new and improved QuadTec cutterhead. The Laguna PX|12 is loaded with premium features to make woodworking safer and more enjoyable.
Features:
QuadTec–The new and improved QuadTec delivers what woodworkers want most in a compact package by providing a quiet, long-lasting performance with its 26 carbide The carbide inserts last longer than traditional planer knives and are 4 sided to provide a fresh cutting edge when rotated. The QuadTec II is a game changer when planing tricky grain in hardwoods
2 HP Motor –The 2 HP motor provides plenty of power for this Best-in-Class benchtop planer. The motor spins the cutterhead at 10,000 RPM to provide the smoothest possible finish

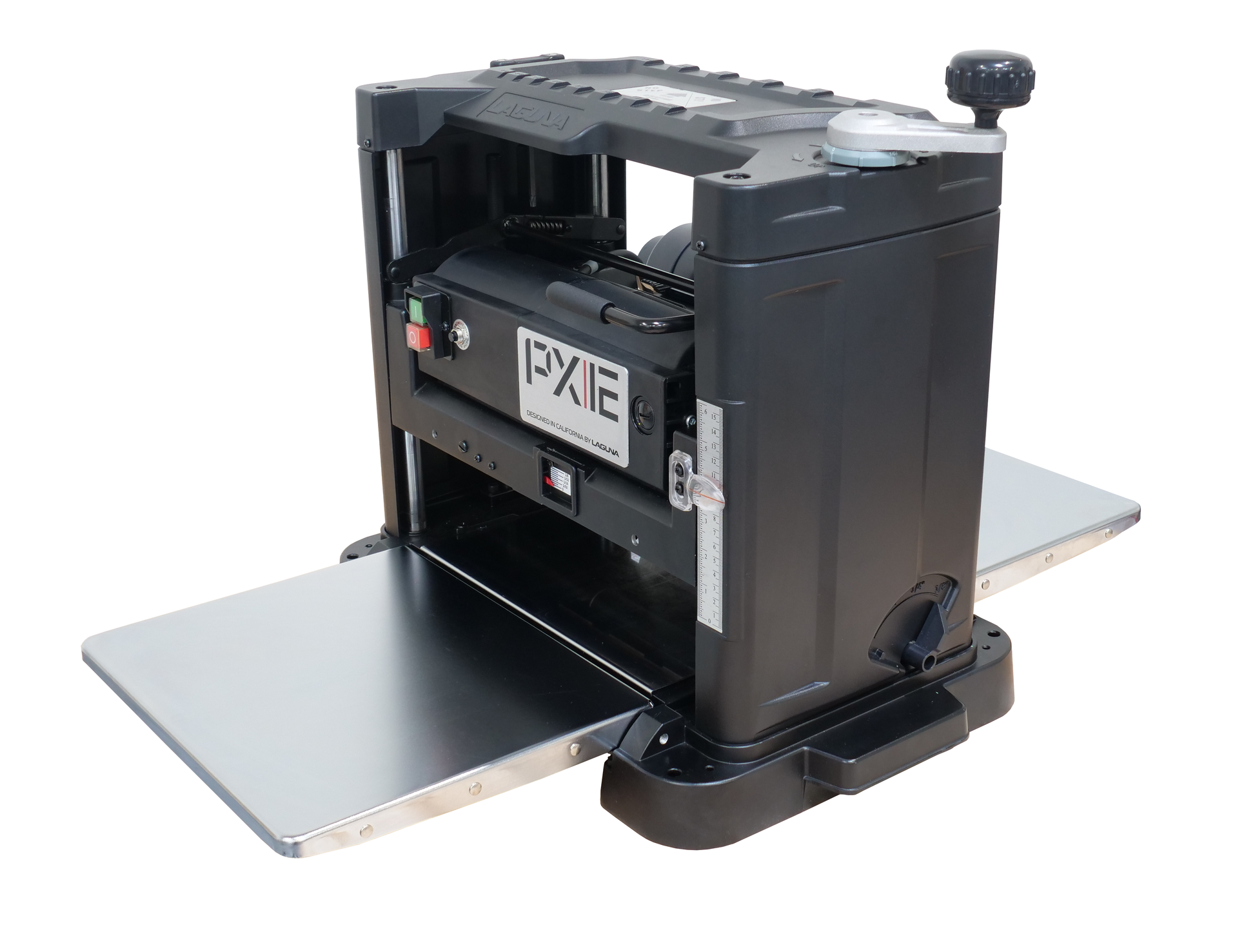

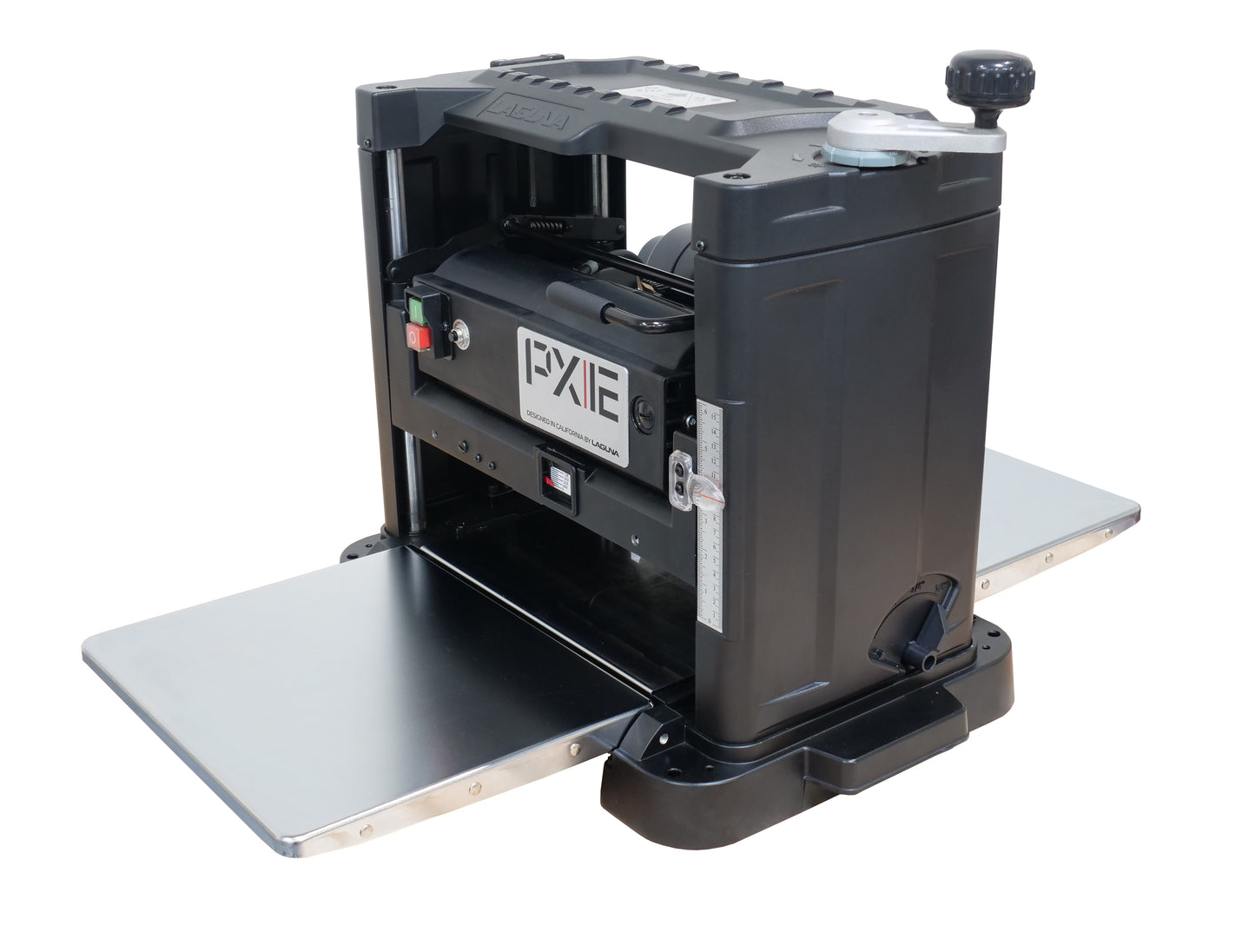

Flip-Down Extensions –The flip-down extensions make it easier to feed stock through the machine
Specifications
Motor:110v 2HP Universal 50/60hz/15 Amp.
Circuit Requirement:20 Amp.
CSA:Yes
Bed Size:12-½″ x 10-¼″
Pull-Out Extension:11-¼″ Flip Down Extensions x 2
Max. Depth Of Cut:3/32″
Max. Stock Thickness:6″
Min. Stock Thickness:5/32″
Min. Stock Length:10″
Max. Stock Width:12-½″
Feed Speed:26 FPM

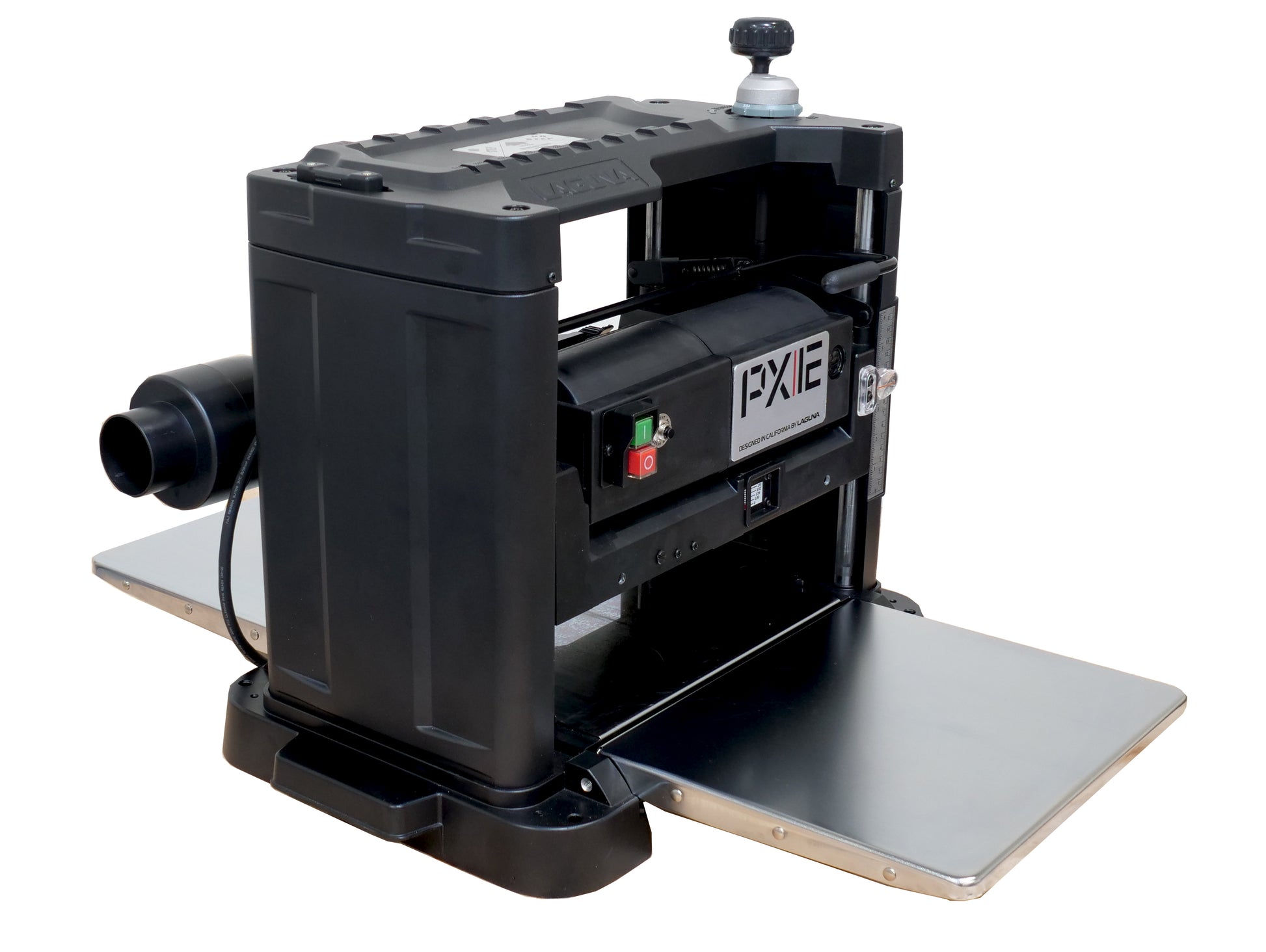

Dust Port Diameter:4″ Step Down To 2-½″
Cutterhead RPM:10000
Cutterhead Diameter:1-⅞″
Insert Knives:26 x 4-Sided Carbide, 4-Row
Plug (NEMA 5-15P):Yes
Noise (1m away):92dB

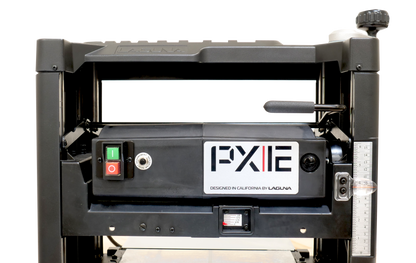

Thickness Readout:Hair Line Readout
Dimensions Set Up Approx.24″ x 34″
Dimensions Shipping:25″ x 17″ x 21-½″
Net/Ship Weight:65/72 Lbs.

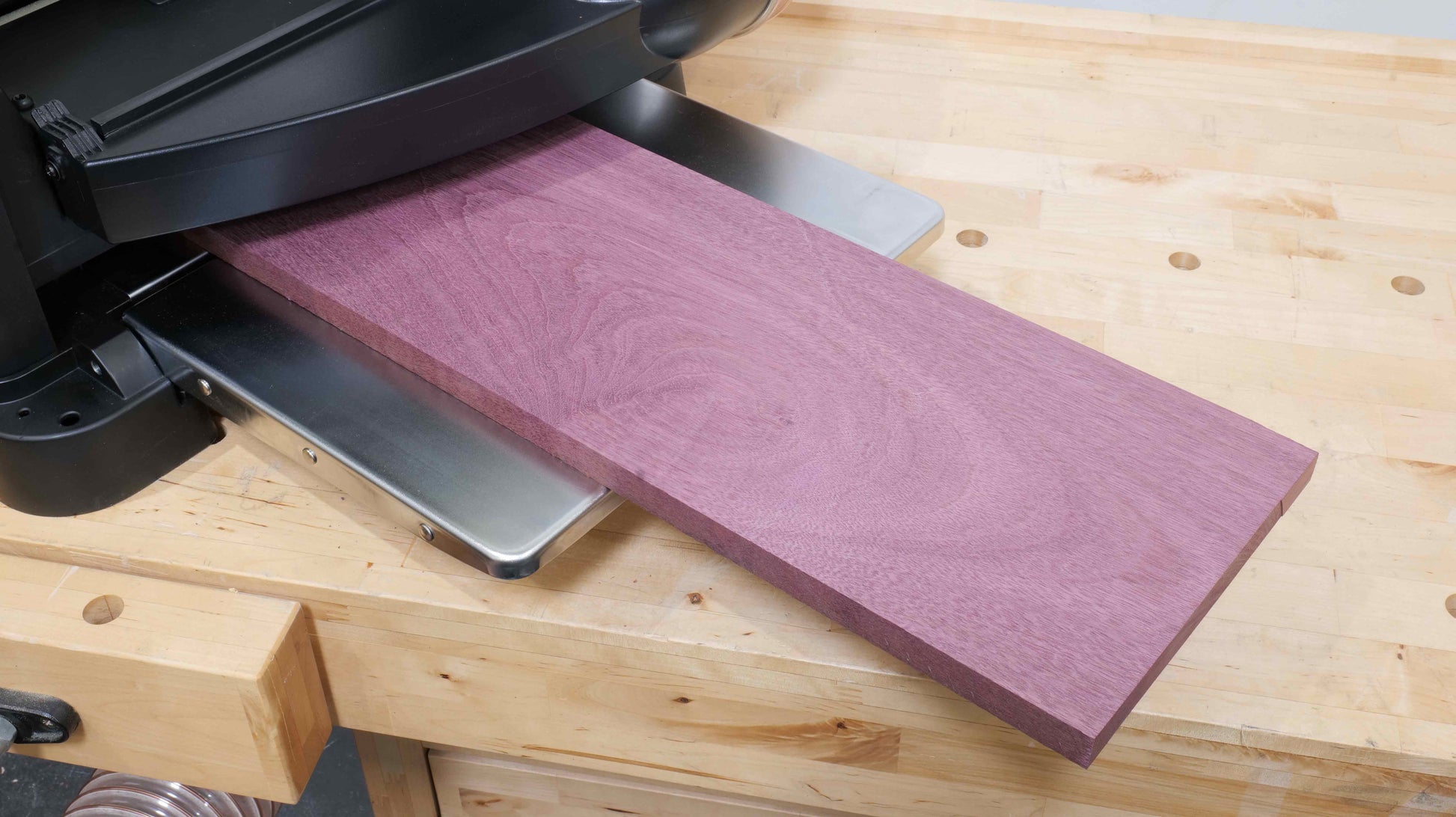

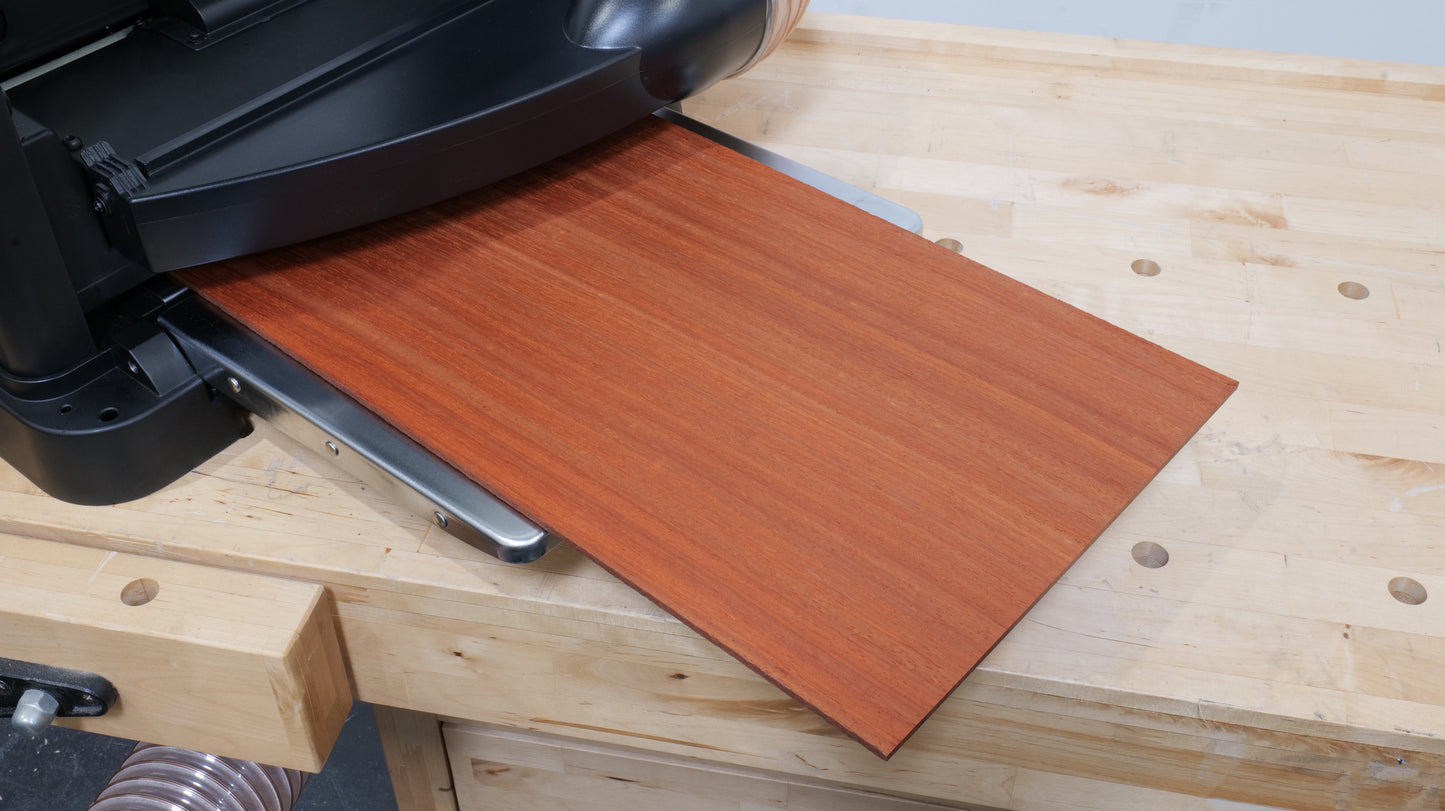

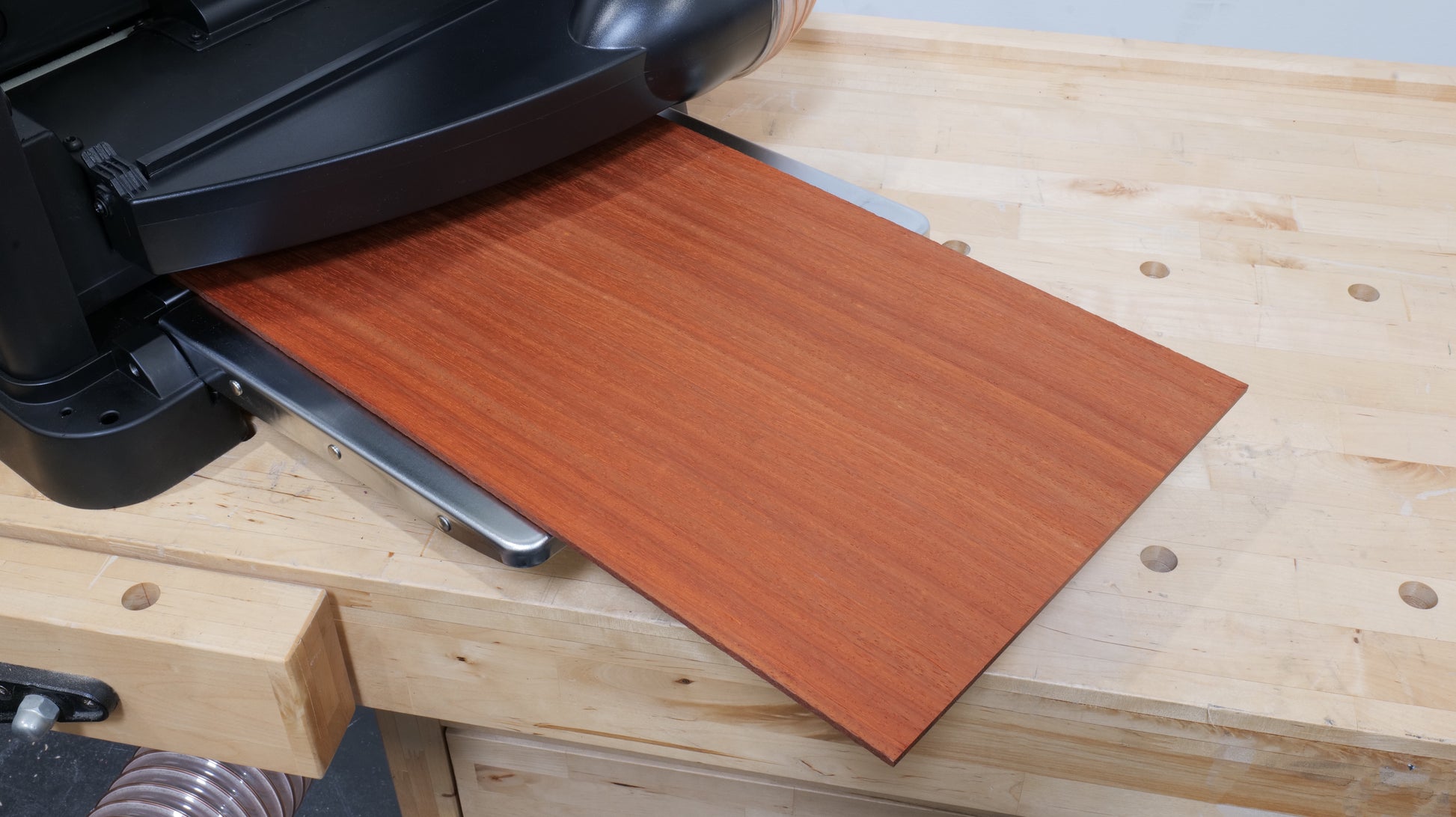

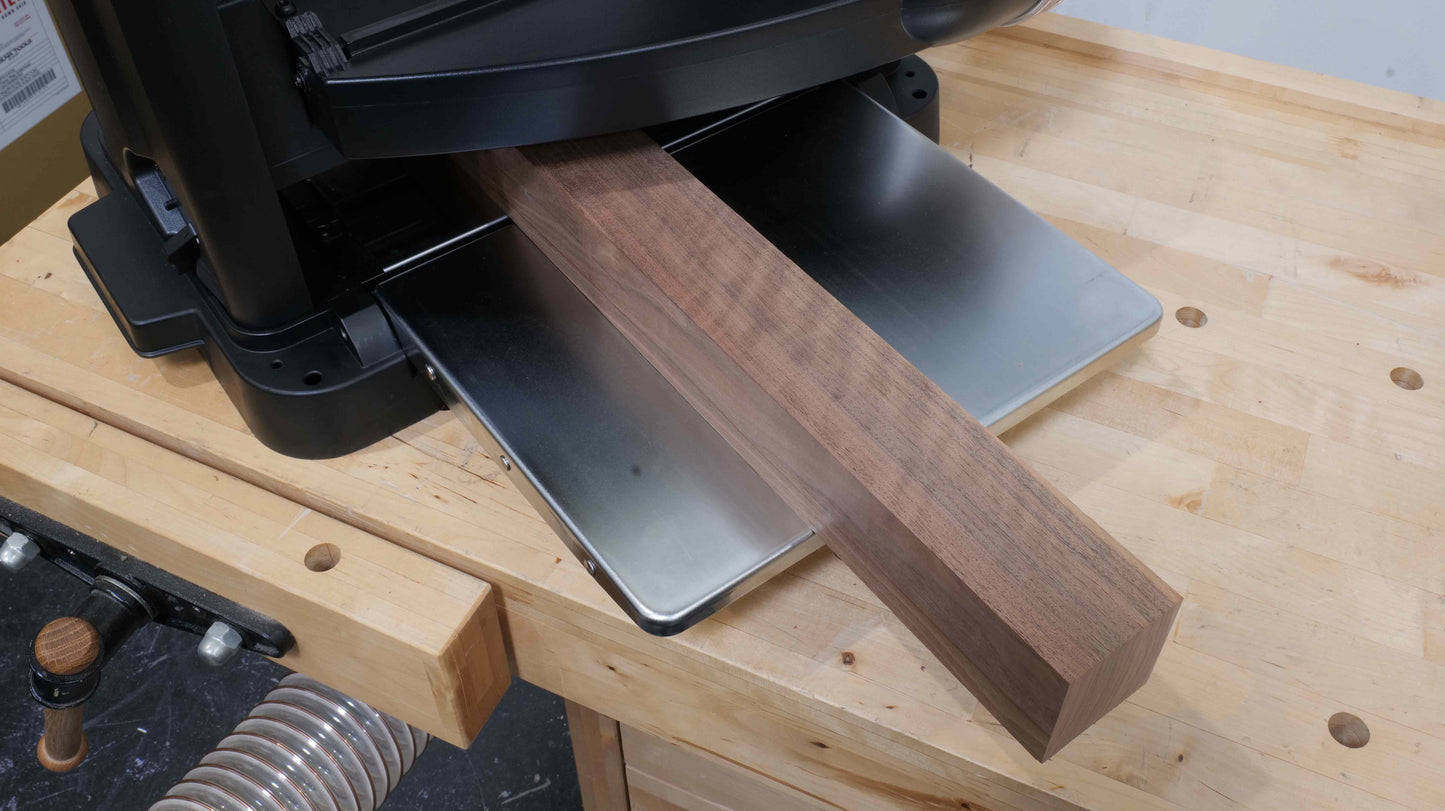

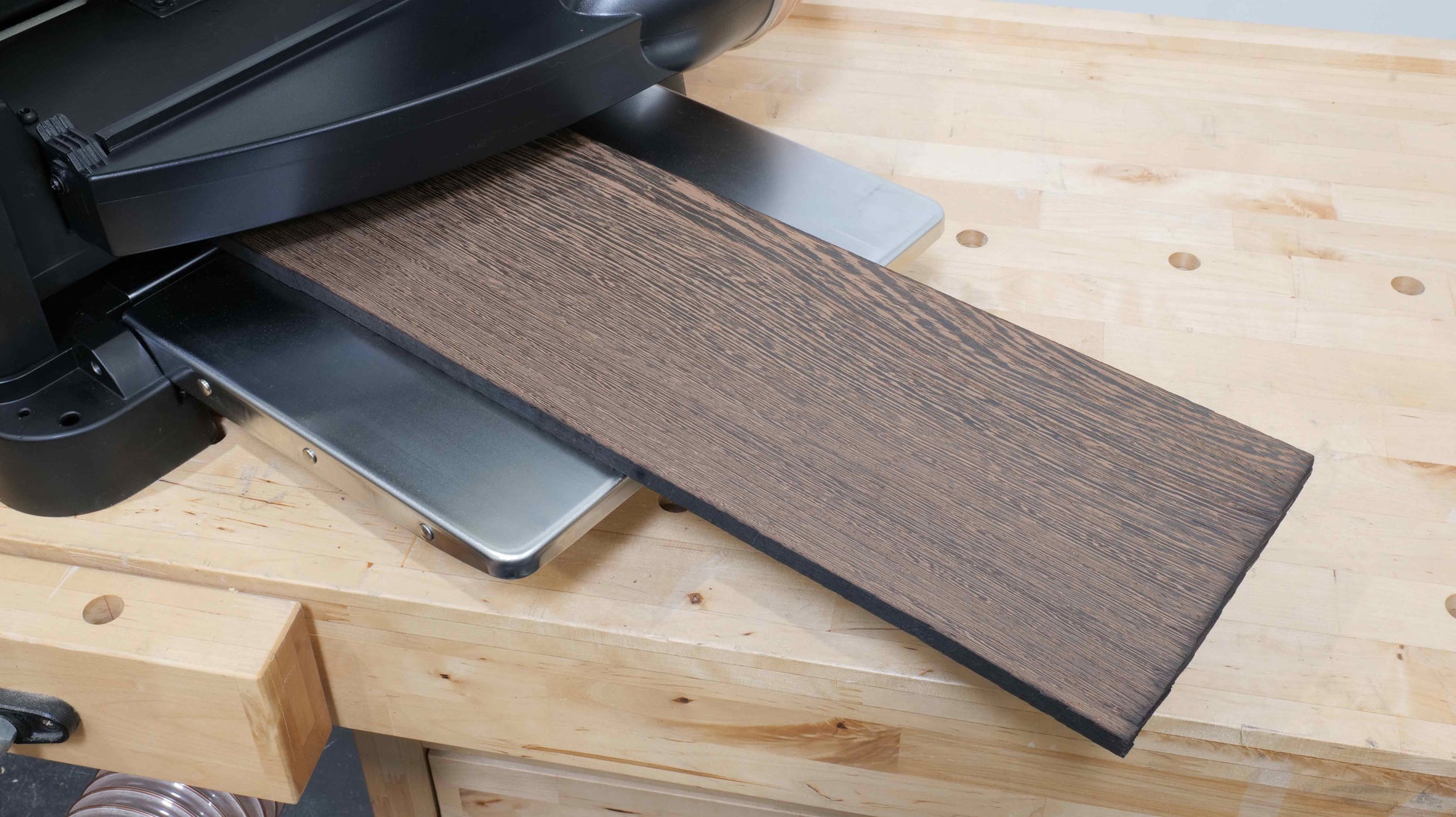

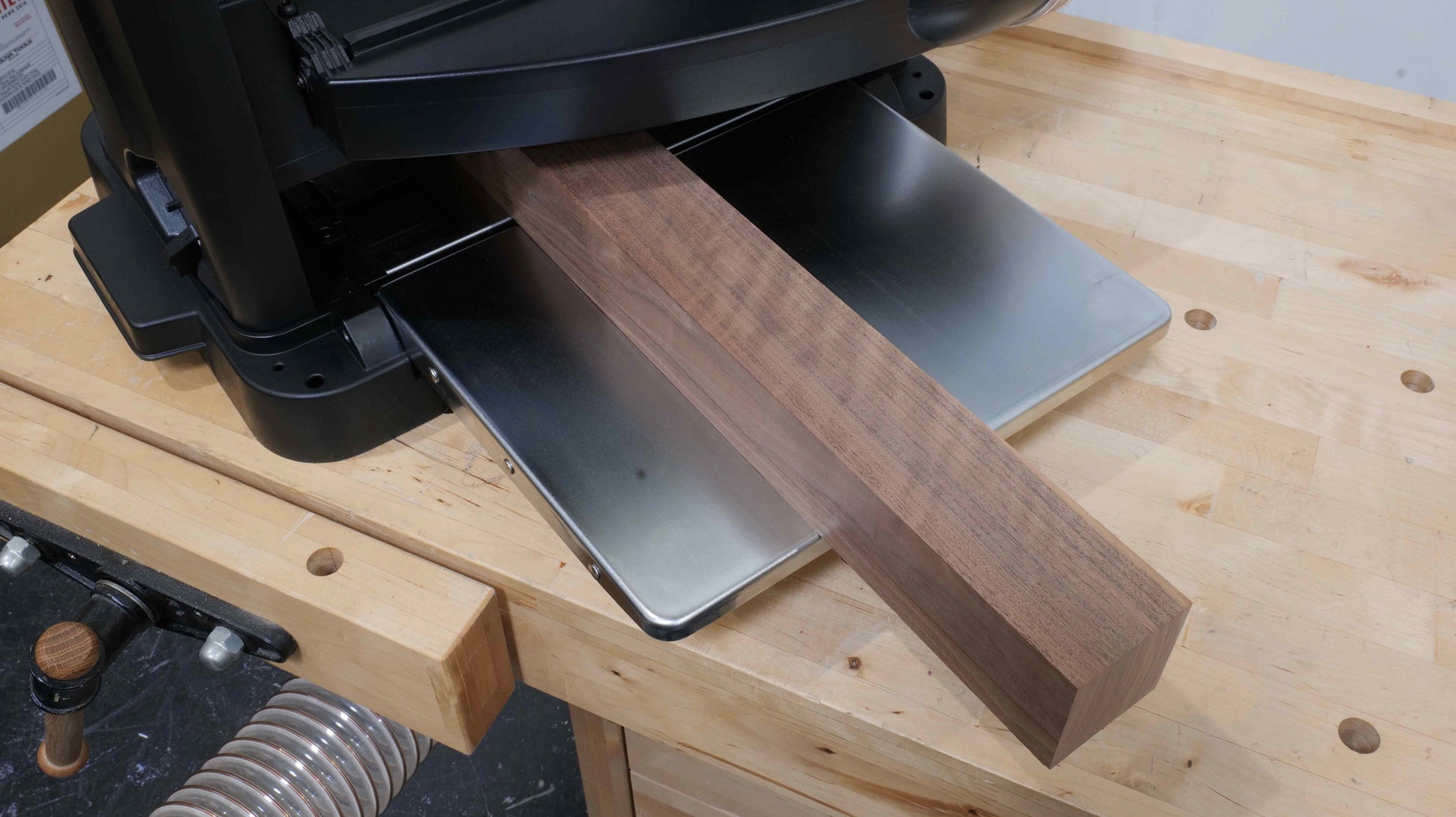

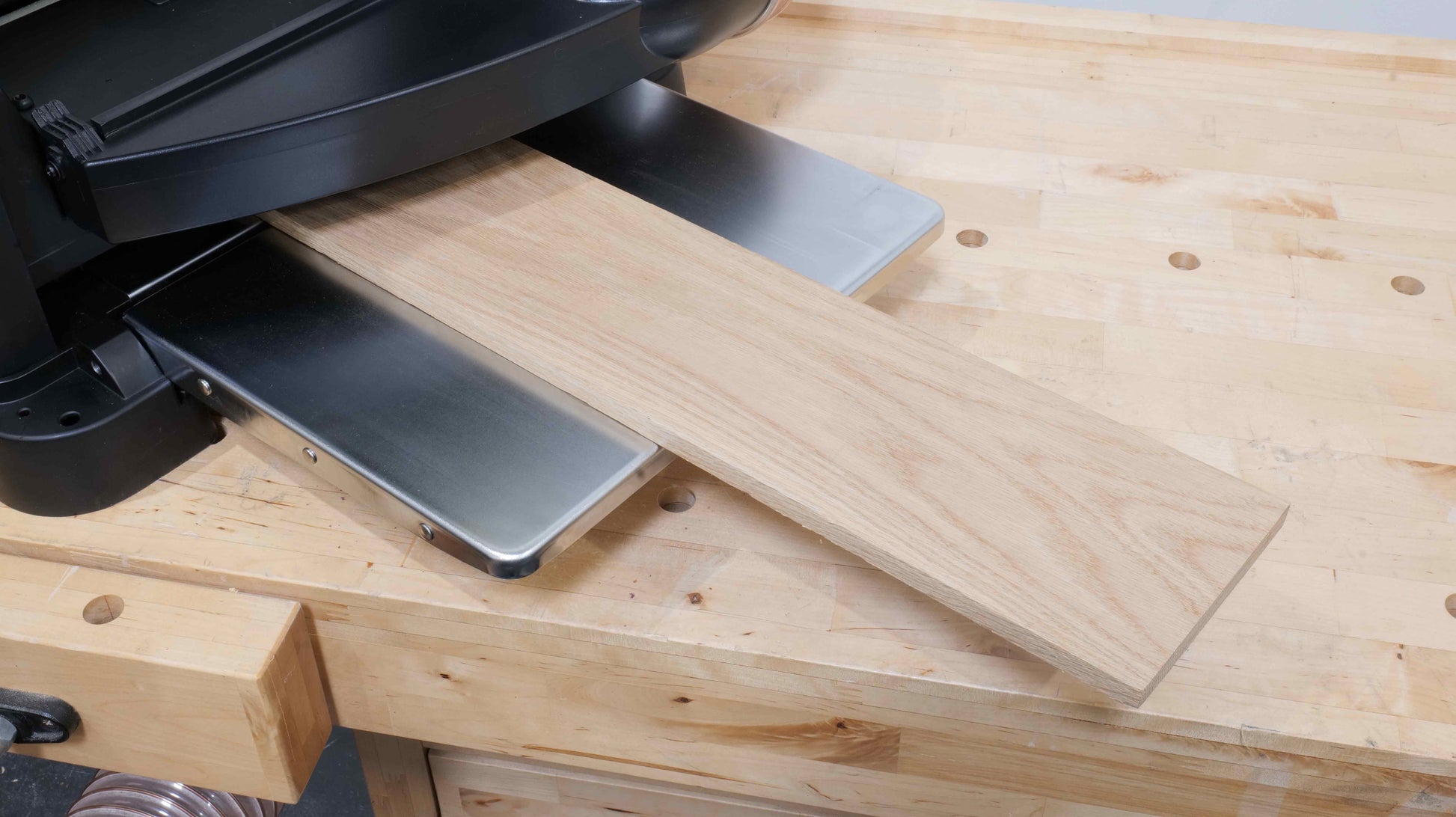

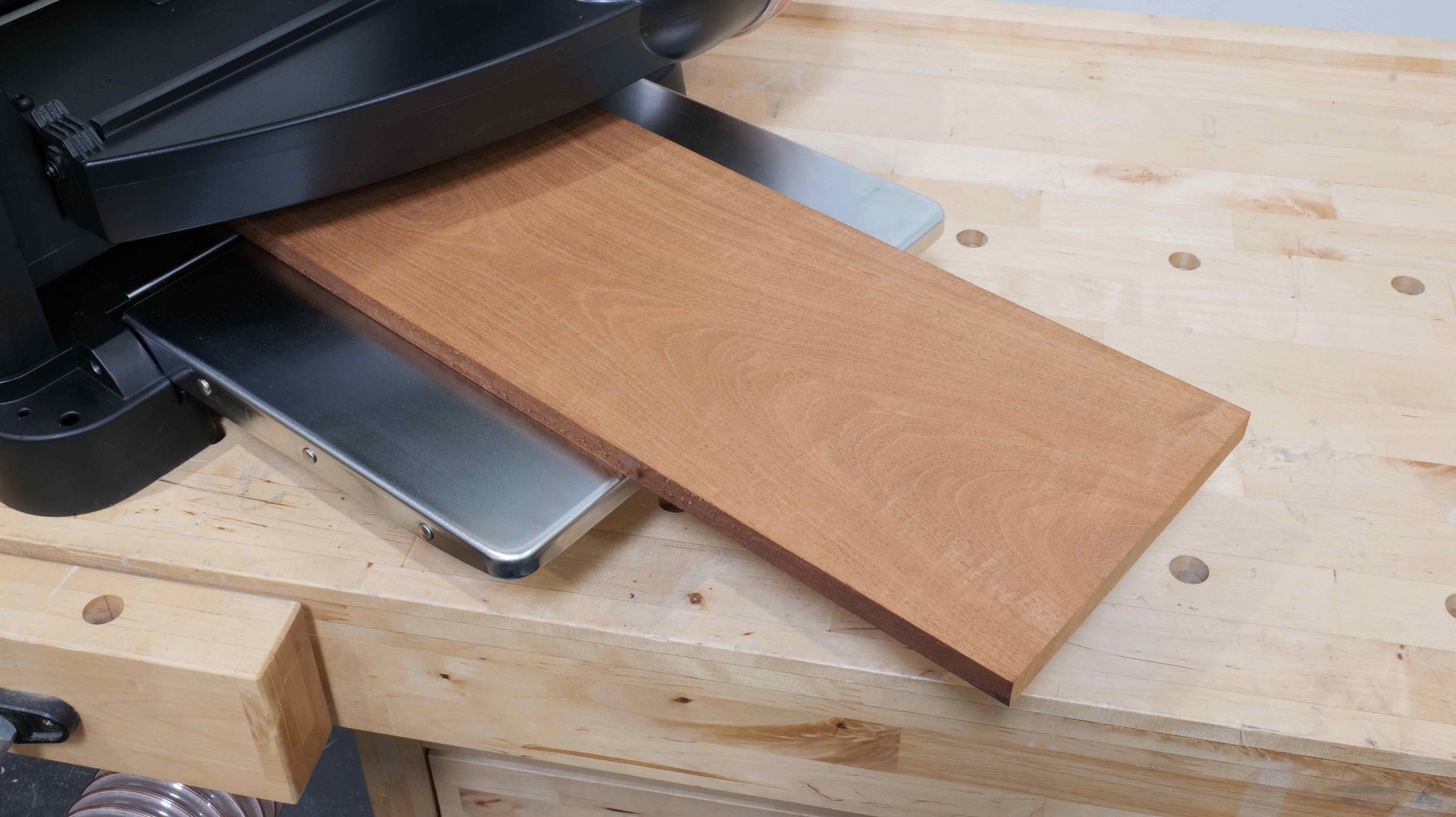

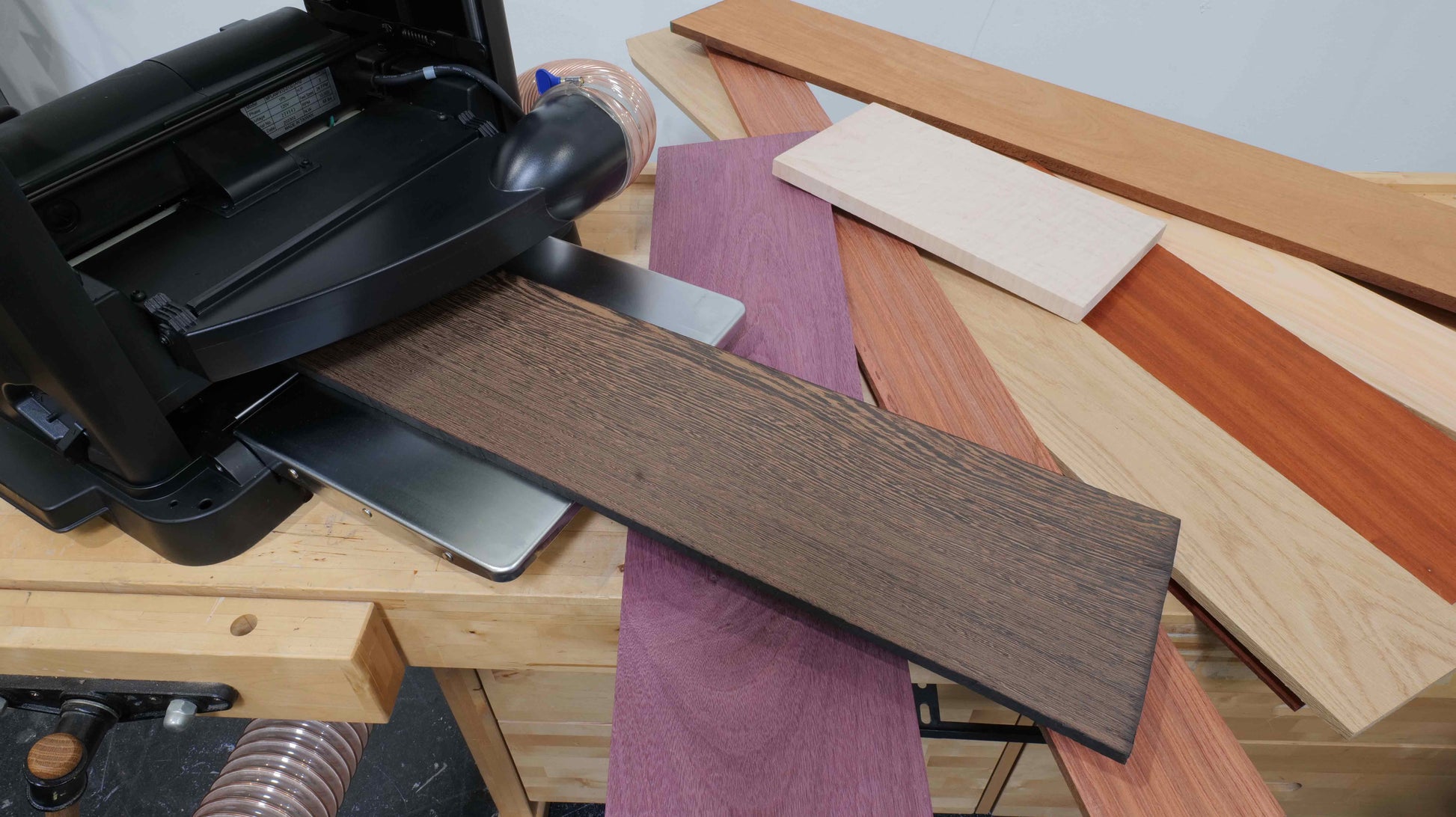

New and ImprovedQuadTecIs Designed To Offer An Amazing Finish On The Most Difficult Species Of Wood
The inserts are solid carbide (15 x 15 x 2.5mm) so they can be rotated 4x to extend the already longer life Compared to HSS. The inserts are mounted on a straight line requiring less machining thus saving cost. TheQuadTecis also quieter than conventional straight knives. Each insert is indexed requiring no jig when rotating or replacing.
