Supermax 25X2 Double Drum Sander

Supermax 25X2 Double Drum Sander

$3,959.10
$4,399.00 $3,959.10
Sale Sold out
Shipping calculated at checkout.

SKU: nan

Laguna

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

Sand two grits in a single pass with a 25×2 Double Drum Sander. Featuring INTELLISAND® Technology and a 5 HP motor, you can significantly reduce the amount of time you spend sanding.

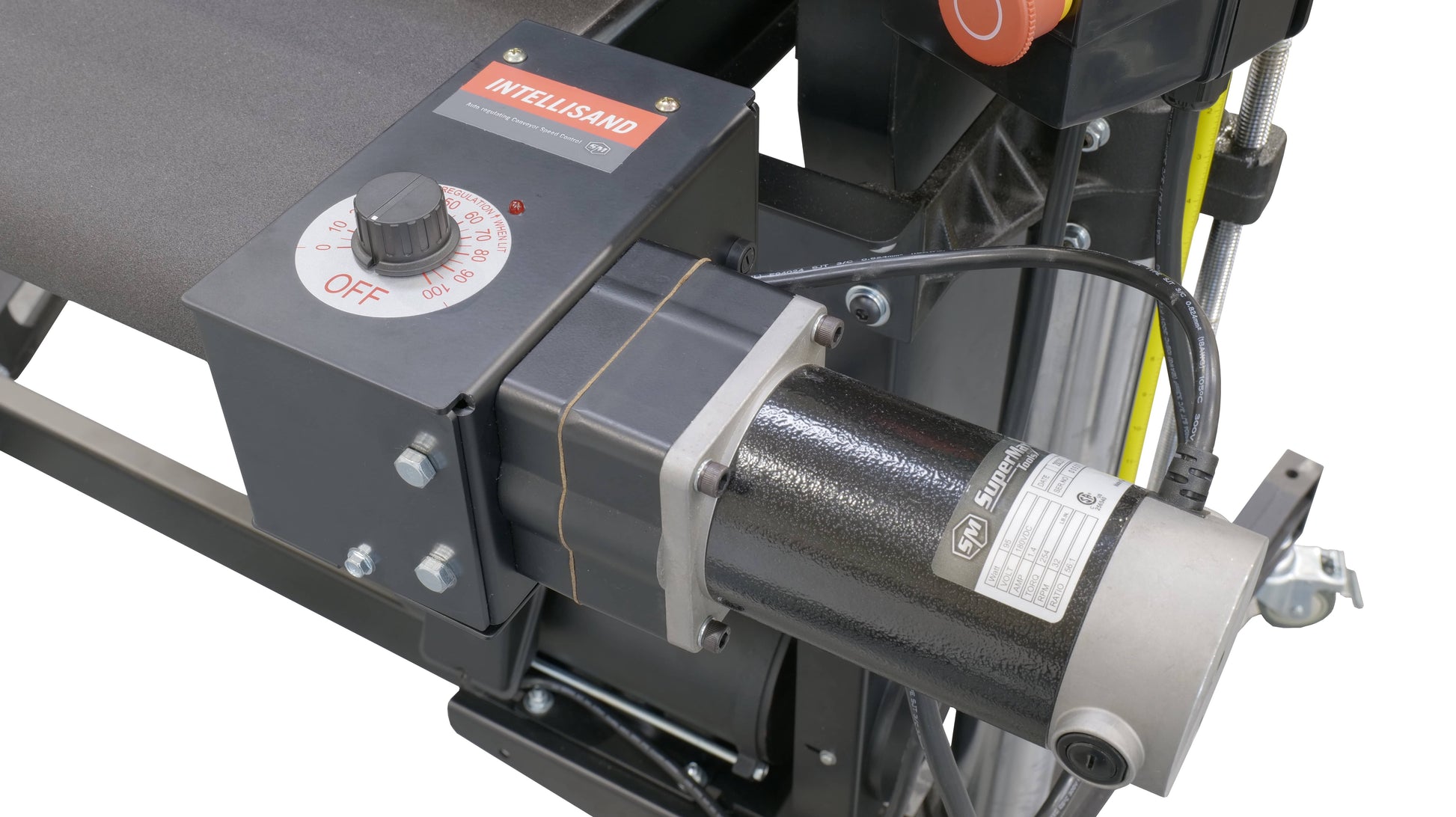

INTELLISAND® Technology: Automatically adjusts conveyor speed based on load
– Prevents gouging, damaging or burning stock
– Provides consistent finish even with varying grain pattern and density
– Greatly increases abrasive planing and dimensioning

  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010 across the width of the sander.
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter and thinner.

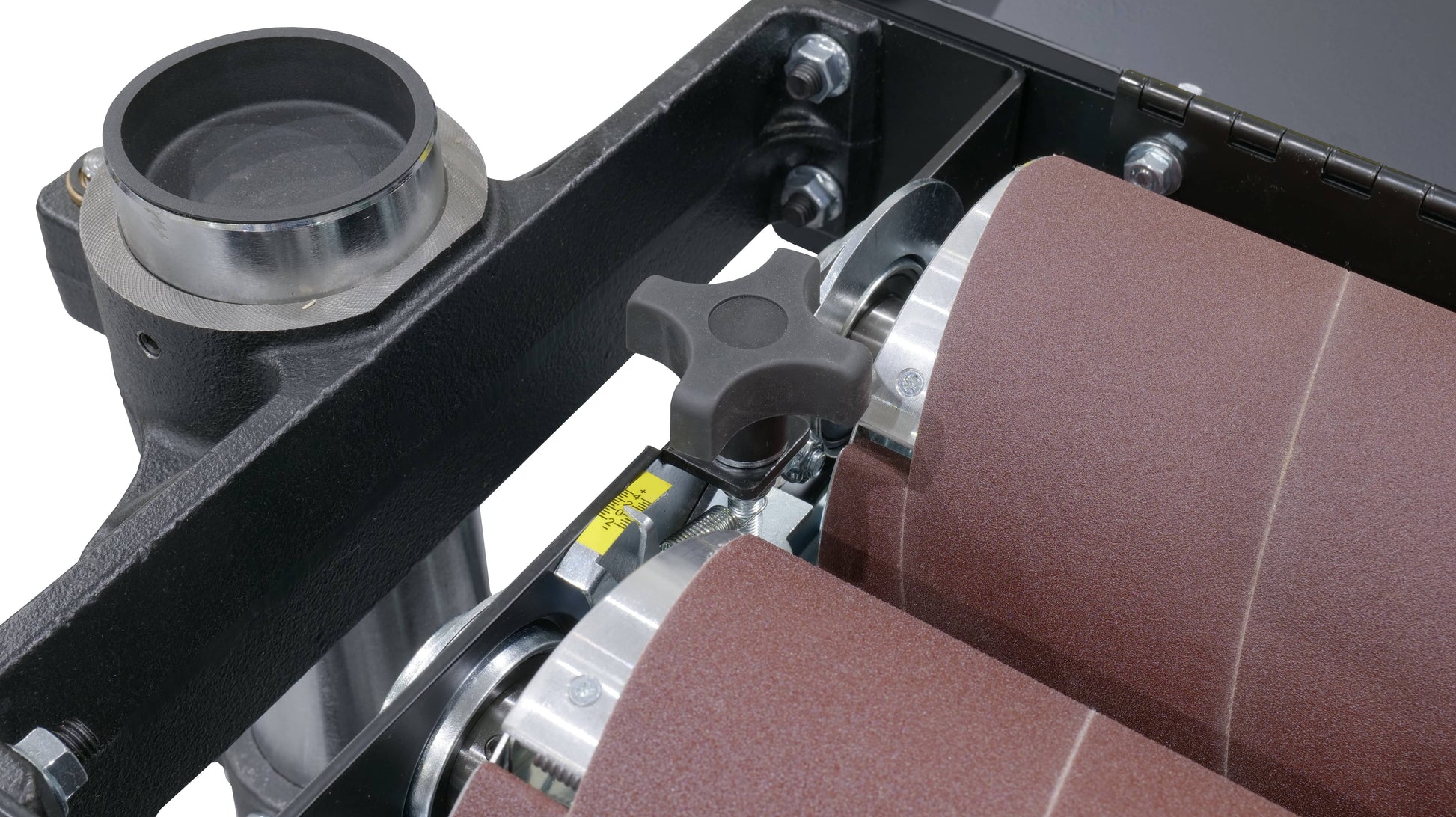

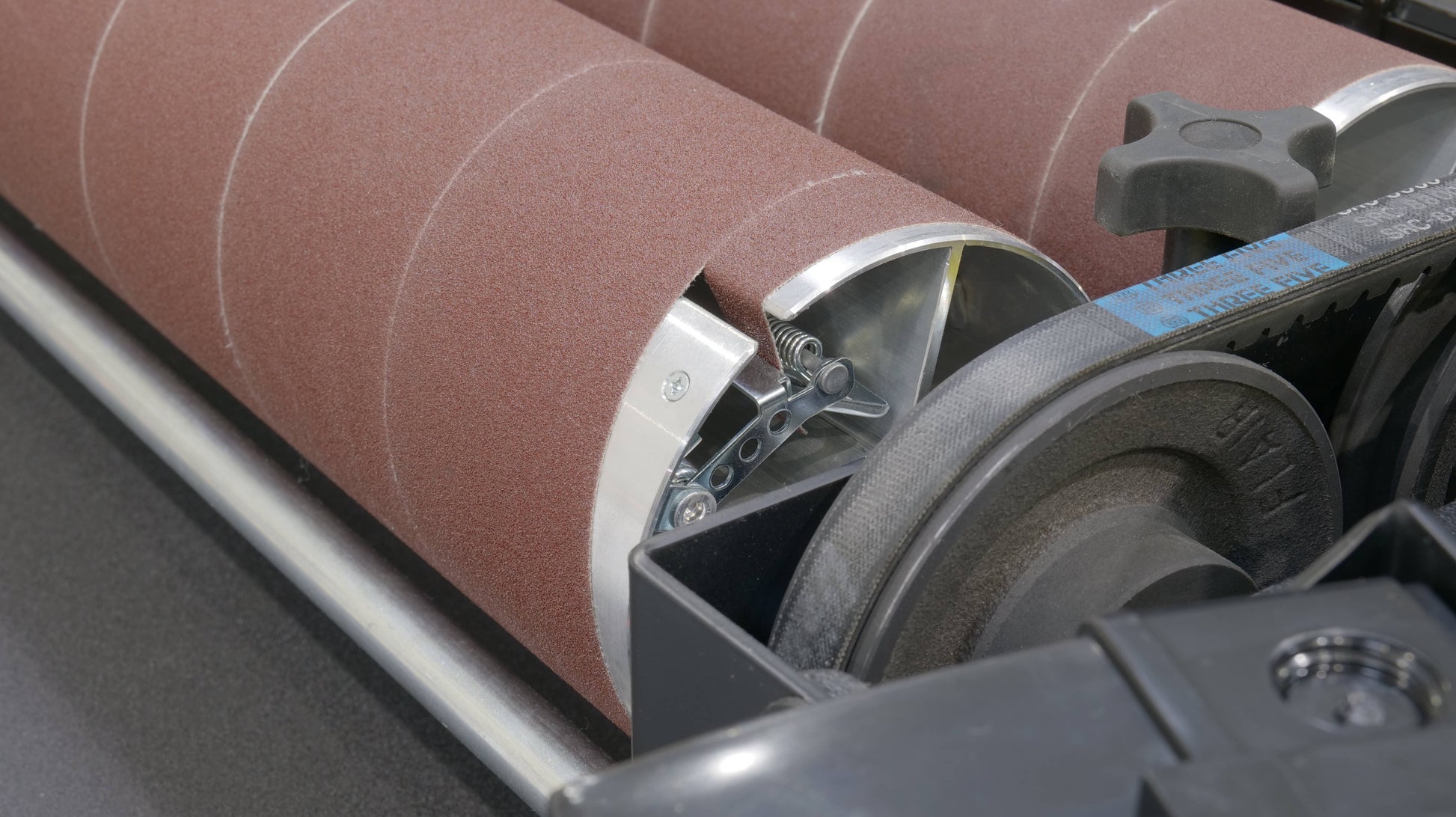

  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loosening, and overlapping.
  • Self-cooling drum prevents overheating and extends abrasive life.

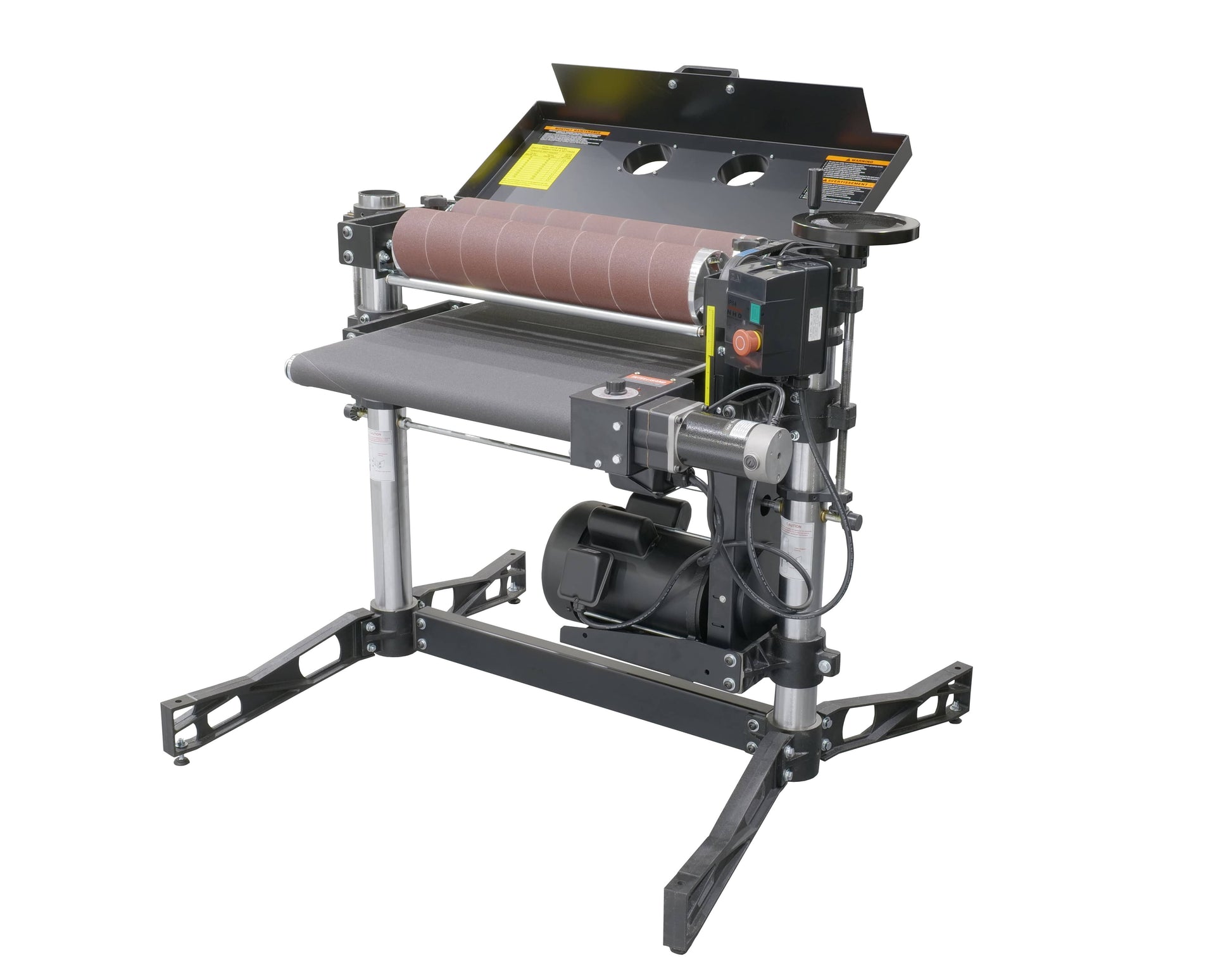

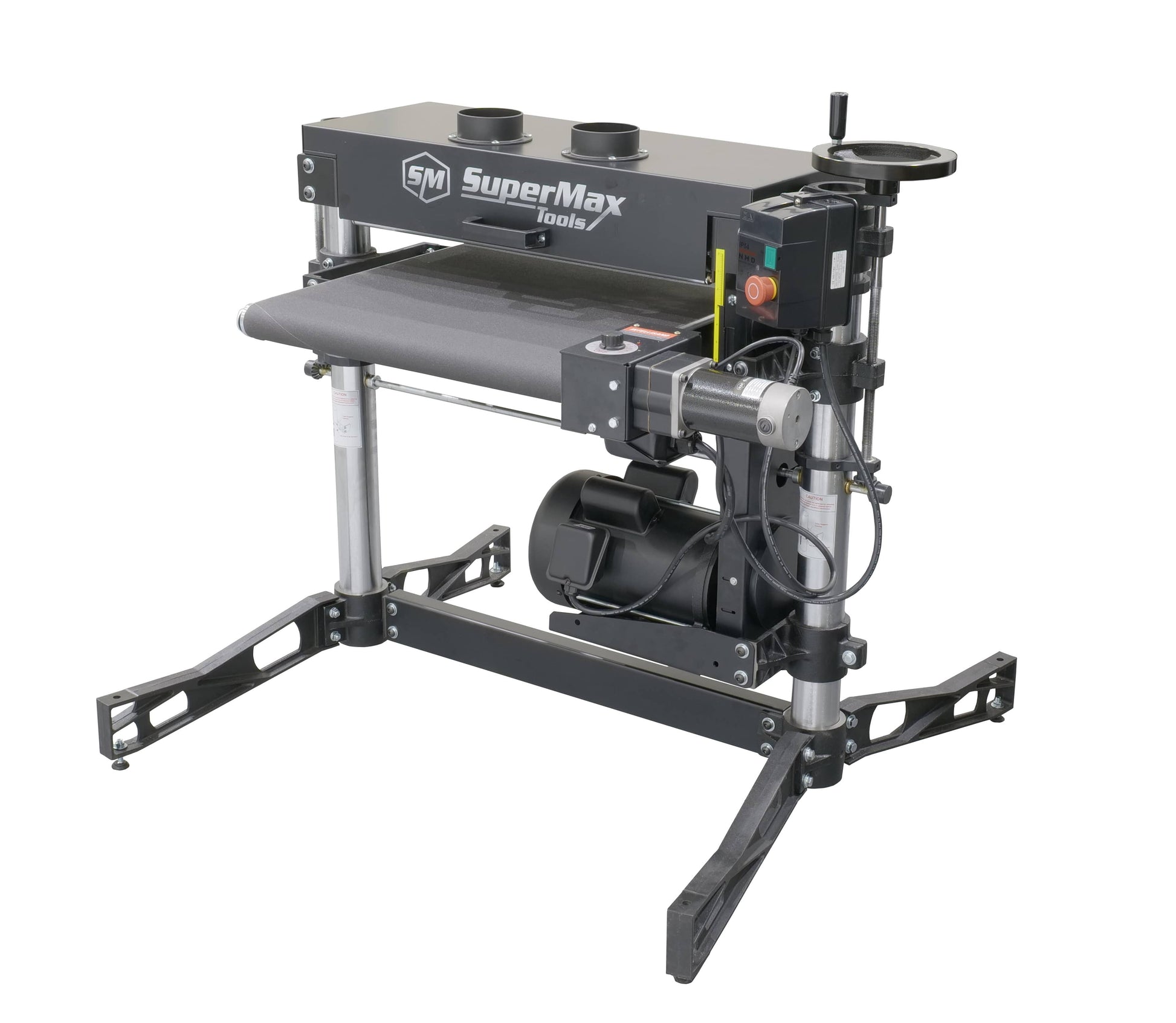

The 25×2 Double Drum Sander features INTELLISAND® Technology that auto-regulates the conveyor based on load, preventing burning, gouging, and damaging stock. The machine comes standard on an open-column base, and features a 5 HP motor.

Sanding Capacity

  • Maximum Width (in): 25″
  • Minimum Length (in): 3-½″
  • Maximum Thickness (in): 6″
  • Minimum Thickness (in): 1/32″

Specifications

  • Dimensions (H x W x D): 43″ x 46″ x 31″

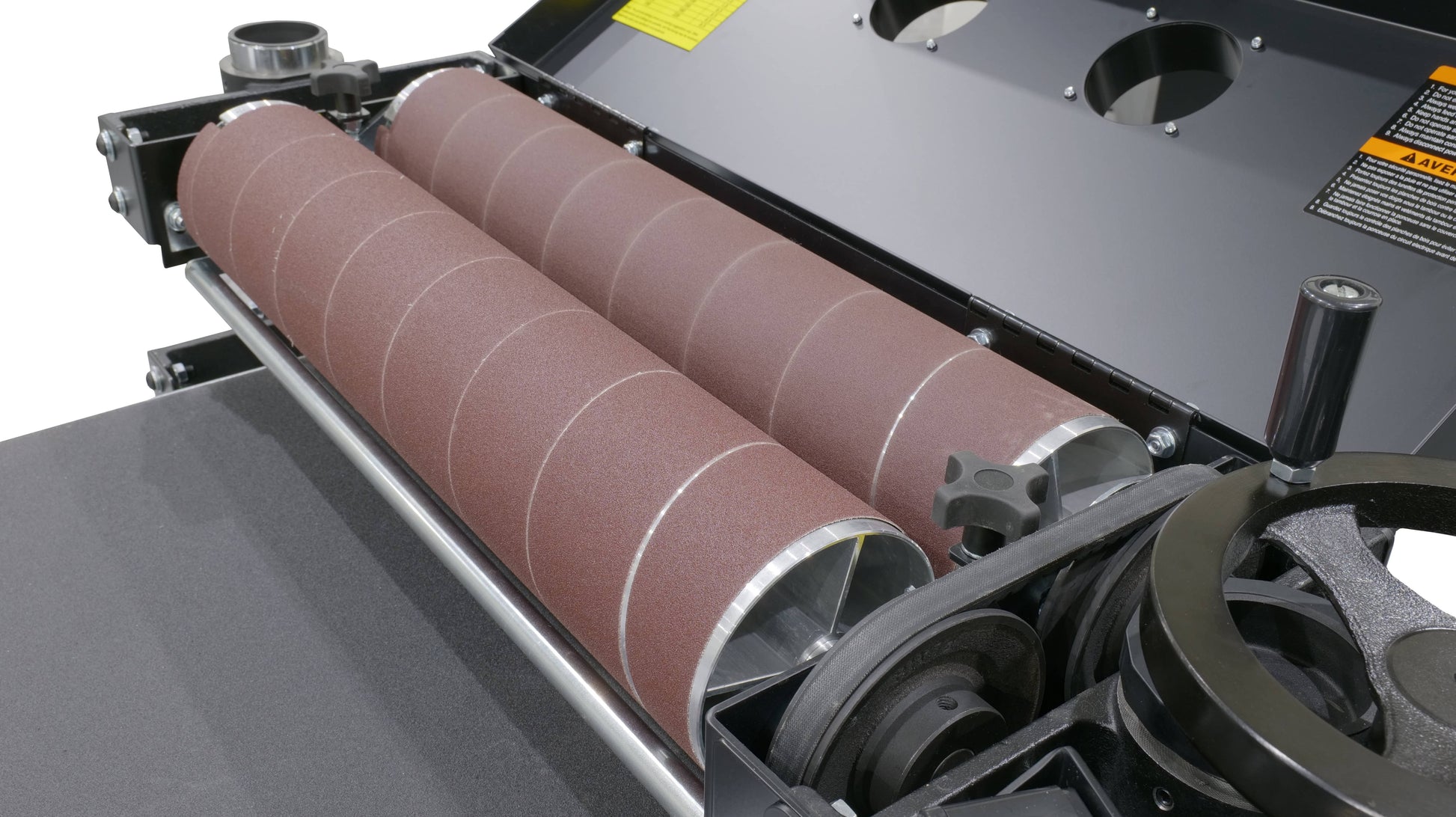

  • Drum (Extruded Aluminum): 5″ x 25″
  • Drum Speed: 1740 RPM

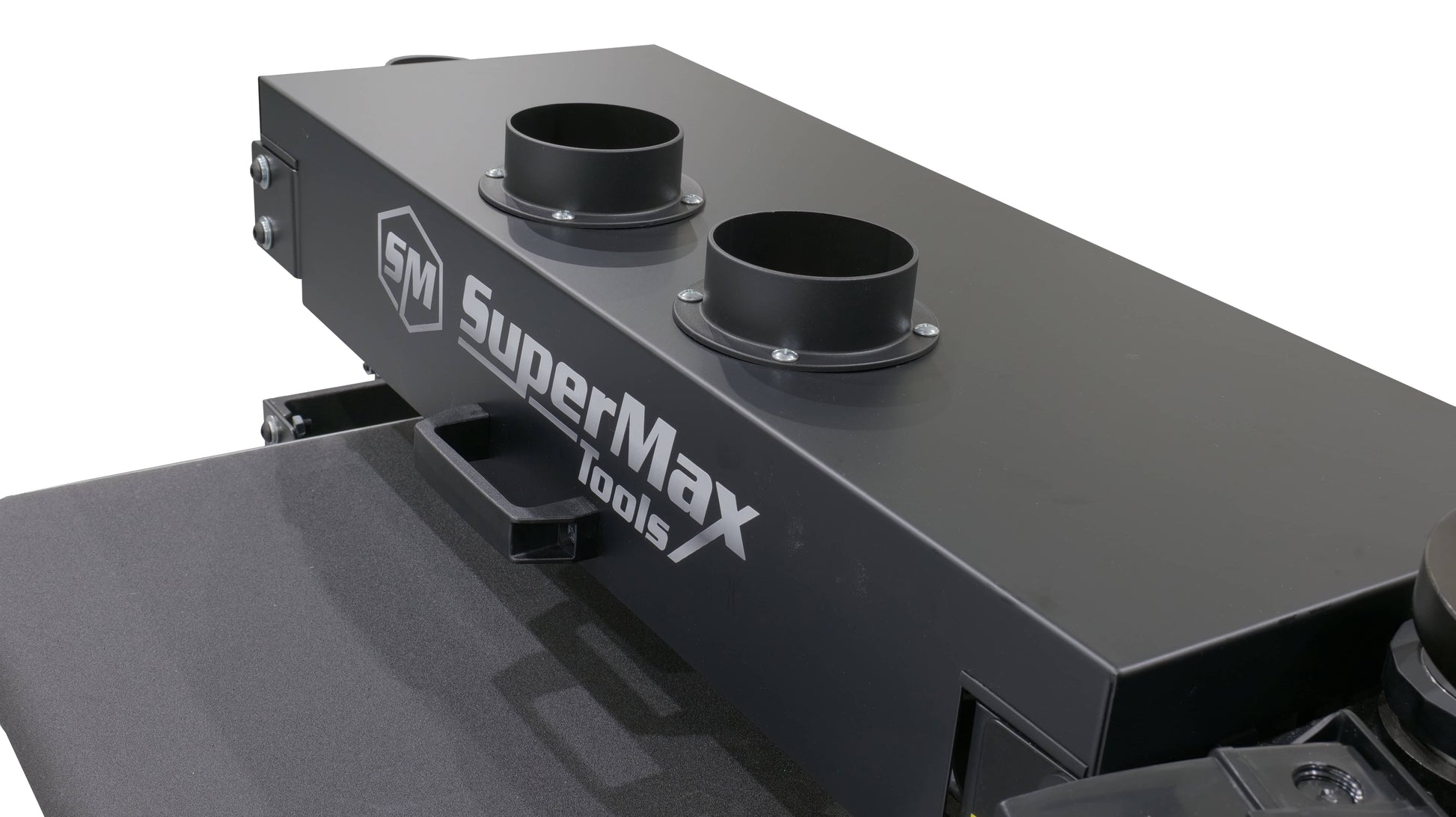

  • Dust Hood (Steel Hood, Hinged At Back): (2) 4″ Vacuum Ports, Min CFM: 1000 Recommended
  • Ball Bearing (1″): 4 sealed and permanently lubricated
  • Conveyor Motor: 100 in. -lb. torque, direct drive D.C. motor, ranged variable, 0-15 FPM

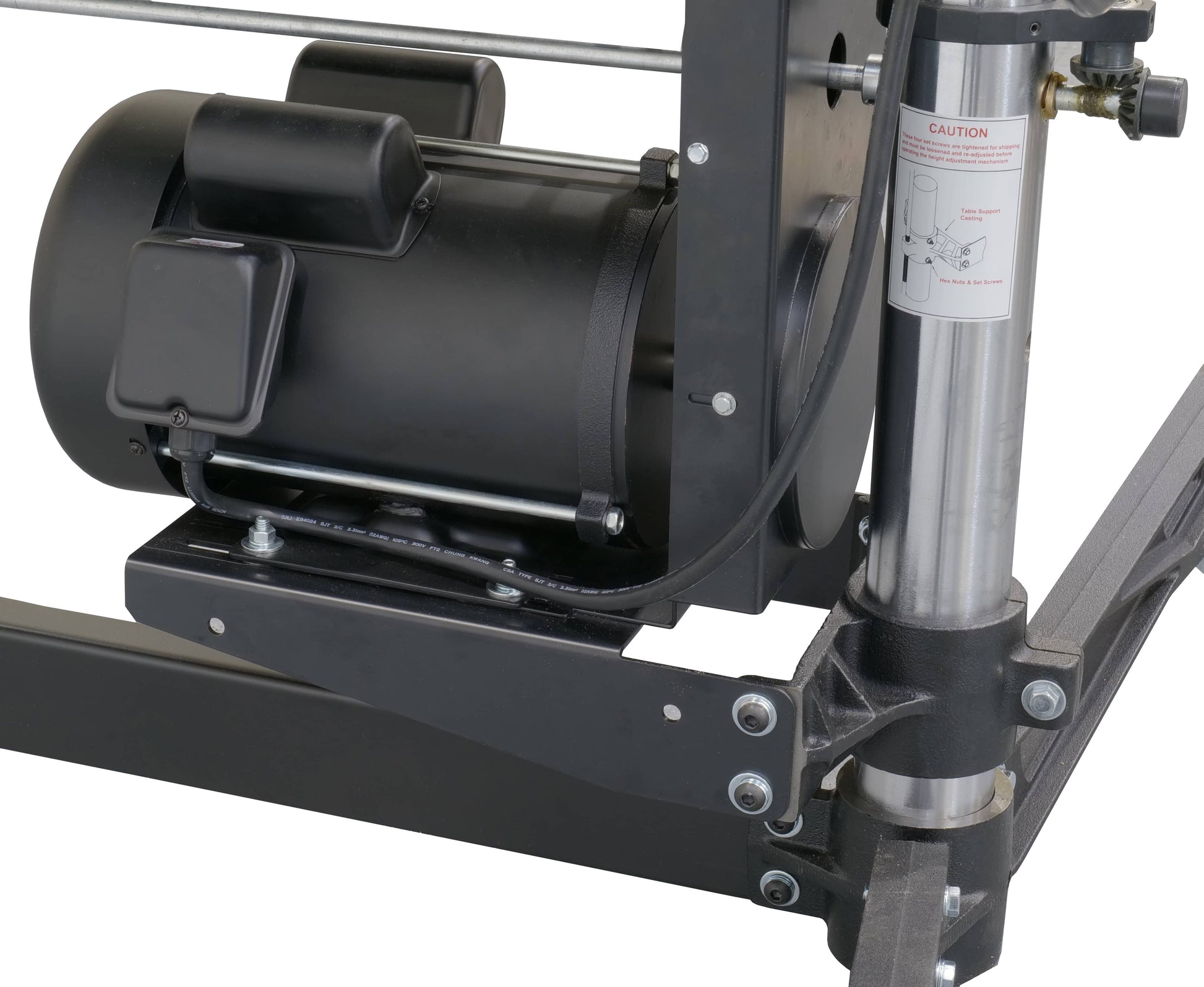

  • Drive Motor (TEFC): 5 HP, 1 Phase
  • Power Requirements: 208-230V, 60Hz; 1 Phase, 30 Amp Service; 3 Phase 20 Amp Service
  • Shipping Weight: 475 lbs
  • Shipping Dimensions (L x W x H): 50″ x 44-½″ x 44-½″
  • Casters Included: No
  • Cord & Plug Included: No

 More Features

  • INTELLISAND®Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented Abrasive Attachment System effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum
    • Metal, not plastic, is formed to maximize air flow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
  • Mobile base allows for stand and machine to be to moved easily
