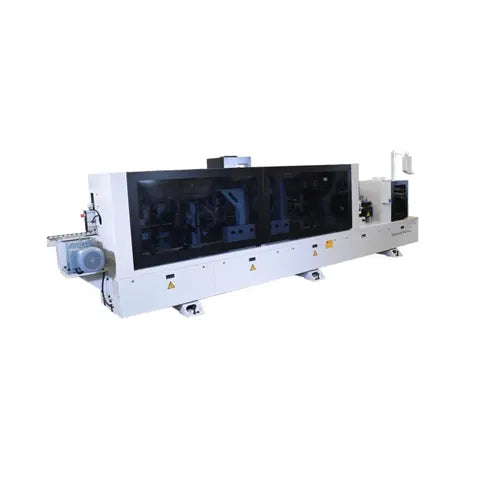

SmartEdge Elite Edgebander

SHIPPING DEPOSIT REQUIRED: A $200.00 deposit is charged at checkout. The final actual freight cost will be calculated and billed (less your deposit) prior to shipment.

Engineered for small to mid-size production environments, the SmartEdge Elite combines a powerful compact footprint with industrial-grade capability. Its integrated pre-mill station ensures every panel enters the machine with a perfectly prepared edge, eliminating imperfections before banding even begins. The Elite also includes a corner rounding unit, giving your finished panels smooth, professional corners without additional handwork or secondary processing.

• Centralized Controls: Touchscreen
• Feed Speed: 52′-78′ / Min
• Edgebanding Thickness: .5mm-3mm
• Panel Thickness: .4″-1.96″ (10mm-50mm)
• Pre-Mill & Corner Rounding

• Pressure Rollers: Yes
• Panel Feed: Yes
• Minimum Panel Length: 5.9″
• Minimum Panel Width: 1-9/16″
• Dust Collection Port: 4-3/4″ x 3
• End Trim: Yes
• Edge Trim: Yes
• Buffing: Yes
• Scraping: Yes
• Pull-Out Support: Yes
• Pre-Mill: Yes
• Corner Rounding: Yes
• Centralized Controls: Touchscreen
• Feed Speed: 52′-78′ / Min
• Edgebanding Thickness: .5mm-3mm
• Panel Thickness: .4″-1.96″ (10mm-50mm)
• CFM Requirement: 1500 CFM
• Compressed Air Requirement: 12CFM @ 90PSI
• Minimum Panel Size: 2.3″ x 11.8″ , 5.9″ x 5.9″ (60 x 300mm , 150 x 150mm)

• Minimum Panel Length: 5.9″
• Minimum Panel Width: 1-9/16″
• Panel Thickness: 10-60mm
• Minimum Panel Size: 2.3″ x 11.8″ , 5.9″ x 5.9″ (60 x 300mm , 150 x 150mm)

Ensure seamless setup with our expert on-site training and installation services, designed to maximize efficiency and empower your team with hands-on support.
