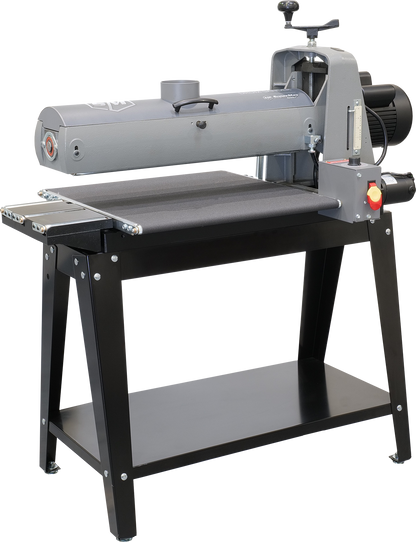

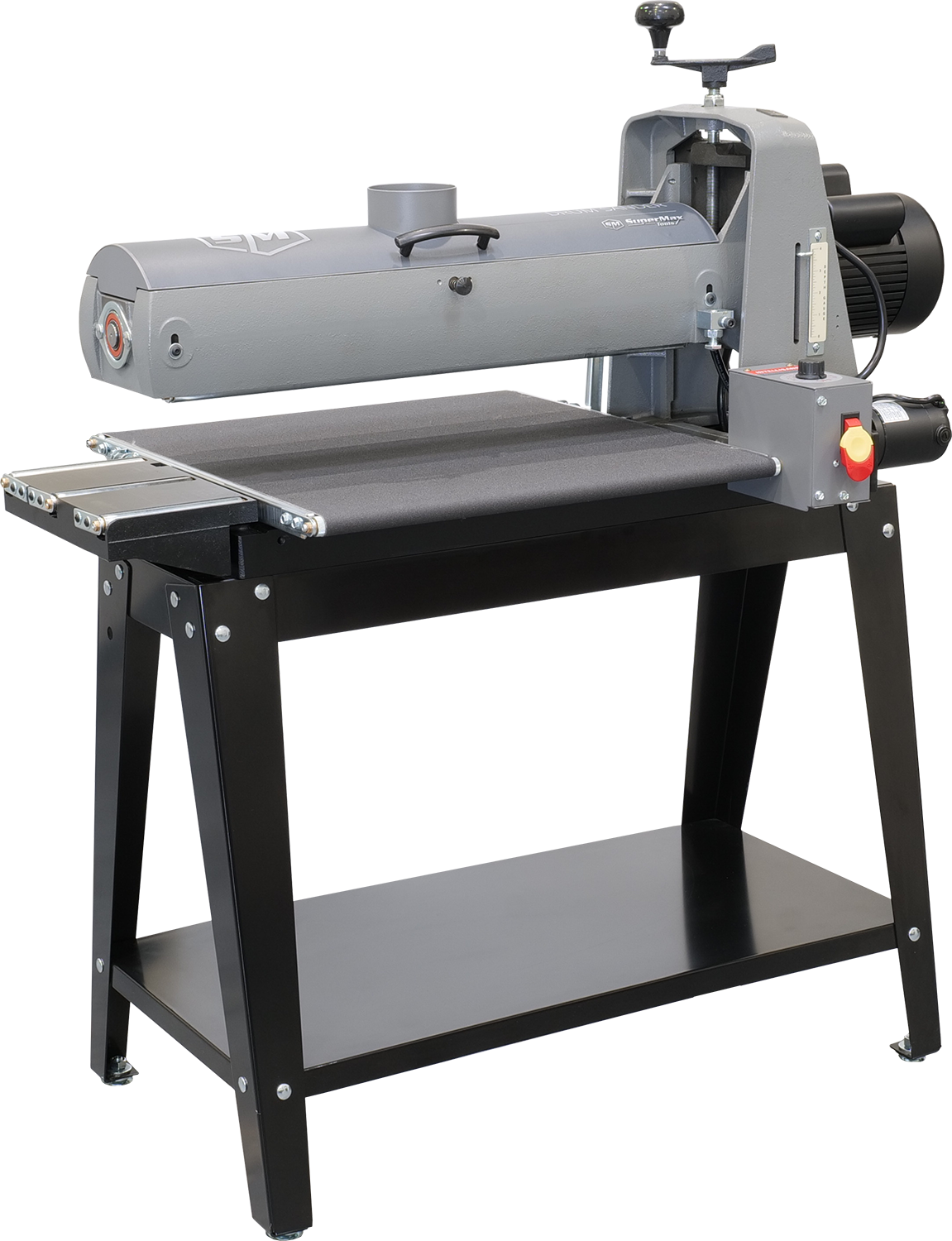

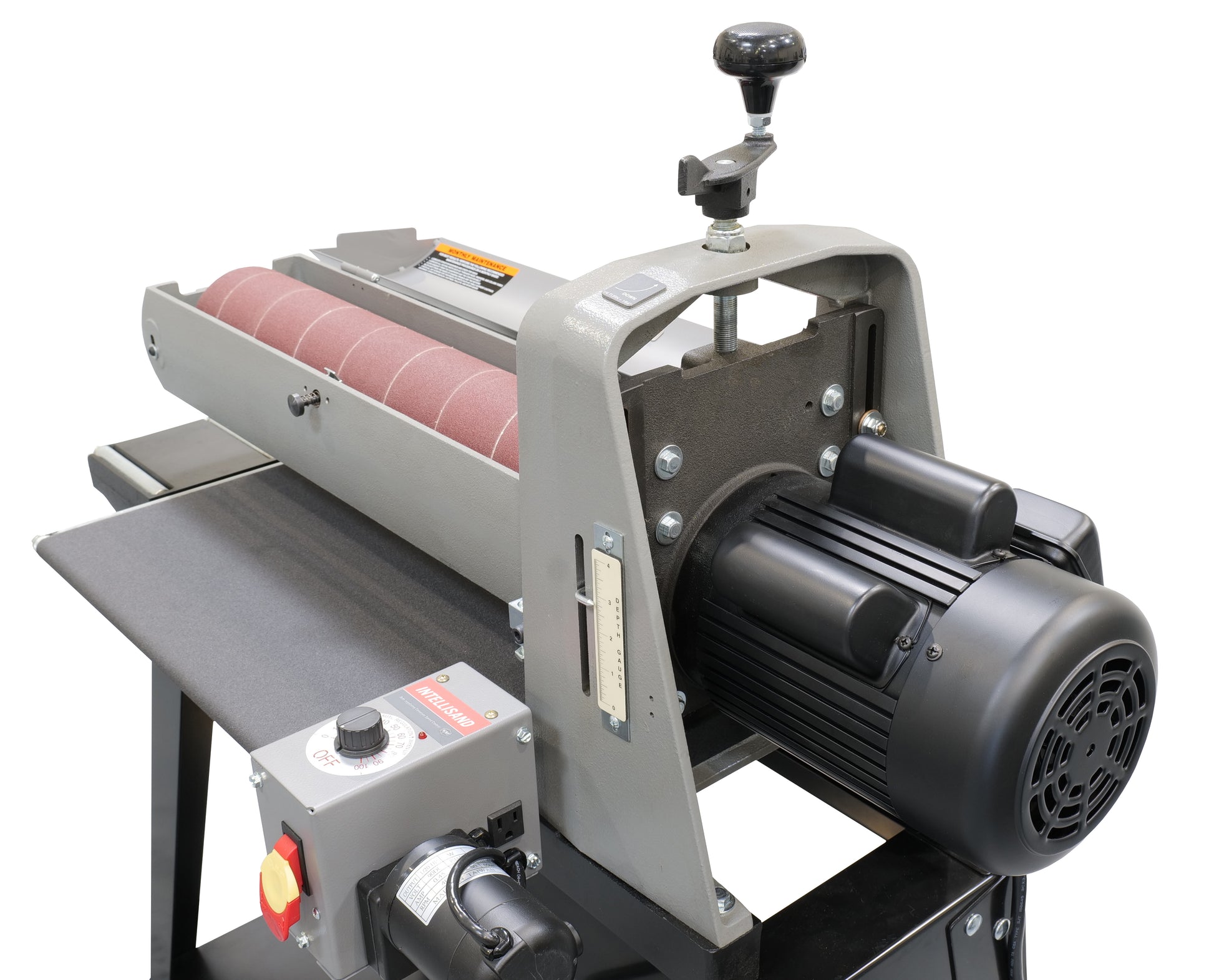

25-50 Drum Sander With Open Stand

25-50 Drum Sander With Open Stand

$2,204.10
$2,449.00 $2,204.10
Sale Sold out
Shipping calculated at checkout.

SKU: SUPMX-72550-OP

Laguna

Ships directly from manufacturer. Product generally ships in 7 - 21 days, but may be back ordered.
See our shipping policy for more details.

The SuperMax® 25-50 Drum Sander is the largest open-ended drum sander on the market. Sand 25″ in a single pass, and up to 50″ in a double pass. Expand the scope of projects you’re able to complete, while increasing speed and consistency in which you’re able to do them!

The drum is pre-wrapped with 80 grit sandpaper. Additional accessories and sandpaper are available for purchase.

Features

  • Simple Alignment Feature – Just one nut will adjust the conveyor to parallel the sanding head, making aligning the conveyor to the sanding head fast and easy

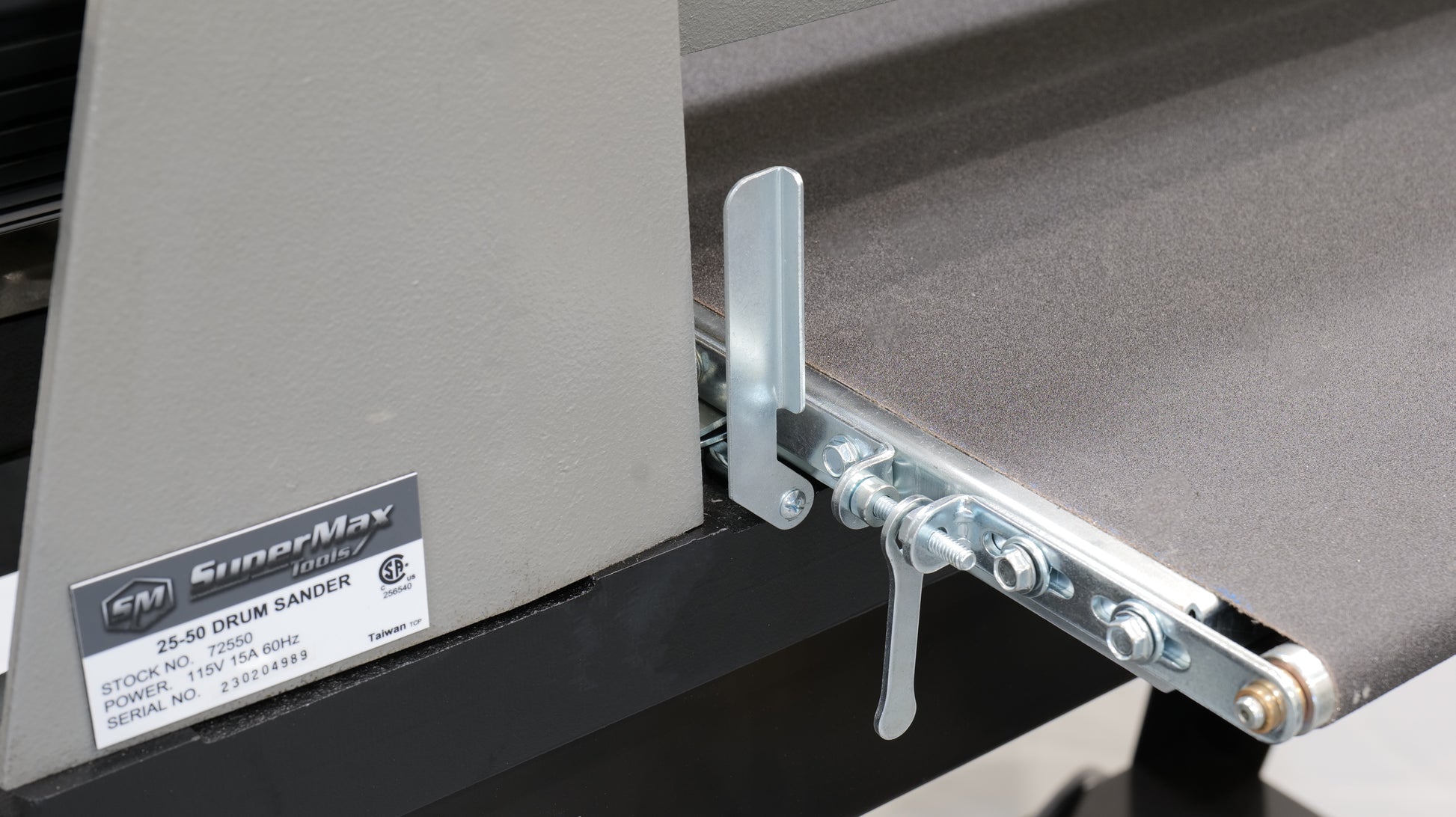

  • Indexed Alignment Setting – Has an indexed alignment setting for narrow and wide stock. When sanding stock wider than 25″, the index lever will properly adjust the conveyor for flawless wide sanding

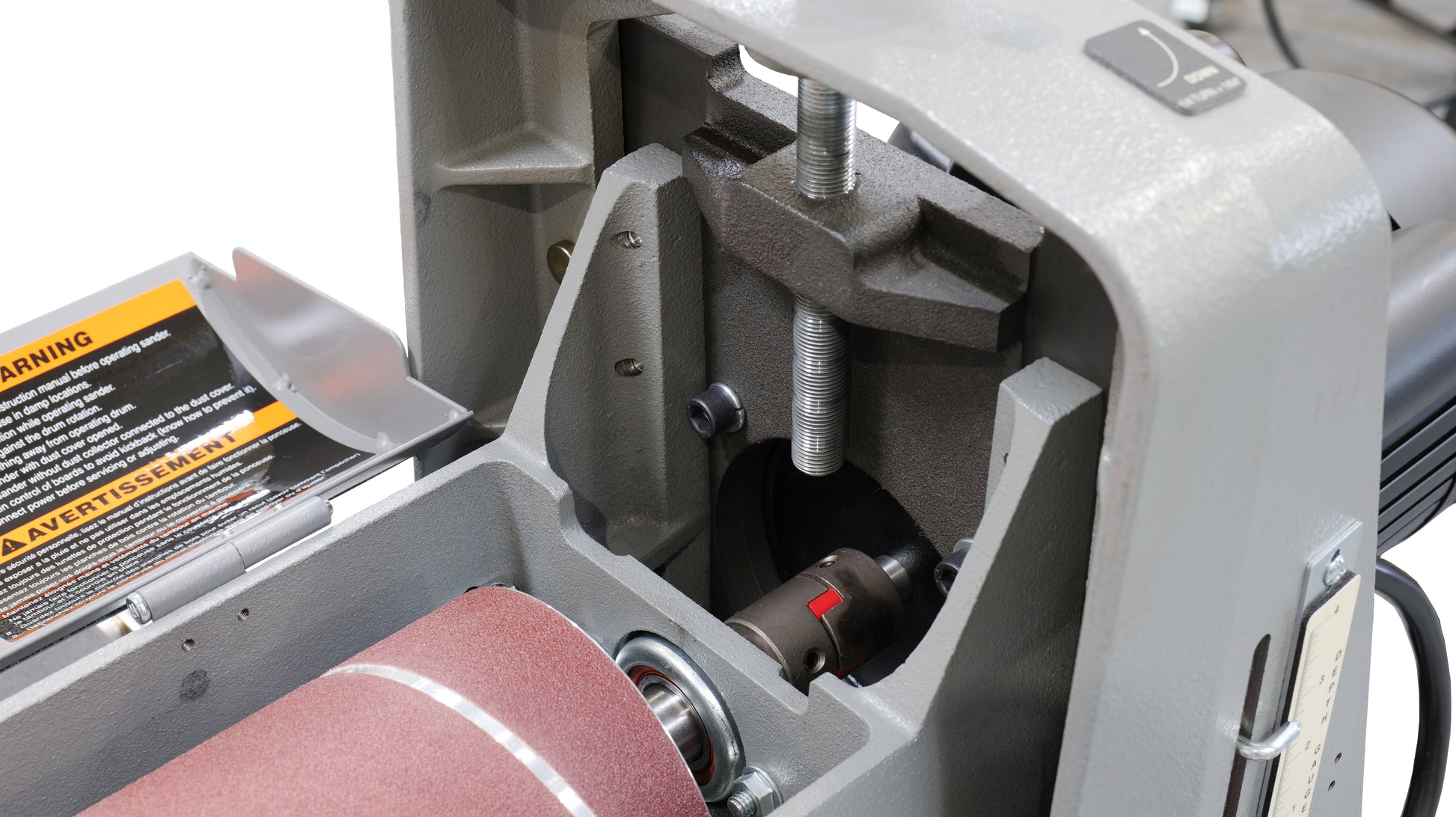

  • Drum Will Never Go “Out Of Alignment” – The drum carriage is bolted to the base, preventing any movement or alignment issues
  • 25″ Sanding In A Single Pass, 50″ In A Double Pass
  • More Room For Easy Access To Abrasives – No Special Tool Needed

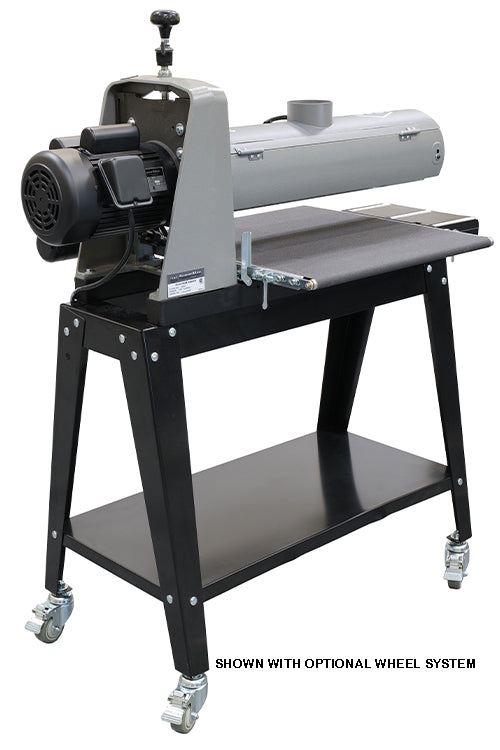

  • New Mobile Base Helps Stand And Machine To Move With Ease

Details

  • Maximum Sanding Width: 50″ (Two Passes)
    Minimum Sanding Length: 2-¼″

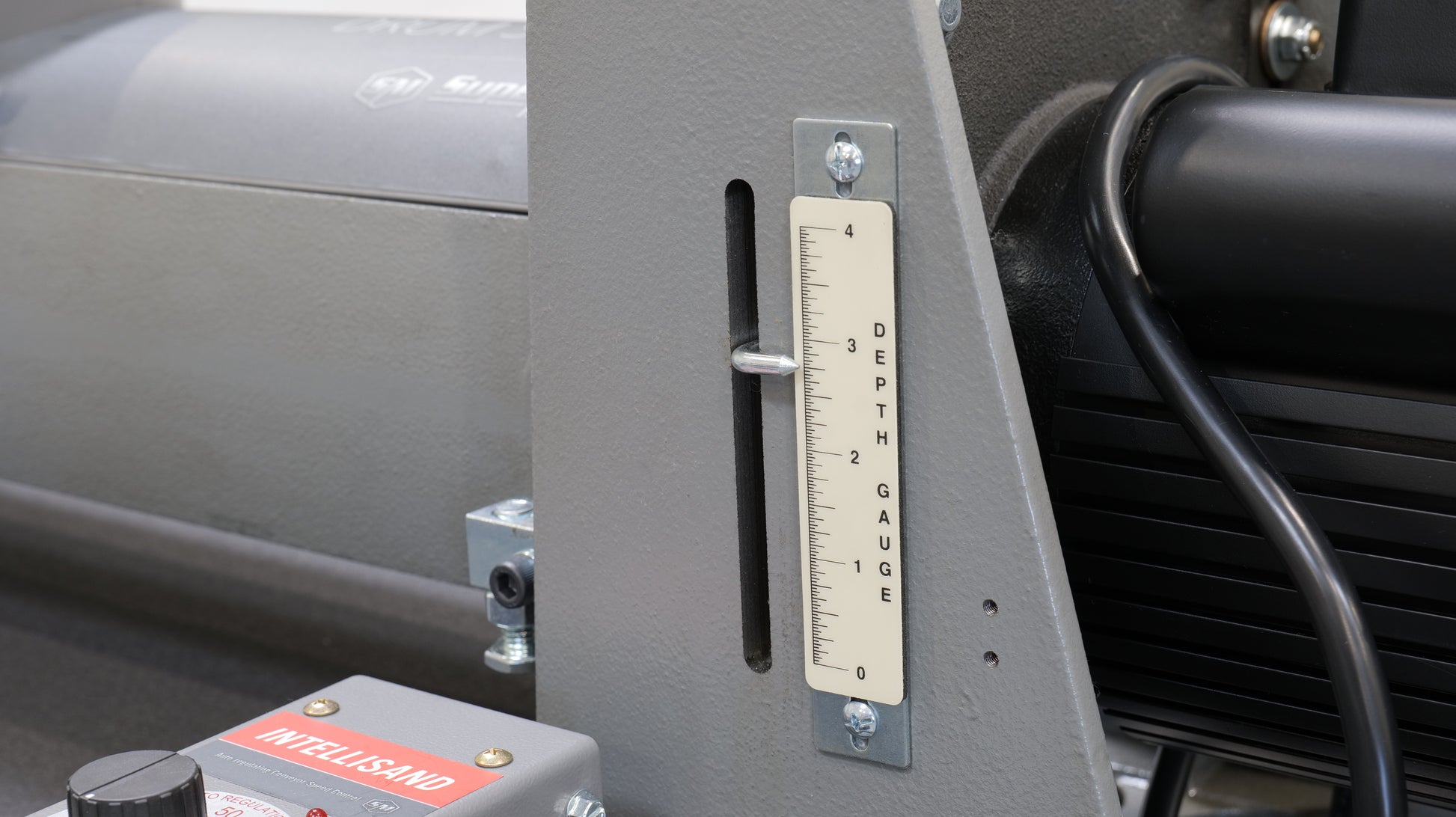

    Maximum Sanding Thickness: 4″
    Minimum Sanding Thickness: 1/32″
    Dimensions (D x W x H): 27″ x 46″ x 53″ (On Stand)
    Drum: 5″ x 25″ Extruded Aluminum
    Drum Speed: 1740 RPM
    Drum Speed: 1740 RPM
    Dust Hood: 1 – 4″ Vacuum Port, Min. 600 CFM Recommended

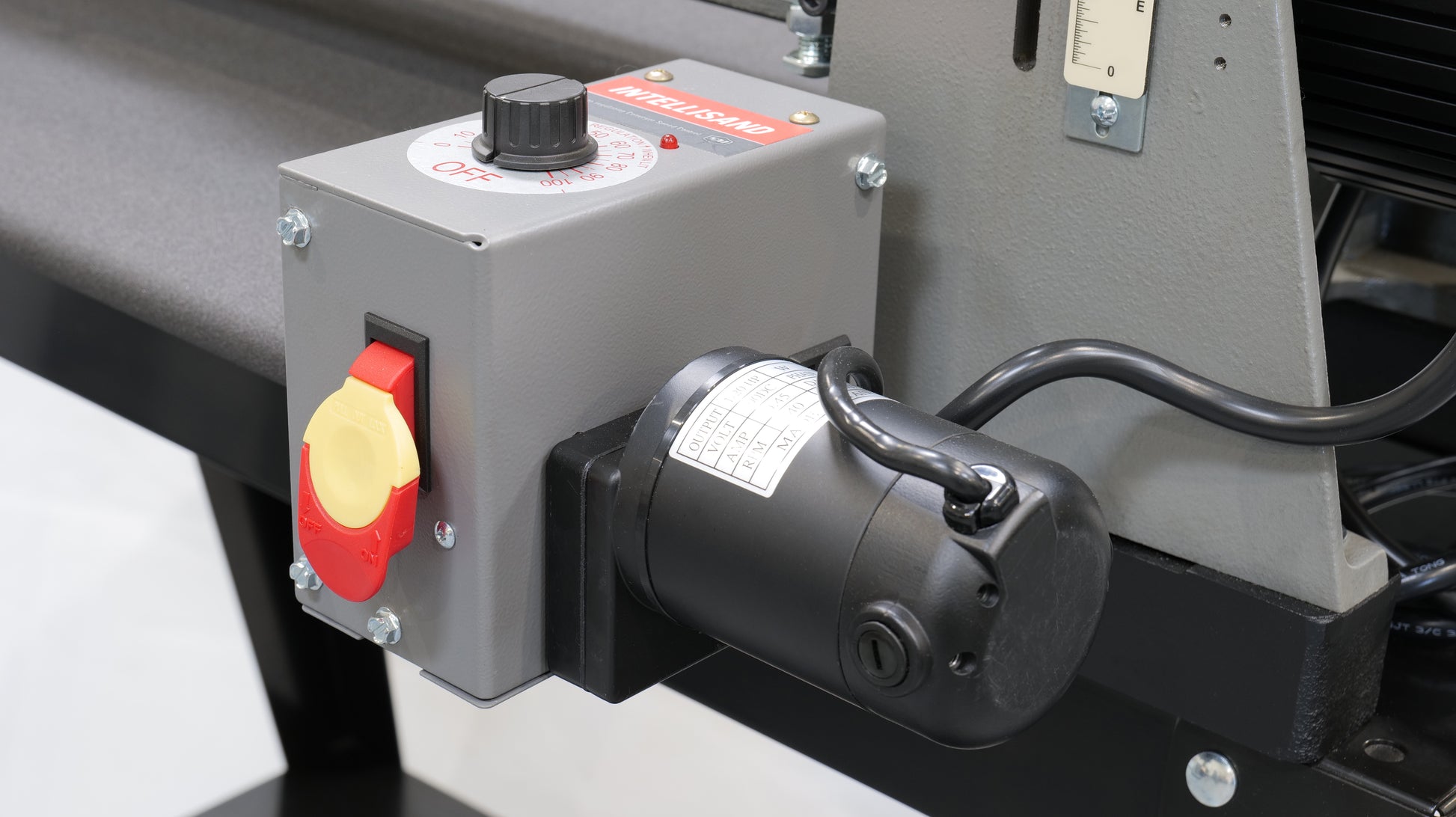

    Conveyor Motor: 43 in.-lb torque, direct drive D.C. motor, ranged variable 0-10 FPM

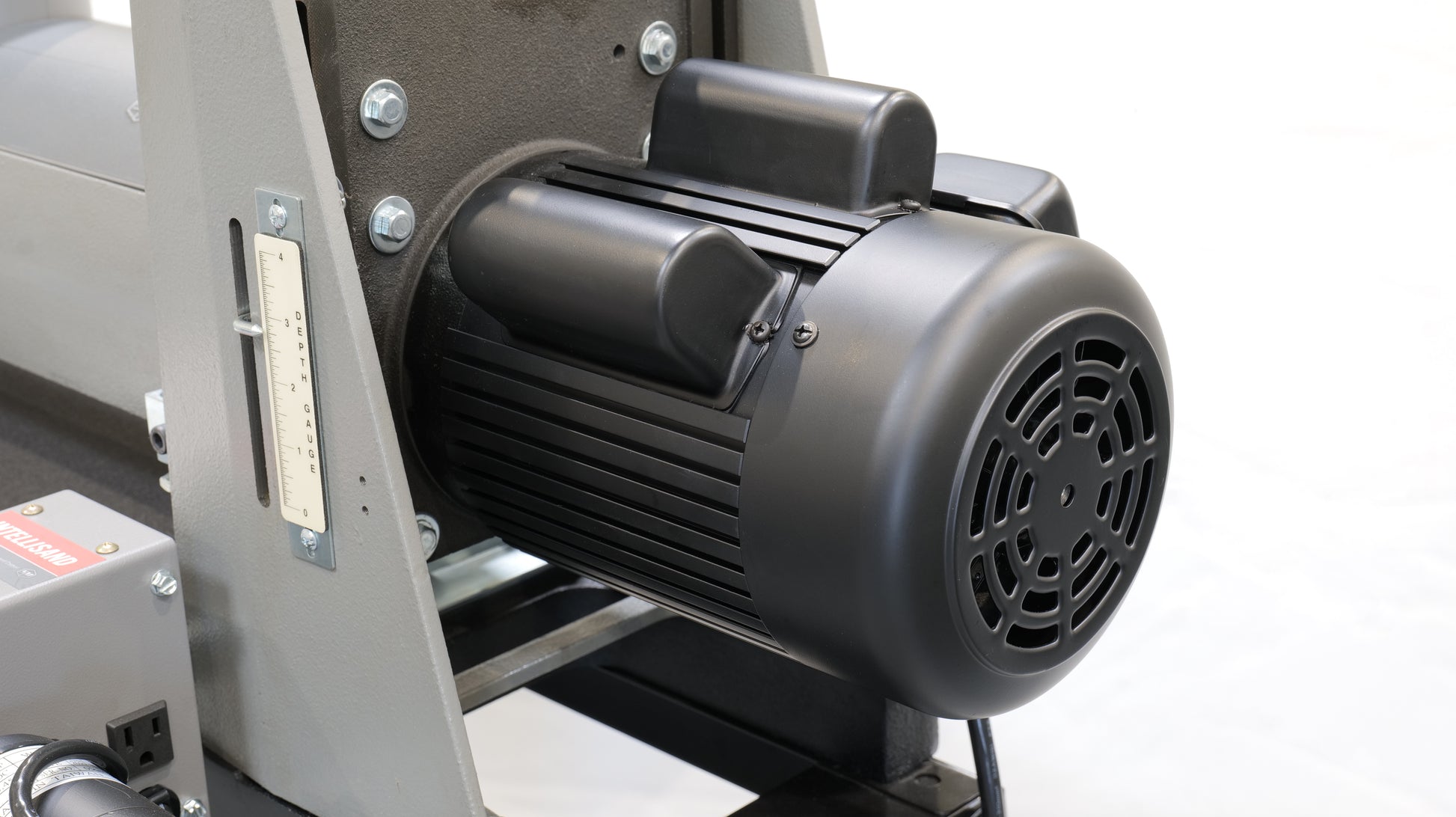

    Drive Motor (TEFC): 1-¾ HP
    Power Requirements: 110 V 20 amp
    Table Height (Floor To Top Of Table): 33″
    Shipping Weight (lbs): 369 (3 boxes including stand)
    Shipping Dimensions (L x W x H): 45″ x 16″ x 24″
    NEMA Plug:  5-15P

Additional Features

  • INTELLISAND® Technology: Automatically adjusts conveyor speed based on load
    • Prevents gouging, damaging or burning stock
    • Provides consistent finish even with varying grain pattern and density
    • Greatly increases abrasive planing and dimensioning speed
  • Flatness Guarantee: Precision-flattened steel conveyor bed reinforced with four steel cross sections for no “flex” in conveyor, guaranteeing flatness to less than .010″ across the width of the sander
  • Abrasive conveyor belt offers the best grip for raw wood, giving you the ability to accommodate stock that is much shorter or thinner
  • Patented abrasive attachment system effectively tensions the abrasive wraps, preventing loose abrasive and overlap
  • Easiest Access to abrasive fastening system of any drum sander! Extra wide space to access fasteners to eliminate need for special tools
  • Self-cooling drum prevents overheating and extends abrasive life
  • Tension rollers are adjustable in height and hold down pressure, eliminating snipe
  • Excellent dust extraction as dust cover is formed to shape of drum
    • Metal, not plastic, is formed to maximize air flow and dust extraction
  • Heavy-duty cast iron construction for strength, rigidity and reduced vibration
  • Mobile base allows for stand and machine to be to moved easily
