The NOVA 48306 LITE G3 Pen Turning Bundle includes the NOVA 48287 LITE G3 Direct Thread 1″ x 8 TPI chuck and is light weight, and with less overhang which is perfect for smaller lathe spindles. The small 1.79″ body length delivers less overhang from the spindle than the larger geared Chucks 4 Jaw self centering geared chuck, suitable for smaller lathes with up to 14″ swing. Fully featured chuck including Auto Stop, Copper composite Jaw Slides, Comfortable Sliding T Bar Handle and 2″ (50mm) Jaws. Powerful Tuff Lock gearing with precise, hardened action delivers incredibly smooth strength for a solid, vibration free performance.

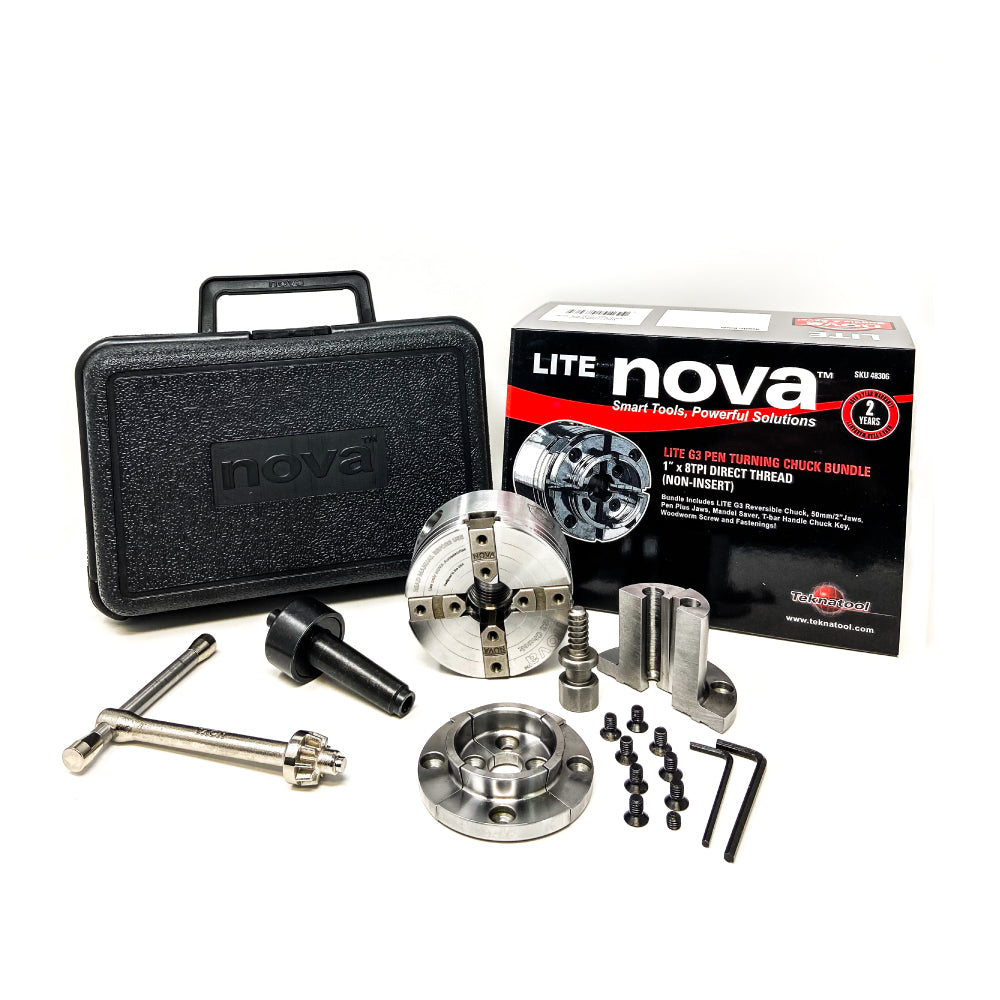

This bundle also includes, 50mm/2” Jaws, Pen Plus Jaws, Mandrel Saver, Sliding T-Bar Chuck Key Handle, Woodworm Screw and fastenings in a sturdy storage case with handle. WILL NOT ACCEPT CHUCK ADAPTOR. Will only accept NOVA Spindle Adaptors: SKU 9085 or SKU 9084
Warranty: 48306 = 6 Year Jaws and Accessories + 2 Year Chuck Full Replacement*
Inclusions: 48265 had a fixed position T Bar chuck key / 48306 now has an improved sliding T Bar chuck key to allow for easy scrolling when using NOVA Cole Jaws or other large protruding work.
*Warranty covers manufacture defects only
Includes 48287 LITE G3 Direct Thread 1” x 8TPI Reversible Chuck (does not accept inserts), 50mm/2” Jaws, Pen Plus Jaws, Mandrel Saver, Adjustable T-Bar Chuck Key Handle, Woodworm Screw and fastenings in a sturdy storage case with handle.
Direct Thread 1”x 8TPI RH (does not accept inserts).
Up to 350mm/14” diameter bowls using 50mm/2” Jaws.
Up to 50mm/2” length spigots using 50mm/2” Jaws. Using the Pen Plus Jaws may change the specifications.
Precision machined from single solid steel billet for maximum performance.
High Tech Precision Composite Jaw Slides.
Special NOVA Woodturning Dovetail Profile on Jaws.
Auto Safety Stop Feature. Jaw slides can’t protrude past the chuck body.
Small, Compact Design. Minimizes load on small spindles and bearings.
Open back for easy cleaning.
Powerful Geared Grip with Tuff Lock Technology. Precise, hardened geared action delivers incredible smooth strength. Solid, vibration free.
Single Handed Operation. Chuck key has fast, positive location, easy and comfortable to use. More time spent turning and less time spent preparing.
Able to take most NOVA accessories jaws.*
Comprehensive Instructions.
Warranty: 6 Year Jaws + 2 Year Chuck, Accessories and Inclusions Full Replacement*
Packaged dimensions: 9.5″ x 3.5″ x 6.5″/24.1cm x 7.6cm x 16.5cm
Packaged weight: 6lbs/2.7kg
IMPORTANT NOTICE
Safety Advisory! Only use authentic NOVA accessories on your NOVA chuck. Using non genuine NOVA and copies of accessories could lead to operation and safety issues and will void our warranty. NOVA accessories are designed for use only on NOVA Chucks. Do not use on any other chuck.
